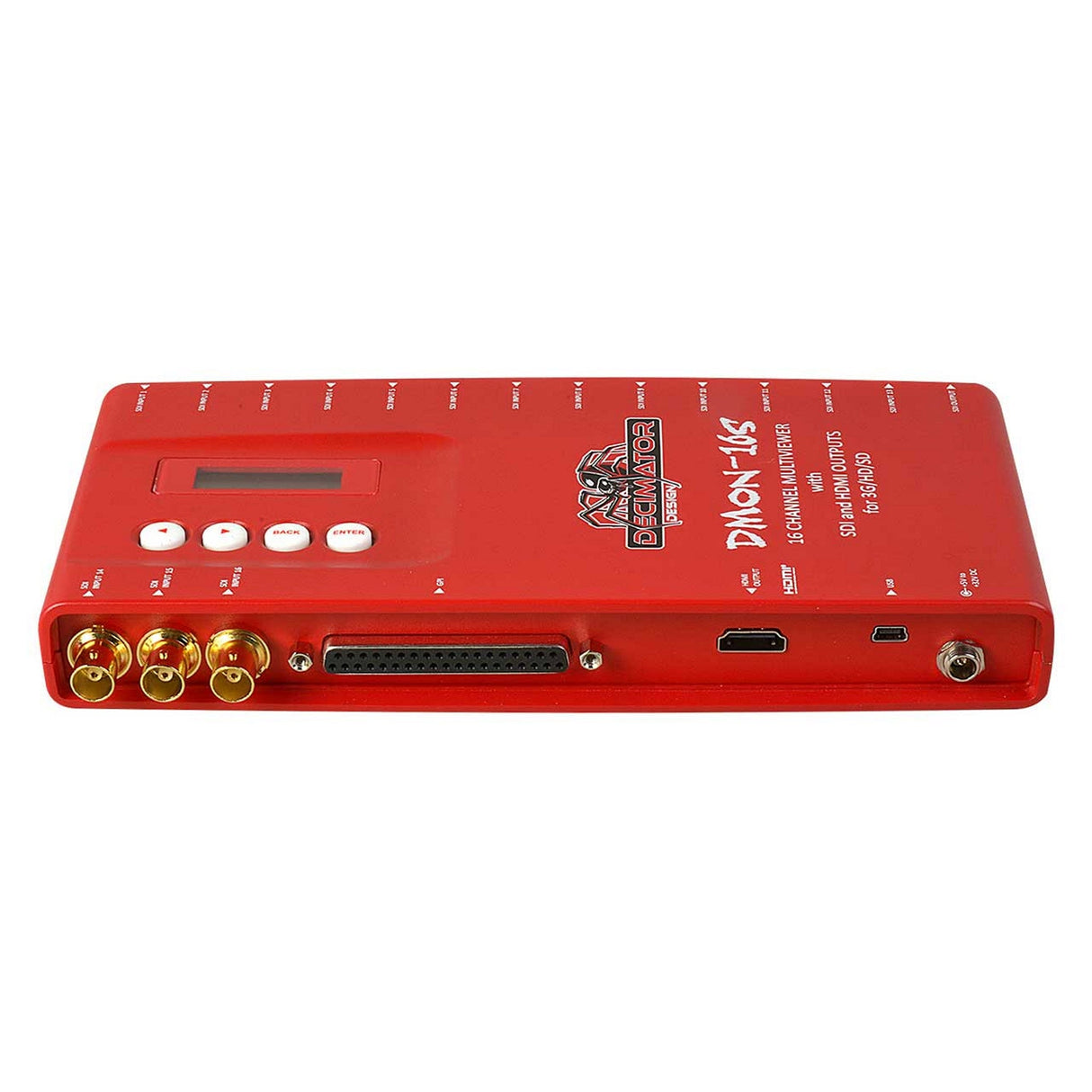

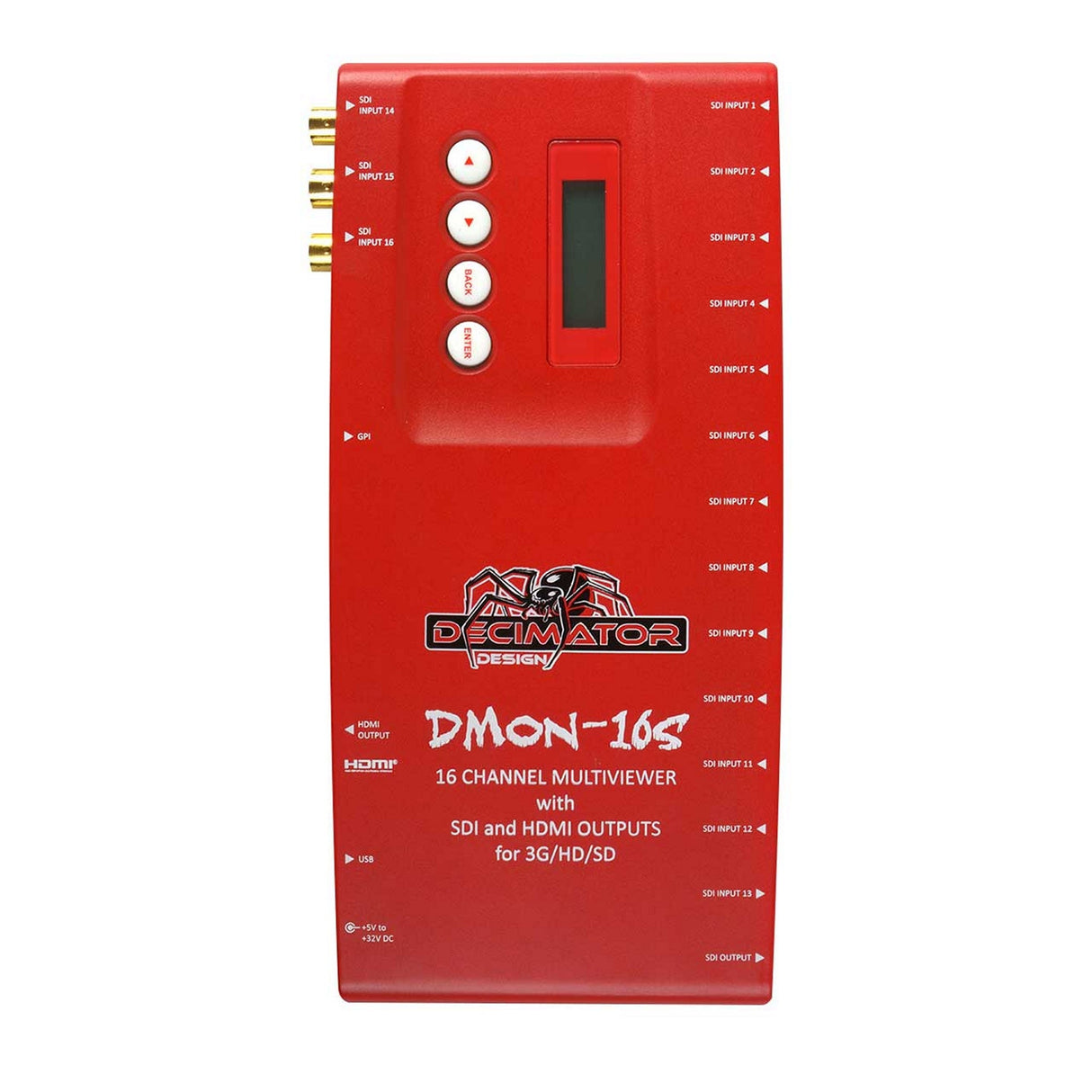

Decimator Design DMON-16S 3G HD SD Quad Split Multiviewer with HDMI

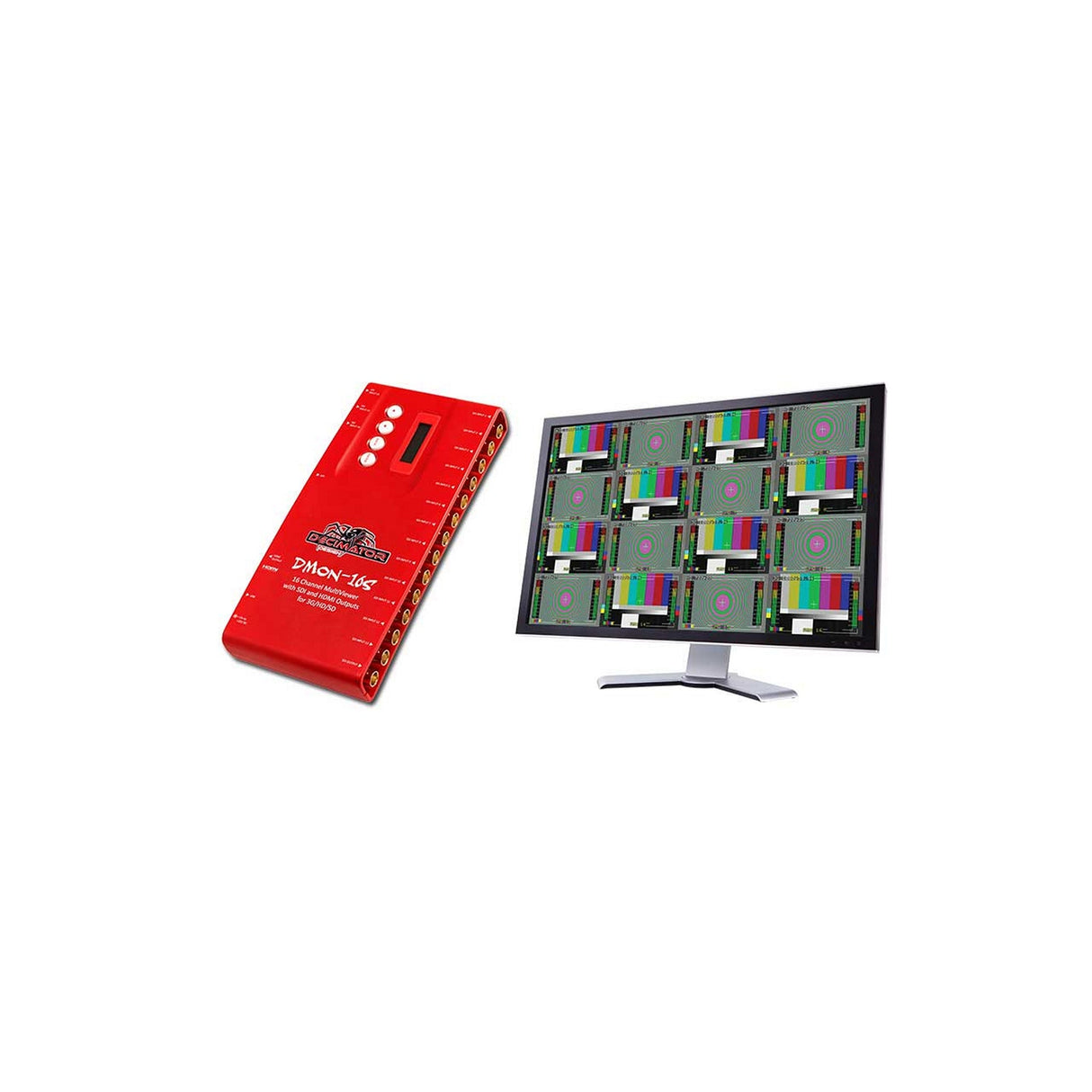

The Decimator Design DMON-16S is a low cost miniature (3G/HD/SD)-SDI 1 to 16 Channel Multi-Viewer or 16 to 1 input multiplexer with SDI and HDMI outputs for 3G/HD/SD and Custom Layouts, UMDs, Audio Meters, Graticules and Tallies.

The DMON-16S is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.

New UCP (USB Control Panel) Version 2.0.6 Released for both the Mac OS X and Windows 32/64-bit: Support added for 3G level B. The 3G output level of either A or B, can be selected on units with SDI outputs. This allows for easy conversion between 3G level A or B.

Key Features

• Custom Layouts with various standard layouts
• 16 Character UMD overlay per window with individual enables, custom positioning and size
• 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
• Safe Action and Safe Title overlay per window with individual enables and adjustment
• Centre Cross overlay per window with individual enable
• Audio ID overlay
• Tallies can be applied to either Tally Boxes (Default), Outside Safe Action Area or Border
• Tally boxes allows for up to 4 Tallies per window
• Fast switching between inputs using Full-Screen scaling
• Selectable output format in both Full-Screen and Multi-Viewer mode
• Low latency buffering for each input allowing non-synchronous inputs
• Linked (3G/HD/SD)-SDI and HDMI outputs
• 16 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
• Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
• Variable aspect ratios per window
• In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs

Technical Specifications

SDI INPUT FORMATS
3G:SMPTE 424M@2.97 and 2.967Gb/s
1080p@60/59.94/50Hz
HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
1080i@60/59.94/50Hz
1080p/psf@30/29.97/25/24/23.98Hz
720p@60/59.94/50/30/29.97/25/24/23.98Hz; SD:SMPTE 259M@270Mb/s
625i50
525i59.94
HDMI OUTPUT FORMATS
1080p@60/59.94/50Hz
1080i@60/59.94/50Hz
1080p@30/29.97/25/24/23.98Hz
720p@60/59.94/50/30/29.97/25
625i50
525i59.94
POWER
+5V to +32V DC
Positive Centre Pin
LCD / BUTTON MENU OPTIONS
HDMI output type
Output Select
Multi-Viewer Output Format
Multi-Viewer Number of Windows
Multi-Viewer Layout
Multi-Viewer Audio Source
Multi-Viewer Reference
Full Screen is Scaled
Input Routing
Setup
INPUTS
16 x (3G/HD/SD)-SDI
Input Equalization > 100M using Belden 1694A
USB for control and updates
OUTPUTS
HDMI Type A
DIMENSIONS
220mm x 103.7mm x 29.5mm (8.7" x 4.1" x 1.2")
