Delvcam  |  SKU: DELV-MNTR-DELV8LCDSDI

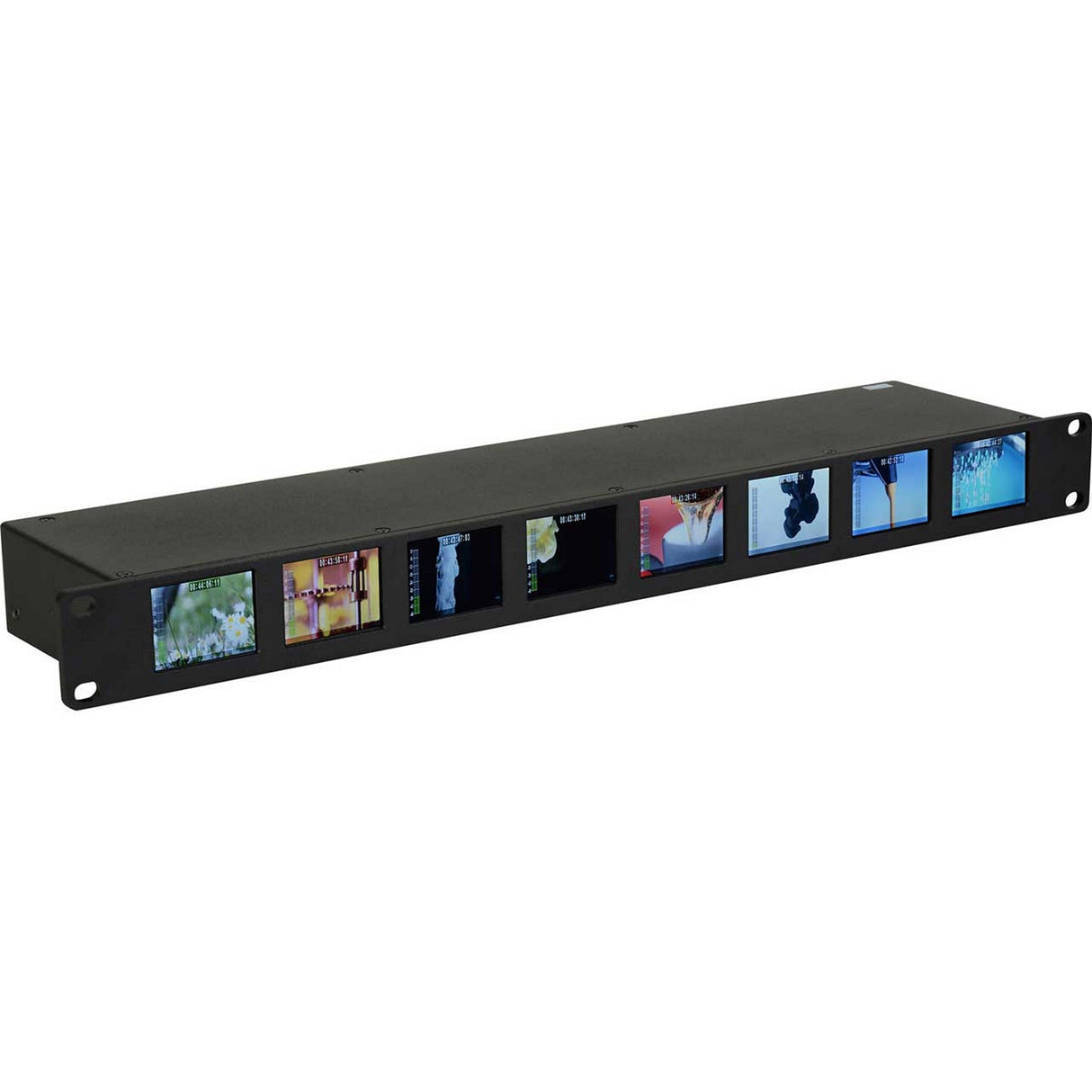

Delvcam DELV-8LCD-SDI | OctoMon 3G-SDI 8 Panel LCD Monitor

$1,89995
🚚 Order within the next 2 hours, 15 minutes for delivery by 21 May, 2024.

Condition: New



Description

Delvcam DELV-8LCD-SDI OctoMon 3G-SDI 8 Panel LCD Monitor

Monitor up to eight 3G-SDI channels at once with the DELV-8LCD-SDI OctoMon. Each 2-Inch monitor is a LED backlit LCD that supports resolutions up to 1920 x 1080 with a 4:3 aspect format. Monitors have a looping output, on-screen audio metering and timecode functionality making them an ideal choice for rackmounting in a production truck, ENG van or anywhere space savings is paramount. Functions for each monitor in the DELV-8LCD-SDI can be controlled through rear DIP switch activation or via RS422 Ethernet & GUI interface via PC.

Key Features

  • 8 2-inch LED backlit LCD monitors
  • Supports 3G-SDI
  • Looping Outputs
  • Embedded Audio Meters
  • Equalization & Reclocking
  • UMD 32 Half-Width Character Function
  • RS422 Input Computer Interface
  • Metal Enclosure

Technical Specifications

Screen
2" LCD
Resolution
640 x 240, supports up to 1920x1080
Brightness
250cd/m2
Aspect Ratio
4:3
Contrast
300:1
Viewing Angles
80 deg H / 70 deg V
Input
1 - RS422 Remote Control
Each Screen
Input: 3G-SDI & Output: 3G-SDI
Power
2.5A/15VDC
Input Voltage
12-24VDC
Power Consumption
23W
Dimensions
19 x 4.13 x 1.73 in / 482.5 x 105 x 44mm
Weight
3.43 lb / 1.55 kg
