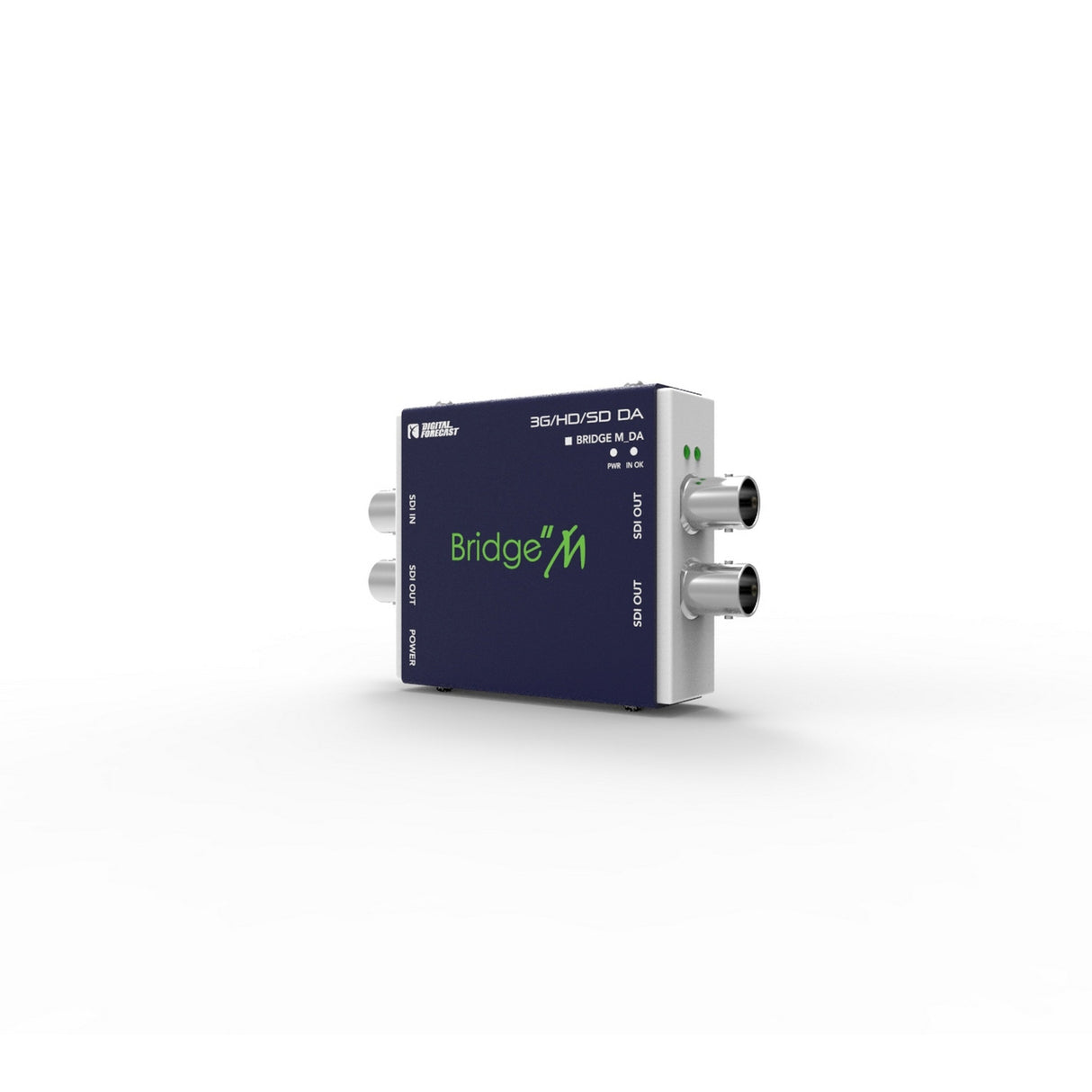

Digital Forecast M-DA 3G/HD/SD SDI Reclocking Video Distribution Amplifier, 1 x 3
The M-DA is part of the Digital Forecast Bridge M Series (Micro Type Converters) and is a Serial Digital video distribution amplifier that allows you take a single SDI signal and send it out to up to three devices. SD, HD, and 3G-SDI standards are supported. The M-DA distributes SDI SMPTE standard signals supporting formats up to 1080p60. There is a built-in re-clocker and cable equalizer - ensuring accuracy up to 100m/328ft in HD.
Key Features
- HD/SDI distribution amplifier
- Inside cable equalizer & re-clocker
- Up to 100m (HD grade) , Up to 60m (3G grade)
- 1 HD/SDI input ( SD/HD/3G all standard format )
- 3 HD-SDI out ( SD/HD/3G all standard format )
- DC 5V ~ 24V wide operating range
Technical Specifications
Physical
Dimension (H x W x D): 68 x 59.2 x 20 mm (2.7" x 2.3" x 1")
Weight: 90g (3.2 oz)
Power Level: +12 VDC
Power Consumption: 3.0Watts (Max : 4Watts)
Operating Temperature: -20° ~ 70°
Humidity: 0 to 95% RH, non-condensing
Data Rate: 3 Gbps
Signal Level: 800mVp-p +/- 50m
Digital Video Specs
Supports multi-rate SDI formats
SMPTE 125M: NTSC (480i 59.94), PAL (576i 50)
SMPTE 296M: 720p (60/59.94/50)
SMPTE-274M,SMPTE-292M: 1080i (60/59.94/50) 1080p (30/29.97/25/24/23.98)
SMPTE-424M: 1080p (60/59.94) 3G
