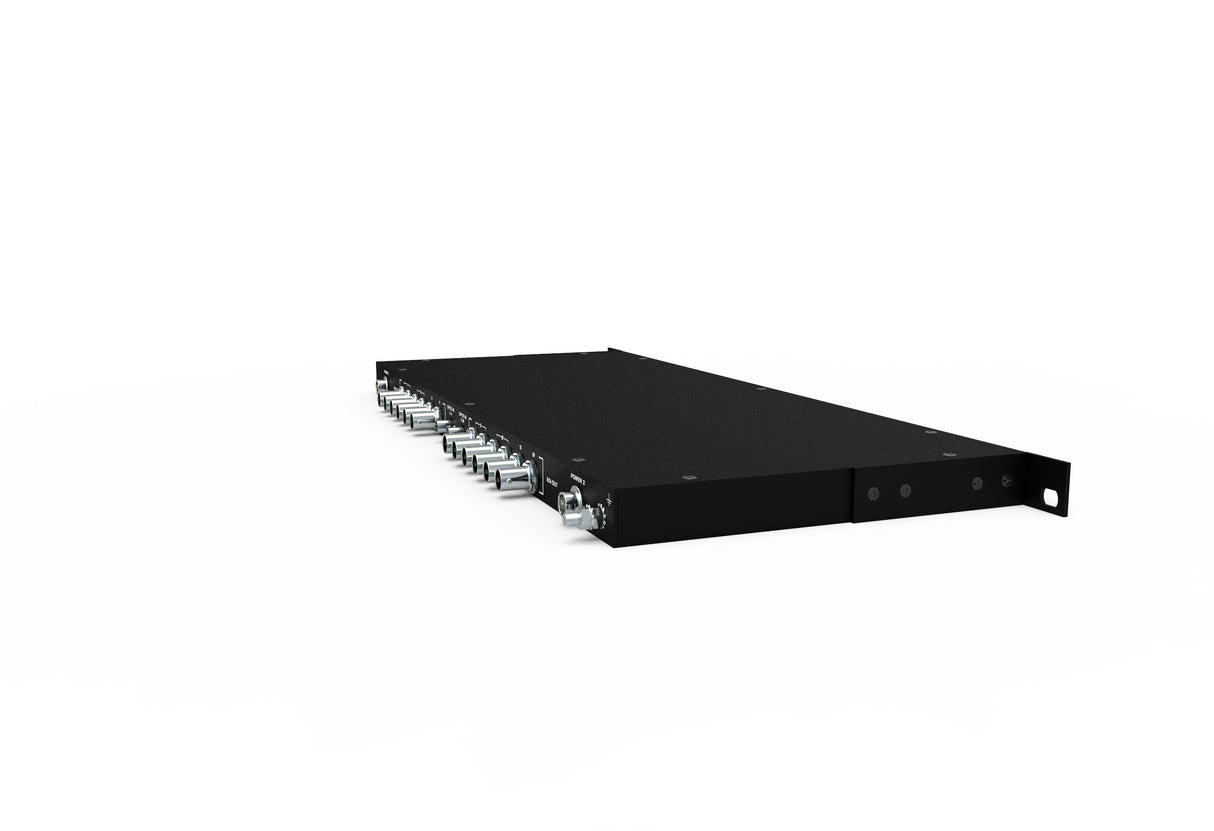

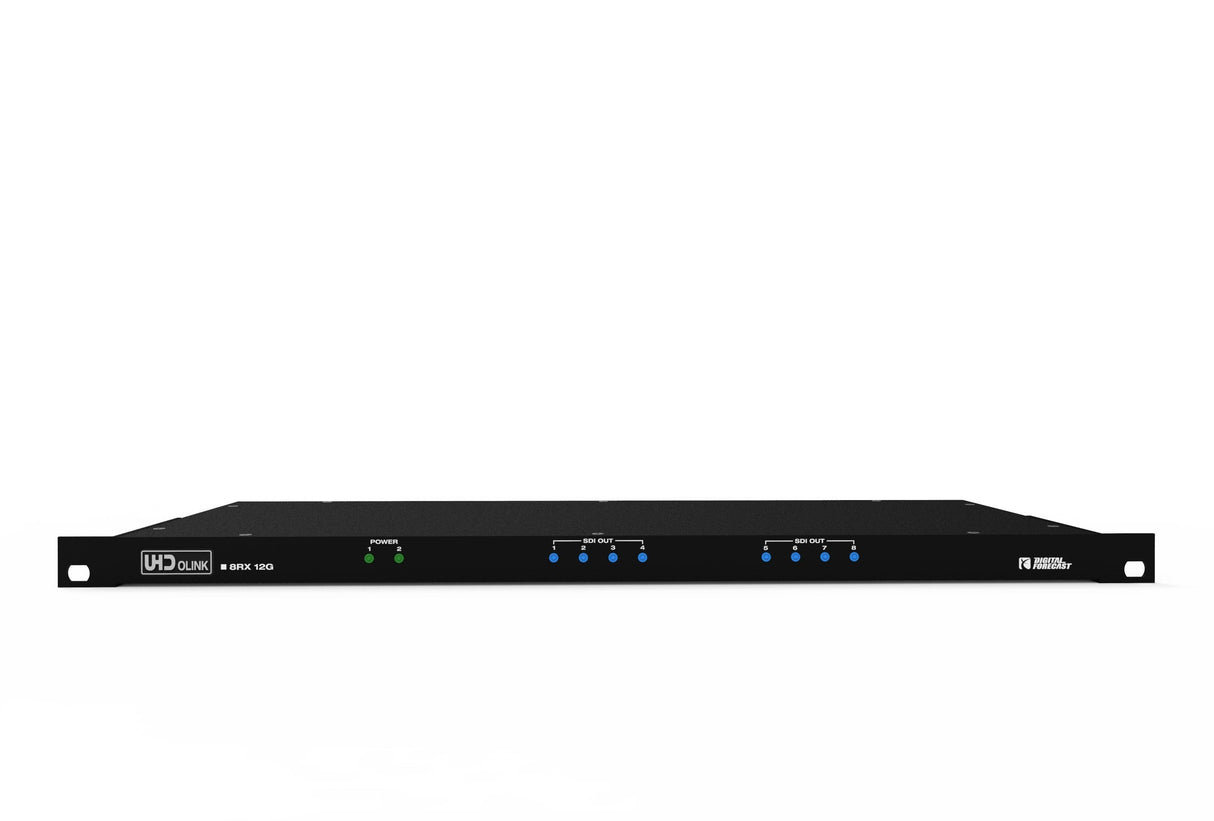

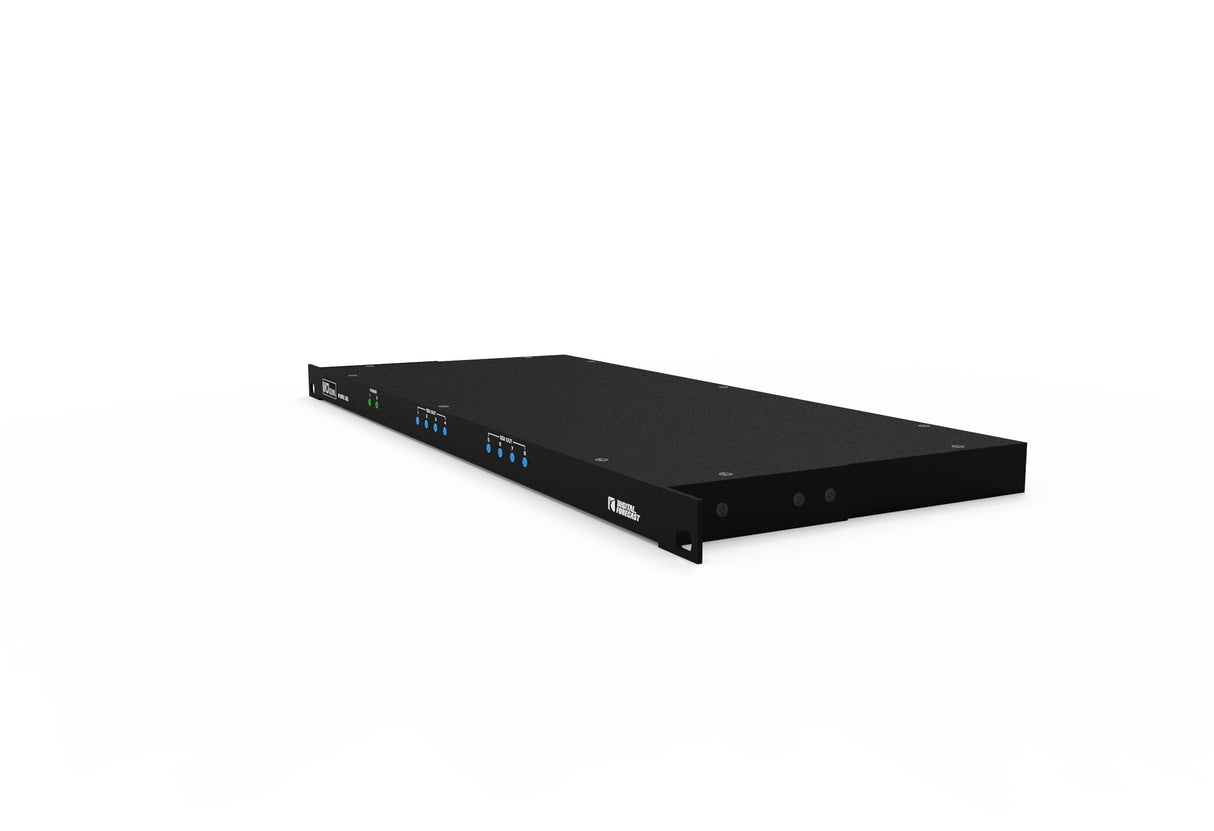

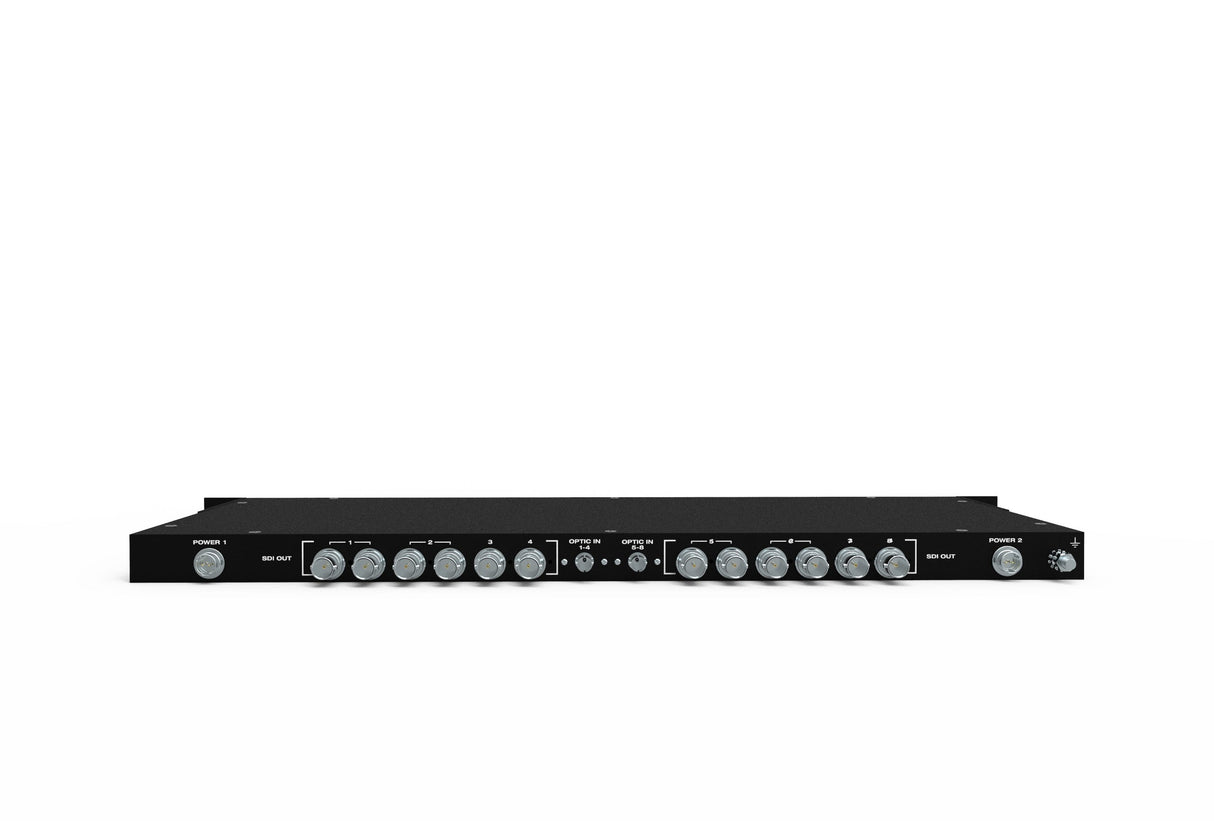

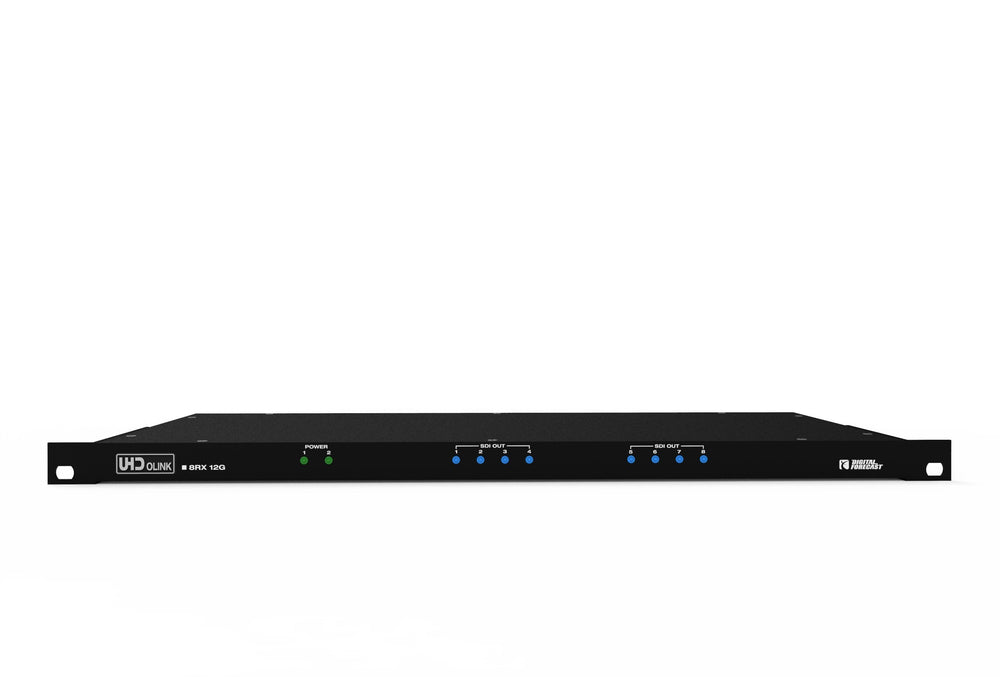

Digital Forecast OLINK 8RX 12G Rack-Type 12G Fiber Receiver

The Bridge UHD OLINK 8RX 12G system is an advanced rack-mountable solution designed to convert 8 Channel SDI signals into optical signals, facilitating seamless and reliable transmission over long distances. This unidirectional system is engineered to handle 8 channels of SDI signals simultaneously, making it an ideal choice for environments requiring high-performance data transfer. With its compact design, the UHD OLINK 8RX ensures efficient use of space while delivering top-notch performance in transmitting large volumes of 12G SDI signals.

Engineered for flexibility and durability, the UHD OLINK 8RX system supports a wide range of SDI formats including SD, HD, 3G, 6G, and 12G, allowing for versatile application across different broadcast and production settings. It enables signal transmission over distances of up to 10 kilometers using dual-core technology, ensuring reliable connectivity even in extensive setups. The use of dual single-mode cables with ST type optical connectors further enhances signal integrity and reduces potential interference.

Key Features

• Standard SDI formats supported: SD, HD, 3G, 6G, 12G
• Uni-directional Receiver 8RX model
• Signal transmission capability up to 10 kilometers with dual-core technology
• Dual single-mode cable support with ST type optical connectors
• +12V Dual Power supply for enhanced reliability

Technical Specifications

• Operating Environment: Designed for use in various environments with temperature and humidity tolerances
• Power Level: +7V to +16V DC
• Power Consumption: 12 Watts (Maximum 15 Watts)
• Operating Temperature: 0°C to 55°C
• Humidity: 0% to 95% RH, Non-condensing
• Data Rate: 12G
• Signal Level: 800mVp-p ± 80mV
