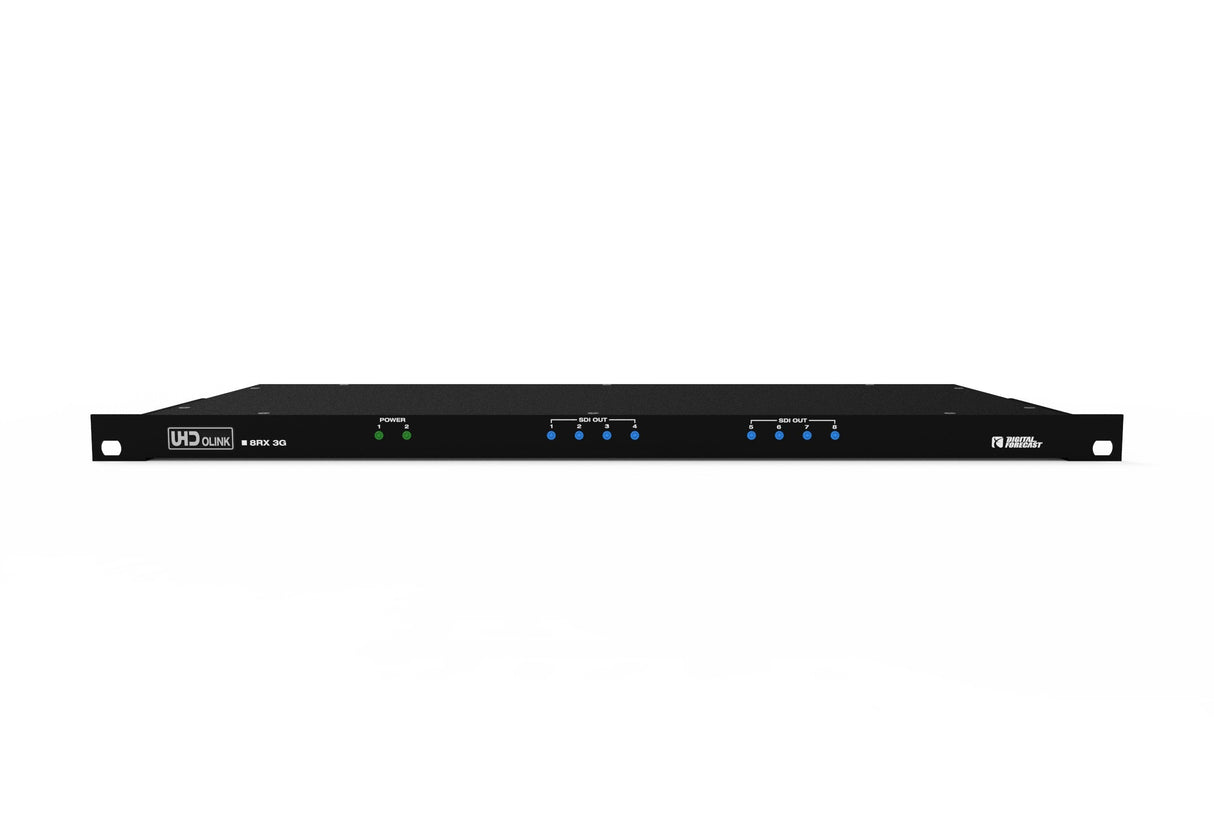

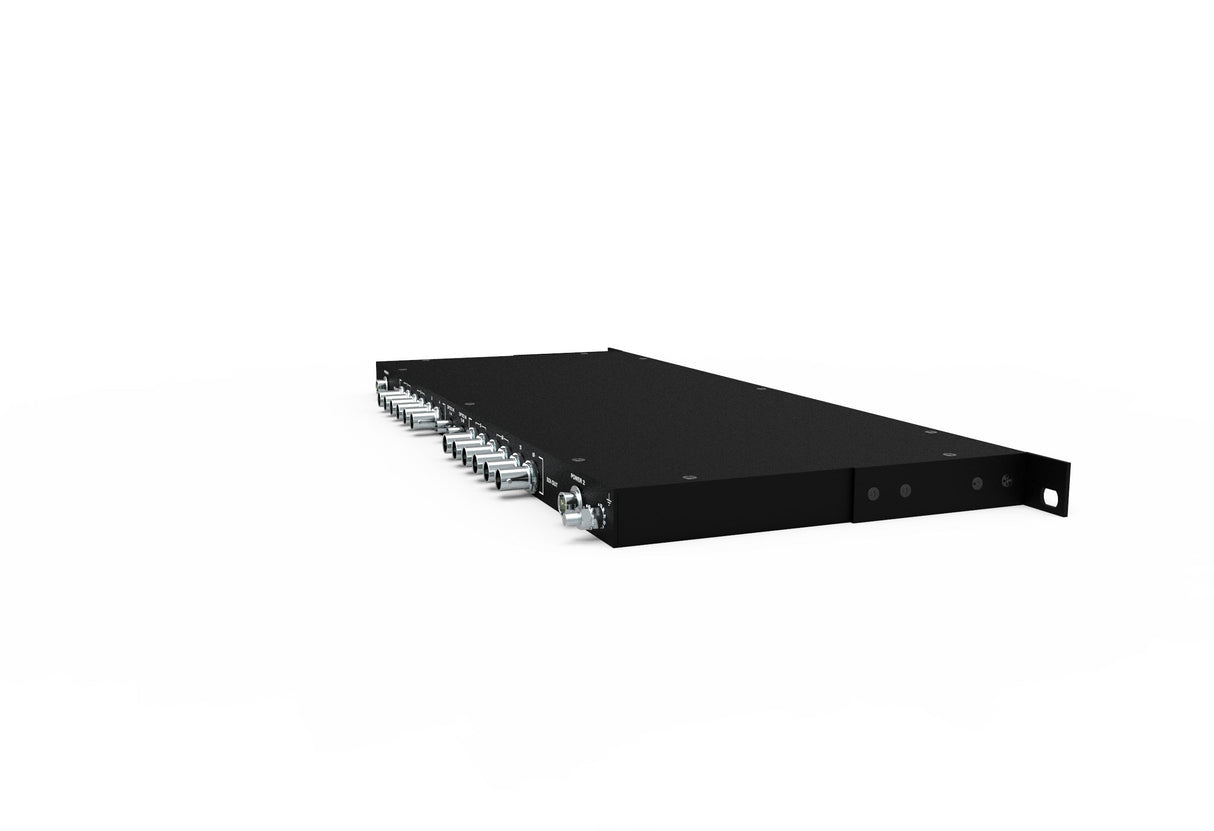

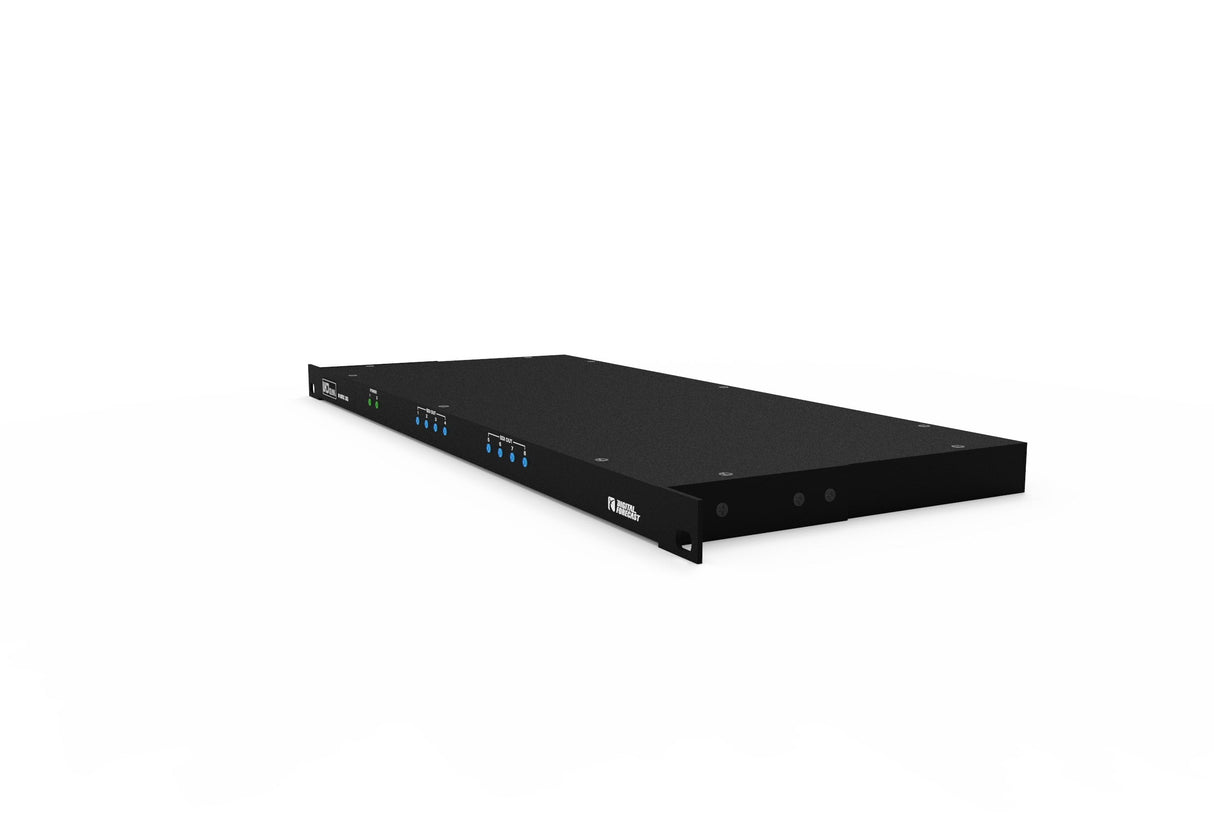

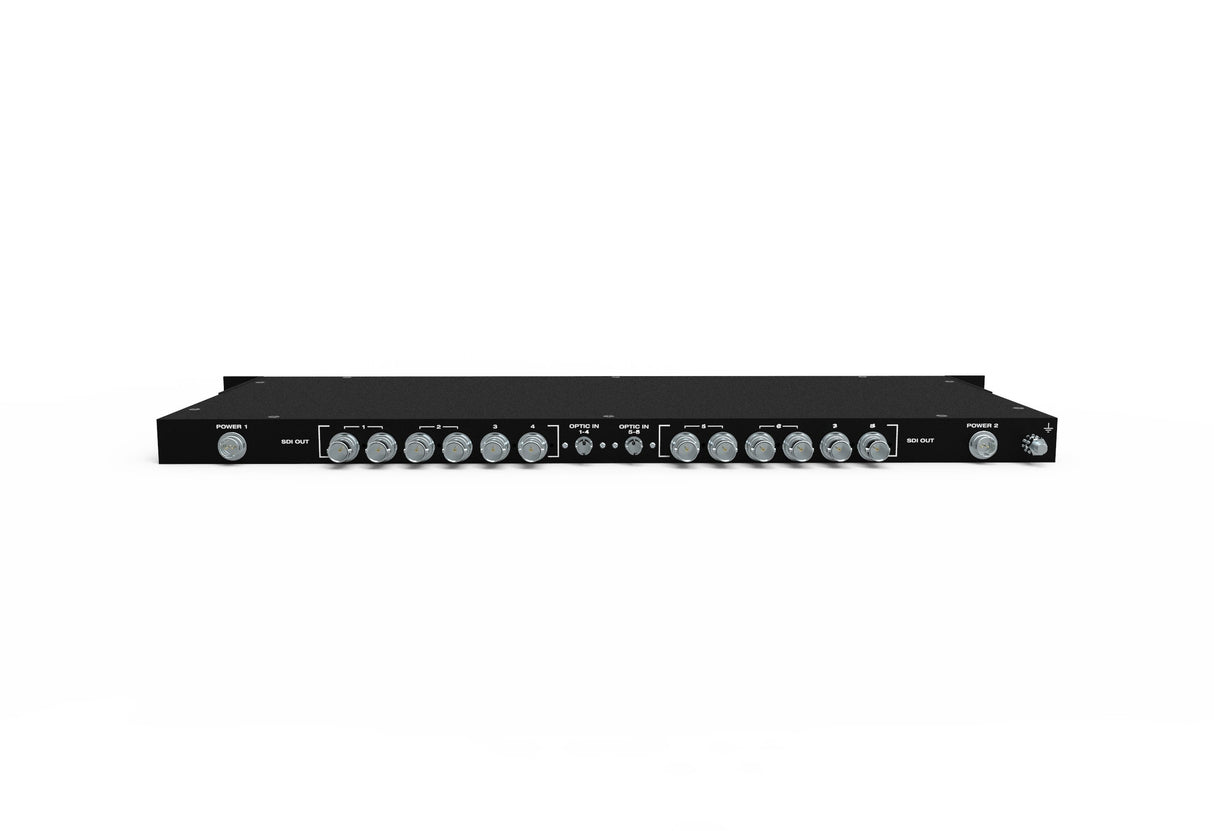

Digital Forecast OLINK 8RX 3G Rack-Type 3G Fiber Receiver

The Bridge UHD OLINK 8RX 3G system is a cutting-edge rack-mount solution designed for high-efficiency conversion and transmission of 8 Channel SDI signals into optical signals. This advanced system is engineered to support the demanding needs of professional broadcast and production environments, providing a reliable means for long-distance signal transmission. With its unidirectional capability, the UHD OLINK 8RX 3G system is perfect for transmitting SDI signals over extensive distances, ensuring that your video signals remain clear and stable.

Designed to handle up to 8 simultaneous SDI signal channels, the UHD OLINK 8RX 3G system offers exceptional flexibility and performance. Its compact form factor makes it suitable for a variety of setups, whether in a studio, control room, or outside broadcast. The system's robust build and advanced optical technology guarantee that you can maintain high-quality signal integrity over long distances, making it an essential component for any high-definition video transmission setup.

Key Features

• Supports Standard SDI formats including SD, HD, and 3G
• Unidirectional Receiver with 8RX capability for simultaneous signal reception
• Signal transmission range up to 10 kilometers using dual-core optical cables
• Utilizes dual single-mode cables with ST type optical connectors
• Powered by +12V Dual Power for reliable operation

Technical Specifications

• Operating Environment: Suitable for various environments with stable operation in a range of conditions
• Power Level: +7V to +16V DC
• Power Consumption: 12 Watts (Maximum 15 Watts)
• Operating Temperature: 0°C to 55°C
• Humidity: 0% to 95% Relative Humidity, Non-condensing
• Data Rate: 3G
• Signal Level: 800mVp-p +/- 80mV
