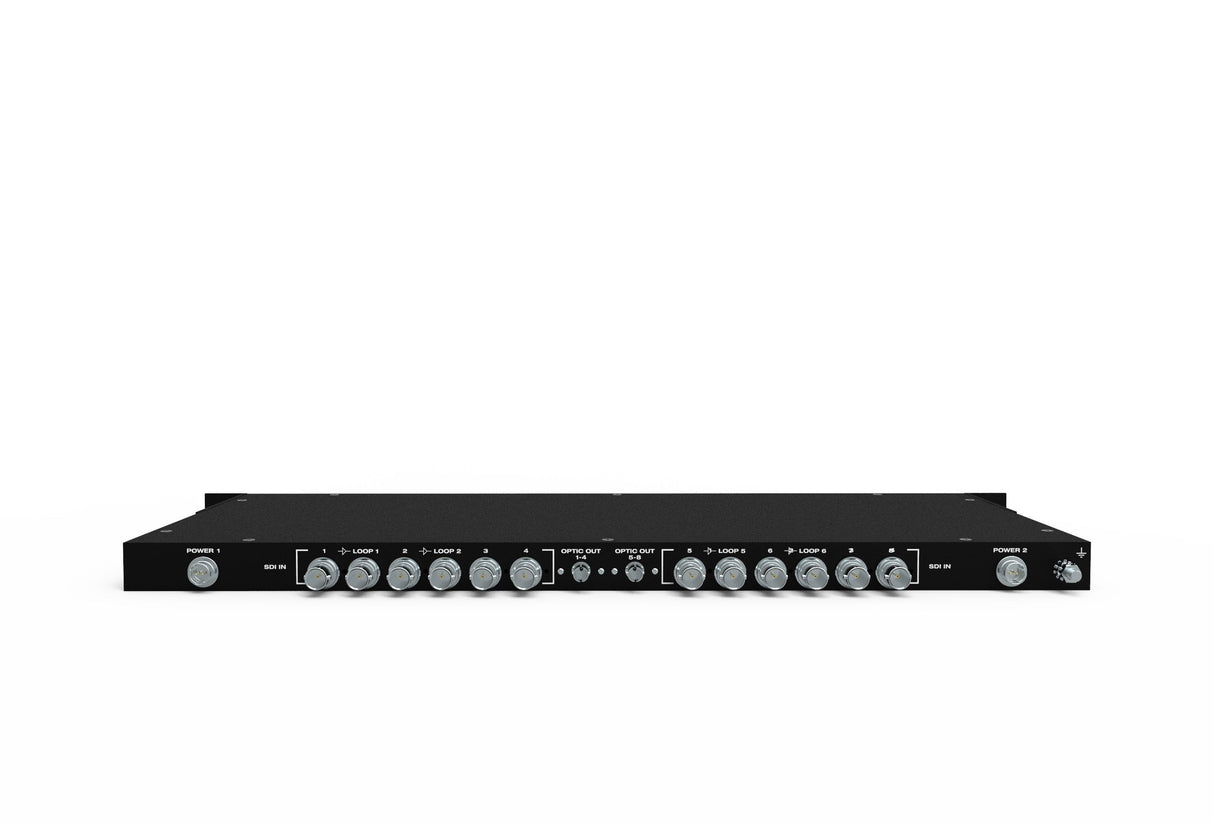

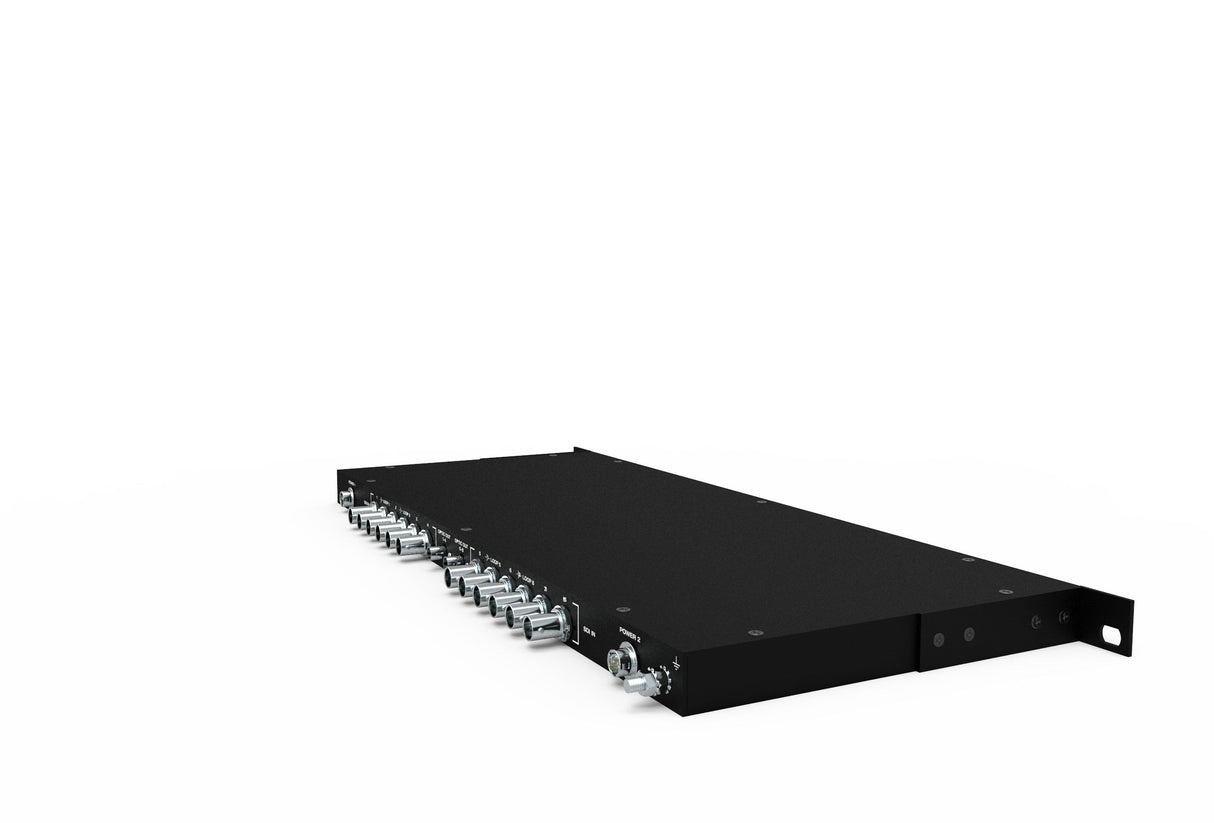

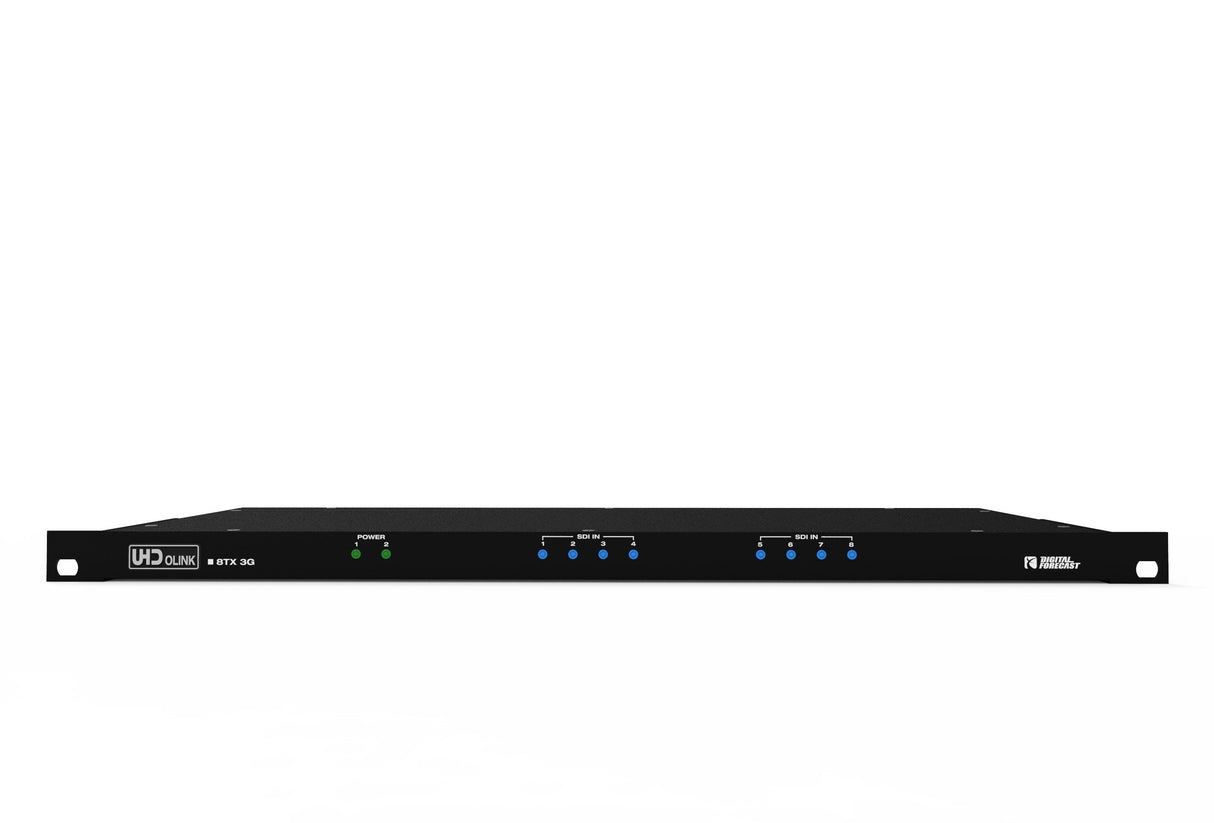

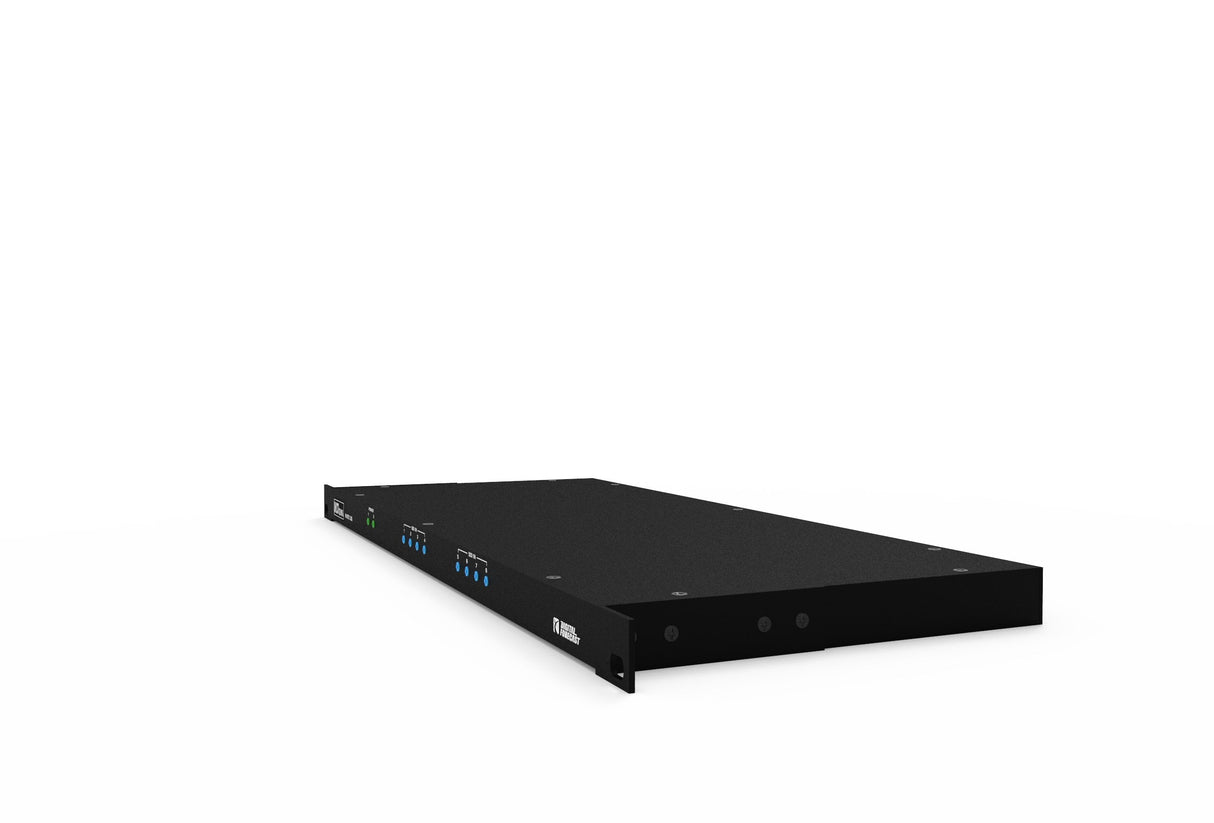

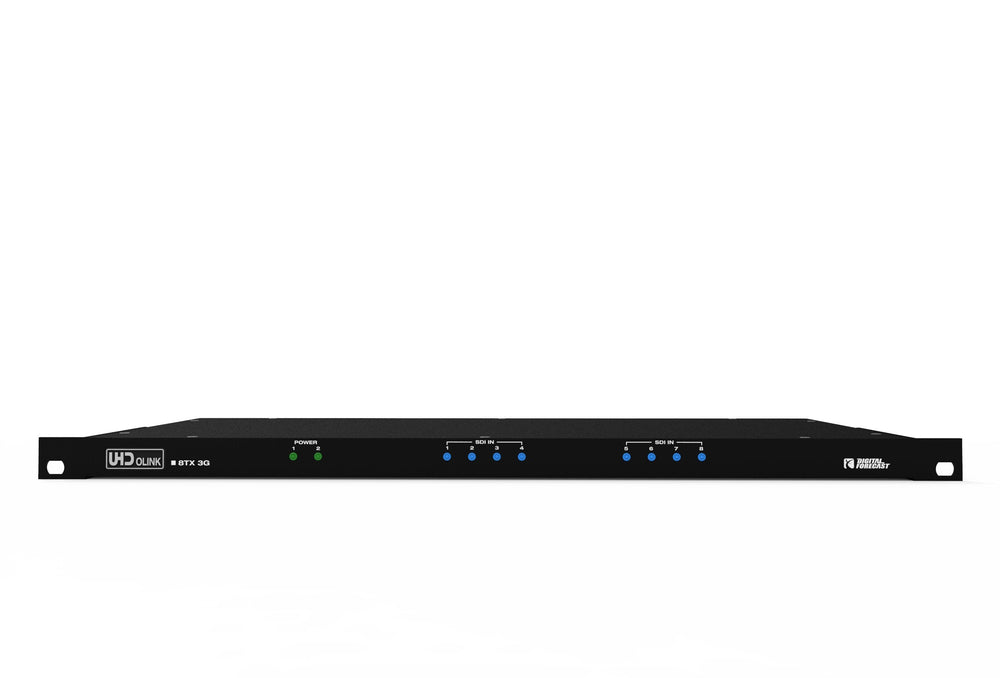

Digital Forecast OLINK 8TX 3G Rack-Type 3G Optic Transmitter

The Bridge UHD OLINK 8TX 3G System is a cutting-edge solution designed to convert 8 channel SDI signals into optical signals for seamless transmission. This rack-mountable system is engineered to handle long-distance transmission with high reliability, making it ideal for professional video and broadcast environments where multiple SDI signals need to be managed efficiently. The compact design of the UHD OLINK system ensures it can be easily integrated into various setups while maintaining robust performance.

With the capability to transmit 8 channels of SDI signals simultaneously, this unidirectional model offers a practical solution for scenarios requiring high-density signal transport over considerable distances. The UHD OLINK system supports standard SDI formats including SD, HD, and 3G, ensuring versatility and compatibility with a range of video equipment. Its advanced optical transmission technology, using dual core single mode cables and ST type optical connectors, enhances signal integrity and reliability over distances up to 10 kilometers.

Key Features

• Supports standard SDI formats (SD, HD, 3G)
• Unidirectional transmission for 8 channels (8TX)
• Reliable signal transmission up to 10 kilometers using dual core single mode cables
• Utilizes ST type optical connectors for robust connectivity
• Powered by a +12V dual power supply for consistent operation

Technical Specifications

• Operating Environment: Designed to function in a wide range of conditions, ensuring reliability and performance.
• Power Level: +7V ~ +16V DC
• Power Consumption: 12 Watts (Maximum 15 Watts)
• Operating Temperature: 0℃ ~ 55℃
• Humidity: 0% ~ 95% RH, Non-condensing
• Data Rate: 3G
• Signal Level: 800mVp-p ± 80mV
