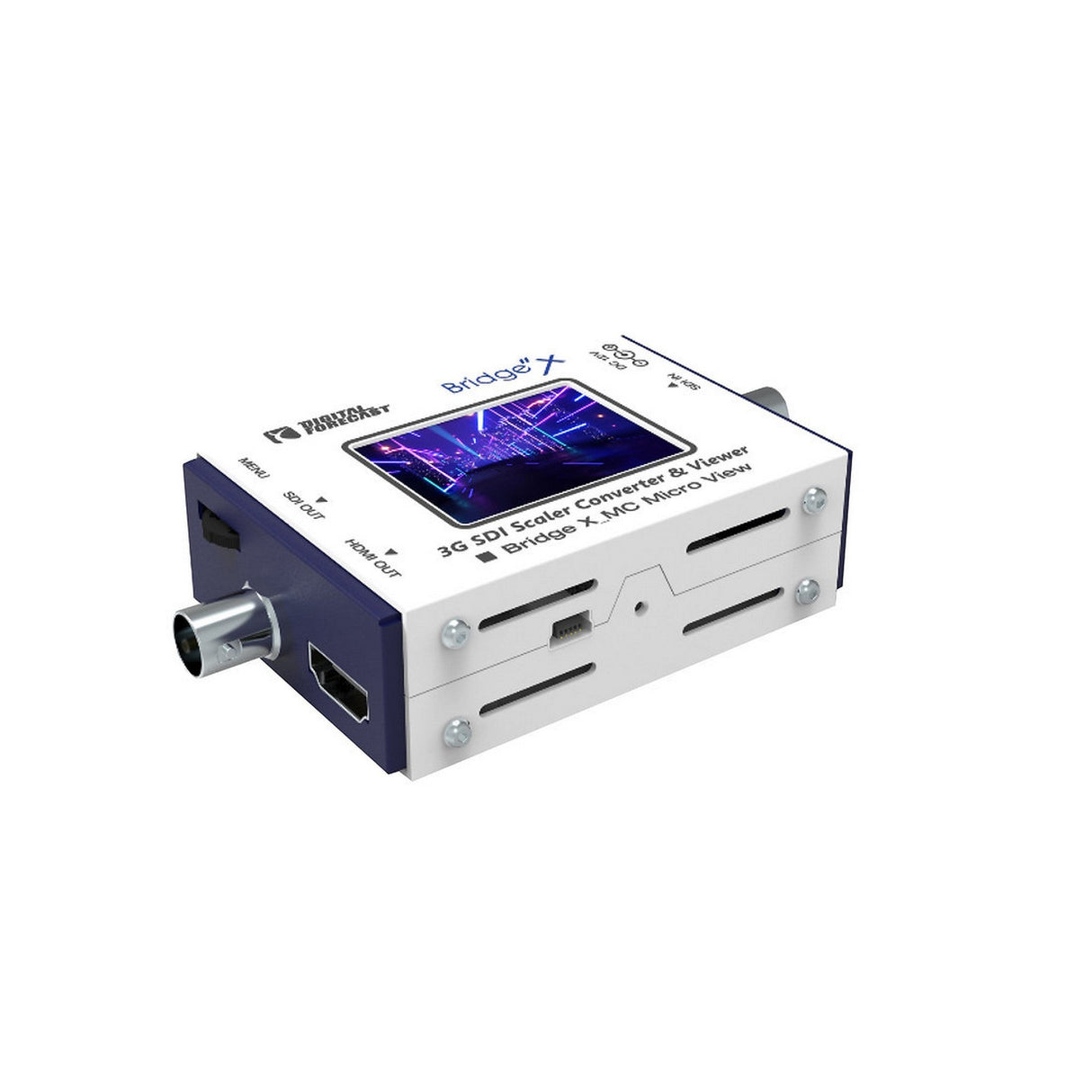

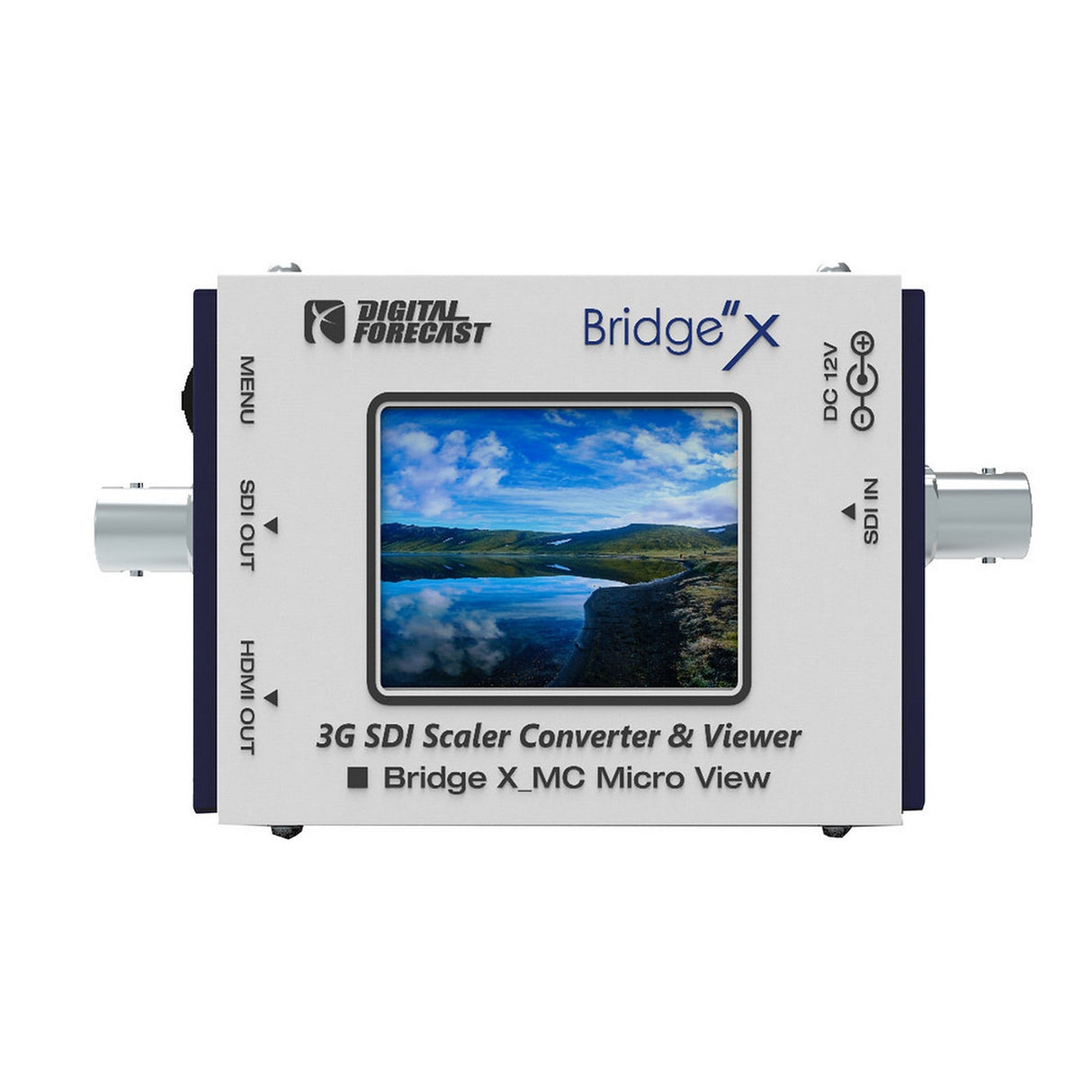

Digital Forecast X_MC Micro View 3G-SDI Scaler Converter

Digital Forecast X_MC Micro View 3G-SDI Scaler Converter

Digital Forecast X_MC Micro View 3G-SDI Scaler Converter accepts one 3G-SDI source and delivers simultaneous SDI and HDMI outputs at a selected Full HD resolution. Its integrated 2-inch LCD shows incoming video, audio levels, and input/output formats, giving technicians a compact tool for signal conversion, verification, and on-site troubleshooting.

This portable converter suits broadcast trucks, live production racks, camera departments, and AV installation teams that need a 3G-SDI to HDMI converter with monitoring. Cross, up, and down scaling plus frame-rate conversion helps match cameras, switchers, recorders, and displays. A built-in test pattern generator also supports a compact SDI troubleshooting converter workflow.

The unit processes video up to 1920 x 1080p at 60 fps and provides one BNC SDI output alongside one HDMI output. An on-screen display provides direct menu access, while 12 VDC power and low consumption suit mobile kits. Its 32 to 131°F operating range and 0 to 95% noncondensing humidity rating support controlled studio and field environments.

Key Features

• 3G-SDI Signal Conversion: Converts one professional SDI source for simultaneous delivery through SDI and HDMI outputs.
• Cross, Up, and Down Scaling: Matches the output resolution to compatible monitors, recorders, switchers, and display systems.
• Frame-Rate Conversion: Adapts signal timing when connected production devices require a different output frame rate.
• Integrated 2-Inch LCD: Provides immediate video monitoring without requiring a separate field display.
• Signal Status Display: Shows audio levels and input/output resolutions for faster setup and fault identification.
• Built-In Test Patterns: Helps technicians verify signal paths and confirm correct operation of downstream equipment.
• On-Screen Menu: Places scaling and conversion controls directly on the compact converter.

Technical Specifications

Video Processing

• Product Type: 3G-SDI cross, up, and down scaler with frame-rate conversion
• Maximum Resolution: 1920 x 1080p at 60 fps
• Video Scaling: Cross, up, and down conversion
• Frame-Rate Conversion: Supported
• Simultaneous Outputs: SDI and HDMI
• Embedded Audio: HDMI and SDI
• Test Pattern Generator: Built-in
• Menu Control: On-screen display

Connections

• Video Input: 1 x BNC 3G-SDI female
• SDI Output: 1 x BNC 3G-SDI female
• HDMI Output: 1 x HDMI female
• Power Input: 12 VDC barrel connector

Monitoring

• Display: Integrated 2-inch LCD
• Displayed Information: Video signal, audio levels, and input/output resolutions

Power

• Power Requirement: 12 VDC
• Power Consumption: 8 W typical, 10 W maximum

Environmental Specifications

• Operating Temperature: 32 to 131°F
• Operating Humidity: 0 to 95% relative humidity, noncondensing

Physical Specifications

• Dimensions: 3.3" W x 2.3" H x 1" D
• Weight: 0.3 lb
• Manufacturer Part Number: X_MC MICRO VIEW

What's In the Box

• Digital Forecast X_MC Micro View
• Power adapter
