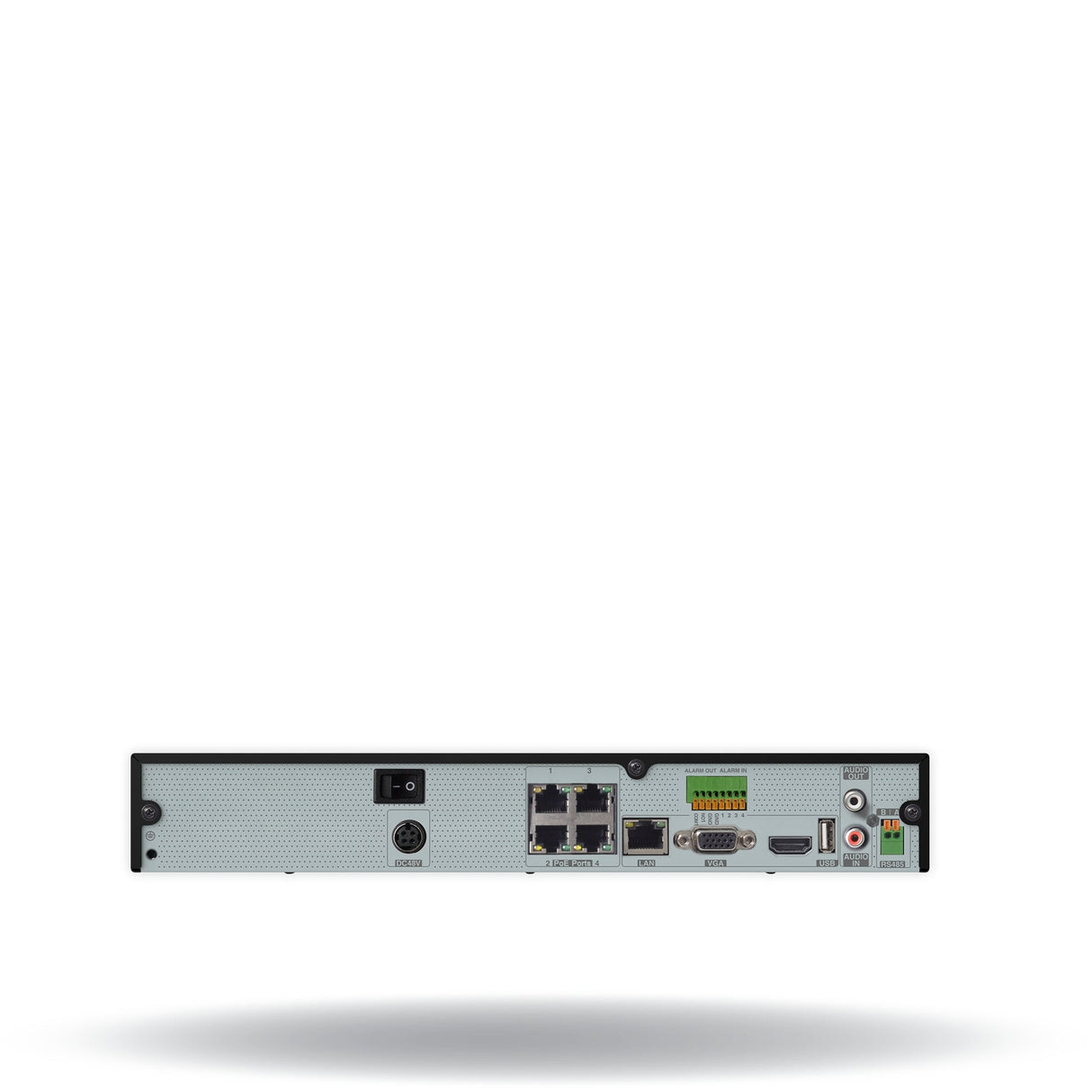

Digital Watchdog DW-VG492T4P VMAX IP G4 4K 9-Channel PoE NVR, 2TB HDD

DW's cutting-edge recorders produce crystal clear images at any resolution. By zooming into the camera's field of view, higher resolution offers forensic details. A CCIP system's TLS encryption ensures that out-of-network attacks don't compromise your surveillance system. Record and manage single-sensor IP cameras with real-time 30fps up to 4K (3840x2160), and a maximum throughput of 40Mbps.

Key Features

• DW's recorders provide high-quality images in any resolution, ensuring clarity and detail.
• Enhanced resolution allows for zooming into the camera's field of view, providing valuable forensic details.
• The installation, setup, and camera configuration process can be completed quickly and easily.
• The CCIP system encryption, implemented via TLS, safeguards your surveillance system against attacks from outside networks.
• Record and manage single-sensor IP cameras in real-time at up to 30fps and 4K resolution (3840x2160), with a maximum throughput of 40Mbps.
• Power up to 4 IP cameras locally using the resident PoE+ switch.
• Transform your smartphone or tablet into a surveillance camera with DW Witness.
• PathFinder enables seamless remote connection with NAT Traversal (STUN/TURN) support, ensuring a smooth end-to-end experience.
• Automatic device discovery simplifies the setup process.
• The system is compatible with ONVIF cameras, ensuring flexibility and compatibility with various devices.
• Choose from storage options ranging from 0 to 16TB to suit your specific needs.
• Real-time data can be transferred using the Real Time Streaming Protocol (RTSP), ensuring efficient and reliable transmission.

Technical Specifications

VIDEO
Data rate (Mbps)
40Mbps
Display Modes
1, 4, 6, 9, Sequence
Display Speed
Up to 30fps per channel
Input channels
4 PoE channels, 9 Channels
Local Video Output Resolution
1024x768, 1280x1024, 1280x720, 1920x1080, 2560x1440, 800x600, 3840x2160 (4K)
Local Video Outputs
True HD, VGA
Max Supported Recording Resolution
4K (3840x2160)
Video Compression
H.264, H.265
OS on SSD
N/A
STORAGE
Raw internal storage options
002TB 004TB 006TB 008TB 010TB 012TB 016TB No Local Storage
Max HDD Bay
1 x SATA HDD
Maximum Storage
10TB (DW-VG494T4P), 12TB (DW-VG492T4P), 16TB (DW-VG494P), 2TB (DW-VG49124P), 4TB (DW-VG4910T4P), 6TB (DW-VG498T4P), 8TB (DW-VG496T4P), No storage (DW-VG4916T4P)
RAID Options
No RAID
HDD healthcheck
Temperature, S.M.A.R.T. with email notifications
PERFORMANCE
Audio in/out
1 input, 1 output
Performance features
Camera Color Control, CCIP, Covert Channel, Digital Zoom in live and playback, Import and export settings, PoE built-in, Quick Setup under 3 Minutes, Real-time temp alert
Playback Functions
Calendar, Event search, Smart motion search, Thumbnail search, Timeline
Playback speed
x1, x16, x2, x32, x4, x64, x8, x99
Post-recording
0~5 minutes
Pre- recording
0~5 seconds
PTZ control
RS485, UTC
Recording Modes
Continuous, Emergency, Motion detection, pre-and post-alarm, Quick backup, Scheduled, Sensor
Recording Resolution and Recording Rate
Up to 3840x2160 (4K): 270fps
System Operation
Graphical user interface (GUI), Joystick Controller (optional), USB mouse (included)
NETWORK
Backup
Local backup via USB, Network backup via CMS
Ethernet Ports
1x 1G Ethernet (RJ45)
Firmware Upgrade
CMS over network, FTP, USB
Network Remote Software
DW VMAX Plus App, C3 CMS, DW Mobile Plus, DW Site Viewer for Apple TV, DW Witness
Protocol
DDNS, DHCP, RTSP, Static fixed IP, uPNP
System recovery after power failure
Auto-reboot and journaling file system
Transmission speed live
Up to 3840x2160 (4K): 270fps
ELECTRICAL
Maximum Power per Port
Up to 30W
Power Consumption
60W total power budget (recorder + PoE ports)
Power Requirements
48V DC, 2.5A
Total PoE Power Budget
12W per PoE port, 48W
GENERAL
Accessories
Mouse
Certification
NDAA Compliance TAA Compliance UL Listed
Form Factor
Embedded
Operating Temperature and Humidity
10~90% RH, 32~113 Degrees F (0~45 Degrees C)
Recorder Dimensions (H X W X D)
11.81” x 9.8” x 1.77” (300 x 249 x 45 mm)
Serial ports
RS485
USB interface
Yes
Warranty
5 Year Limited Warranty
Weight (barebone, HDD not included)
2.64 lbs (1.19 kg)
