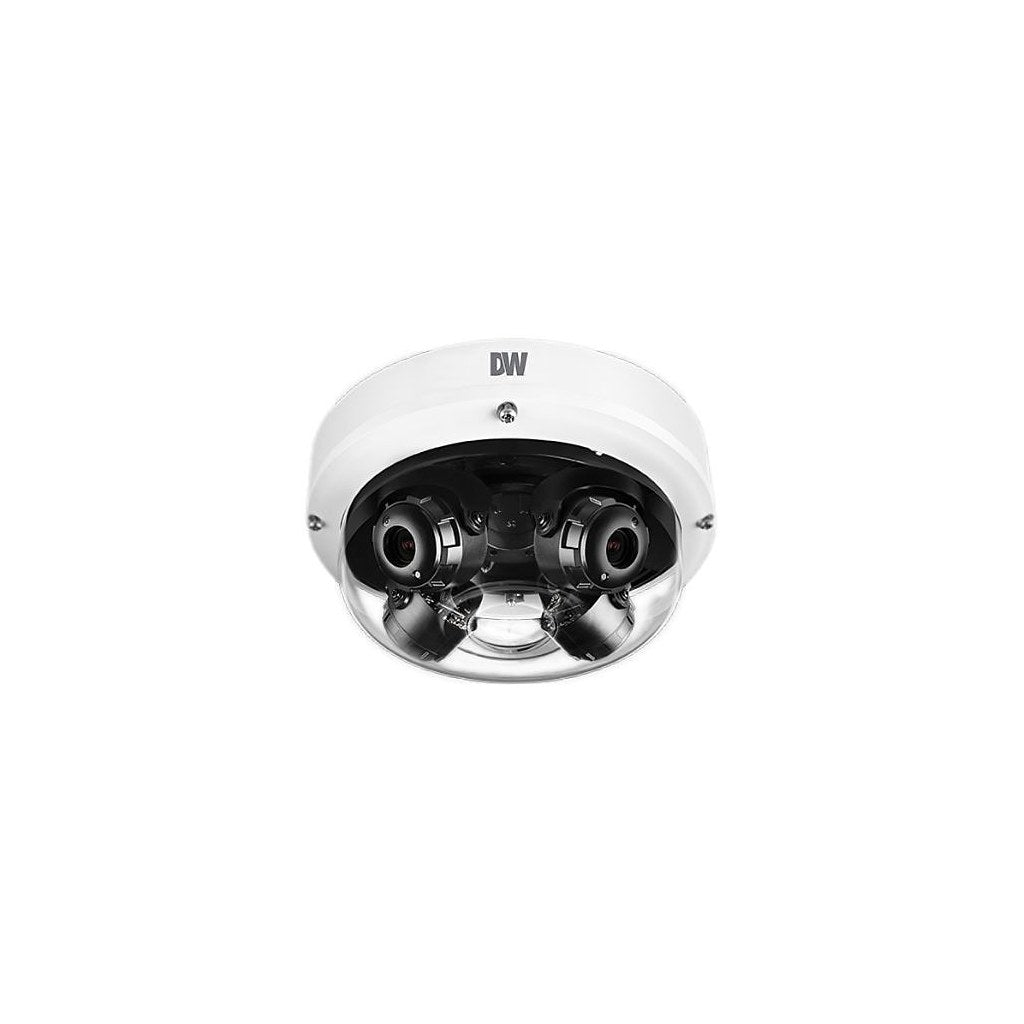

Digital Watchdog DWC-PVX20WATX 20MP Multi-Sensor IP Dome Security Camera

Digital Watchdog DWC-PVX20WATX 20MP Multi-Sensor IP Dome Security Camera

The Digital Watchdog DWC-PVX20WATX 20MP Multi-Sensor IP Dome Camera delivers four 5MP image sensors in one vandal dome housing for flexible 180° or 360° panoramic surveillance. Its motorized vari-focal lenses, real-time 30fps performance, and intelligent analytics help cover large areas with fewer camera positions.

Built for demanding security deployments, this MEGApix Flex camera suits commercial facilities, campuses, government sites, parking areas, and critical infrastructure. Buyers searching for a 20MP panoramic security camera, multi-sensor outdoor IP camera, or vandal dome surveillance solution get wide-area coverage with adjustable lens placement and remote setup control.

The DWC-PVX20WATX supports Star-Light Plus color imaging, True WDR, Smart DNR, DW Spectrum integration, and ONVIF-conformant video management systems. IP67 weather resistance, IK10 impact protection, NDAA/TAA compliance, and aluminum die-cast construction make it ready for professional indoor and outdoor surveillance installations.

20MP Multi-Sensor Panoramic Surveillance Camera

• Four 5MP Sensors: Combines four 1/2.8" CMOS image sensors for 20MP total resolution and detailed monitoring.
• Flexible Panoramic Coverage: Supports 180° and 360° views for monitoring wide areas with fewer camera housings.

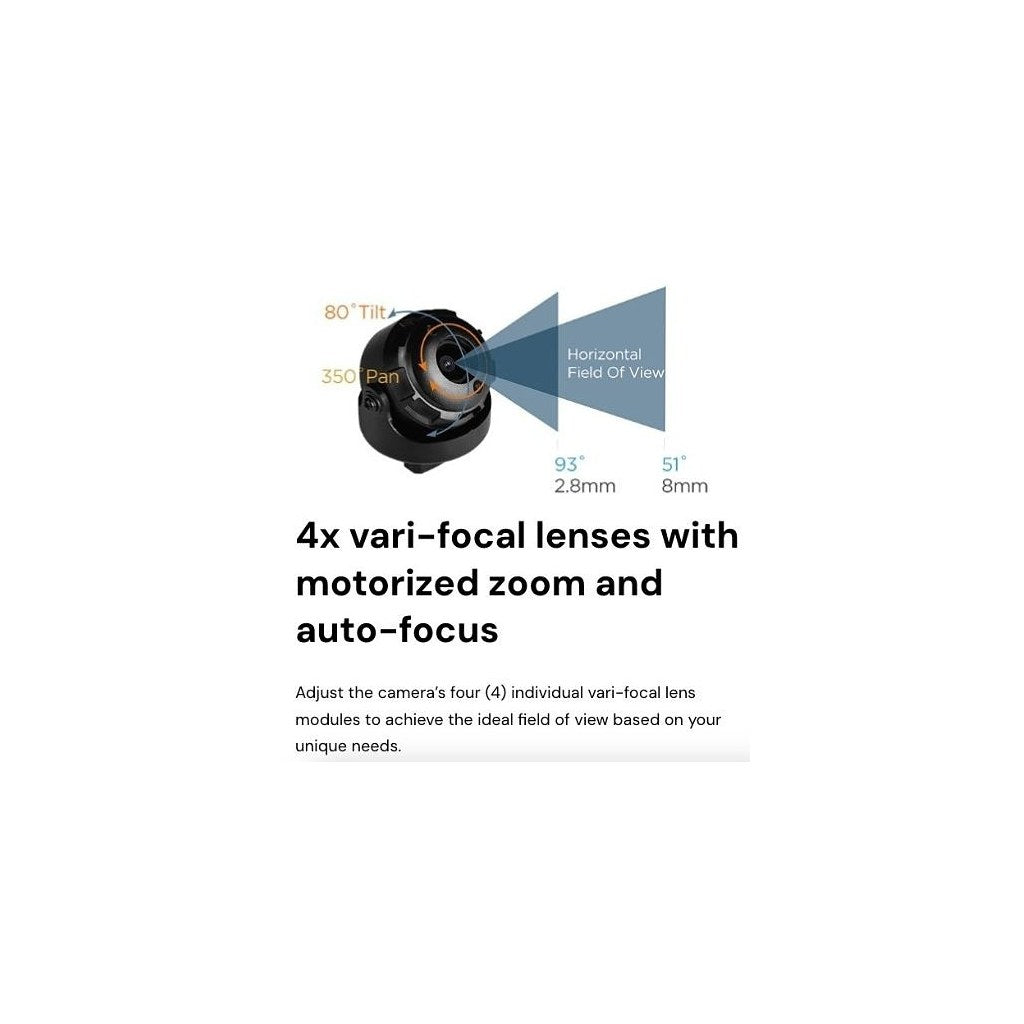

• Motorized Vari-Focal Lenses: Uses four 2.8-8.0mm p-iris lenses with motorized zoom and autofocus for remote adjustment.

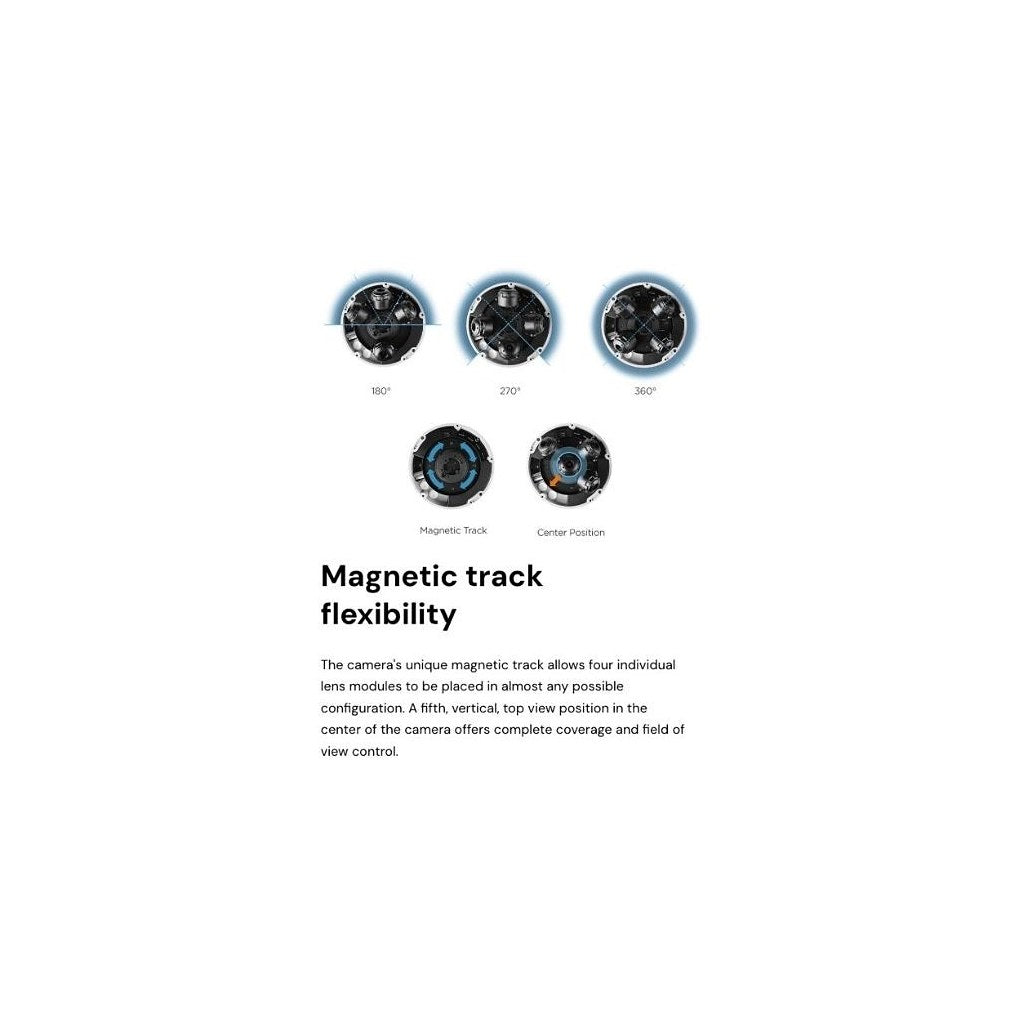

• Magnetic Track Positioning: Allows the four lens modules to be placed in multiple positions for customized field coverage.
• Star-Light Plus Imaging: Captures color video in near-total darkness with 0.05 lux minimum color illumination.
• True WDR and Smart DNR: Improves visibility in high-contrast scenes while reducing image noise in low-light conditions.
• Built-In IVA: Includes intelligent video analytics for intrusion, line crossing, loitering, object detection, and related rules.
• Outdoor Vandal Dome Housing: Provides IP67 weather resistance and IK10 impact protection for demanding environments.

Technical Specifications

• SKU: DWC-PVX20WATX
• Product Type: 20MP multi-sensor vandal dome IP camera
• Image Sensor: 5MP 1/2.8" CMOS sensor x4
• Maximum Resolution: 20MP
• Total Pixels: 2592 x 1944 x4
• Frame Rate: Up to 30fps at all resolutions
• Minimum Illumination: 0.05 lux color, 0.1 lux black and white
• Lens: 2.8-8.0mm vari-focal p-iris lens x4
• Lens Type: Vari-focal lens with motorized zoom and autofocus

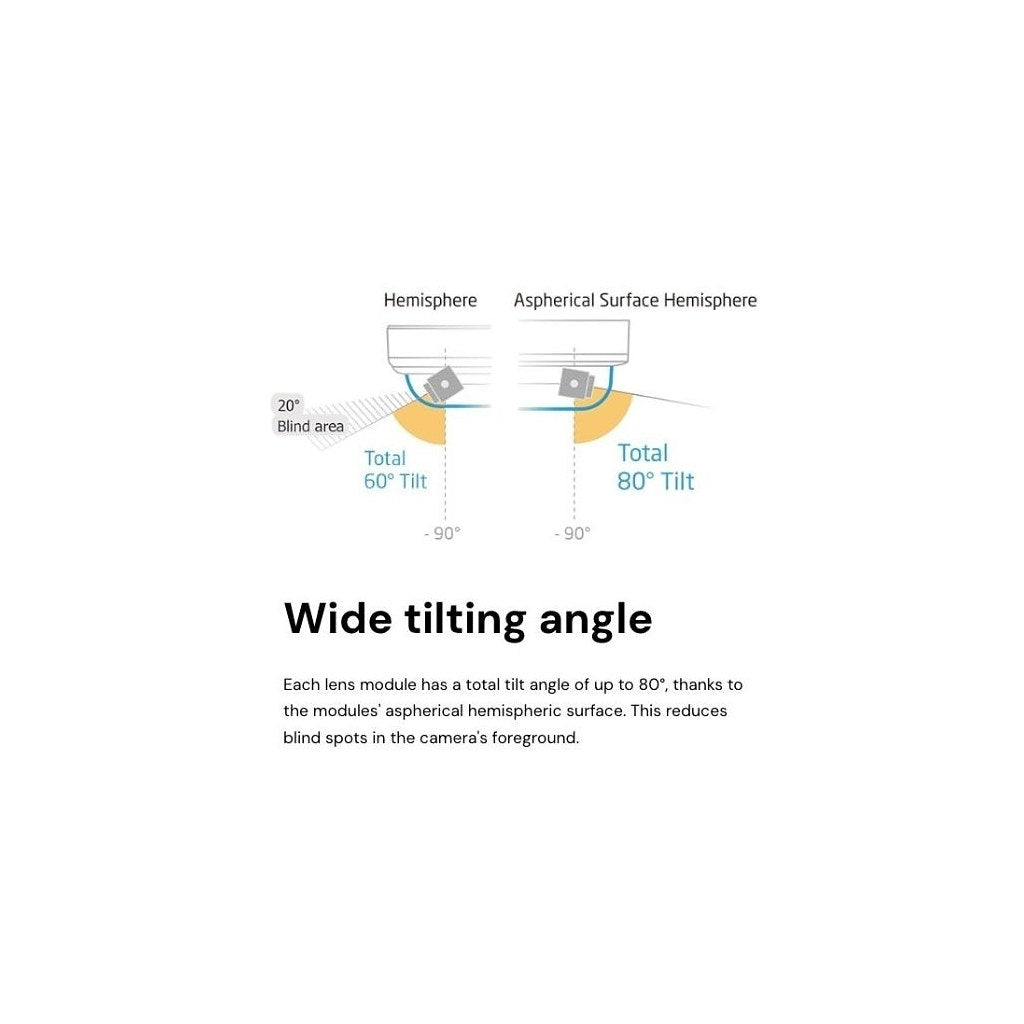

• Horizontal Field of View: 4x 51°-93°
• Vertical Field of View: 39°-68° x4
• Local Video Output: CVBS 1.0V p-p, 75 ohms, 4:3 aspect ratio
• Audio Compression: G.711
• Alarm Input/Output: 1 input, 1 output
• Audio Input/Output: 1 input, 1 output
• Intelligent Video Analytics: Intrusion, line crossing, counting line, loitering, enter, exit, tamper, object removed, tailgating, direction, stopped, appear, disappear, object left, logical rules
• Digital Noise Reduction: Smart DNR 3D Digital Noise Reduction
• Day/Night: Auto day/night, day color, night black and white
• De-Fog: Yes
• Memory Slot: 4x Micro SD/SDHC/SDXC Class 10 card slots
• Maximum Card Capacity: Up to 1TB micro SD, FAT32
• Mirror/Flip: Yes
• Motion Detection: Yes
• Notifications: Alarm output activation, email, FTP server, SD card recording
• Privacy Zones: 16 programmable privacy masks
• Shutter Modes: Anti-flicker, auto, manual, slow shutter
• Shutter Speed: 1/15 to 1/32000
• Slow Shutter Speed: Off, x2, x3, x5, x6, x7.5, x10
• Wide Dynamic Range: True WDR 120dB
• Bitrate Control: Multi-streaming CBR/VBR at H.264 and H.265
• IP Support: IPv4
• LAN: 1000Base-T, 1Gbps
• Network Resolutions: H.264 up to 2592 x 1944; MJPEG up to 1920 x 1080
• Web Viewer Support: Google Chrome, Microsoft Edge, Mozilla Firefox, Safari, Windows OS, Mac OS, Linux OS
• Network Protocols: DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, NTP, ONVIF, RTP, RTSP, SMTP, SNMPv1/v2/v3, SSL, TCP/IP, UDP, Zeroconf
• Security: 802.1x, digest authentication, HTTPS/TLS, IP filtering
• Streaming Capability: Dual-stream at different rates and resolutions
• Video Bitrate: 100Kbps-10Mbps
• Video Compression: H.264, H.265, MJPEG
• Video Management Software: DW Spectrum, ONVIF-conformant CMS, ExacqVision, Milestone
• Operating Temperature: -22°F to 122°F
• Startup Temperature: -4°F to 122°F
• Operating Humidity: 10-90%, non-condensing
• Compliance: CE, FCC, NDAA, ONVIF, TAA, UL
• Mounting Accessories: Required, sold separately
• Dimensions: 3.61" x 8.26" x 8.26"
• Weight: 4.18 lbs
• Housing: Panoramic vandal dome
• Housing Color: White
• IK Rating: IK10
• IP Rating: IP67 weather resistant
• Materials: Aluminum die-casting, polycarbonate dome
• Cable Type: #18
• American Wire Gauge: 5M
• Power Consumption: DC 12V max 28W, 2.33A; PoE max 28W, 2.583A
• Power Requirements: High-power PoE injector included, PoE
• Warranty: 5 years

What's In the Box

• High-Power PoE Injector: Included power accessory for PoE installation.
