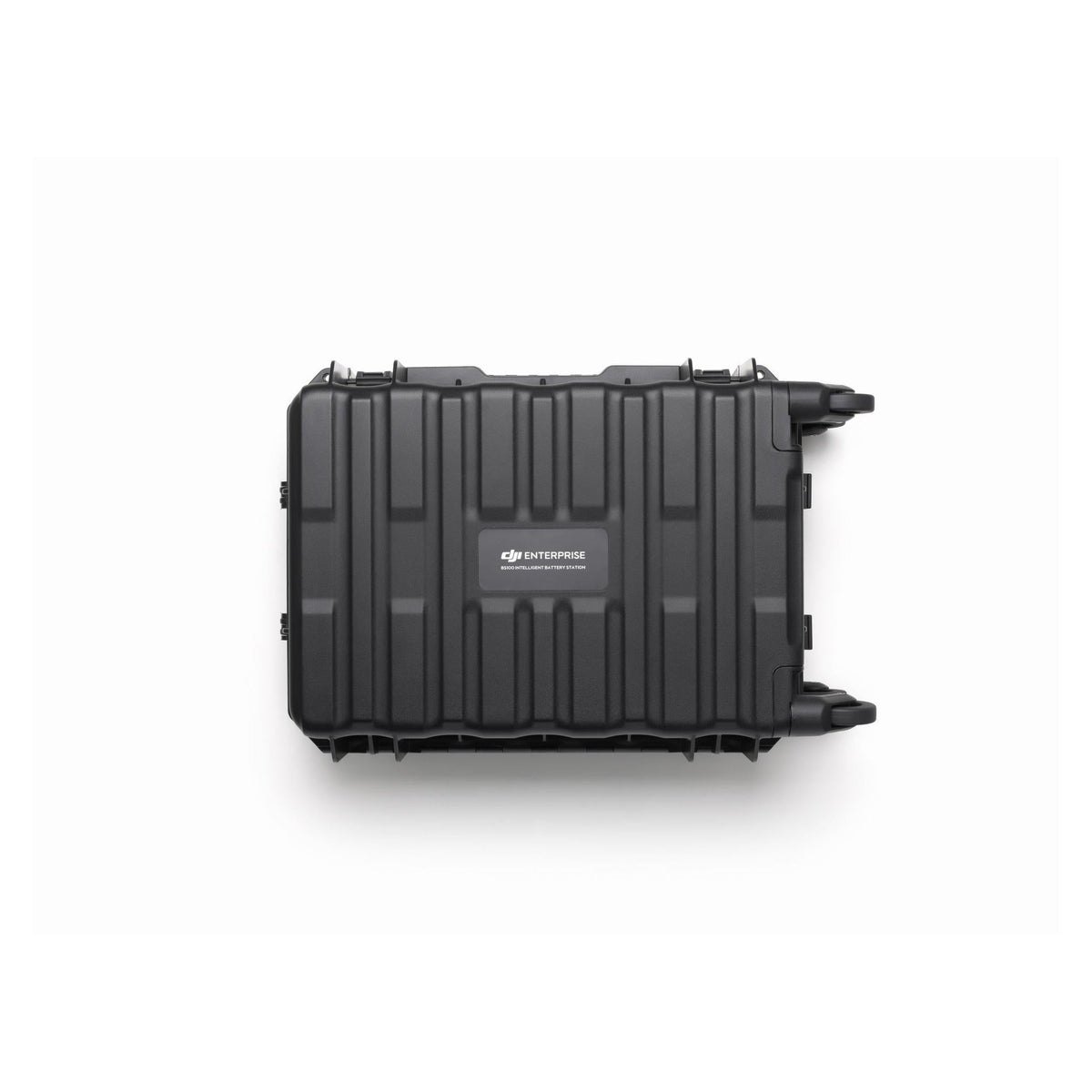

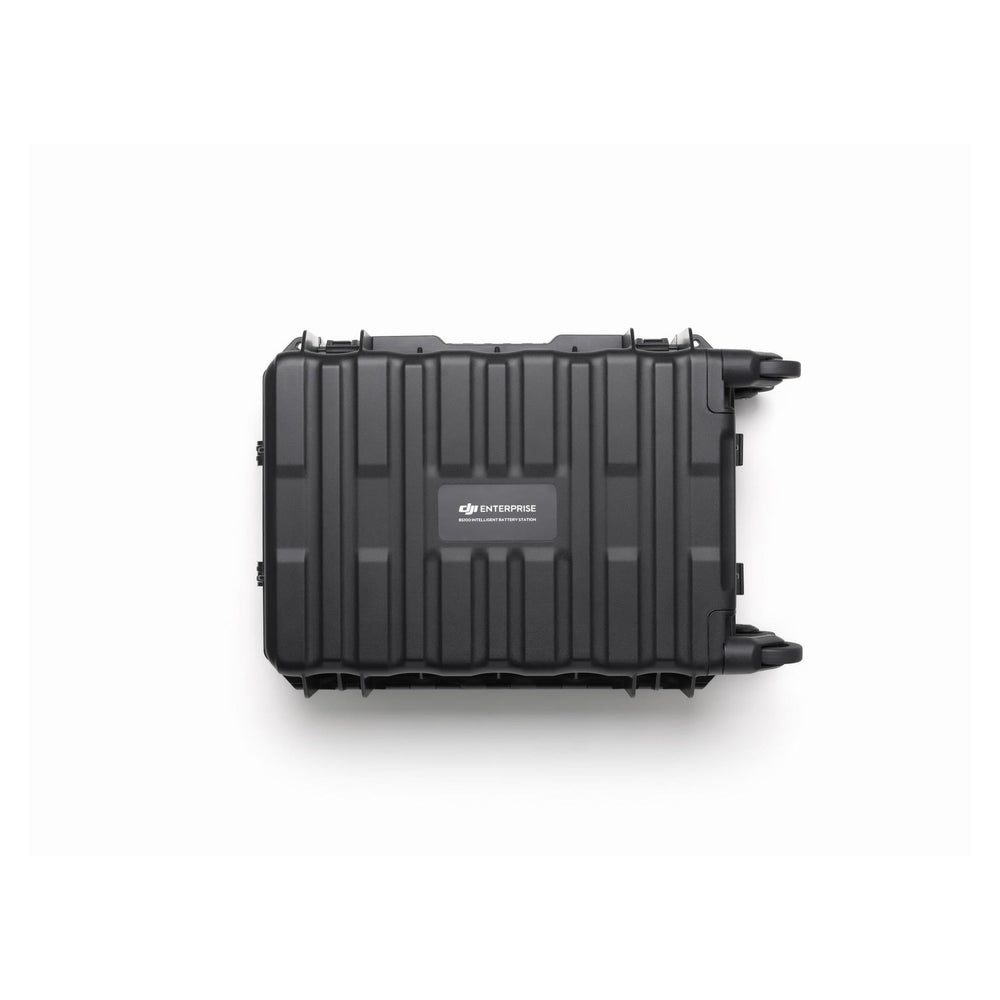

DJI BS100 Intelligent Battery Station for Matrice 400 TB100 Batteries

Charging logistics for a Matrice 400 fleet run through the DJI BS100 Intelligent Battery Station, a rolling hard case that stores and charges three TB100 flight batteries and two WB37 remote-controller batteries while also supplying up to 65 W over USB-C to a tablet or laptop. Plugged into 100-240 V AC, it refills a TB100 from 0% to 100% in about 45 minutes at 220 V or 70 minutes at 110 V in Fast Charging mode, and a Silent mode trades speed for quiet 110-minute charging on site.

Intelligent management is built in: the station works with DJI's battery management system to show charge status, run storage self-discharge, and push battery firmware updates through the remote controller, so crews can keep packs healthy between missions. Charging output scales with mains voltage, reaching about 2184 W at 180-240 V, and the unit operates from -20 to 40 C.

Measuring 605 x 410 x 250 mm and weighing 11.8 kg, the BS100 doubles as the transport case for the batteries it charges, with wheels and a retractable handle for airport and job-site moves. It is the dedicated charger for the TB100 and TB100C battery family and the WB37 controller battery; the batteries themselves are sold separately. For agencies running the Matrice 400 on inspection, mapping or emergency-response rotations, one station per aircraft keeps a full set of packs cycling while the drone is in the air.

Features

• Charges up to 3 x TB100/TB100C flight batteries and 2 x WB37 controller batteries
• USB-C port: 5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/3.25 A (up to 65 W)
• TB100 charge time 0-100%: 45 min at 220 V, 70 min at 110 V (Fast Charging mode); 110 min in Silent mode
• Input 100-240 V AC, 50-60 Hz, 10 A
• TB100 charging output approx. 1185 W (100-110 V), 1474 W (110-180 V), 2184 W (180-240 V)
• Battery status monitoring, storage self-discharge and firmware updates via the remote controller
• Operating temperature -20 to 40 C
• Rolling hard-case design with wheels and retractable handle; 605 x 410 x 250 mm, 11.8 kg

Technical Specifications

• Dimensions: 605 x 410 x 250 mm (L x W x H)
• Net weight: 11.8 kg
• Input: 100-240 V AC, 50-60 Hz, 10 A
• Output (TB100 interface): approx. 1185 W at 100-110 V; approx. 1474 W at 110-180 V; approx. 2184 W at 180-240 V
• Output (WB37 interface): approx. 52 W at 100-240 V
• Output (USB-C): 5.0 V/3.0 A, 9.0 V/3.0 A, 12.0 V/3.0 A, 15.0 V/3.0 A, 20.0 V/3.25 A
• Battery slots: 3 x TB100/TB100C, 2 x WB37
• Charging time TB100/TB100C (0-100%, 25 C, 220 V): 45 min Fast Charging mode, 110 min Silent mode
• Charging time TB100/TB100C (0-100%, 25 C, 110 V): 70 min Fast Charging mode, 110 min Silent mode
• Operating temperature: -20 to 40 C (-4 to 104 F)
• Compatible batteries: DJI TB100 Intelligent Flight Battery, TB100C, WB37
• Compatible aircraft: DJI Matrice 400

What's Included

• DJI BS100 Intelligent Battery Station x1
• AC Power Cable x1
