DJI  |  SKU: DJI-CPEN00000221SB

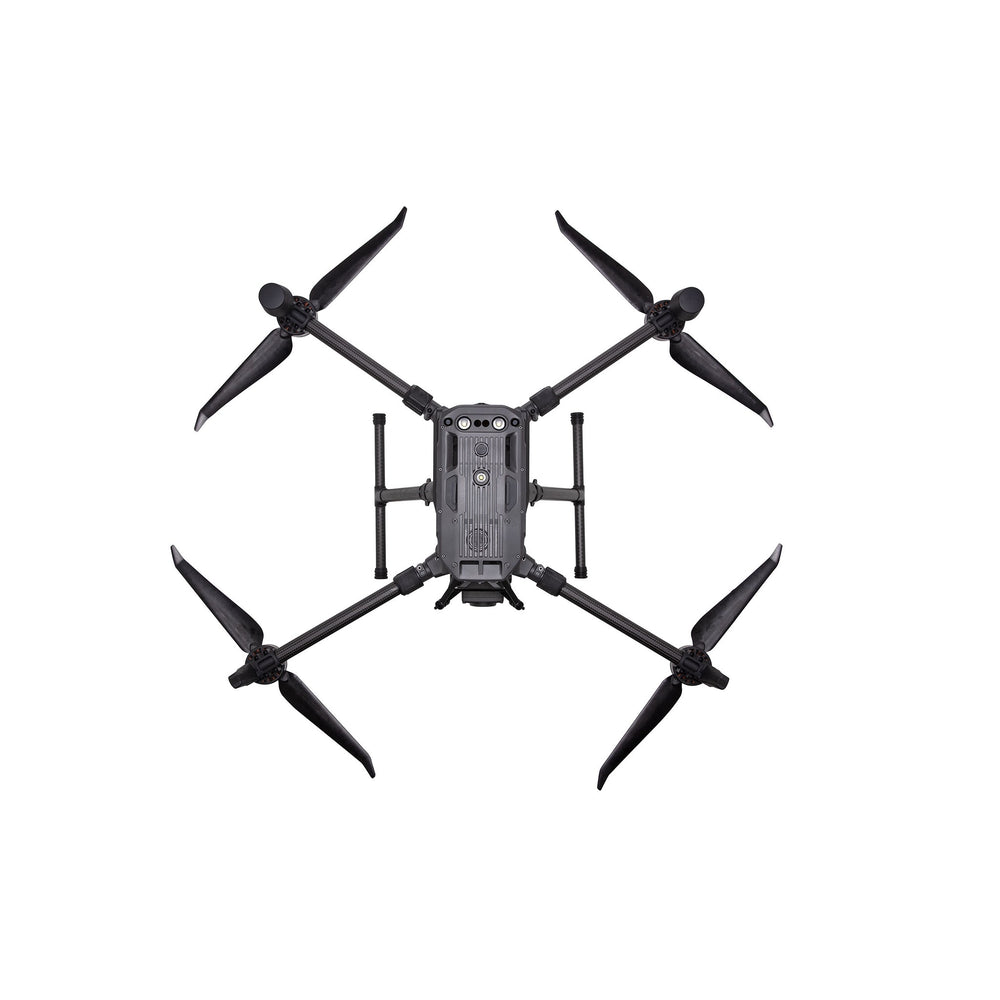

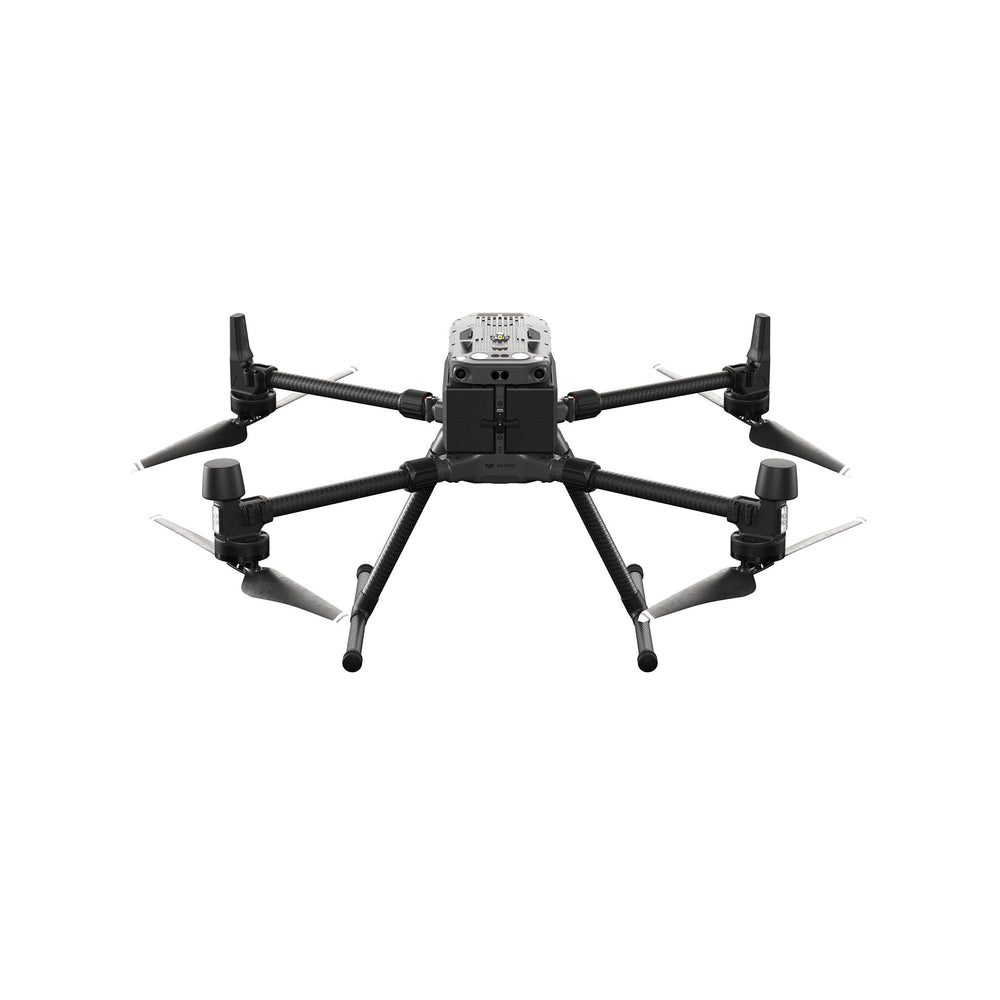

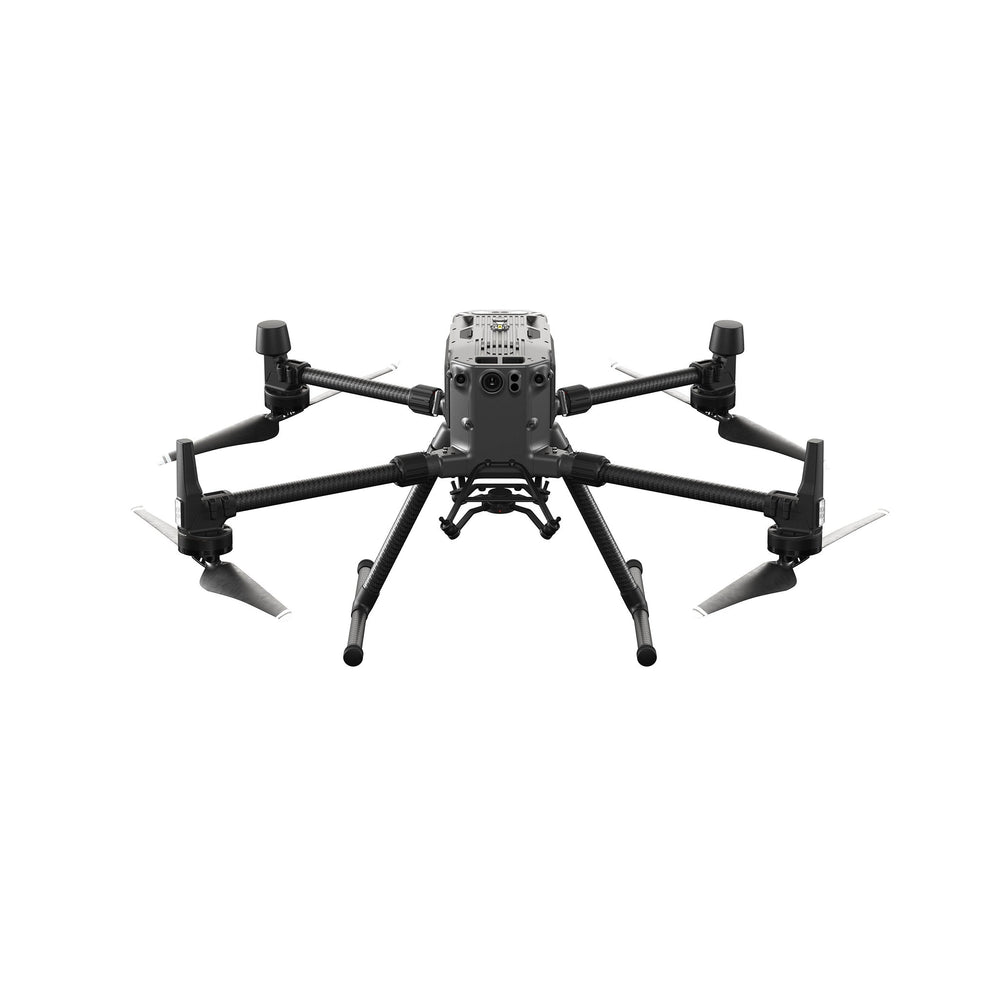

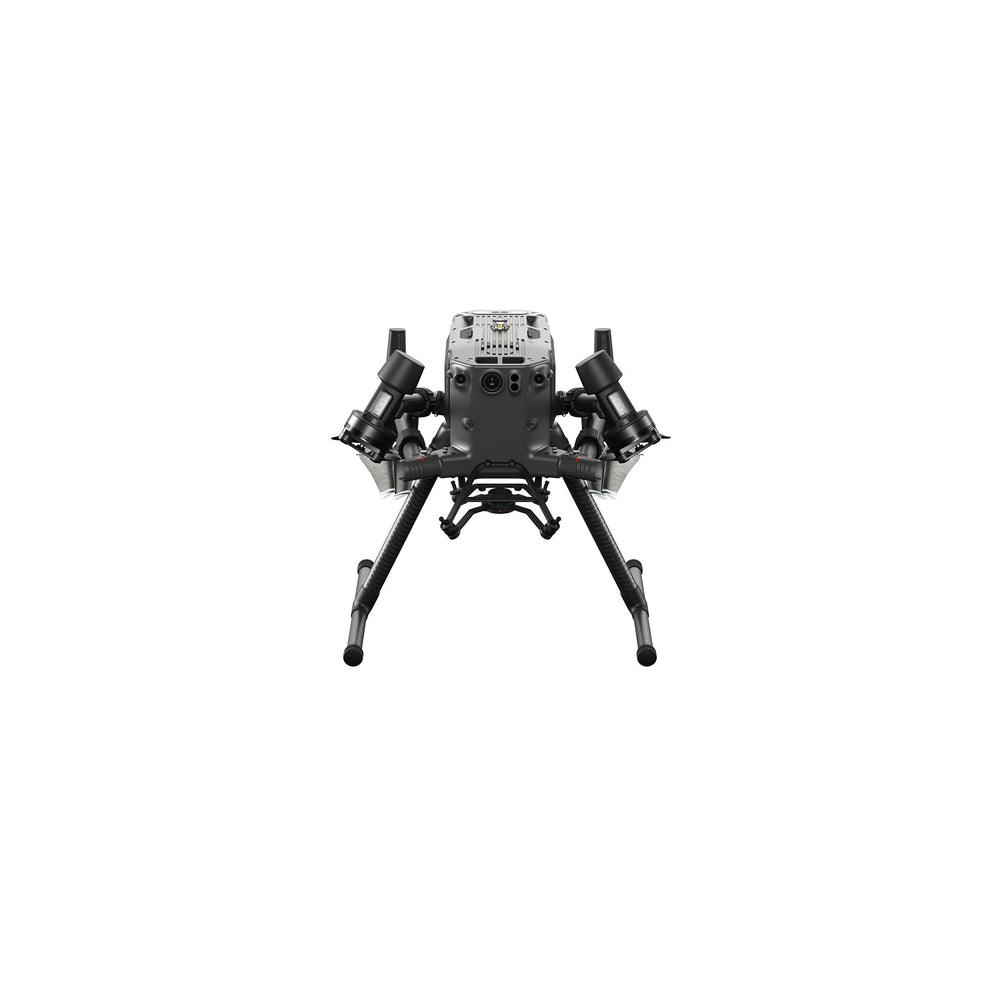

DJI Matrice M300 RTK NA SP Shield Basic Drone

$10,59900

Free Shipping

Estimated Shipping Widget will be displayed here! (with custom color)

DJI Matrice M300 RTK NA SP Shield Basic Drone is backordered and will ship as soon as it is back in stock.

Condition: New



DJI Matrice M300 RTK NA SP Shield Basic Drone

The Matrice 300 RTK is DJI's latest commercial drone platform that takes inspiration from modern aviation systems. Offering up to 55 minutes of flight time, advanced AI capabilities, 6 directional sensing & positioning and more, the M300 RTK sets a whole new standard by combining intelligence with high-performance and unrivaled reliability.

The all-new OcuSync Enterprise enables transmission up to 15 km away and supports triple-channel3 1080p video. Real-time auto-switching between 2.4 GHz and 5.8 GHz4 enables more reliable flight near high-interference environments, while AES-256 encryption offers secure data transmission.

The refined airframe and propulsion system design gives you a more efficient and stable flight, even in harsh conditions.

Configure your M300 RTK to fit your mission needs. Mount up to 3 payloads simultaneously, with a maximum payload capacity of 2.7 kg.

Record mission actions such as aircraft movement, gimbal orientation, photo shooting, and zoom level to create sample mission files for future automated inspections.

Automate routine inspections and capture consistent results every time. Onboard AI recognizes the subject of interest and identifies it in subsequent automated missions to ensure consistent framing.

Create up to 65,535 waypoints and set multiple actions for one or more payloads, including 3rd party ones, at each waypoint. Flightpath planning is also optimized to maximize flexibility and efficiency for your missions.

Mark an object in camera or map view with a quick tap, and advanced sensor fusion algorithms will immediately calculate its coordinates, which are projected to all camera views as an AR icon. The location of the subject is automatically shared with another remote controller, or to online platforms such as DJI FlightHub9.

Key Features

  • 55 min Max Flight Time
  • 15km 1080p map transmission
  • 6 Directional Sensing and Positioning
  • -20 Degrees C to 50 Degrees C operating temperature

Technical Specifications

Aircraft
Dimensions
Unfolded, propellers excluded, 810x670x430 mm (LxWxH)
Folded, propellers included, 430x420x430 mm (LxWxH)
Diagonal Wheelbase
895 mm
Weight (with single downward gimbal)
Approx. 3.6 kg (without batteries)
Approx. 6.3 kg (with two TB60 batteries)
Single Gimbal Damper’s Max Payload
930g
Max Takeoff Weight
9 kg
Operating Frequency
2.4000-2.4835 GHz
5.725-5.850 GHz
EIRP
2.4000-2.4835 GHz
29.5 dBm (FCC); 18.5dBm (CE)
18.5 dBm (SRRC); 18.5dBm (MIC)
5.725-5.850 GHz
28.5 dBm (FCC); 12.5dBm (CE)
28.5 dBm (SRRC)
Hovering Accuracy (P-mode with GPS)
Vertical
±0.1 m (Vision System enabled)
±0.5 m (GPS enabled)
±0.1 m (RTK enabled)
Horizontal
±0.3 m (Vision System enabled)
±1.5 m (GPS enabled)
±0.1 m (RTK enabled)
RTK Positioning Accuracy When RTK enabled and fixed
1 cm+1 ppm (Horizontal)
1.5 cm + 1 ppm (Vertical)
Max Angular Velocity
Pitch: 300 Degrees /s, Yaw: 100 Degrees /s
Max Pitch Angle
30 Degrees (P-mode, Forward Vision System enabled: 25 Degrees)
Max Ascent Speed
S mode: 6 m/s
P mode: 5 m/s
Max Descent Speed (vertical)
S mode: 5 m/s
P mode: 4 m/s
Max Descent Speed (tilt)
S Mode: 7 m/s
Max Speed
S mode: 23 m/s
P mode: 17 m/s
Service Ceiling Above Sea Level
5000 m (with 2110 propellers, takeoff weight ≤ 7 kg) / 7000 m (with 2195 propellers, takeoff weight ≤ 7 kg)
Max Wind Resistance
Max Wind Resistance 15 m/s (12 m/s when taking off or landing)
Max Flight Time
55 min
Supported DJI Gimbals
Zenmuse XT2/XT S/Z30/H20/H20T/DJI P1/DJI L1
Supported Gimbal Configurations
Single Downward Gimbal, Dual Downward Gimbals, Single Upward Gimbal, Upward and Downward Gimbals, Triple Gimbals
Ingress Protection Rating
IP45
GNSS
GPS + GLONASS + BeiDou + Galileo
Operating Temperature
-20 Degrees C to 50 Degrees C (-4 Degrees F to 122 Degrees F)
Remote Controller
Operating Frequency
2.4000-2.4835 GHz
5.725-5.850 GHz
Max Transmitting Distance (unobstructed, free of interference)
NCC/FCC: 15 km
CE/MIC: 8 km
SRRC: 8 km
EIRP
2.4000-2.4835 GHz
29.5 dBm (FCC) 18.5dBm (CE)
18.5 dBm (SRRC); 18.5dBm (MIC)
5.725-5.850 GHz
28.5 dBm (FCC); 12.5dBm (CE)
20.5 dBm (SRRC)
External battery
Name: WB37 Intelligent Battery
Capacity: 4920 mAh
Voltage: 7.6V
Type: LiPo
Energy: 37.39Wh
Charging time (using BS60 Intelligent Battery Station): 70 minutes (15 Degrees C to 45 Degrees C); 130 minutes (0 Degrees C to 15 Degrees C)
Built-in battery
Type: 18650 lithium-ion battery (5000 mAh @ 7.2 V)
Charging: Use a USB charger with specification of 12V / 2A
Rated power: 17 W
Charging time: 2 hours and 15 minutes (Using a USB charger with specification of 12V / 2A)
Battery Life
Built-in battery: Approx. 2.5h
Built-in battery External battery: Approx. 4.5h
USB Power Supply
5 V / 1.5 A
Operating Temperature
-20 Degrees C to 40 Degrees C (-4 Degrees F to 104 Degrees F)
Vision System
Obstacle Sensing Range
Forward/Backward/Left/Right: 0.7-40m
Upward/Downward: 0.6-30m
FOV
Forward/Backward/Downward: 65 Degrees (H), 50 Degrees (V)
Left/Right/Upward: 75 Degrees (H), 60 Degrees (V)
Operating Environment
Surfaces with clear patterns and adequate lighting (> 15 lux)
Infrared ToF Sensing System
Obstacle Sensing Range
0.1-8m
FOV
30 Degrees (±15 Degrees)
Operating Environment
Large, diffuse and reflective obstacles (reflectivity >10%)
Top and bottom auxiliary light
Effective lighting distance
5 m
FPV Camera
Resolution
960p
FOV
145 Degrees
Frame rate
30 fps
Intelligent Flight Battery
Name
TB60
Capacity
5935 mAh
Voltage
52.8 V
Battery Type
LiPo 12S
Energy
274 Wh
Net Weight
Approx. 1.35 kg
Operating Temperature
-4 Degrees F to 122 Degrees F (-20 Degrees C to 50 Degrees C)
Ideal storage temperature
71.6 Degrees F to 86 Degrees F (22 Degrees C to 30 Degrees C)
Charging Temperature
-4 Degrees F to 104 Degrees F (-20 Degrees C to 40 Degrees C)
(When the temperature is lower than 5 Degrees C, the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
Charging time
Using BS60 Intelligent Battery Station
220V input: 60 minutes (fully charging two TB60 batteries), 30 minutes (charging two TB60 batteries from 20% to 90%)
110V input: 70 minutes (fully charging two TB60 batteries), 40 minutes (charging two TB60 batteries from 20% to 90%)
BS60 Intelligent Battery Station
Dimensions
501*403*252mm
Net Weight
8.37kg
Maximum Capacity
TB60 Intelligent Flight Battery x 8
WB37 Intelligent Battery x 4
Input
100-120 VAC, 50-60 Hz / 220-240 VAC, 50-60 Hz
Max. Input Power
1070W
Output Power
100-120 V: 750 W
220-240 V: 992 W
Operating Temperature
-4 Degrees F to 104 Degrees F (-20 Degrees C to 40 Degrees C)
