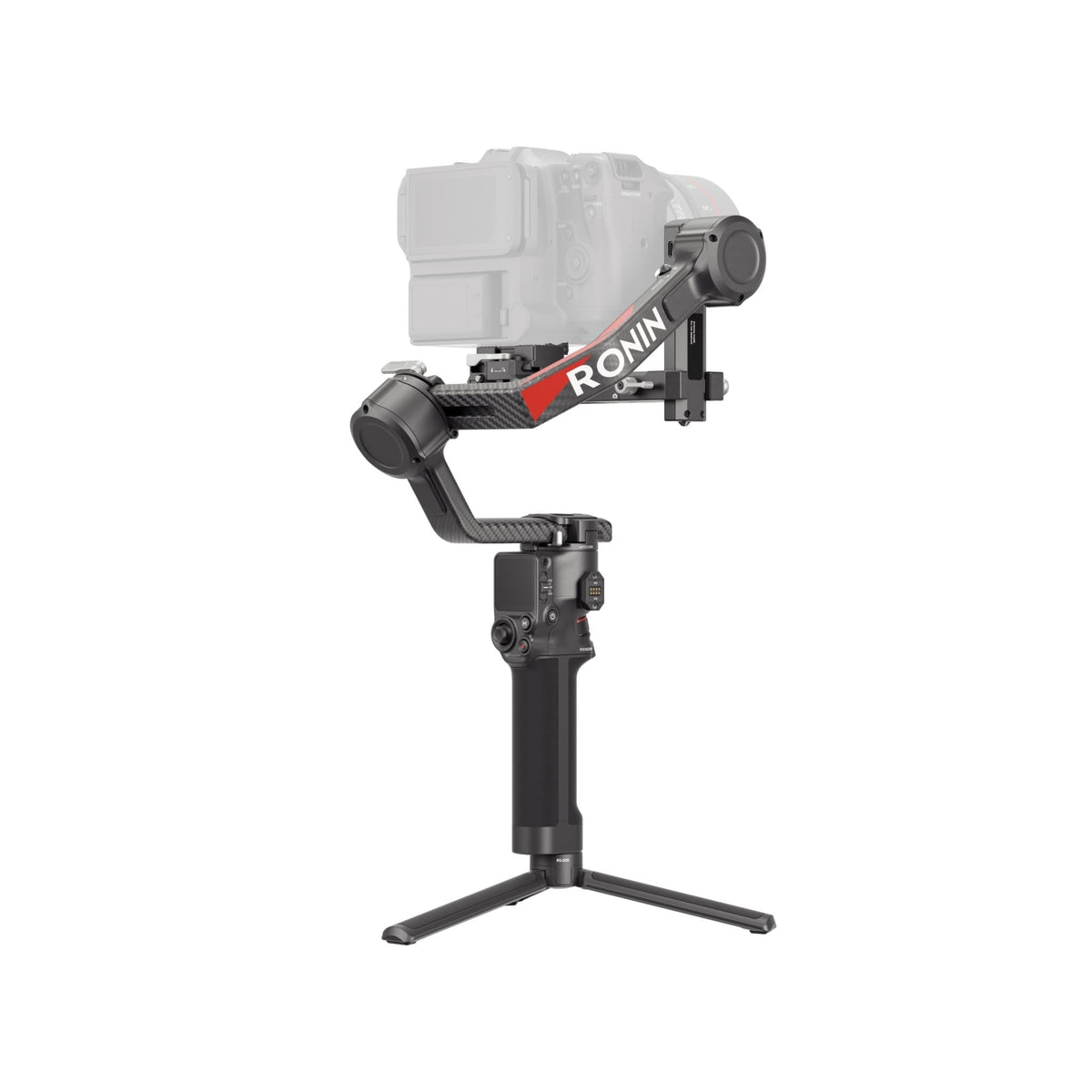

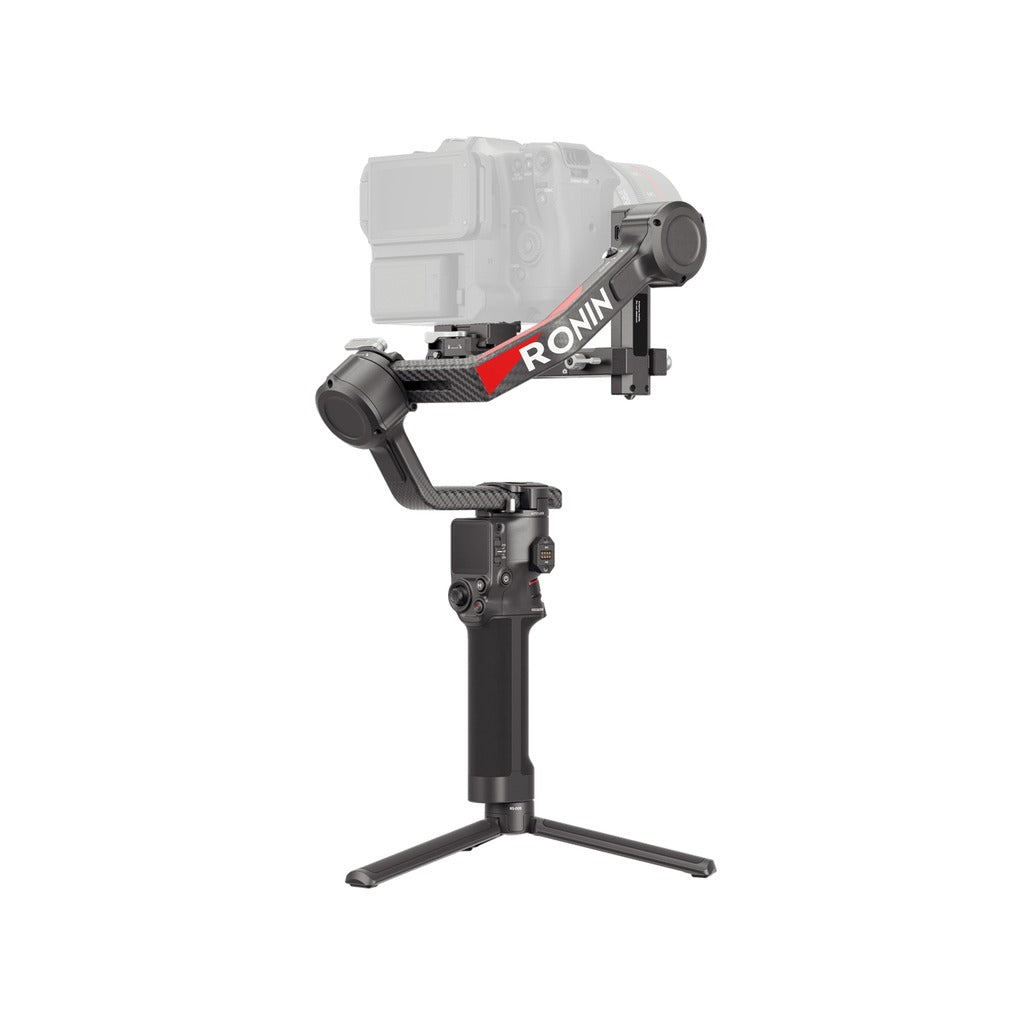

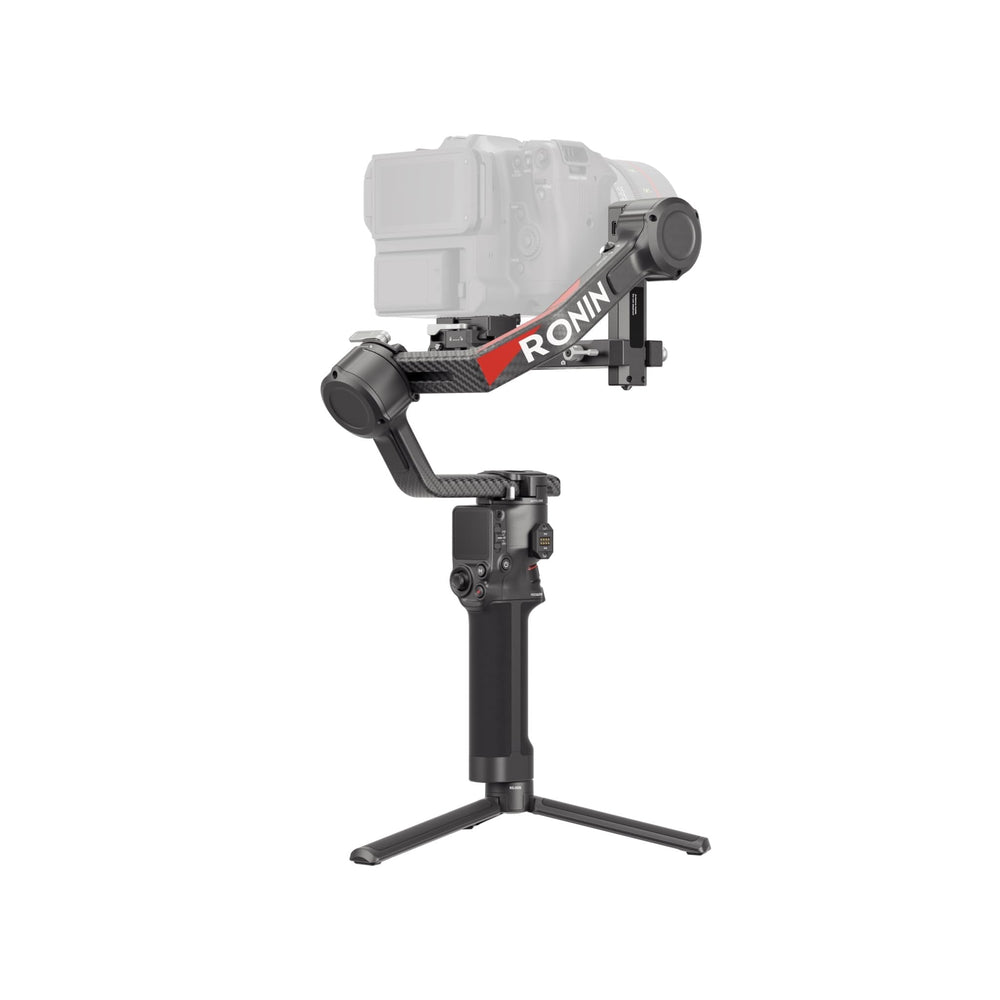

DJI RS 4 Pro 3-Axis Gimbal Stabilizer, 10 lb Payload for Cinema Cameras

Carbon fiber axis arms and higher-torque motors let the DJI RS 4 Pro carry a tested payload of 4.5 kg (10 lb), which covers mirrorless bodies with cinema lenses as well as compact cinema cameras with monitors, wireless video and follow-focus motors mounted. Second-generation native vertical shooting switches the camera to portrait orientation by repositioning the horizontal plate, with no extra accessories, and second-generation automated axis locks unlock and lock all three axes in a single press.

Balancing is faster thanks to Teflon-coated axis arms and fine-tuning knobs, and the 1.8-inch OLED touchscreen gives direct access to gimbal modes, tracking, and camera control over the Multi-Camera Control Cable. The RS 4 Pro integrates with the DJI Focus Pro lens-control ecosystem, supports DJI SDR Transmission and Ronin Image Transmitter accessories for wireless monitoring, and includes Bluetooth 5.1 for shutter control of compatible cameras.

The BG30 Battery Grip supplies up to 13 hours of operation and recharges in about 1.5 hours with a 24 W charger, and the grip can be swapped without re-balancing. The standard package ships with the Arca-Swiss/Manfrotto quick-release plate, Extended Grip/Tripod, briefcase handle, extended lens-fastening support, cables and a carrying case. Folded, the gimbal measures 289.5 x 167.3 x 267 mm and weighs about 1242 g without the grip, so it travels in a standard camera backpack.

Features

• Tested payload 4.5 kg (10 lb) with carbon fiber axis arms and 20 percent higher motor torque than the previous generation
• 2nd-generation native vertical shooting: switch to portrait by moving the horizontal plate, no accessories needed
• 2nd-generation automated axis locks lock and unlock all three axes with one press
• Teflon-coated axis arms and fine-tuning knob speed up balancing
• 1.8-inch OLED full-color touchscreen for mode, tracking and camera control
• Compatible with DJI Focus Pro lens control system, DJI SDR Transmission and Ronin Image Transmitter
• Bluetooth 5.1 shutter control and Multi-Camera Control Cable (USB-C) for supported cameras
• BG30 Battery Grip: 1950 mAh / 30 Wh, up to 13 hours runtime, about 1.5 hours to charge at 24 W
• Mechanical range: pan 360 degrees continuous, roll -95 to +240 degrees, tilt -112 to +214 degrees
• Folded footprint 289.5 x 167.3 x 267 mm; gimbal weight approx. 1242 g without grip

Technical Specifications

• Tested Payload: 4.5 kg (10 lb)
• Weight (Gimbal): approx. 1242 g (2.74 lb)
• Weight (BG30 Grip): approx. 265 g (0.58 lb)
• Weight (Extended Grip/Tripod, Metal): approx. 226 g (0.49 lb)
• Weight (Upper and Lower Quick-Release Plates): approx. 110 g (0.24 lb)
• Dimensions (Folded): 289.5 x 167.3 x 267 mm (L x W x H, excluding camera, grip and Extended Grip/Tripod)
• Dimensions (Unfolded): 267.8 x 201.9 x 415 mm (L x W x H, including grip, excluding camera and Extended Grip/Tripod)
• Mechanical Range: Pan 360 degrees continuous; Roll -95 to +240 degrees; Tilt -112 to +214 degrees
• Battery: BG30, 1950 mAh, 30 Wh, 15.4 V, LiPo 4S
• Max Runtime: 13 hours (gimbal balanced, level and stationary)
• Charging Time: approx. 1.5 hours with a 24 W fast charger
• Screen: 1.8-inch OLED full-color touchscreen
• Bluetooth: 5.1, transmitter power under 8 dBm
• Operating Temperature: -20 to 45 C (-4 to 113 F)
• Quick-Release Plate: Arca-Swiss / Manfrotto compatible
• Part Number: CP.RN.00000345.03

What's Included

• Gimbal x 1
• BG30 Battery Grip x 1
• Quick-Release Plate (Arca-Swiss/Manfrotto) x 1
• Extended Grip/Tripod (Metal) x 1
• Briefcase Handle x 1
• Lens-Fastening Support (Extended) x 1
• Multi-Camera Control Cable (USB-C, 30 cm) x 1
• USB-C Charging Cable (40 cm) x 1
• Screw Kit x 1
• Carrying Case x 1
• DJI Logo Sticker x 1
