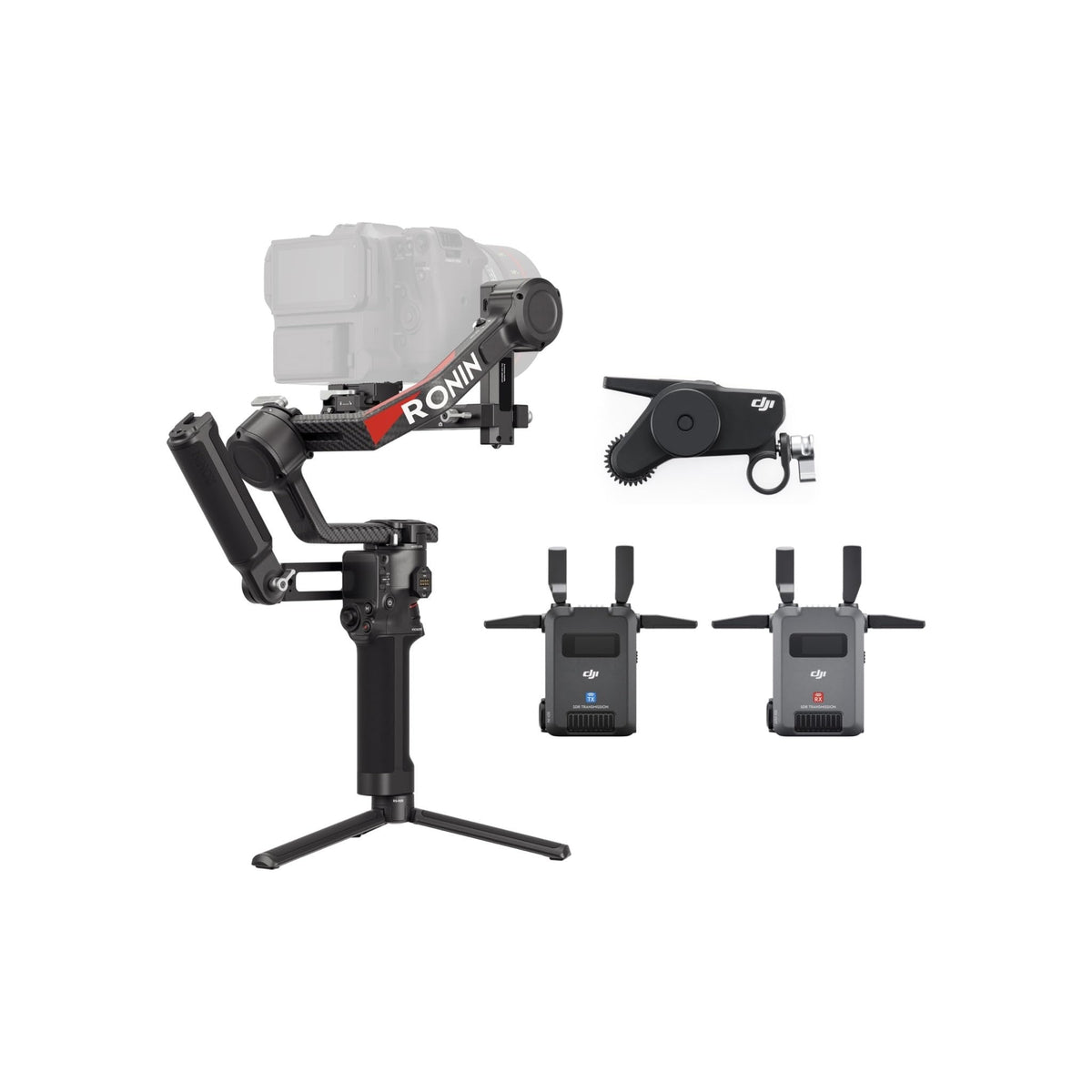

DJI RS 4 Pro Combo (2026) 3-Axis Gimbal with SDR Transmission and Focus Motor

Refreshed for 2026, the DJI RS 4 Pro Combo bundles DJI's flagship 3-axis handheld stabilizer with the DJI SDR Transmission system and a Focus Pro Motor, replacing the Ronin Image Transmitter found in the original combo. The gimbal's carbon fiber axis arms support a 4.5 kg (10 lb) tested payload with a 20% increase in motor torque over the previous generation, accommodating mainstream mirrorless and cinema camera builds with room to spare.

Second-generation native vertical shooting lets the horizontal plate be released and locked into the vertical position without extra accessories, and the second-generation automated axis locks reduce gimbal shake when stowed. A joystick mode switch toggles between gimbal movement and lens zoom, so with two Focus Pro Motors fitted an operator can zoom from the joystick and pull focus from the dial. The gimbal is natively compatible with the DJI Focus Pro LiDAR for 76,800-point autofocus within 20 m and with the DJI RS SDK ecosystem.

The included DJI SDR Transmission transmitter mounts to the stabilizer and draws power from it, sending 1080p/60fps video at up to 20 Mbps with latency as low as 35 ms and a range of up to 3 km (FCC) to the included receiver, which outputs to monitors via SDI/HDMI or to phones and tablets over USB-C and Wi-Fi. The BG30 battery grip runs the gimbal for up to 13 hours and recharges in about 1.5 hours with a 24W PD charger. Rod mount kit, focus gear strip, mounting adapter plates, phone holder, briefcase handle, extended grip/tripod, and carrying case complete the kit.

Features

• 3-axis handheld stabilizer with 4.5 kg (10 lb) tested payload and carbon fiber axis arms
• 20% increase in motor torque for greater power redundancy once balanced
• 2nd-generation native vertical shooting - switch orientation without additional accessories
• 2nd-generation automated axis locks with reduced gaps for less shake when locked
• Joystick mode switch for gimbal movement or lens zoom; supports dual Focus Pro Motors for focus and zoom
• Native compatibility with DJI Focus Pro LiDAR (76,800 ranging points, 20 m) and ActiveTrack Pro
• DJI SDR Transmission TX and RX included: 1080p/60fps up to 20 Mbps, latency as low as 35 ms, range up to 3 km (FCC)
• SDR receiver outputs to SDI/HDMI monitors or USB-C/Wi-Fi to phones and tablets; TX powered from the gimbal
• Focus Pro Motor with rod mount kit and focus gear strip included
• BG30 battery grip: up to 13 hours runtime, approx. 1.5 hour charge with 24W PD fast charging; Bluetooth 5.1

Technical Specifications

• Gimbal Weight: Approx. 1242 g (2.74 lb)
• Grip Weight: Approx. 265 g; Extended Grip/Tripod (Metal): approx. 226 g; Quick-release plates: approx. 110 g
• Dimensions (folded): 289.5 x 167.3 x 267 mm (excludes camera, grip, Extended Grip/Tripod)
• Dimensions (unfolded): 267.8 x 201.9 x 415 mm (includes grip, excludes camera and Extended Grip/Tripod)
• Tested Payload: 4.5 kg (10 lb)
• Pan: 360-degree continuous rotation; Tilt: -112 to +214 degrees; Roll: -95 to +240 degrees
• Max Controlled Rotation Speed: 360 degrees/s on each axis
• Battery (BG30 Grip): LiPo 4S, 1950 mAh, 15.4 V, 30 Wh
• Max Runtime: 13 hours (balanced and stationary)
• Charging Time: Approx. 1.5 hours with 24W fast charger (QC 2.0 / PD recommended)
• Connections: Bluetooth 5.1; USB-C charging; Ronin Series accessory/NATO ports; 1/4in-20 mounting hole; cold shoe; USB-C ports for video transmission/LiDAR, RSS camera control, and focus motor
• Operating Temperature: -20 to 45 C (-4 to 113 F)
• SDR Transmission: 1080p/60fps, up to 20 Mbps, H.264; latency as low as 35 ms; range up to 3 km (FCC) / 2 km (CE/SRRC/MIC)
• SDR Transmitter: approx. 145 g, 86.5 x 64 x 32 mm
• Combo Packed Weight: approx. 8.36 lb (3.79 kg)

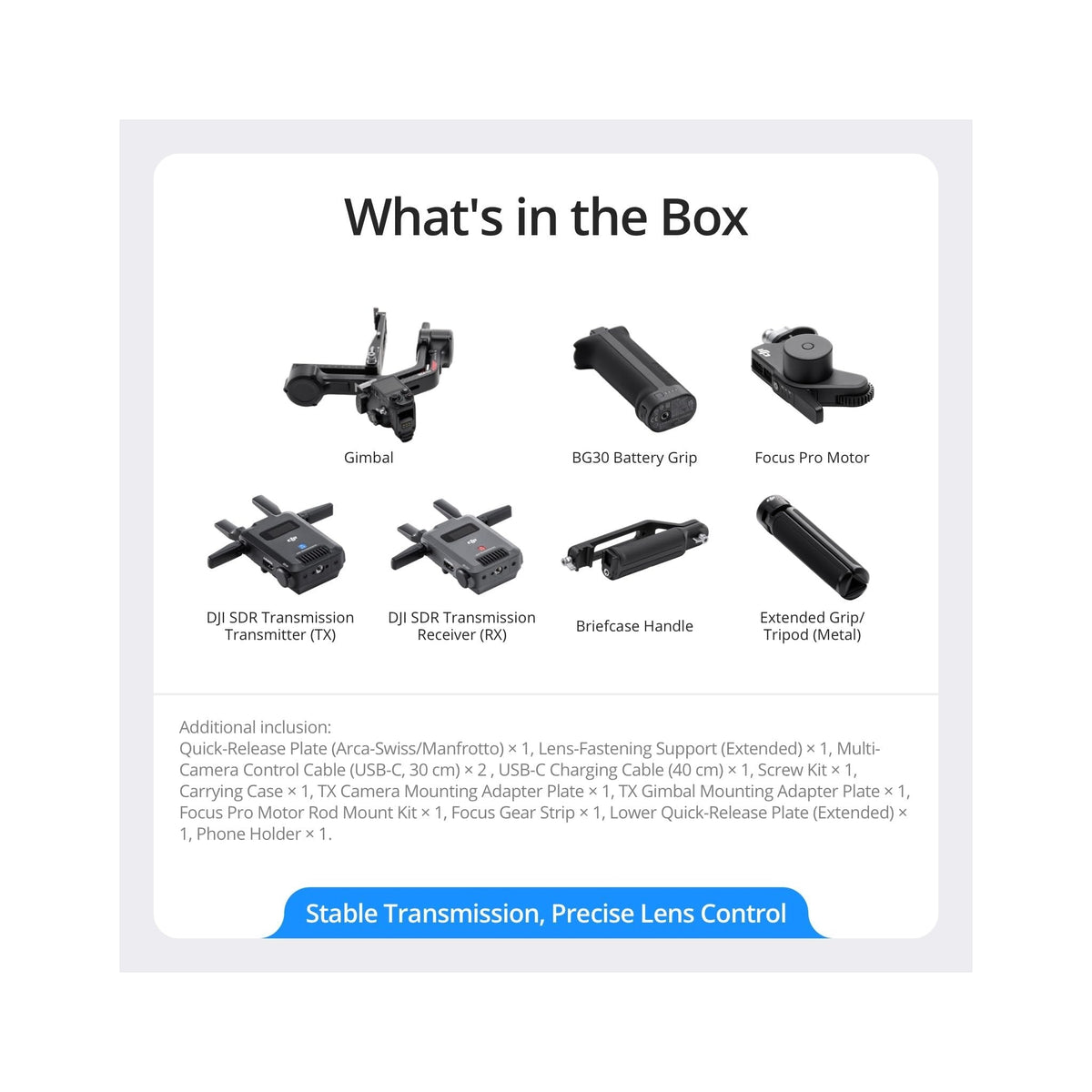

What's Included

• Gimbal x 1
• BG30 Battery Grip x 1
• Extended Grip/Tripod (Metal) x 1
• Briefcase Handle x 1
• DJI SDR Transmission Transmitter (TX) x 1
• DJI SDR Transmission Receiver (RX) x 1
• Focus Pro Motor x 1
• Quick-Release Plate (Arca-Swiss/Manfrotto) x 1
• Lower Quick-Release Plate (Extended) x 1
• Lens-Fastening Support (Extended) x 1
• Multi-Camera Control Cable (USB-C, 30 cm) x 2
• USB-C Charging Cable (40 cm) x 1
• TX Camera Mounting Adapter Plate x 1
• TX Gimbal Mounting Adapter Plate x 1
• Focus Pro Motor Rod Mount Kit x 1
• Focus Gear Strip x 1
• FIZ Sticker x 1
• Phone Holder x 1
• Screw Kit x 1
• Carrying Case x 1
• DJI Logo Sticker x 1
