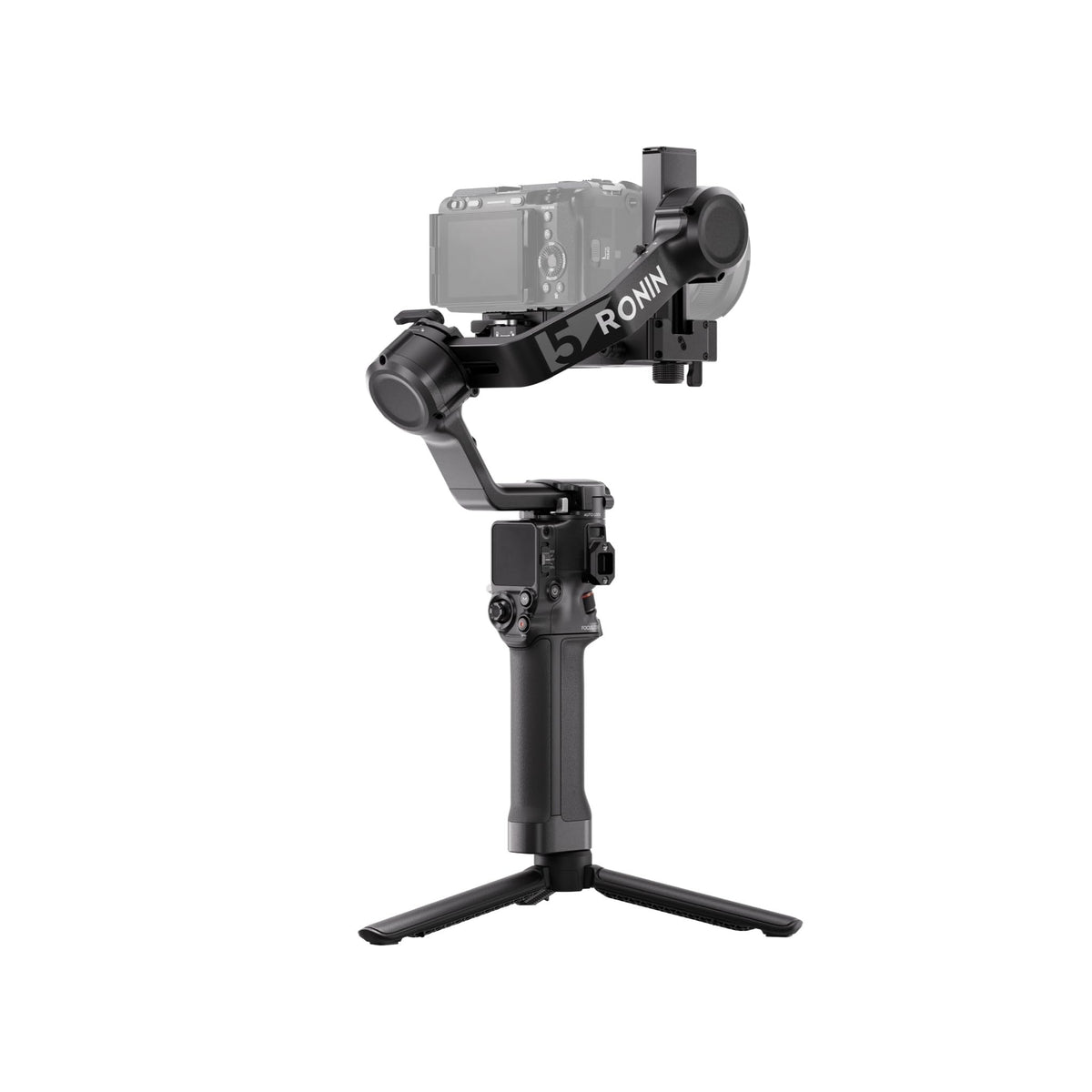

DJI RS 5 3-Axis Camera Gimbal Stabilizer with BG33 Battery Grip

Mirrorless and compact cinema shooters get a faster setup and longer days from the DJI RS 5, a three-axis gimbal with a tested payload of 3.0 kg. Teflon-enhanced axis arms and new fine-tuning knobs make balancing smoother and more precise, second-generation automated axis locks unlock and lock the arms at power on and off, and a new Z-axis indicator helps confirm balance before rolling. The gimbal weighs about 1193 g with its quick-release plates.

Power comes from the BG33 Battery Grip, a 2150 mAh, 33.29 Wh LiPo 4S pack that offers approximately 14 hours of standby, charges fully in about one hour from a 65 W PD source, and delivers a 15 percent longer runtime than the previous generation. Each axis rotates at up to 360 degrees per second, with continuous 360-degree pan, -95 to +240 degree roll and -112 to +214 degree tilt.

Bluetooth 5.0 and the included Multi-Camera Control Cable connect the RS 5 to Canon, Sony, Nikon and Fujifilm bodies for shutter and recording control from the handle. The standard package includes the Quick-Open Tripod, lens-fastening support, upper and lower quick-release plates and a screw kit; the touchscreen-driven RS Enhanced Intelligent Tracking Module and Electronic Briefcase Handle are available in the Combo.

Features

• Three-axis stabilization with a 3.0 kg (6.6 lb) tested payload

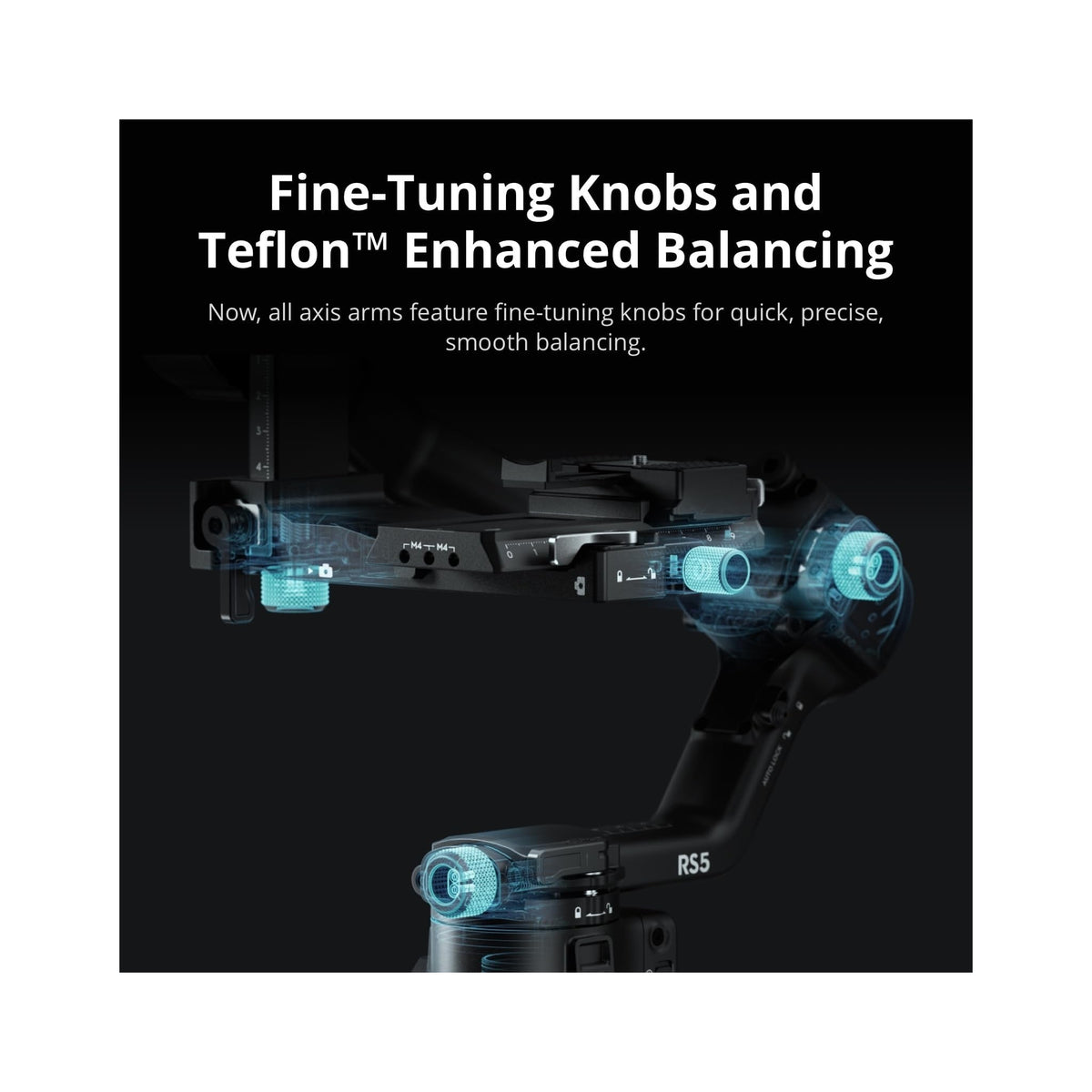

• Fine-tuning knobs and Teflon-enhanced balancing
• 2nd-generation automated axis locks
• New Z-axis indicator for balance confirmation
• BG33 Battery Grip: 1-hour full charge, approx. 14 h standby, 15 percent extended runtime
• Max controlled rotation speed of 360 degrees/s on every axis
• Bluetooth 5.0 camera control plus Multi-Camera Control Cable
• Touchscreen subject selection with the optional RS Enhanced Intelligent Tracking Module

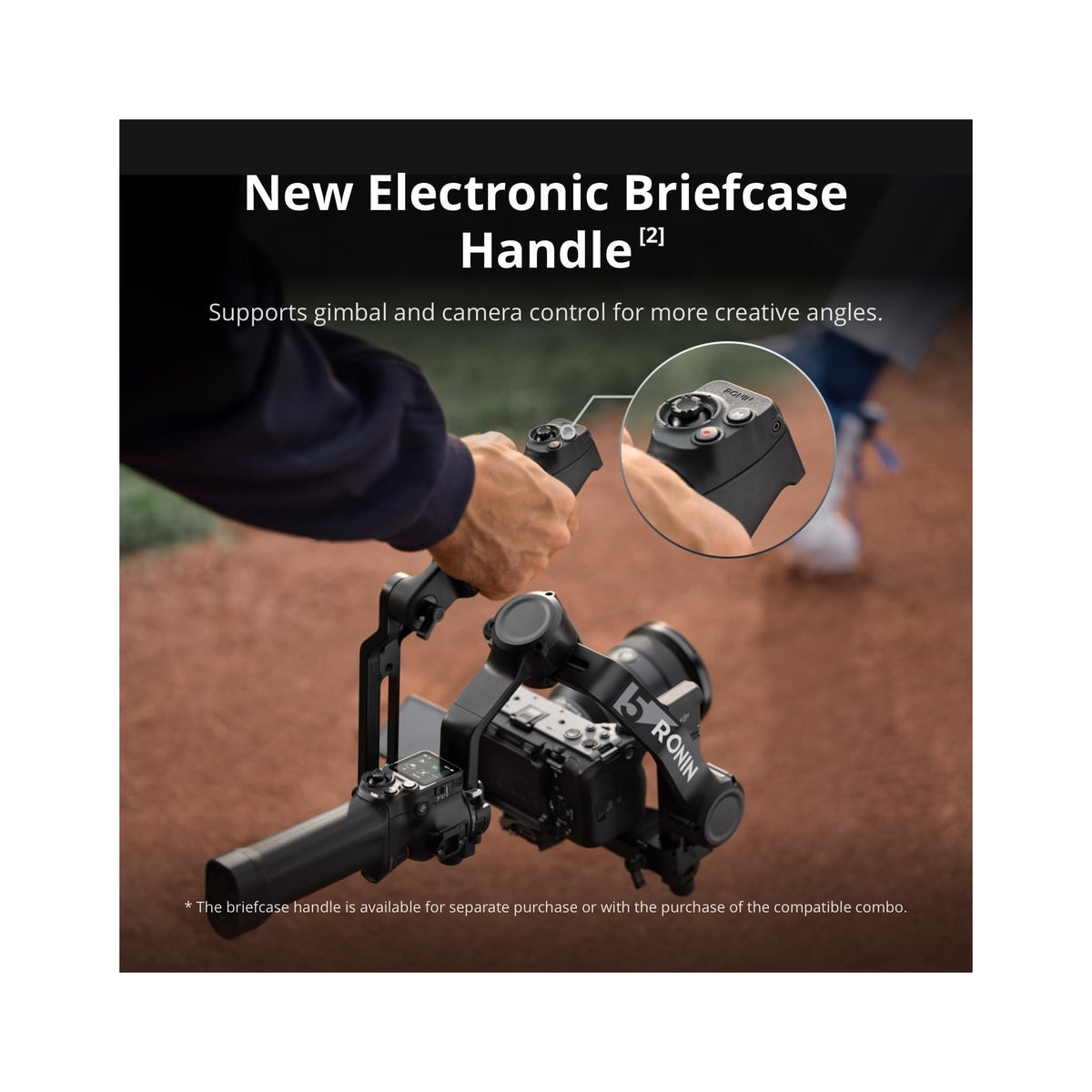

• Compatible with the Electronic Briefcase Handle for gimbal and camera control
• Operates from -20 to 45 C

Technical Specifications

• Folded dimensions: 247.4 x 115.7 x 258.7 mm (excluding camera, grip and tripod)
• Unfolded dimensions: 223.2 x 192.2 x 418.8 mm (including grip, excluding camera and tripod)
• Gimbal weight: approx. 1193 g (2.63 lb) including quick-release plates
• Grip weight: approx. 274 g; Quick-Open Tripod: approx. 149 g
• Tested payload: 3.0 kg (6.6 lb)
• Battery grip: BG33, LiPo 4S, 2150 mAh, 33.29 Wh, 11.2-17.8 V
• Max standby time: approx. 14 hours
• Charging time: approx. 1 hour with a 65 W PD charger
• Mechanical range: pan 360 degrees continuous; roll -95 to +240 degrees; tilt -112 to +214 degrees
• Max controlled rotation speed: 360 degrees/s per axis
• Connectivity: Bluetooth 5.0, USB-C charging port
• Operating temperature: -20 to 45 C (-4 to 113 F)
• Charging temperature: 5 to 40 C (41 to 104 F)
• RS Enhanced Intelligent Tracking Module: 0.5-10 m tracking distance, illuminance over 20 lux, approx. 19 g, magnetic attachment
• Electronic Briefcase Handle: approx. 230 g, 60 x 197.5 x 79.5 mm

What's Included

• Gimbal
• BG33 Battery Grip
• Quick-Open Tripod
• Lens-Fastening Support
• Screw Kit
• RS 5 Upper Quick-Release Plate
• RS 5 Lower Quick-Release Plate
• Multi-Camera Control Cable (USB-C, 30 cm)
• DJI Logo Sticker
