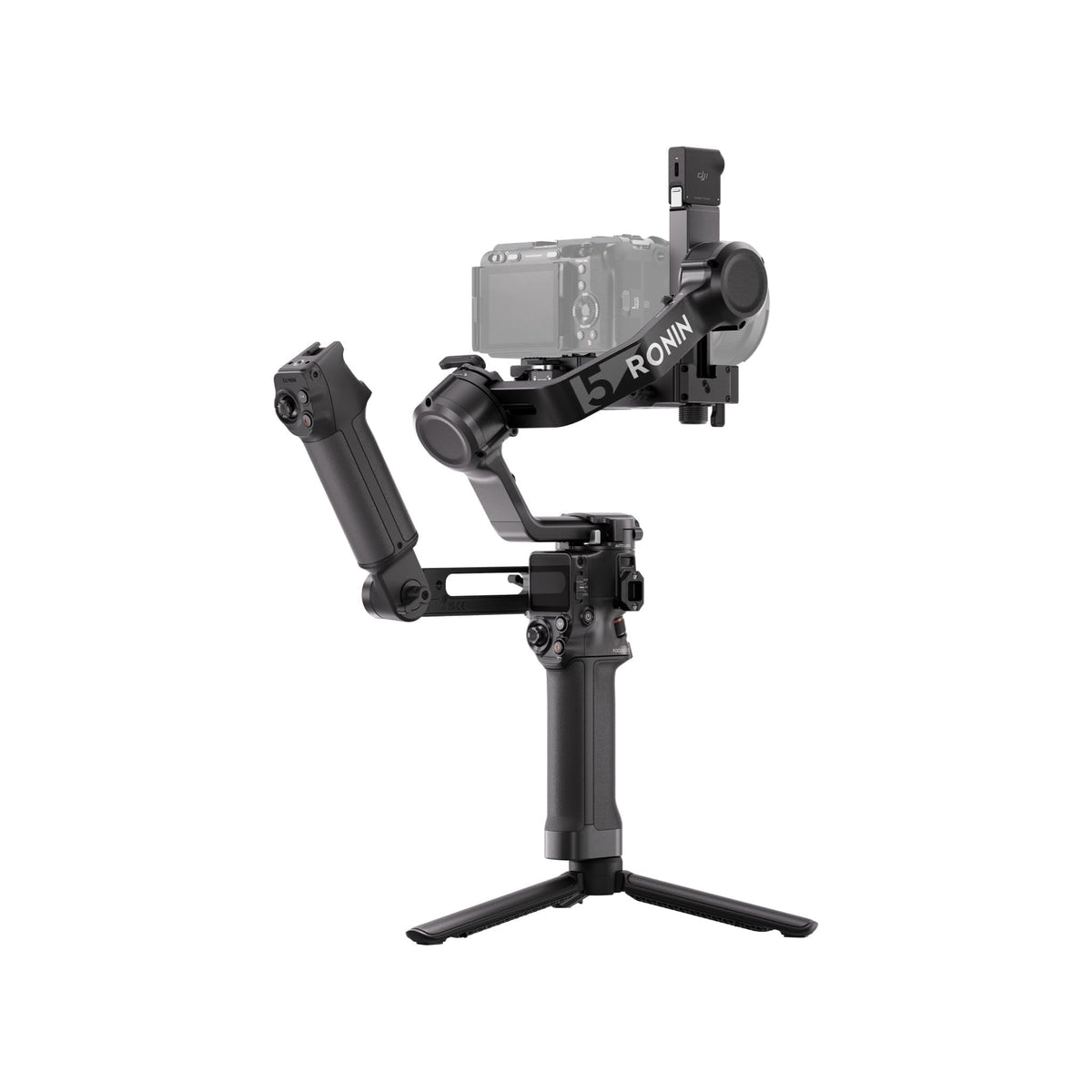

DJI RS 5 Combo 3-Axis Camera Gimbal with Tracking Module and Briefcase Handle

One-person crews and small teams who need tracking and low-mode control in one package should look at the DJI RS 5 Combo. It bundles the RS 5 gimbal with the RS Enhanced Intelligent Tracking Module and the Electronic Briefcase Handle, plus a carrying case to keep everything together. The 19 g magnetic tracking module enables touchscreen subject selection, tracks from 0.5 to 10 m, and can reacquire a subject that briefly leaves the frame.

The gimbal itself carries a tested payload of 3.0 kg and uses Teflon-enhanced axis arms with fine-tuning knobs, second-generation automated axis locks and a Z-axis indicator for quick, repeatable balancing. The BG33 Battery Grip provides approximately 14 hours of standby, a one-hour full charge from a 65 W PD source and 15 percent more runtime than before, while each axis moves at up to 360 degrees per second.

The Electronic Briefcase Handle adds gimbal and camera control for underslung and briefcase-mode shooting, and Bluetooth 5.0 plus the Multi-Camera Control Cable drive Canon, Sony, Nikon and Fujifilm bodies from the grip. Quick-Open Tripod, lens-fastening support, upper and lower quick-release plates, a 13 cm L-shaped USB-C cable and a screw kit complete the Combo, which folds to 247.4 x 115.7 x 258.7 mm for transport.

Features

• Three-axis stabilization with a 3.0 kg (6.6 lb) tested payload
• RS Enhanced Intelligent Tracking Module with touchscreen subject selection and 0.5-10 m tracking range
• Electronic Briefcase Handle with gimbal and camera control
• Fine-tuning knobs and Teflon-enhanced balancing
• 2nd-generation automated axis locks and new Z-axis indicator
• BG33 Battery Grip: 1-hour full charge, approx. 14 h standby, 15 percent extended runtime
• Max controlled rotation speed of 360 degrees/s on every axis
• Bluetooth 5.0 camera control plus Multi-Camera Control Cable
• Carrying case for the complete kit
• Operates from -20 to 45 C

Technical Specifications

• Folded dimensions: 247.4 x 115.7 x 258.7 mm (excluding camera, grip and tripod)
• Unfolded dimensions: 223.2 x 192.2 x 418.8 mm (including grip, excluding camera and tripod)
• Gimbal weight: approx. 1193 g (2.63 lb) including quick-release plates
• Grip weight: approx. 274 g; Quick-Open Tripod: approx. 149 g
• Tested payload: 3.0 kg (6.6 lb)
• Battery grip: BG33, LiPo 4S, 2150 mAh, 33.29 Wh, 11.2-17.8 V
• Max standby time: approx. 14 hours
• Charging time: approx. 1 hour with a 65 W PD charger
• Mechanical range: pan 360 degrees continuous; roll -95 to +240 degrees; tilt -112 to +214 degrees
• Max controlled rotation speed: 360 degrees/s per axis
• Connectivity: Bluetooth 5.0, USB-C charging port
• Operating temperature: -20 to 45 C (-4 to 113 F)
• Charging temperature: 5 to 40 C (41 to 104 F)
• RS Enhanced Intelligent Tracking Module: 0.5-10 m tracking distance, illuminance over 20 lux, approx. 19 g, magnetic attachment
• Electronic Briefcase Handle: approx. 230 g, 60 x 197.5 x 79.5 mm

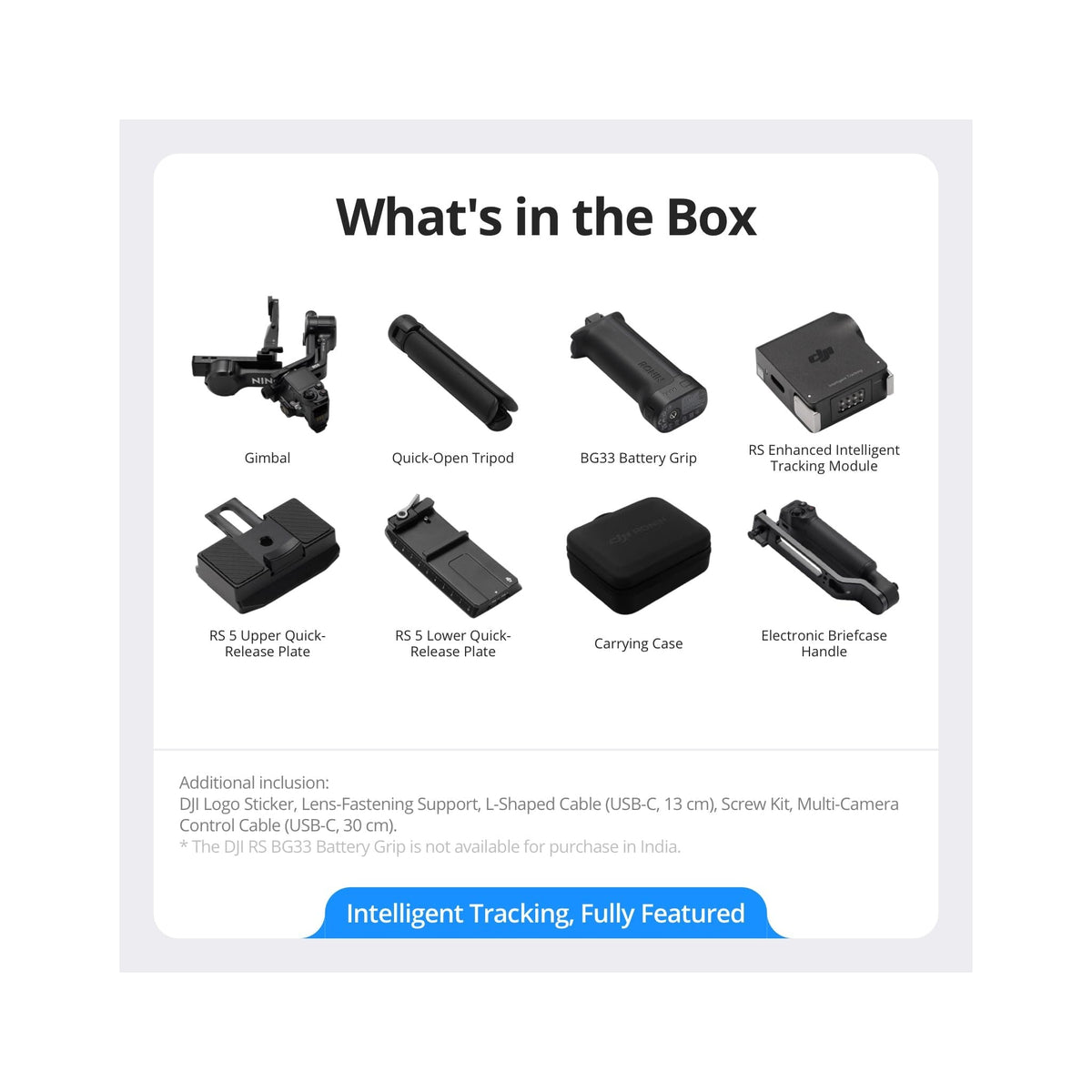

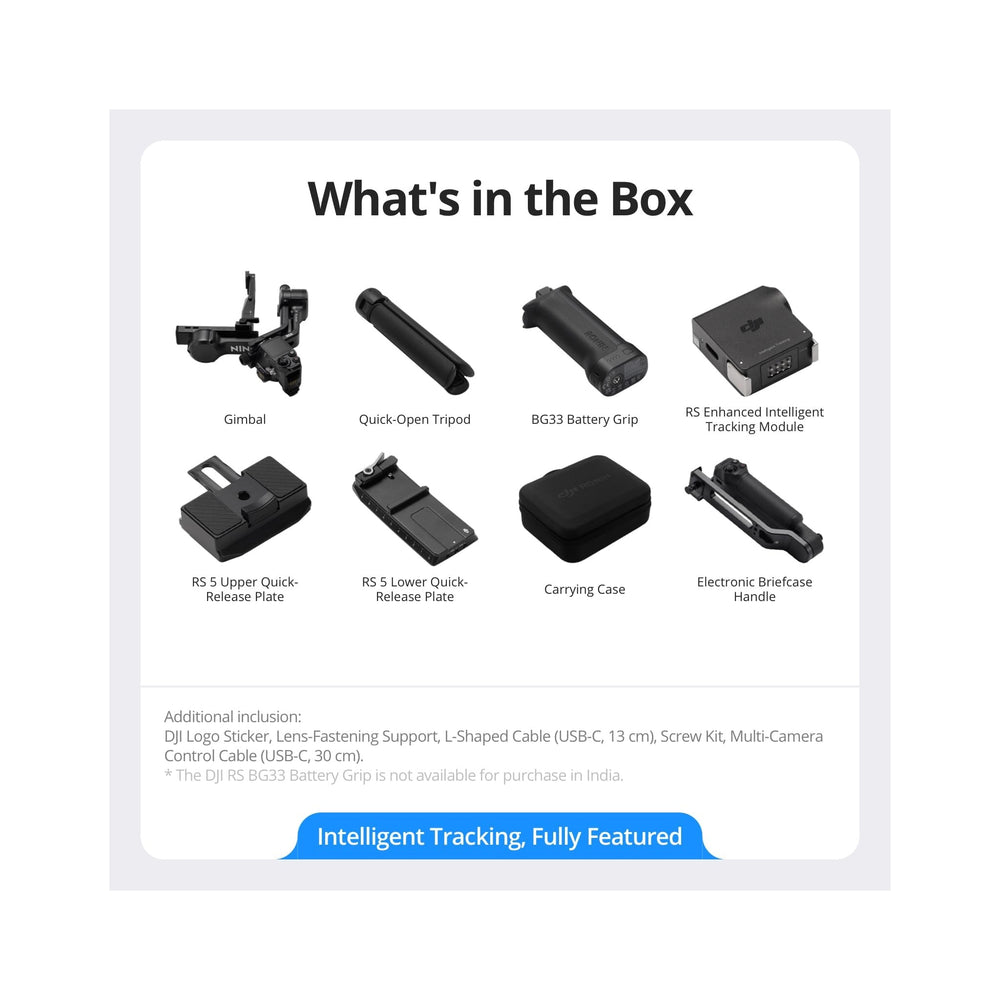

What's Included

• Gimbal
• BG33 Battery Grip
• Quick-Open Tripod
• Lens-Fastening Support
• Screw Kit
• RS 5 Upper Quick-Release Plate
• RS 5 Lower Quick-Release Plate
• Multi-Camera Control Cable (USB-C, 30 cm)
• DJI Logo Sticker
• RS Enhanced Intelligent Tracking Module
• Electronic Briefcase Handle
• L-Shaped Cable (USB-C, 13 cm)
• Carrying Case
