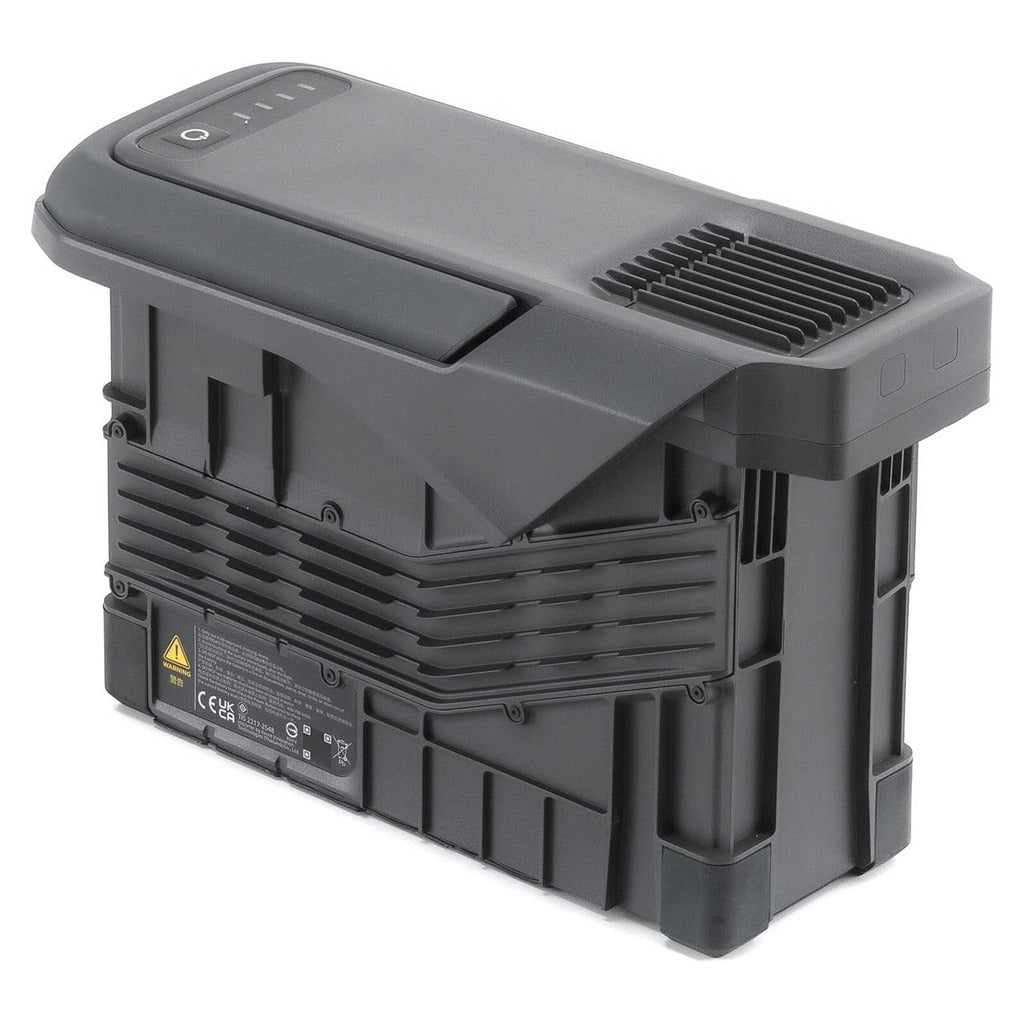

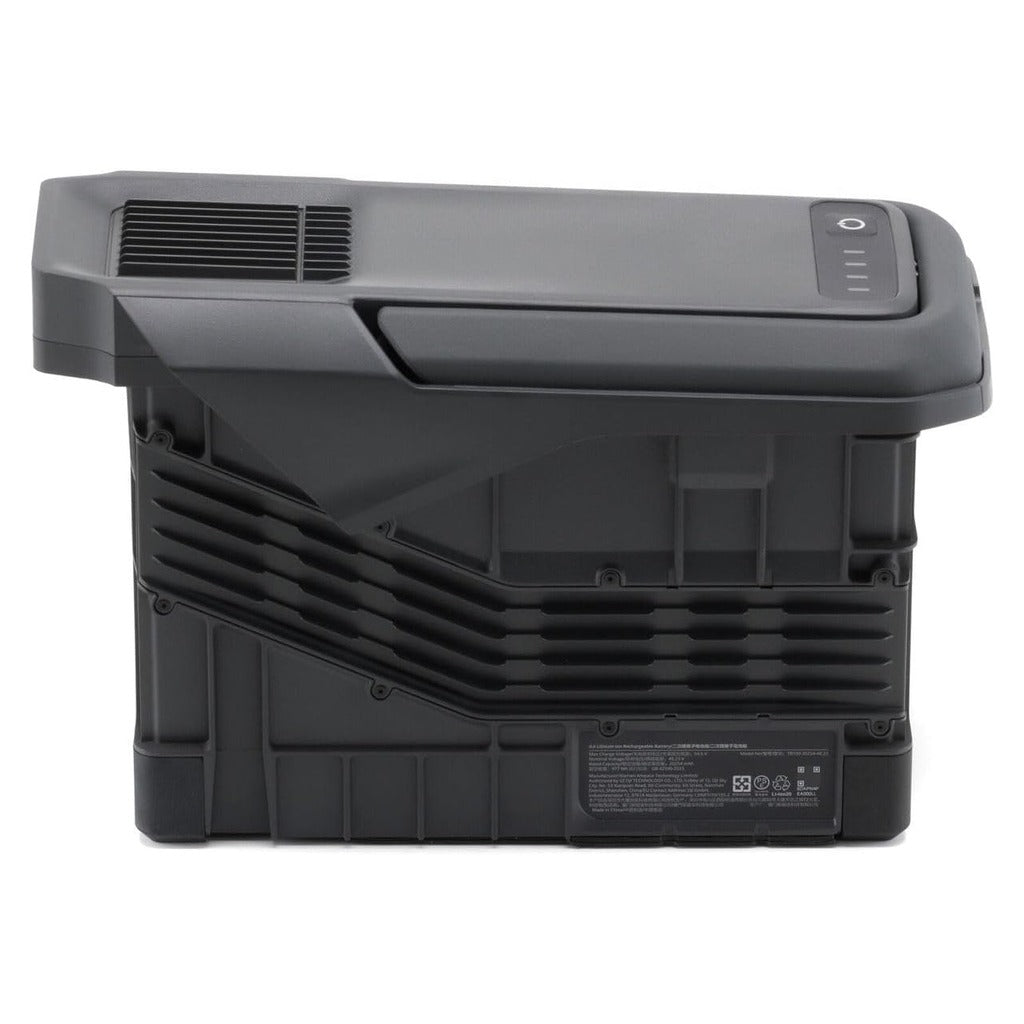

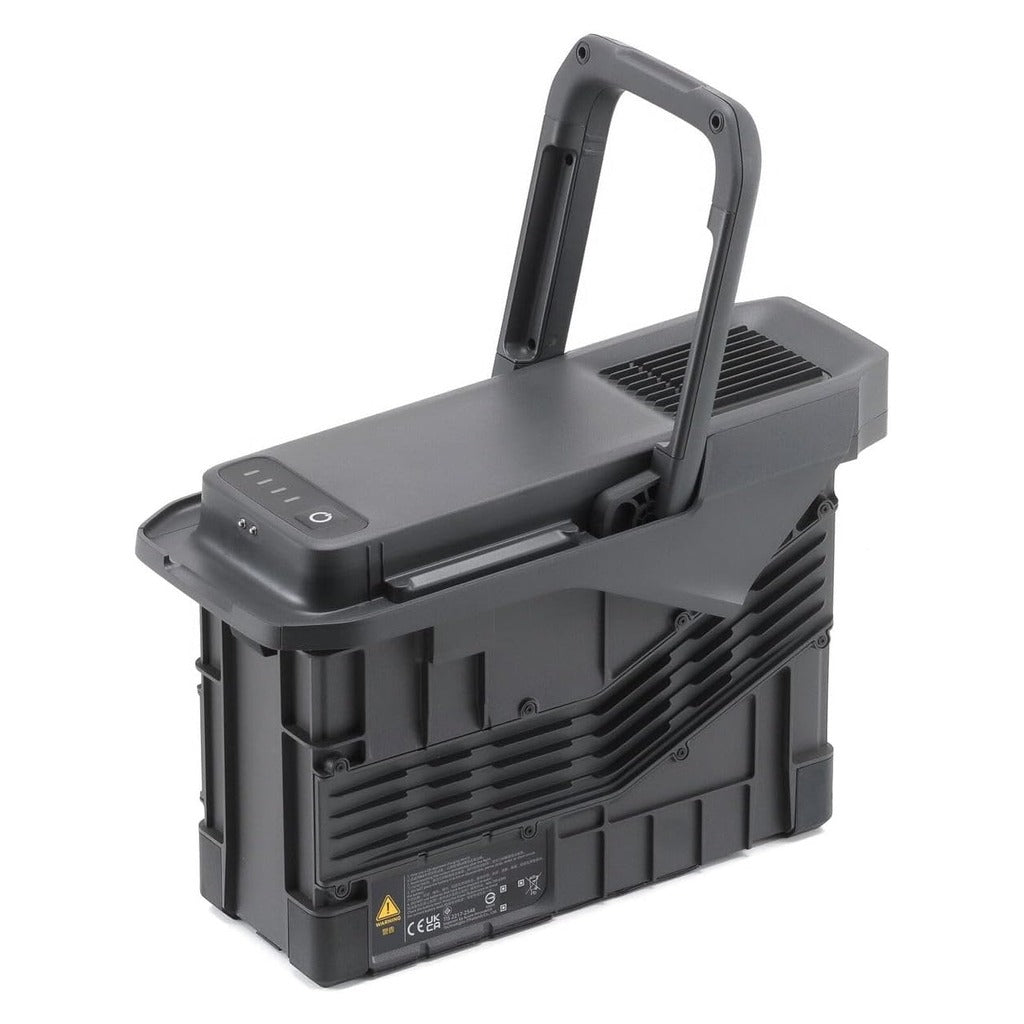

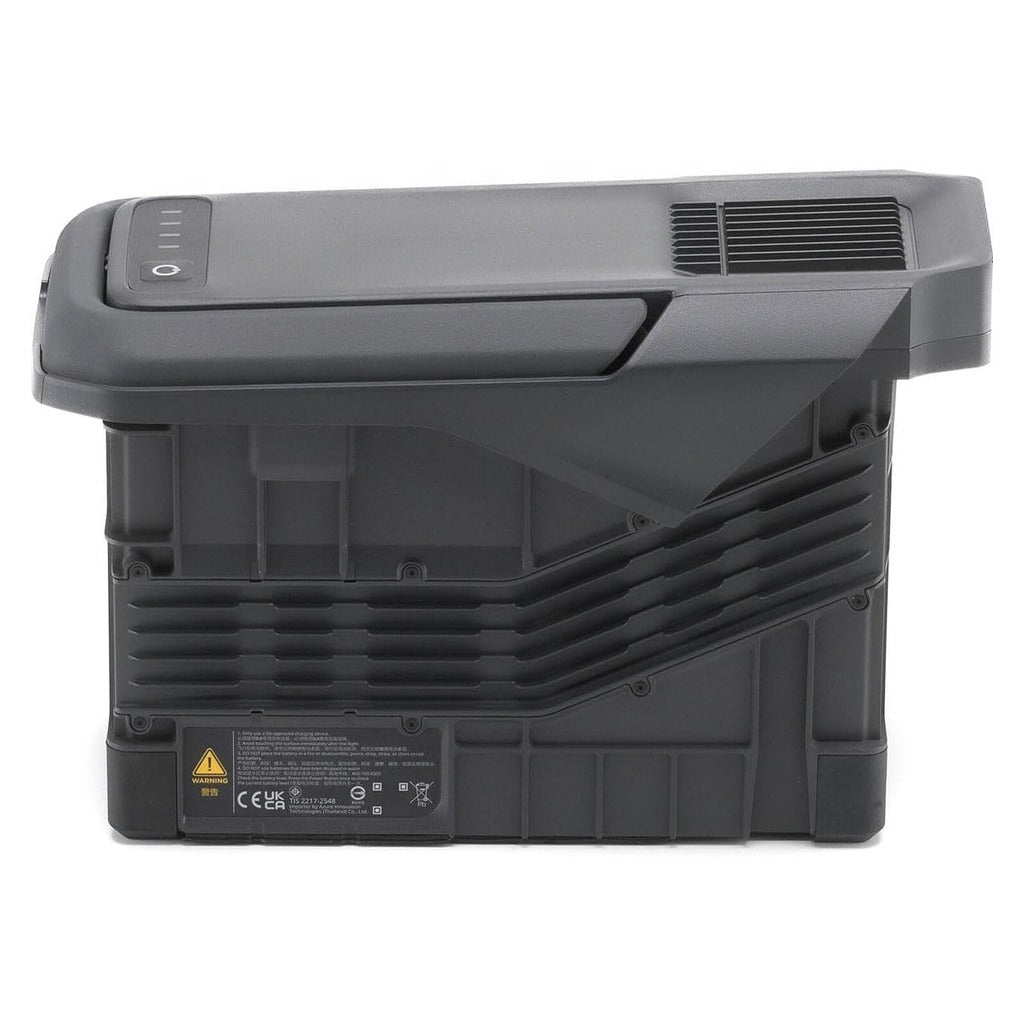

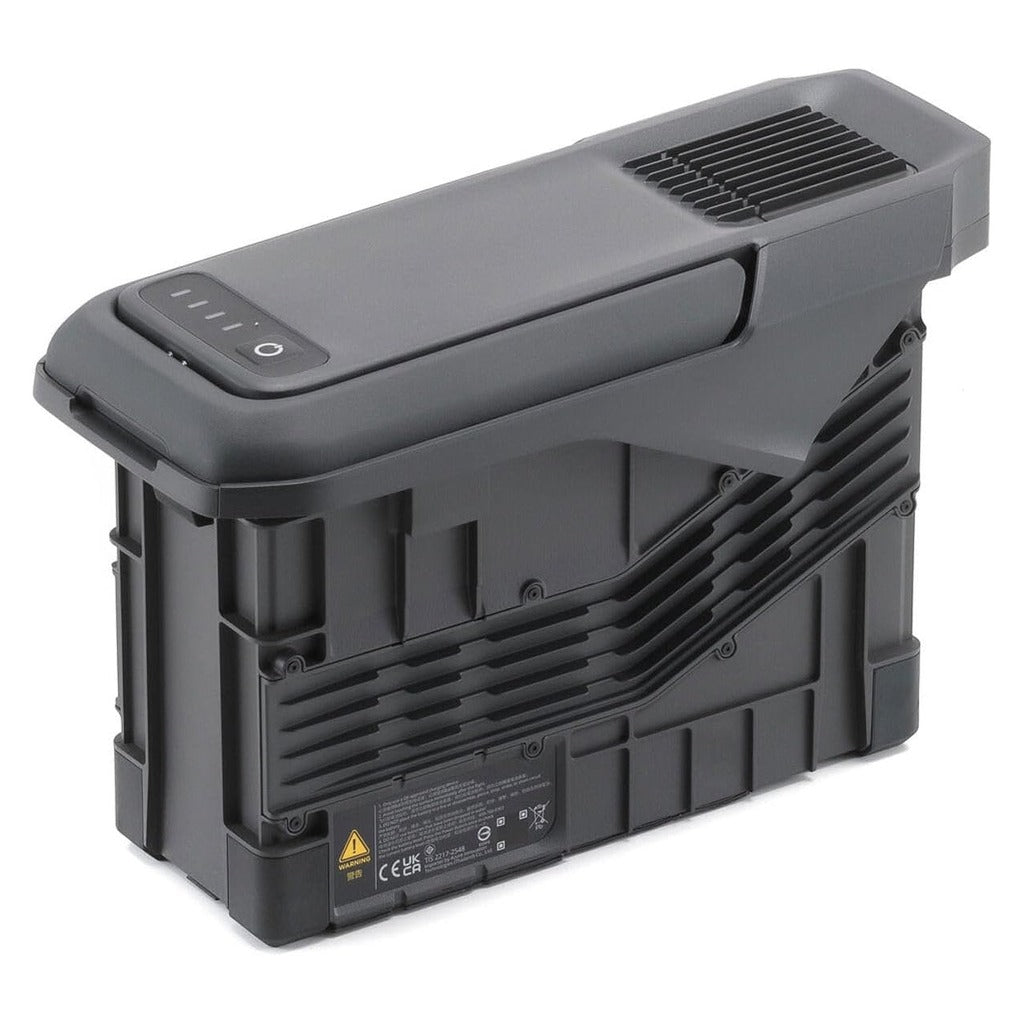

DJI TB100 Intelligent Flight Battery for Matrice 400, 977Wh

Heavy-lift endurance on the DJI Matrice 400 comes from the TB100 Intelligent Flight Battery, a 20254 mAh, 977 Wh, 48.23 V Li-ion 13S pack. The aircraft flies on two TB100 batteries in a dual-battery, hot-swap-ready configuration, and the system is rated for up to 59 minutes of flight time without payload, giving inspection, mapping, public-safety and lidar-survey crews longer sorties with the 6 kg payload class.

The TB100 is engineered for high-current duty: a 4C discharge rate, up to 2C charging power, a -20 to 75 C discharge temperature range and a 5 to 45 C charging range, with a 400-cycle service rating for fleet budgeting. Intelligent battery management communicates cell health, cycle count and self-discharge status to DJI Pilot 2, and the pack weighs 4720 g.

Recharging is handled by the DJI BS100 Intelligent Battery Station, which refills a TB100 from 0% to 100% in about 45 minutes at 220 V in Fast Charging mode (70 minutes at 110 V, 110 minutes in Silent mode) and holds three TB100 packs plus two WB37 controller batteries. The TB100 is sold individually; Matrice 400 operators typically run at least four packs per aircraft for continuous operations.

Features

• Capacity 20254 mAh, 977 Wh, standard voltage 48.23 V (Li-ion 13S)
• Dual-battery system on the Matrice 400 rated for up to 59 min flight time (no payload)
• Discharge rate 4C; max charging power 2C
• Discharge temperature -20 to 75 C; charging temperature 5 to 45 C
• 400 charge-cycle rating
• Weight 4720 g (+/-20 g)
• Intelligent battery management with status reporting in DJI Pilot 2
• Charges on the DJI BS100 Intelligent Battery Station (45 min at 220 V Fast mode)
• Supports hot-swap battery replacement on the Matrice 400

Technical Specifications

• Capacity: 20254 mAh
• Energy: 977 Wh
• Standard voltage: 48.23 V
• Max charging voltage: 54.6 V
• Battery type: Li-ion 13S
• Weight: 4720 g (+/-20 g)
• Discharge rate: 4C
• Max charging power: 2C
• Charging temperature: 5 to 45 C (41 to 113 F)
• Discharging temperature: -20 to 75 C (-4 to 167 F)
• Cycle count: 400
• Compatible aircraft: DJI Matrice 400 (two batteries per aircraft)
• Charging time on BS100 (0-100%, 25 C): 45 min at 220 V Fast mode; 70 min at 110 V Fast mode; 110 min Silent mode
• Compatible charger: DJI BS100 Intelligent Battery Station

What's Included

• DJI TB100 Intelligent Flight Battery x1
