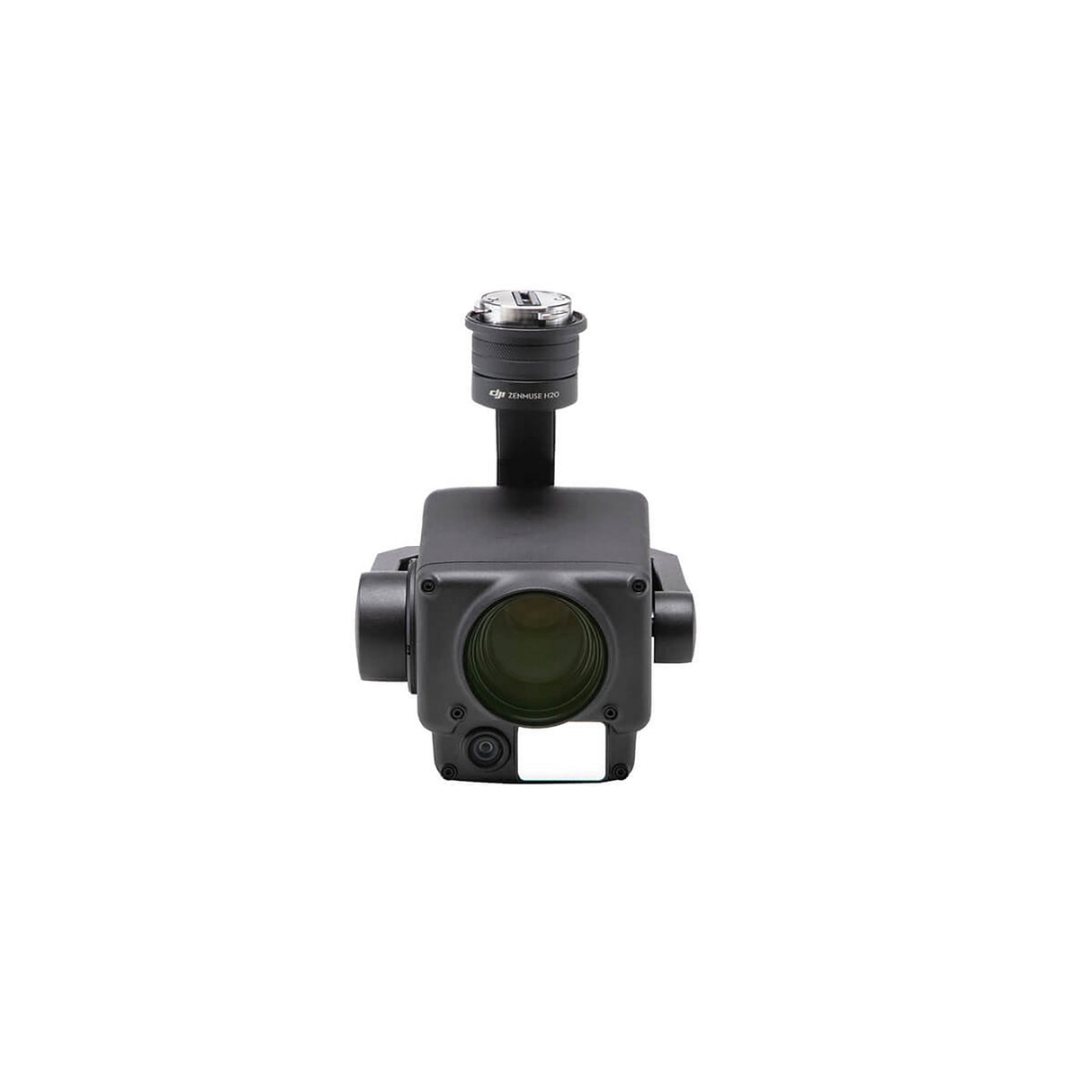

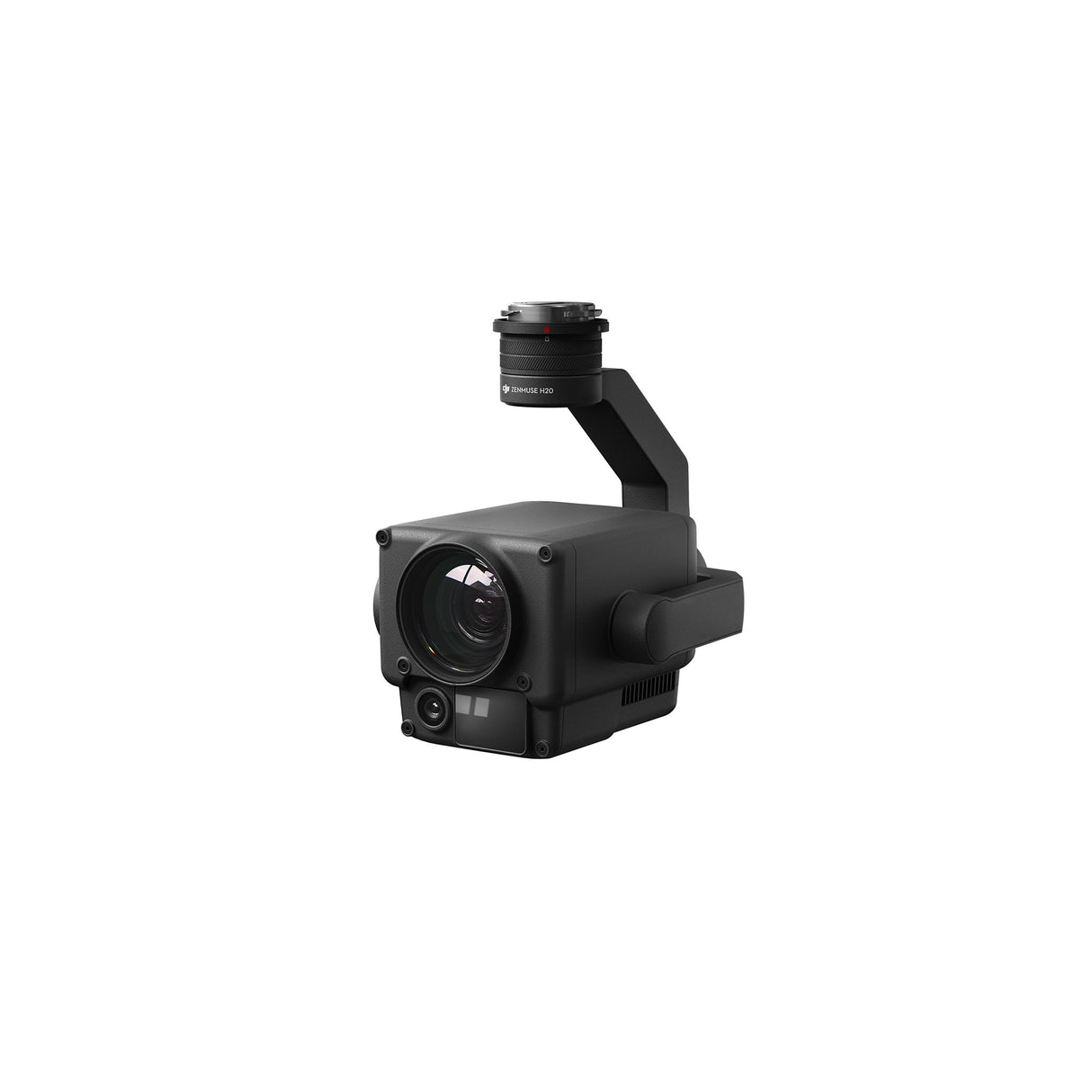

DJI Zenmuse H20 20 Megapixel Drone Camera, Shield Basic 1-Year Coverage

Multi-sensor payloads that bring a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications.

All The Sensors You Need - In One
Capture everything. Up close or from a distance. In true living color or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful, integrated payload that unleashes advanced intelligent capabilities for DJI’s industrial drone platforms.

Powerful Zoom Camera
23x Hybrid Optical Zoom, 200x Max Zoom
20 MP 1/1.7” CMOS Sensor

Multi-Sensor Payloads
See the full picture without missing any details wherever, whenever your mission takes place.

Seamless User Interface
A new integrated user interface lets you quickly switch between wide, zoom, and thermal camera views, and preview the zoom FOV while in wide or thermal camera view.

AI Spot-Check
Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.

High-Res Grid Photo
Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.

PinPoint
A quick tap marks an object in view, advanced sensor fusion algorithms immediately deliver its coordinates.

Smart Track
Identify and follow moving subjects like people, vehicles, and boats with the auto-zoom function, while continuously acquiring the subject’s dynamic location.

Accurate Temperature Measurement
Monitor the temperature of a site or an asset to eliminate any risks by acquiring a precise temperature reading from the air.

Spot Meter
Tap a point to get a real-time reading of the surface temperature.

Area Measurement
Select an area to view the lowest, highest, and average temperatures.

Temp Alarm
Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.

Isotherms
Visualize a specific band of temperatures to find what is important.

Color Palettes
Adjust the colors applied to the thermal data based on the needs of specific scenarios.

Gain Modes
Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences; Low Gain Mode covers a wider temperature range.

R-JPEG Images
Images captured by the Zenmuse H20T are in the R-JPEG format with embedded temperature information. By importing these images into DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.

Key Features

• 12 MP Wide Camera 82.9 Degrees DFOV
• 20 MP Zoom Camera 23x Hybrid Optical Zoom
• Radiometric Thermal Camera 640x512 px
• Laser RangeFinder 1200 m Max Range
• IP44 Rating
• -20 Degrees C to 50 Degrees C Operating Temperature
• Active Image Stabilization and EIS
• Night Scene Mode

Technical Specifications

Weight
Zenmuse H20: 678±5 g
Zenmuse H20T: 828±5 g
Dimensions
Zenmuse H20: 150x114x151 mm
Zenmuse H20T: 167x135x161 mm
Ingress Protection Rating
IP44
Operating Temperature
-20 Degrees to 50 Degrees C (Temperature Measurement is only available between -10° to 50° C)
Storage Temperature
-20 Degrees to 60 Degrees C
Laser Safety
Class 1M (IEC 60825-1:2014)
Supported Aircraft
Matrice 300 RTK
Gimbal
Angular Vibration Range
±0.01°
Mount
Detachable
Controllable Range
Pitch: -120° to +30°
Yaw: ±320°
Mechanical Range
Pitch: -132.5° to +42.5°
Yaw: ±330°
Roll: -90° to +60°
Zoom Camera
Sensor
1/1.7” CMOS, 20 MP
Lens
DFOV: 66.6°-4°
Focal length: 6.83-119.94 mm (equivalent: 31.7-556.2 mm)
Aperture: f/2.8-f/11 (normal), f/1.6-f/11 (night scene)
Focus: 1 m to ∞ (wide), 8 m to ∞ (telephoto)
Focus Mode
MF/AF-C/AF-S
Exposure Mode
Auto, Manual
Exposure Compensation
±3.0 (1/3 increments)
Metering Mode
Spot metering, Center-weighted metering
AE LOCK
Supported
Electronic Shutter Speed
1 ~ 1/8000 s
ISO Range
Video: 100 - 25600
Photo: 100 - 25600
Video Resolution
3840x2160@30fps, 1920x1080@30fps
Video Format
MP4
Video subtitles
Supported
Photo Size
5184 x 3888
Photo Format
JPEG
Wide Camera
Sensor
1/2.3” CMOS, 12 MP
Lens
DFOV: 82.9°
Focal length: 4.5 mm (equivalent: 24 mm)
Aperture: f/2.8
Focus: 1 m to ∞
Exposure Mode
Auto
Exposure Compensation
±3.0 (1/3 increments)
Metering Mode
Spot metering, Center-weighted metering
AE LOCK
Supported
Shutter Speed
1 ~ 1/8000
ISO Range
Video: 100 - 25600
Photo: 100 - 25600
Video Resolution
1920x1080@30fps
Video Format
MP4
Video subtitles
Supported
Photo Size
4056 x 3040
Photo Format
JPEG
Thermal Camera (Zenmuse H20T)
Sensor
Uncooled VOx Microbolometer
Lens
DFOV: 40.6°
Focal length: 13.5 mm (equivalent: 58 mm)
Aperture: f/1.0
Focus: 5 m to ∞
Digital Zoom
1x, 2x, 4x, 8x
Video Resolution
640x512 @ 30 Hz
Video Format
MP4
Image Resolution
640x512
Image Format
R-JPEG (16 bit)
Pixel Pitch
12 μm
Spectral Band
8-14 μm
Sensitivity (NETD)
≤50 mK @ f/1.0
Temperature Measurement Method
Spot Meter, Area Measurement
Scene Range
-40 Degrees C to 150 Degrees C (High Gain)
-40 Degrees C to 550 Degrees C (Low Gain)
Temperature alert
Supported
FFC
Auto/ manual
Palette
White hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot
Laser Rangefinder
Wave length
905 nm
Measurement range
3-1200 m (to a vertical surface with ≥12m diameter and 20% reflection rate)
Measurement accuracy
± (0.2 m + Dx0.15%)
D is the distance to a vertical surface
Features
Hybrid Optical Zoom
23x (DFOV: 4 Degrees, EQV：556.2mm)
Max. Zoom
200x (DFOV: 0.5 Degrees, EQV: 4800mm)
One Click Capture
One click to save the video or picture of 3 cameras (zoom, wide and thermal camera) simultaneously
Point to Aim
Double click on the wide/thermal camera view, then the system will automatically move the gimbal to focus on the point of interest
High-Res Grid Photo
Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.
Night Scene
Supported (zoom camera)
Timestamp
Including GPS, date, and time
Storage
Supported SD Card
MicroSD card (Max capacity: 128 GB, UHS-1 Speed Grade 3 required)
Supported File Systems
FAT32 (≤ 32 GB), exFAT (> 32 GB)
Recommended Micro SD Cards
TOSHIBA EXCERIA PRO 32GB micro-SD HC II
SanDisk_Extreme PRO_32GB_3_A1_micro-SD V30 HC I
TOSHIBA EXCERIA PRO 64GB micro-SD XC II
SanDisk_Extreme PRO_64GB_3_A2_micro-SD V30 XC I
SAMSUNG_EVO_128GB_micro-SD 3 XC I
TOSHIBA EXCERIA M303E 32GB micro-SD HC I
TOSHIBA EXCERIA M303E 64GB micro-SD XC I
TOSHIBA EXCERIA M303E 64GB micro-SD XC I
TOSHIBA EXCERIA M303 128GB micro-SD XC I
SAMSUNG_EVO_64GB_micro-SD 3 XC I
