DOD DRAG Analog Delay Pedal

DOD DRAG Analog Delay Pedal

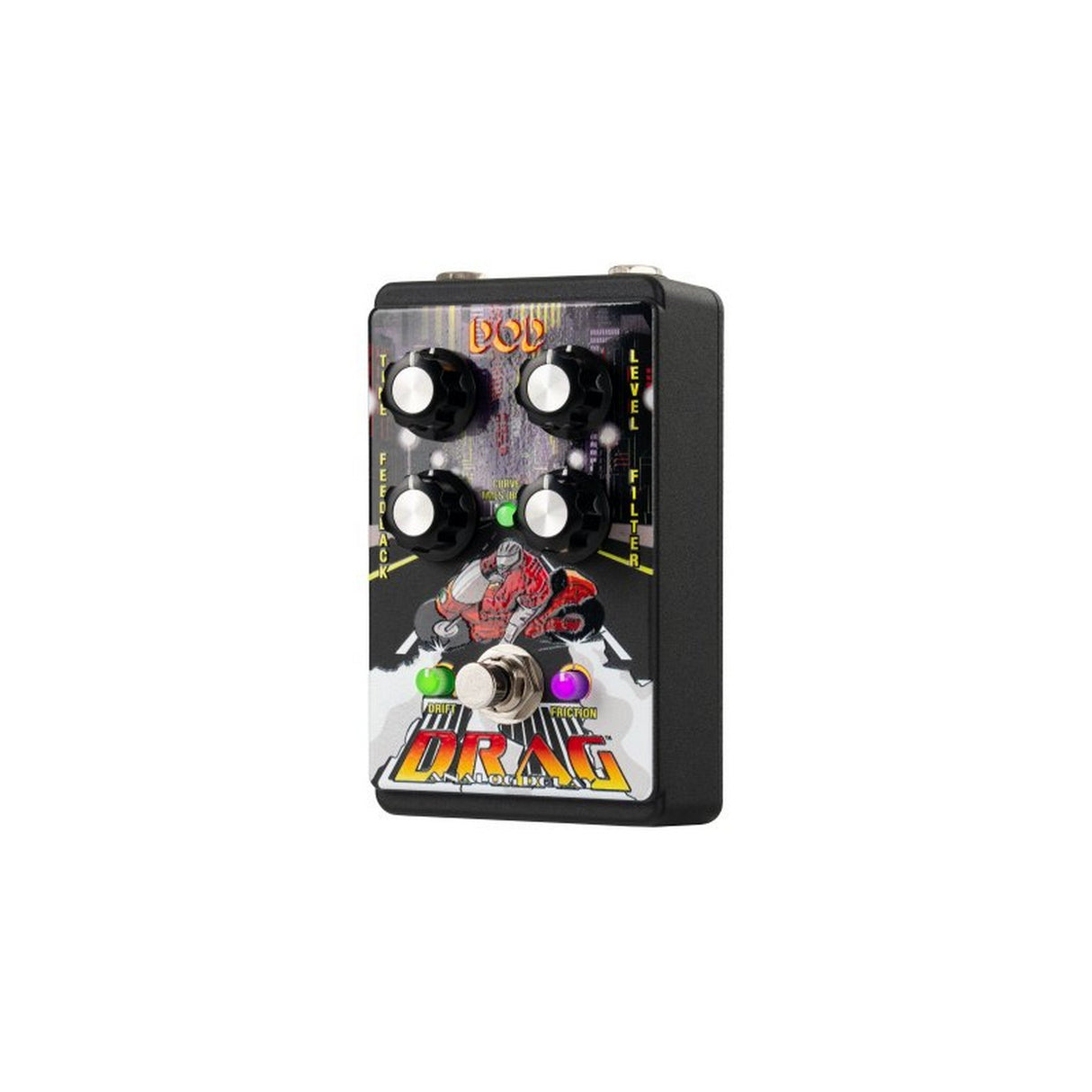

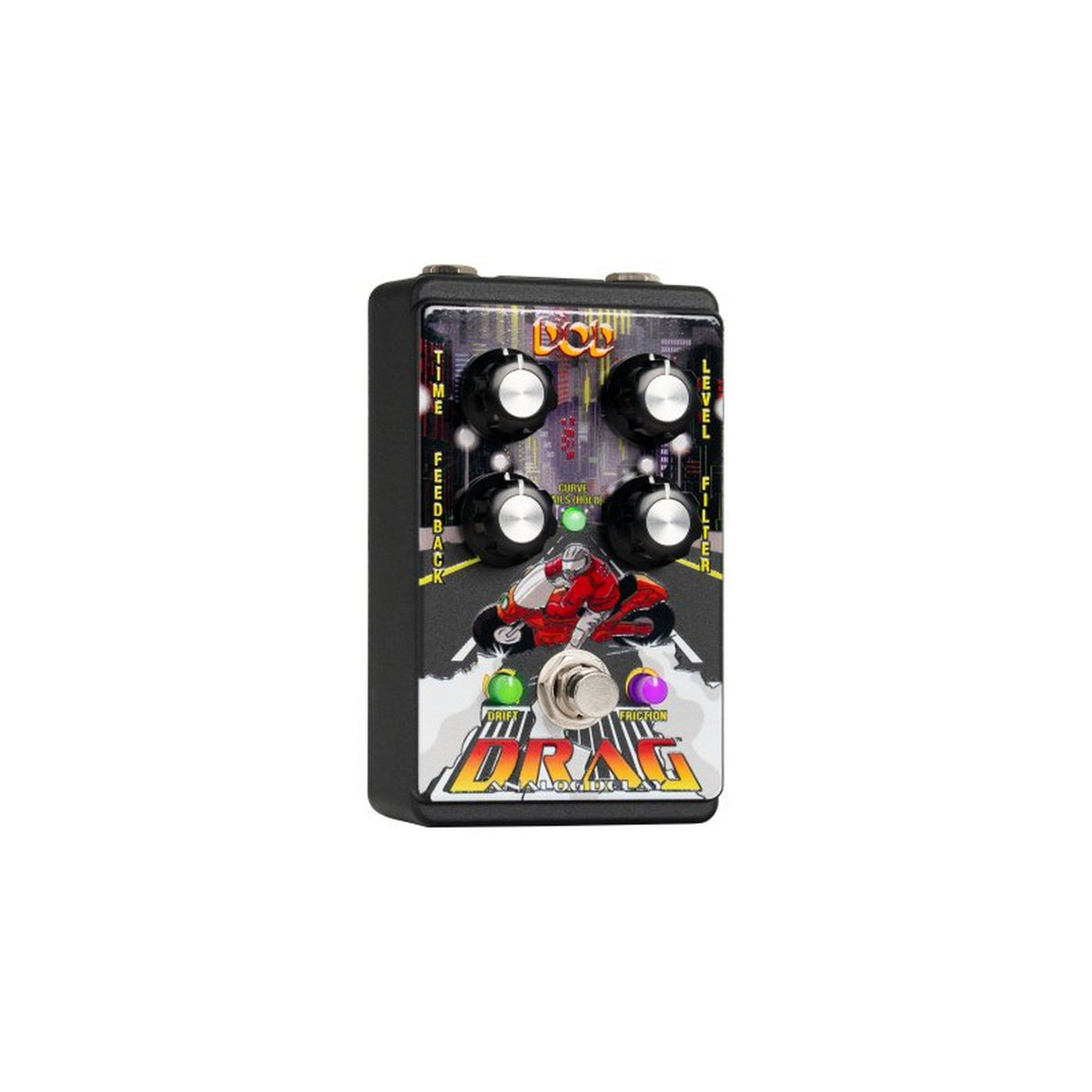

The DOD DRAG Analog Delay Pedal is a fully analog bucket-brigade device (BBD) delay with approximately 60 to 750 ms of delay time, selectable modulation, self-oscillation, and real-time Friction effects. Its compact top-jack chassis also carries a reversible StagePlate for skid-resistant floor use or hook-and-loop pedalboard mounting.

Designed for guitarists seeking anything from tight slapback to evolving psychedelic repeats, DRAG combines six rotary controls with four modulation waveforms and three modulation intensity ranges. SlideStop, Rubberneck, and Evade Friction modes manipulate delay time and pitch while performing, making this compact BBD delay for pedalboards particularly useful for experimental textures, transitions, and expressive live effects.

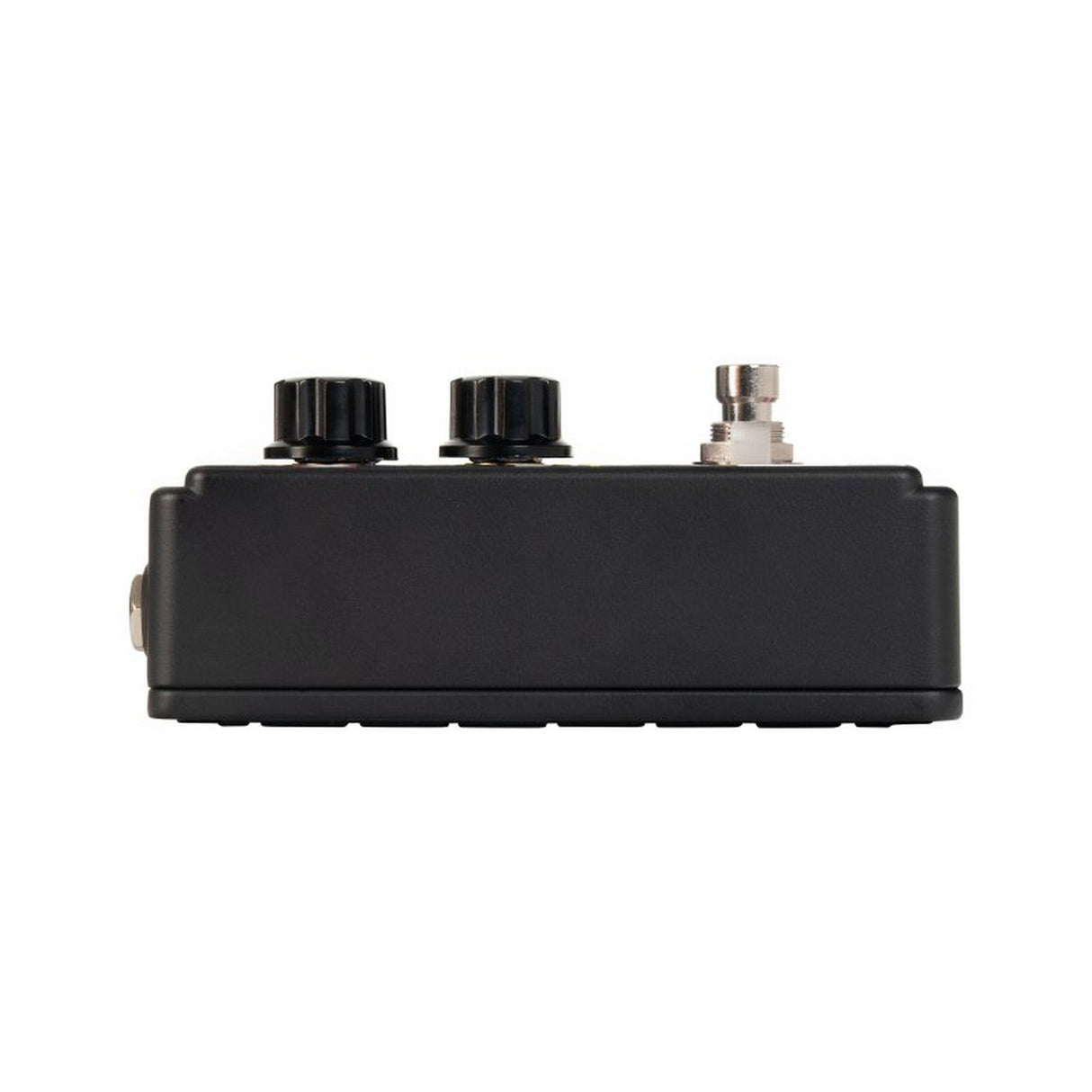

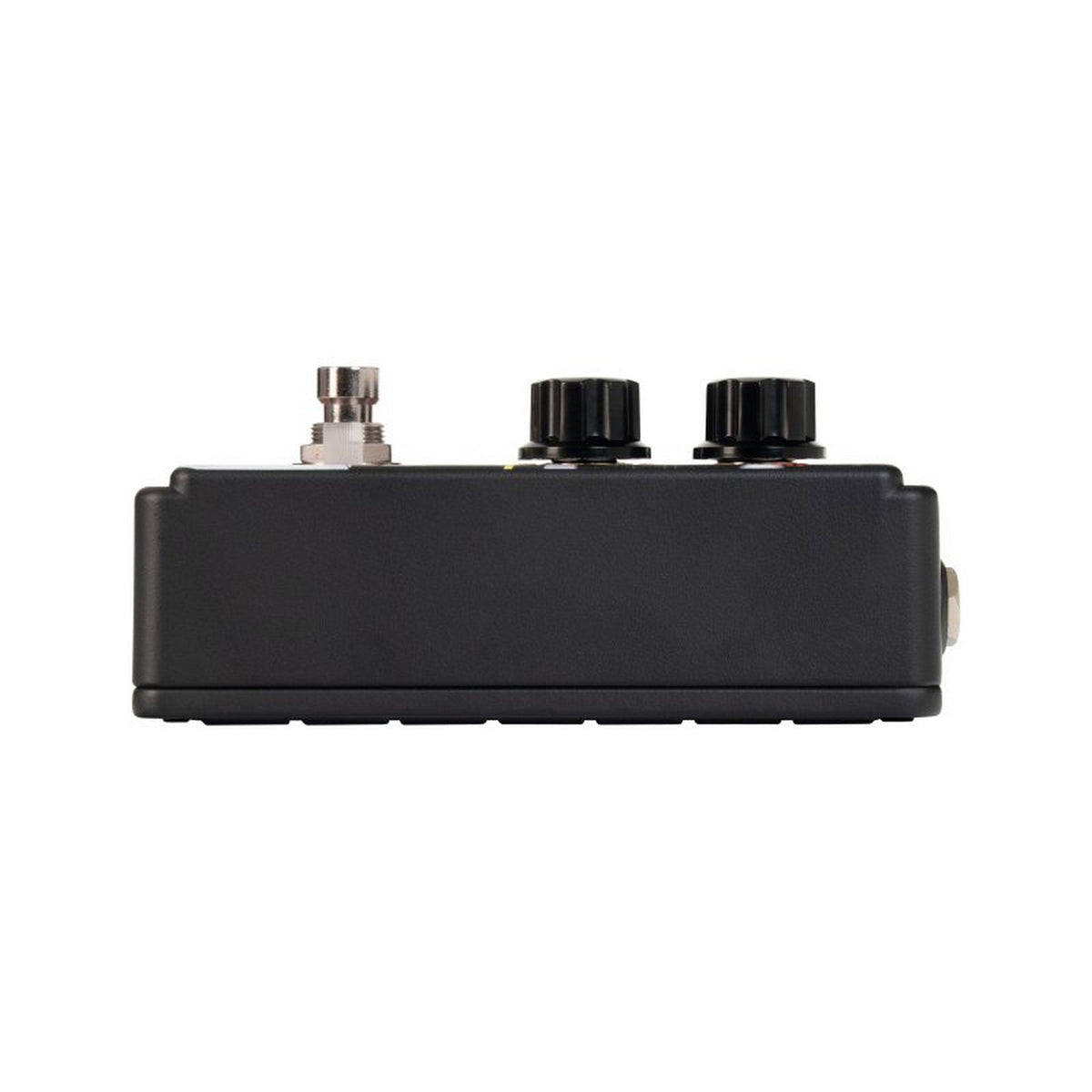

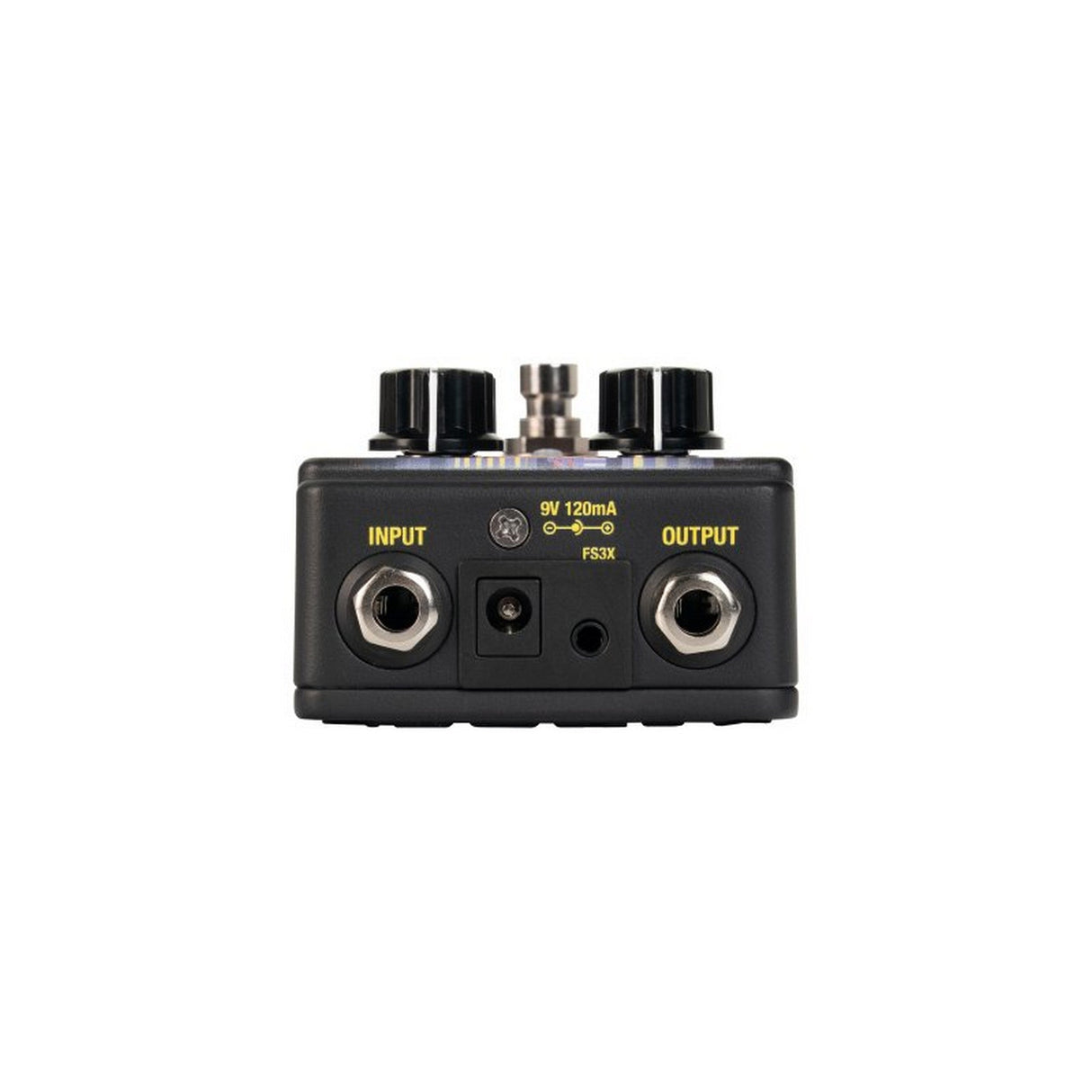

The aluminum chassis uses top-mounted 1/4" input and output connections, plus a 3.5 mm control jack for the optional FS3X footswitch. Players can select true hardwire bypass or buffered modes with delay tails. The pedal operates from a regulated 9V center-negative supply and includes the reversible StagePlate and a dedicated Mechanic's Toolkit for mounting and StagePlate maintenance.

Key Features

• Fully Analog BBD Delay: Uses bucket-brigade devices to create analog repeats with an adjustable range of approximately 60 to 750 ms.
• Friction Performance Effects: SlideStop, Rubberneck, and Evade modes provide real-time delay-time and pitch manipulation from the footswitch.
• Four Modulation Waveforms: Choose sine, reverse saw, square, or random modulation shapes for different movement characteristics.
• Three Drift Intensities: Light, medium, and heavy ranges adjust modulation speed and depth for subtle or pronounced movement.
• Self-Oscillation: Higher feedback settings push the analog delay circuit into sustained repeating and oscillating textures.
• Flexible Bypass Modes: Supports true hardwire bypass and buffered operation with delay tails, including a dry-kill tails mode.

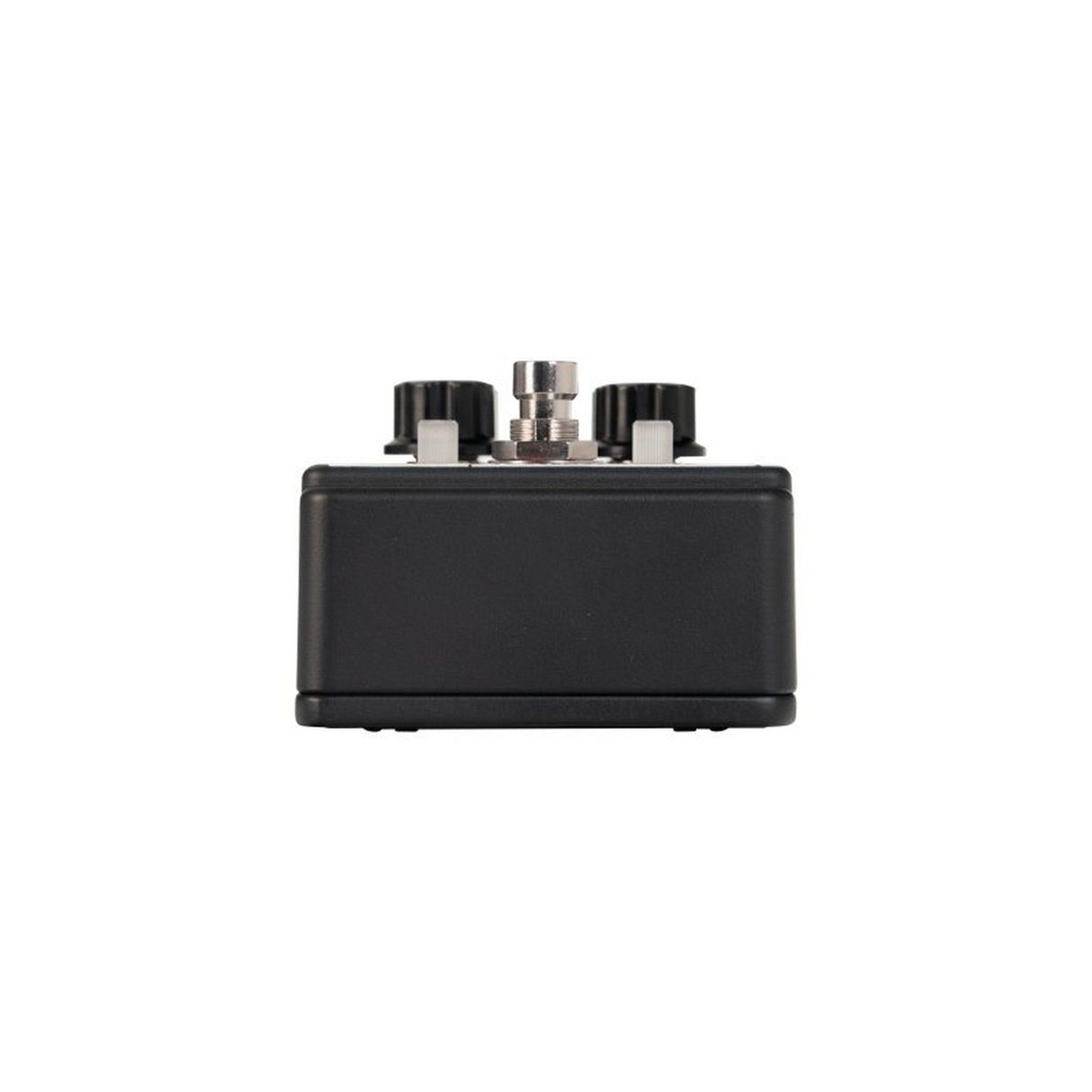

• Top-Jack Chassis: Places audio, power, and optional footswitch connections along the top edge to conserve pedalboard space.

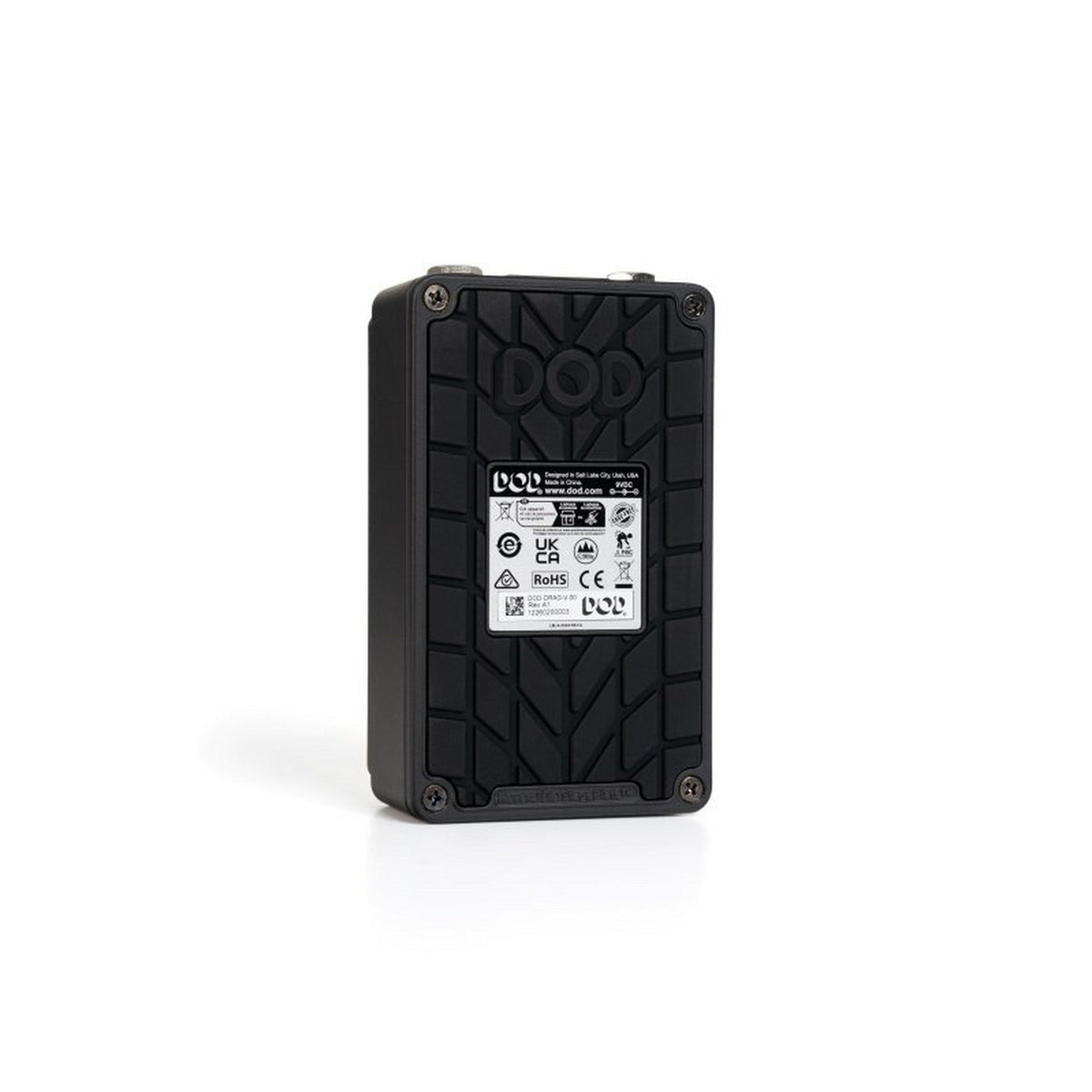

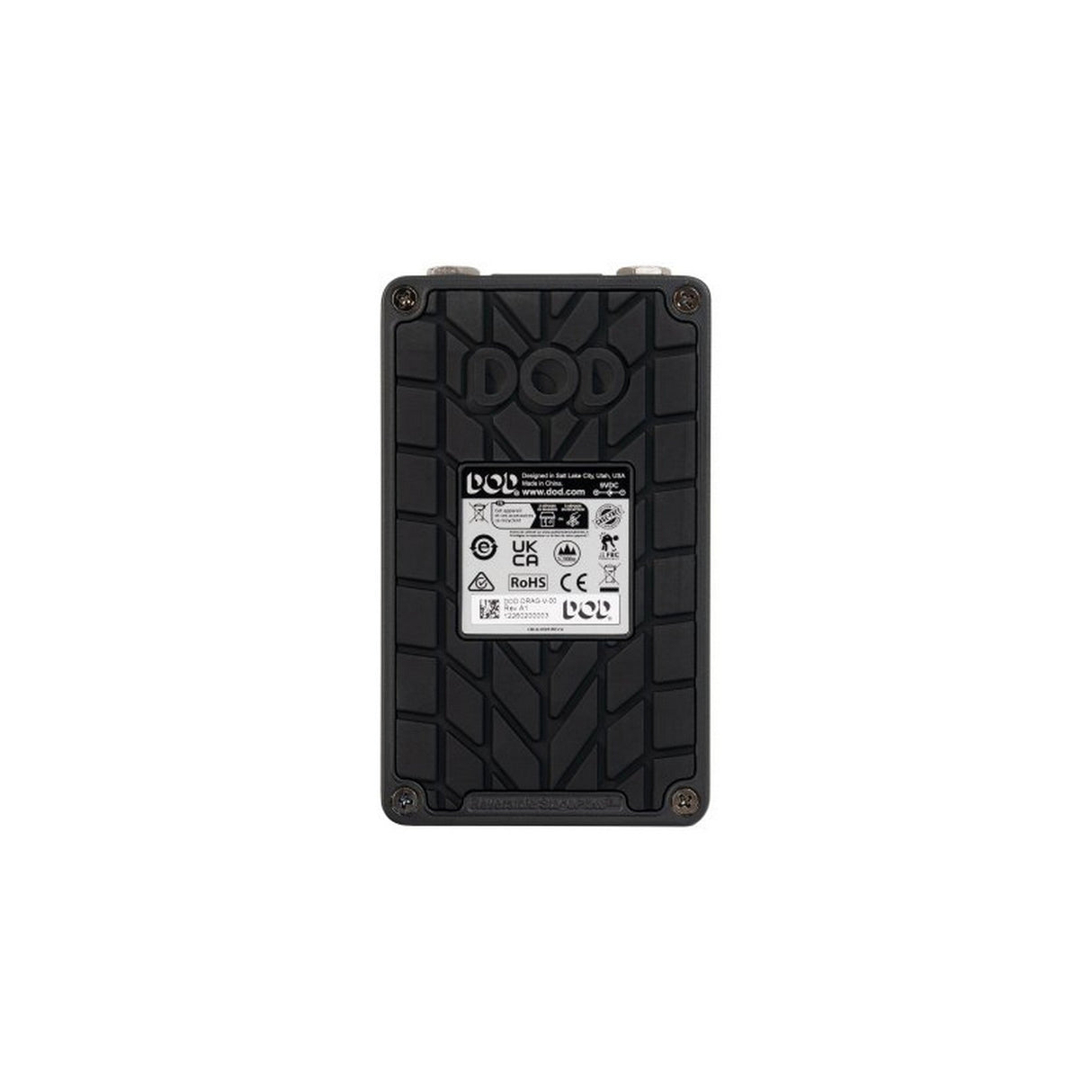

• Reversible StagePlate: Provides a skid-pad surface for floor use and a hook-and-loop surface for pedalboard attachment.

Technical Specifications

• Product Type: Analog delay effects pedal
• Delay Engine: Fully analog BBD
• Delay Time: Approximately 60 to 750 ms

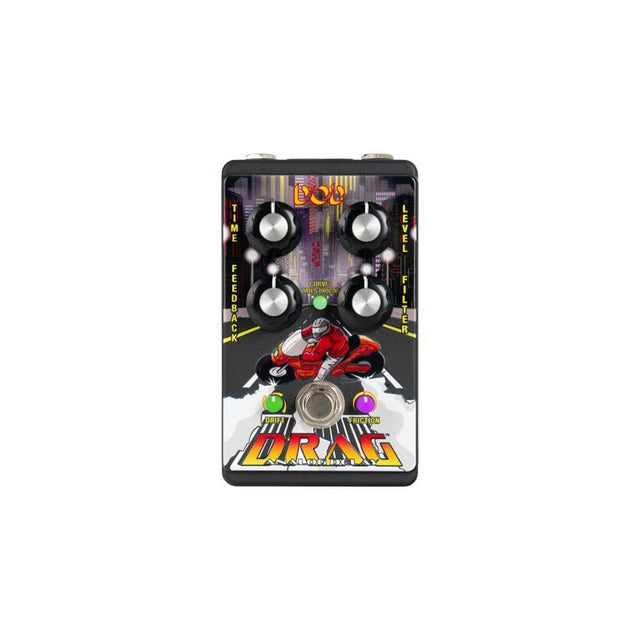

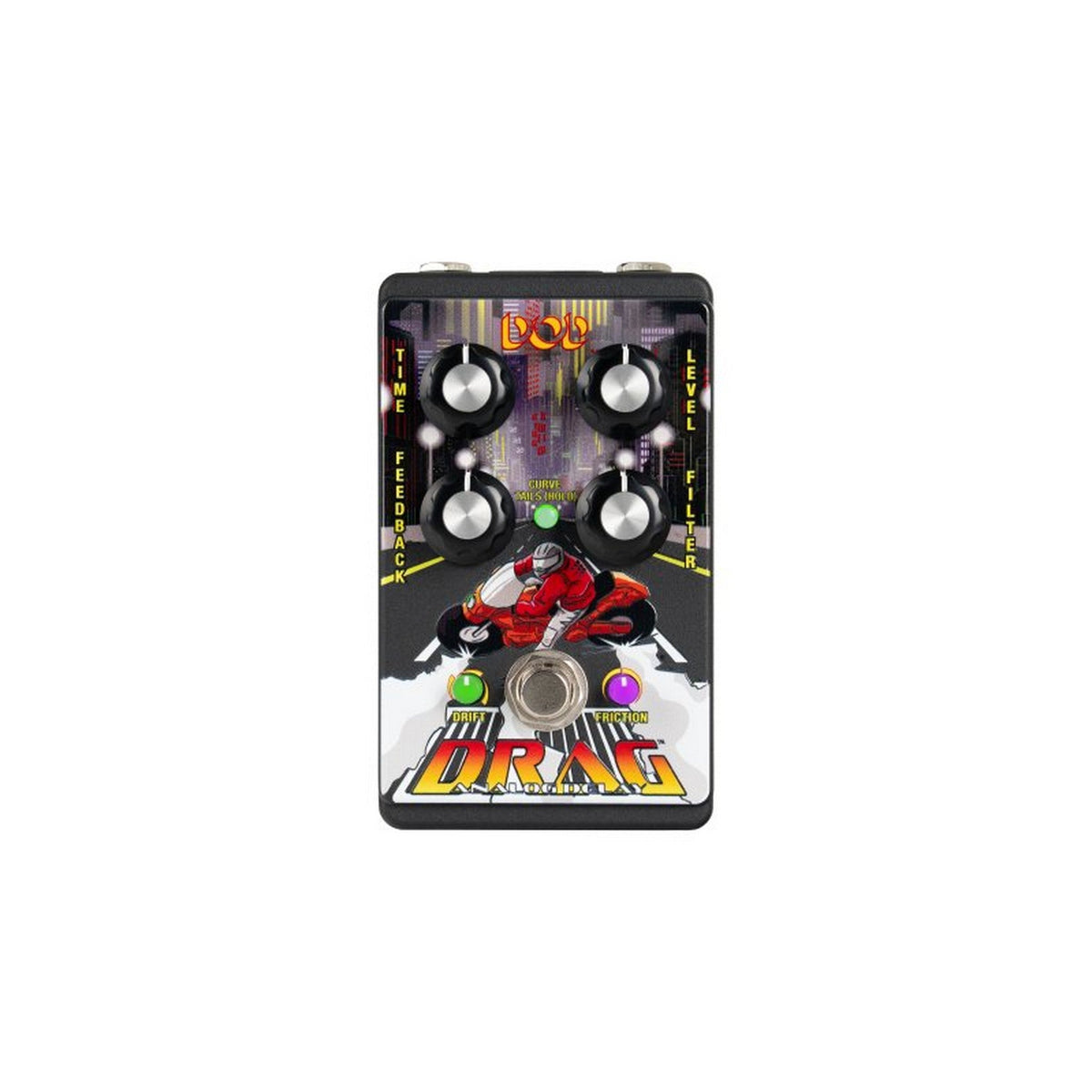

• Rotary Controls: Time, Feedback, Filter, Level, Drift, Friction
• Modulation Waveforms: Sine, reverse saw, square, random
• Modulation Ranges: Light, medium, heavy
• Friction Categories: SlideStop, Rubberneck, Evade
• SlideStop Modes: Shallow Slide, Deep Slide
• Rubberneck Modes: Octave Up Bend, Octave Down Bend
• Evade Modes: HopStop, Slide-n-Go
• Bypass: True hardwire bypass or buffered bypass with tails
• Input: 1 x 1/4" instrument mono phone jack
• Input Impedance: Greater than 500 kilohms
• Output: 1 x 1/4" instrument mono phone jack
• Output Impedance: Less than 1 kilohm
• External Footswitch Connection: 3.5 mm jack for optional FS3X
• Chassis: Aluminum
• Power Input: 2.1 mm DC barrel jack, center-negative
• Power Requirement: Regulated 9V DC center-negative supply
• Compatible Power Supply: DigiTech PS0913DC or equivalent regulated supply
• Current Draw: Less than 120 mA typical
• Dimensions (L x W x H): 4.8 x 2.8 x 1.5 in
• Height with Footswitch: 2.1 in
• Pedal Weight: 0.7 lb
• Packaged Dimensions (L x W x H): 7 x 3.4 x 2.9 in
• Packaged Weight: 1.1 lb
• Manufacturer SKUs: DOD-DRAG-V-00 / DOD-DRAG-V-M-00
• UPC: 810147520138
• Designed In: Salt Lake City, Utah, USA
• Warranty: 1 year
• Compliance: IEC 62368-1, FCC Part 15 Subpart B Class B, RoHS

What's In the Box

• DOD DRAG Analog Delay Pedal
• Reversible StagePlate with skid-pad and hook-and-loop surfaces
• Mechanic's Toolkit with tread depth gauge and Phillips #1 StagePlate lug-wrench keychain
• 500 mm 1/4" to 3.5 mm TRS FS3X jumper cable
• Magnetic Pit Sign label for optional FS3X footswitch
