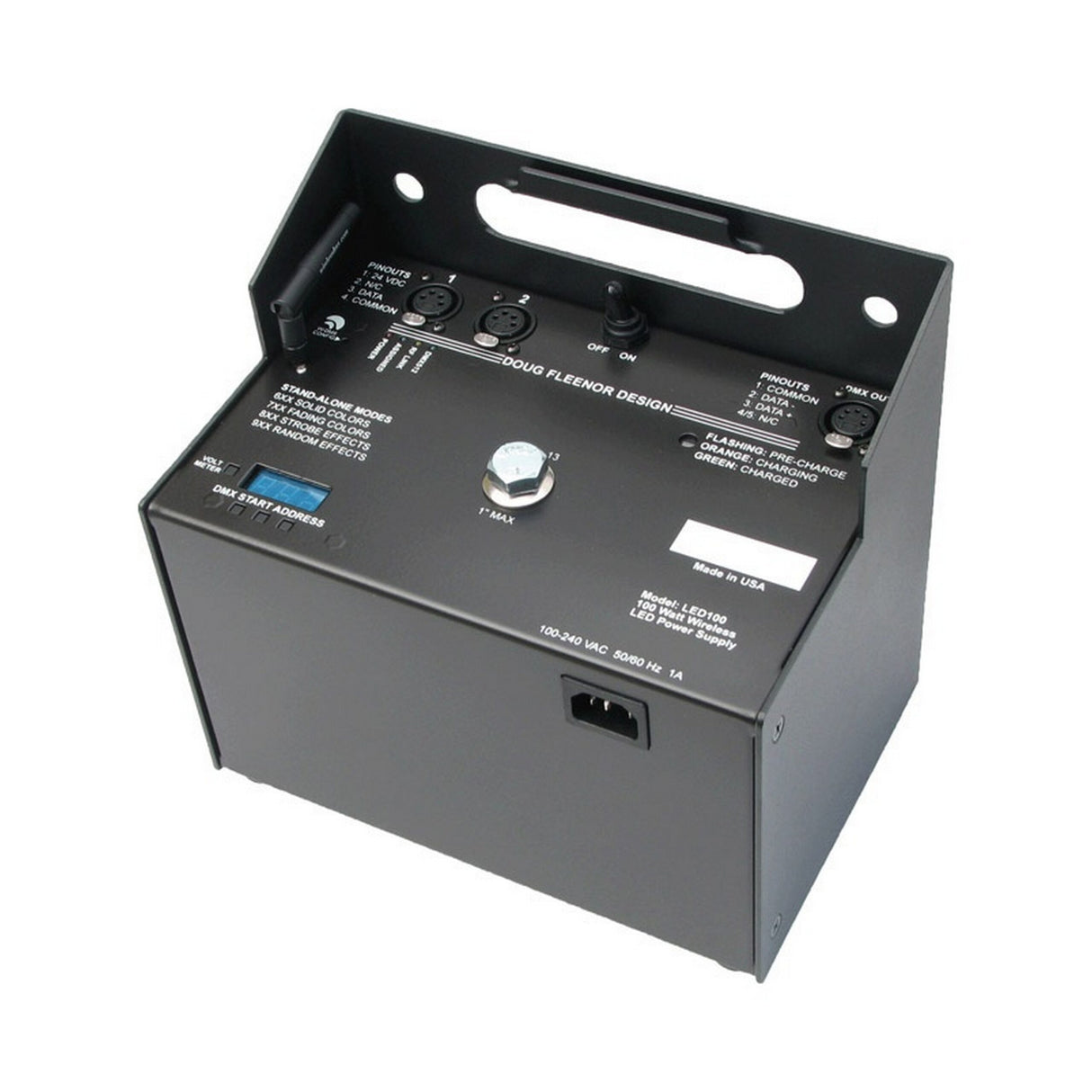

Doug Fleenor Design LED100 Wireless Battery Power Supply for Color Kinetics
The LED100 supplies power and data for up to two Color Kinetics ColorBlast LED fixtures or Altman Spectra PARs as well as Color Kinetics iColor Cove, and similar products. The LED100 also features a DMX512 output to drive additional DMX512 devices. The LED100 eliminates the need to set the DMX address of the lighting fixture (ColorBlast or Spectra PAR) by re-patching the incoming DMX. All fixtures can be left at the default address of '001'. The desired DMX address is then set at the LED100. The fixture plugged into output 1 responds to the three DMX channels starting with the selected address.
Technical Specifications
Input signal
W-DMX signal from any W-DMX transmitter (i.e. Doug Fleenor Design's Marconi TX)
Input circuit
W-DMX 'pico' card from Wireless Solutions, AB
Frequency band
2.4 GHz ISM band (2402 - 2479 MHz)
Antenna connector
Reverse polarity SMA connector
Supplied antenna
2 dBi omni directional 2.4 GHz
DMX512 output
Slew rate limited EIA-485 driver. All 512 channels.
LED fixture output
DMX512 timings and protocol with 24V single ended signal (for ColorBlast and Spectra PAR)
Output connectors
LED fixture: Gold plated 4 pin female XLR (Neutrik D-1 series) rated at 10 amps
DMX512
Gold plated 5 pin female XLR (Neutrik D-1 series)
Output current (power)
4.2 amps (100 watts) continuous
Run time
Single ColorBlast 12, Single Spectra PAR, or Two ColorBlast 6
24 Hours on a rolling color fade (red to green to blue to red, etc.)
18 Hours with one LED color on full (red or green or blue)
12 Hours with two LED colors on full
6 Hours with three LED colors on full (full white)
Run time with two ColorBlast12 or two Spectra PAR is slightly less than half these times
Recharge time
10 Hours from fully discharged batteries
Recharge time is approximately equal to time of use (very roughly)
Charge type
4 stage: Pulse (1.5A pulses), Constant current (1.5A), Constant voltage (28.8V), Float (27.6V)
Battery life
1800 charge/discharge cycles at 30% discharge
400 charge/discharge cycles at 100% discharge
Indicators
Red: POWER, Blue: ASSIGNED, Yellow: RF LINK, Green: DMX512
Charge indicator: Flashing: Pre-charge, Orange: Charging, Green: Charged
Three digit DMX Start Address and Voltmeter display
User controls
On/off toggle switch, DC Rated 20A
Three push buttons to set DMX Start Address
One push button to activate Voltmeter
One (recessed) configure push button
Fixture mounting
One top mounted 1/2-13 nut with 1/2-13 bolt and washer supplied
Color
Black with white silkscreen nomenclature
Size and weight
8.5"h X 6.5"d X 9.5"w, 29 pounds
Mounting options
Two 1/2" holes for half couplers or “C” Clamps
