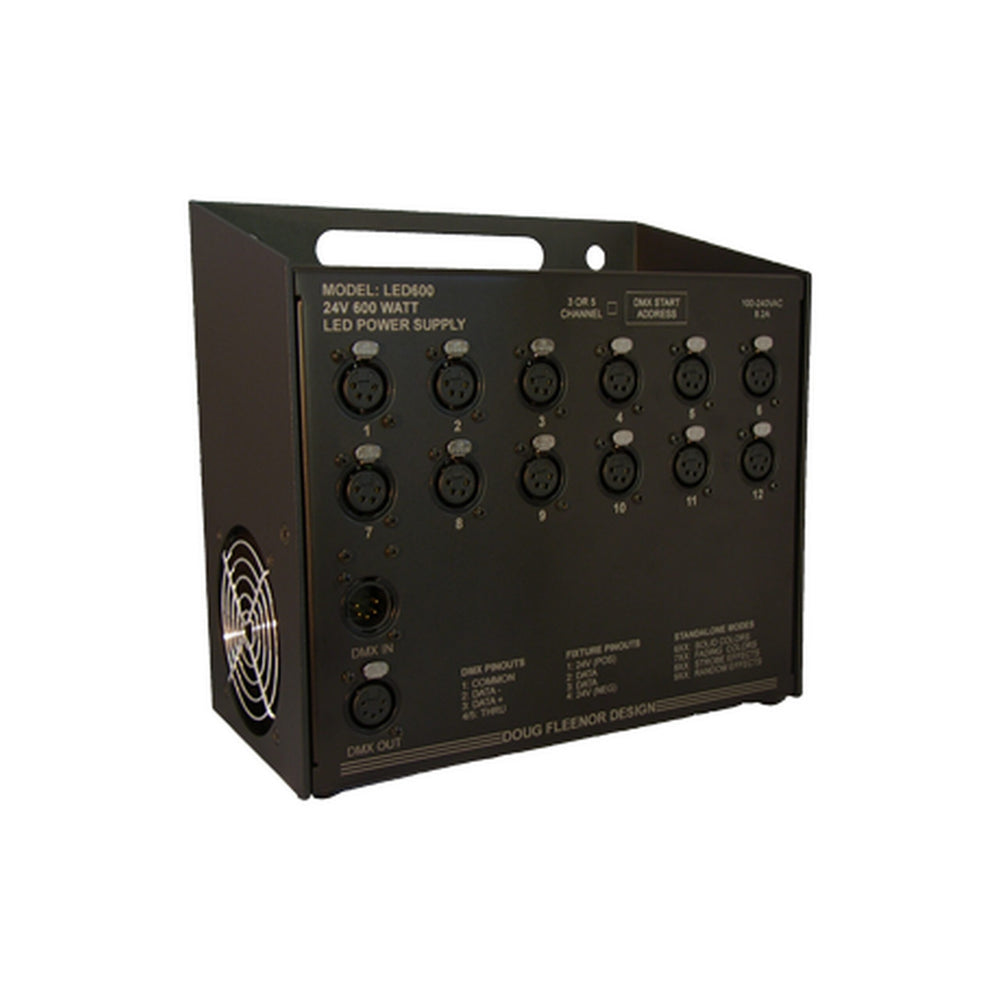

Doug Fleenor Design LED600 Power Supply for Color Kinetics
The LED600 power supply distributes DMX512 data and 24 Volt power to popular LED lighting fixtures. Primarily designed to power and control Color Kinetics ColorBlast 12 fixtures, the LED600 can also drive Color Kinetics iColor Cove, and similar products. The LED600 features our DownShifter technology that shifts incoming DMX512 data and outputs the desired channels as channels 1, 2 and 3
Technical Specifications
Input power
90V - 260VAC, 50/60 Hz. 700W (at full load).
Required UL statement
The LED600 must be located near the power outlet powering it and the outlet must be easily accessible.
Inrush current
20A @ 115V, 40 @ 230V.
Power factor
0.99 typical, 0.95 minimum.
Efficiency
85% typical
Input signal
DMX512, DMX512/1990, DMX512-A (250 Kb/s, 0.2 Volts min. 12 Volts max)
Input circuit
Transient protected EIA-485 transceiver (LT1785)
Input protection
15,000 Volt transient, - 60 Volt continuous
Input connector
Gold plated 5 pin male (Neutrik D-1 series).
Input pass through
Gold plated 5 pin female (Neutrik D-1 series). All five pins pass through.
Input isolation
600 Volts
Output signal
DMX512-A timings and protocol with 22V single ended levels.
Output circuit
MC34074 high speed op-amp tuned for 4uS bit period (250 Kb/s) yields approximately 22V at load.
Output connector
Gold plated 4 pin female XLR (Neutrik D-1 series) rated at 10 amps.
Output current (power)
25 amps (600 watts) continuous, limited to 5 amps (120 watts) per output.
Indicators
Green signal indicator, three digit DMX Start Address.
User controls
Three pushbuttons to increment DMX Start Address (hundreds, tens, and ones).
Footprint select pushbutton (three or five channel mode).
Operating modes
Below is a list of DMX start addresses and their corresponding modes of operation.
Color
Black with laser engraved nomenclature
Size and weight
9.25" h X 5.25" d X 9.75" w, 9.0 pounds
Mounting options
Two 1/2" holes for half couplers or āCā clamps, one 5" x 3/4" handle slot (may be used for safety cable).
