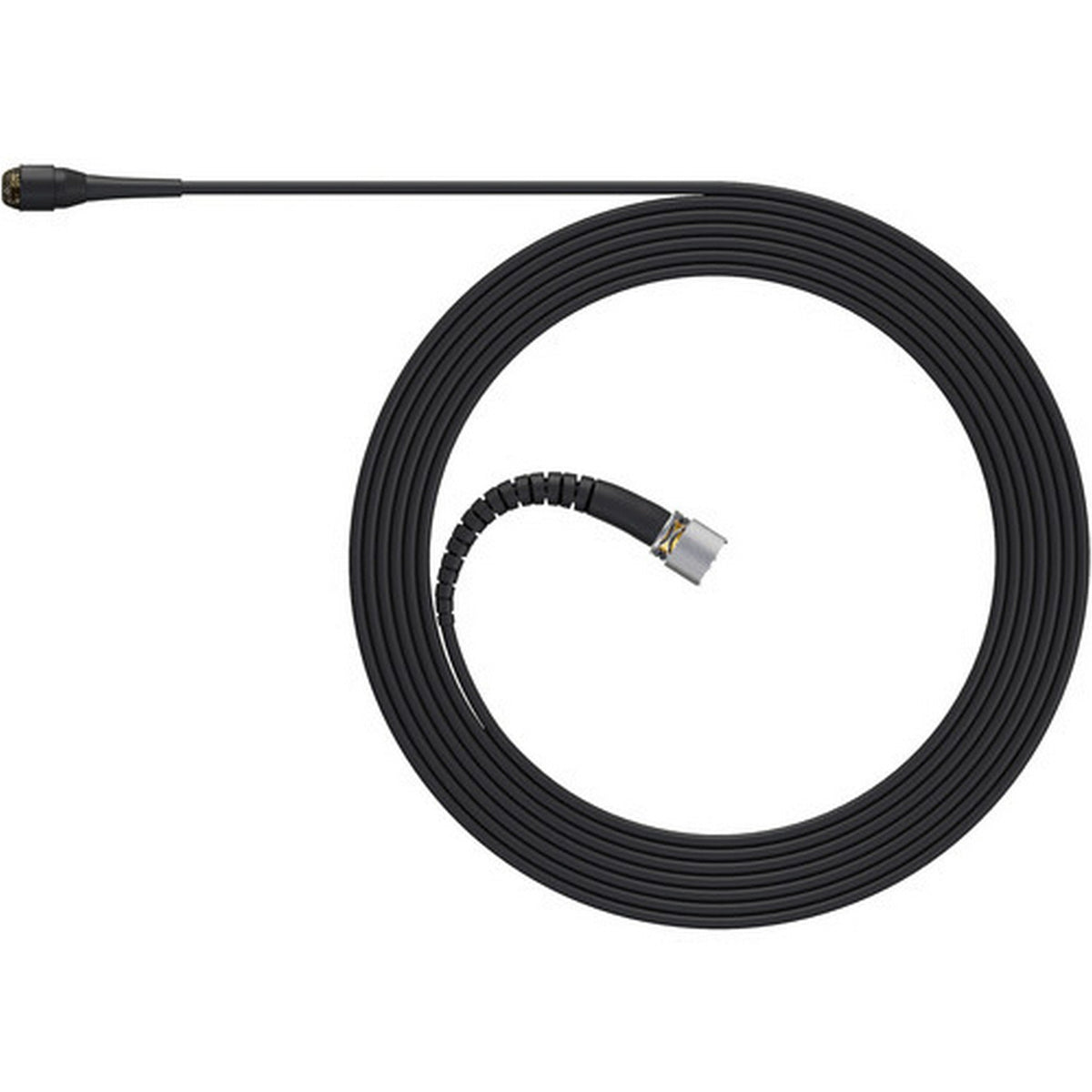

DPA 4060 CORE Plus Normal-Sensitivity Omni Lavalier Mic with MicroLock, Black

DPA 4060 CORE+ Lavalier Microphone with MicroLock - Black

The DPA 4060 CORE+ lavalier microphone is a miniature omnidirectional mic for professional speech, broadcast, theater, film, and live production. Its omnidirectional pattern captures sound from all directions, while the normal-sensitivity pre-polarized condenser capsule provides a 20 Hz to 20 kHz response and handles demanding vocal levels without requiring precise microphone aiming.

This black 4060-OP-C-B90 version terminates specifically in DPA's MicroLock connector for a secure connection to compatible adapters and wireless systems. CORE+ technology minimizes distortion throughout the microphone's operating range, making the mic well suited for dialogue, presenters, performers, houses of worship, and discreet close-miking of instruments. Its 0.2-inch capsule diameter also supports concealed placement on clothing or costumes.

DPA builds the 4060 for repeated professional use with a Kevlar-reinforced cable relief and a Double Vent Protection System that helps resist humidity and sweat. The microphone carries an IP58 dust and water-resistance rating and includes interchangeable Soft Boost and High Boost grids for tailoring high-frequency response to placement. The attached 5.9-foot cable provides practical reach for bodypack and adapter-based installations.

Key Features

• CORE+ Technology: Reduces microphone-generated distortion across the dynamic range for cleaner reproduction at varying sound pressure levels.
• Omnidirectional Pickup: Captures sound consistently from all directions, reducing the need for precise capsule aiming during bodyworn use.
• Normal Sensitivity: Provides 20 mV/Pa sensitivity for speech, vocals, presentations, and other typical professional sound sources.
• MicroLock Connector: Uses DPA's secure locking connection system for dependable integration with compatible adapters and wireless equipment.
• Miniature Capsule: The 0.2-inch-diameter microphone enables discreet mounting for theater, broadcast, film, and presentation applications.
• Two Acoustic Grids: Soft Boost and High Boost grids adjust upper-frequency response for different microphone placement positions.
• IP58 Protection: Dust and moisture resistance supports demanding production environments where sweat and humidity are common.
• Reinforced Cable: A 5.9-foot cable with Kevlar strain reinforcement withstands repeated bending, pulling, and everyday professional handling.

Technical Specifications

• Model: 4060 CORE+
• Manufacturer Part Number: 4060-OP-C-B90
• Color: Black
• Connector: MicroLock
• Microphone Type: Lavalier
• Directional Pattern: Omnidirectional
• Principle of Operation: Pressure
• Cartridge Type: Pre-polarized condenser
• Frequency Response: 20 Hz to 20 kHz
• Soft Boost Grid Response: 20 Hz to 20 kHz with 3 dB soft boost from 8 to 20 kHz
• High Boost Grid Response: 20 Hz to 20 kHz with 10 dB boost at 12 kHz
• Sensitivity: 20 mV/Pa; -34 dB re. 1 V/Pa at 1 kHz
• Sensitivity Tolerance: +/-1.5 dB at 1 kHz
• Equivalent Noise Level, A-Weighted: 23 dB(A) typical, 26 dB(A) maximum
• Equivalent Noise Level, ITU-R BS.468-4: 35 dB typical, 38 dB maximum
• Distortion, THD Below 0.5%: 128 dB SPL RMS, 131 dB SPL peak
• Distortion, THD Below 1%: 129 dB SPL RMS, 132 dB SPL peak
• Maximum SPL: 134 dB SPL peak at 10% THD
• Dynamic Range: 106 dB typical
• Rated Output Impedance: 30 to 40 ohms
• Cable Drive Capability: Up to 984 ft with compatible DPA XLR adapter
• Power Requirement: 5 to 10 V through compatible DPA adapter for wireless systems
• Current Consumption: 1.5 mA typical
• Cable Length: 5.9'
• Microphone Diameter: 0.2"
• Microphone Length: 0.5"
• Weight: Less than 0.1 lb including cable and MicroLock connector
• Environmental Resistance: IP58 dust and water resistant
• Operating Temperature: -40 to 113 degrees F
• Relative Humidity: Up to 90%
• Polarity: Increasing sound pressure produces positive-going voltage on the MicroLock pin
• EAN/GTIN: 5713055026561

What's In the Box

• DPA 4060 CORE+ Normal-Sensitivity Omnidirectional Lavalier Microphone with MicroLock Connector, Black
• Soft Boost Protection Grid
• High Boost Protection Grid
