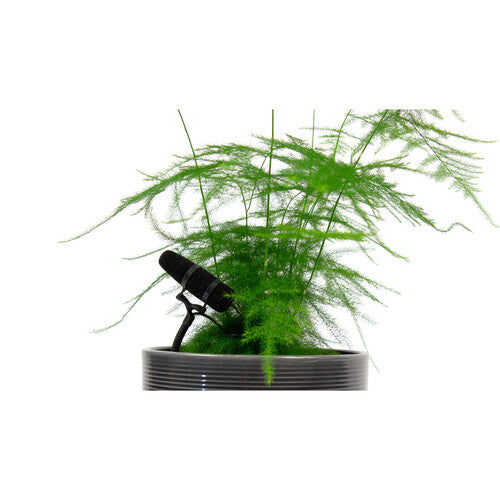

DPA 4097 CORE+ Micro Shotgun Microphone, 4-Inch MicroLock
Free Shipping
Estimated Shipping Widget will be displayed here!
Condition: New
Description
DPA 4097 CORE Plus Micro Shotgun Microphone
The DPA 4097-DP-G-B90-010 CORE+ Micro Shotgun Microphone is a compact supercardioid condenser mic built for highly directional speech capture in tight production spaces. It delivers low self-noise, high sensitivity, and high SPL handling for clean dialogue, interviews, voice-over work, and plant microphone placement.
Designed for film sets, broadcast shoots, installed speech applications, and mobile production, this micro shotgun microphone helps capture focused audio while reducing unwanted off-axis sound. Buyers looking to purchase a DPA 4097 CORE+ mic for dialogue, order a compact shotgun microphone for video, or buy a MicroLock shotgun mic get a flexible solution with professional positioning control.

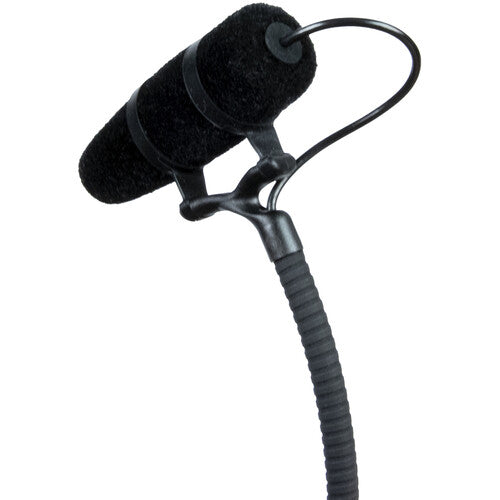

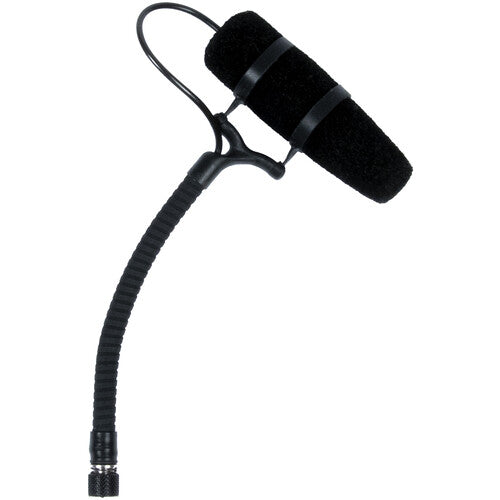

The 4097-DP-G-B90-010 features a black MicroLock connector and a 10 cm full gooseneck for precise aiming. CORE+ technology supports clearer speech reproduction with reduced distortion, while the built-in shock mount improves isolation from handling, mounting, and structural noise in demanding professional environments.
Key Features
- Supercardioid Pickup Pattern: Focuses capture toward the source while helping reduce sound from the sides and rear.
- CORE+ Microphone Technology: Supports clean, natural speech reproduction with low self-noise and high SPL handling.
- Compact Micro Shotgun Design: Works well as a plant mic for dialogue, interviews, broadcast, and location sound applications.

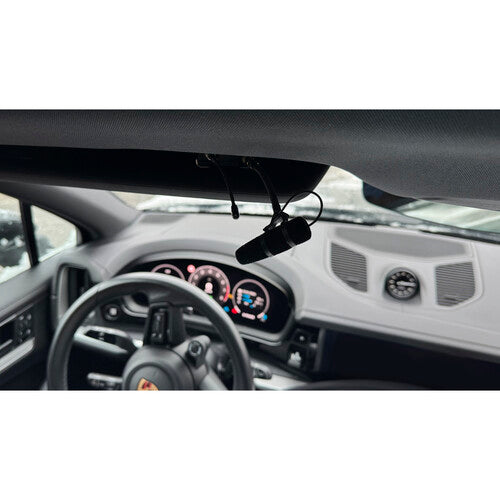

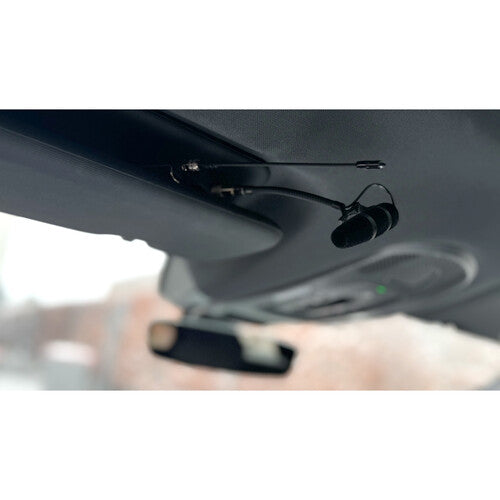

- 10 cm Full Gooseneck: Allows precise positioning in cars, sets, podium areas, and other tight recording spaces.
- Built-In Shock Mount: Helps reduce vibration and handling noise during placement or mounted production use.

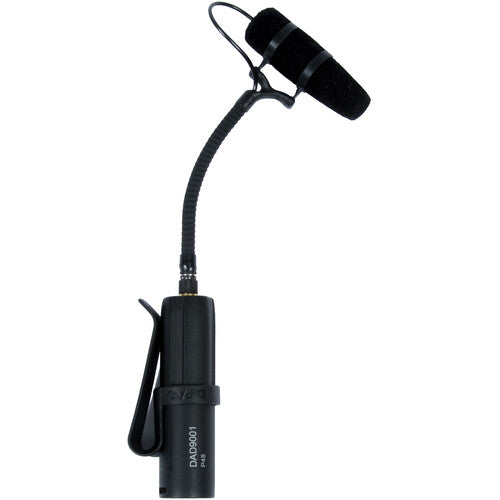

- MicroLock Connector: Provides a stable professional connection with improved flexibility for compatible DPA adapter systems.
- High SPL Capability: Captures natural sound even when speech levels become loud or dynamic in close environments.
Technical Specifications
- Product Type: Micro shotgun microphone
- Model: 4097-DP-G-B90-010
- Microphone Technology: CORE+
- Directional Pattern: Supercardioid
- Capsule Type: Pre-polarized condenser
- Principle of Operation: Pressure gradient
- Frequency Response: 20 Hz to 20 kHz
- Effective Frequency Range: 80 Hz to 15 kHz at 7.9" with 2 dB soft boost at 10 to 12 kHz
- Sensitivity: 16 mV/Pa; -36 dB re. 1 V/Pa
- Equivalent Noise Level: Typ. 23 dB(A), max. 26 dB(A)
- Dynamic Range: Typ. 111 dB
- Maximum SPL: 136 dB SPL peak at 10% THD
- Rated Output Impedance: 30 to 40 ohms from MicroLock
- Connector: MicroLock
- Gooseneck Length: 3.94"
- Color: Black
- Weight: 0.02 lb
