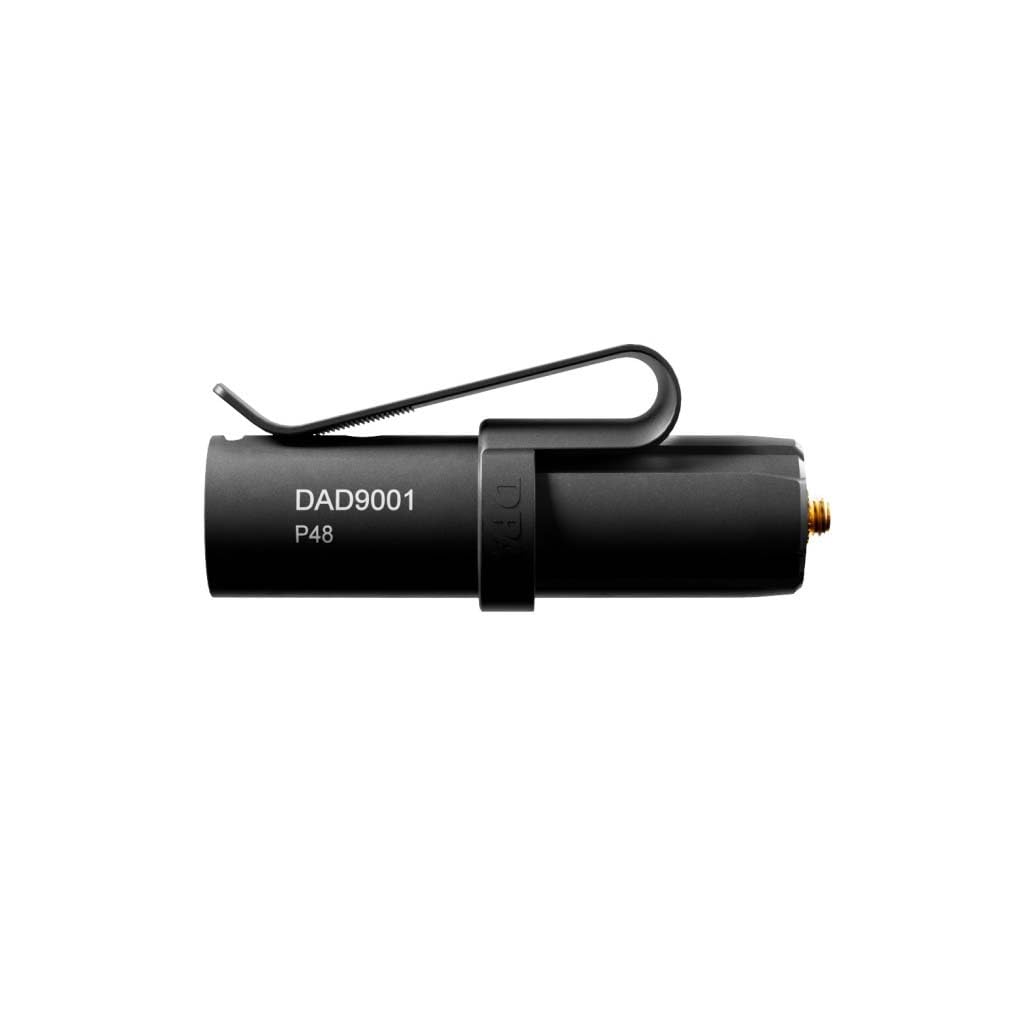

DPA DAD9001 MicroLock to 3-Pin XLR Adapter with Belt Clip
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
The DPA DAD9001 MicroLock to XLR adapter lets you power DPA miniature microphones directly from any standard P48 phantom power source, converting the compact MicroLock connector to a balanced 3-pin XLR output. Built as a revamped successor to DPA's legendary belt-clip adapters, the DAD9001 features a robust solid metal body with an integrated, easily repositionable belt clip, making it equally at home clipped to a performer's waistband or seated in racks and stage boxes.
Engineered with optimized circuitry for DPA's CORE+ microphone line, this DPA lavalier adapter delivers the full performance of CORE+ lavalier, headset, and 4099 instrument microphones over a wired connection. An enhanced electrical design provides dramatically improved RF immunity, shielding the signal from interference generated by LED video walls and other noisy sources common on modern stages and broadcast sets. With a 100-ohm output impedance, better than 60 dB common-mode rejection, and cable drive capability up to 300 meters (984 feet), the DAD9001 holds signal integrity over long runs.
For audio professionals running both wireless and wired rigs, the DAD9001 is the key to true system flexibility: switch the same DPA MicroLock microphone between wireless bodypack transmitters and a hardwired phantom-powered XLR input without buying additional microphones. Whether for theater, broadcast, house of worship, or studio applications, this MicroLock to XLR adapter is an essential accessory for any DPA CORE+ miniature microphone kit.
Features
- Converts DPA MicroLock connector to balanced 3-pin XLR for standard P48 phantom power operation
- Optimized circuitry designed to achieve the best performance from DPA CORE+ miniature microphones
- Robust solid metal body with integrated, repositionable belt clip
- Enhanced electrical design with greatly improved RF immunity against LED walls and other interference sources
- Cable drive capability up to 300 m (984 ft) for long wired runs
- Fits in racks and stage boxes even with the belt clip attached
- Lets you switch microphones between wireless systems and wired XLR inputs without buying new mics
Technical Specifications
- Input connector: DPA MicroLock
- Output connector: 3-pin XLR, balanced
- Power requirement: P48 phantom power (operates from 12 V)
- Current consumption: 3.5 mA (typical, with microphone)
- Output impedance: 100 Ohms
- Common mode rejection ratio: >60 dB (50 Hz to 15 kHz)
- Cable drive capability: up to 300 m (984 ft)
- Housing: solid metal body with repositionable belt clip
- Compatibility: DPA CORE+ miniature microphones with MicroLock connector
What's Included
- DPA DAD9001 MicroLock to 3-pin XLR adapter with integrated belt clip
