DSan VC-2000-2 VideoClock Cat5-to-USB Adapter for PerfectCue & Limitimer

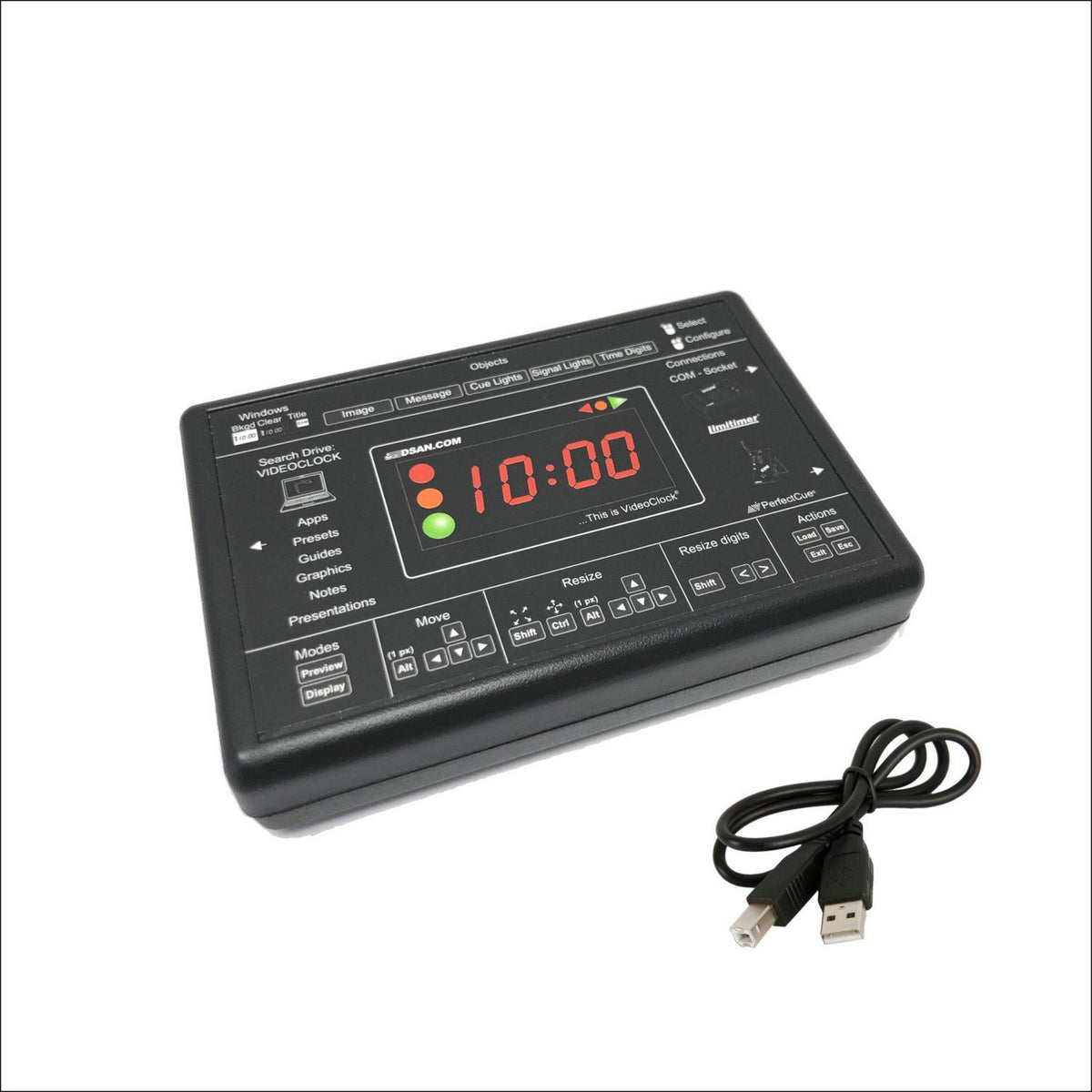

DSan VC-2000-2 VideoClock Cat5-to-USB Adapter

The DSan VC-2000-2 VideoClock is a Cat5-to-USB interface that brings Limitimer timing data and PerfectCue cue information onto a Windows PC. It connects compatible DSan timer and cue-light systems to the included VideoClock software, allowing time remaining, phase lights, and cue indicators to appear as configurable on-screen graphics.

Designed for presentation, conference, broadcast, and live-event workflows, the VC-2000-2 lets operators adjust displayed elements for size, color, background, position, and transparency. Graphics can appear by themselves or overlay another running application, allowing presentation slides to remain visible beneath timing and cue information. Preconfigured setups help operators begin displaying data from connected PerfectCue or Limitimer systems quickly.

The VideoClock application is embedded in the adapter, so it can run from the device without requiring a conventional software installation. The application can also be installed on the computer for faster operation. Network-sourced device data is supported when the system is paired with an optional DSan IP-2000X Network Extender configured as a server. Two RJ45 connections support Limitimer and PerfectCue data, while the included 6-foot USB-B to USB-A cable provides the computer connection.

Key Features

• PerfectCue and Limitimer Interface: Transfers serial data from compatible DSan cue-light and speaker-timer systems to a Windows computer.
• On-Screen VideoClock Display: Presents timing information, phase indicators, and cue graphics through companion software.
• Configurable Graphics: Adjusts display size, color, background, position, and transparency to suit different production layouts.
• Application Overlay: Displays cue and timer information over running presentation applications or as a standalone output.
• Embedded Software: Stores the VideoClock application on the device for operation without a traditional software installation.
• Preconfigured Setups: Includes ready-made configurations and custom fonts for displaying connected system data.
• Network Data Support: Accepts data from a network source when used with an optional IP-2000X configured as a server.
• Included USB Cable: Comes with a 6-foot USB-B to USB-A cable for connection to a compatible computer.

Technical Specifications

• Model: VC-2000-2
• Product Type: Cat5-to-USB presentation timer and cue-light interface
• Compatible Systems: DSan Limitimer and PerfectCue
• Computer Platform: Windows PC
• USB Port: 1 x USB-B
• RJ45 Ports: 2, designated for Limitimer and PerfectCue
• Included USB Cable: 6' USB-B to USB-A
• Software: VideoClock application embedded in the device
• Display Parameters: Size, color, background, position, transparency
• Included Software Resources: Preconfigured setups and custom display fonts
• Network Source Support: Requires optional IP-2000X Network Extender configured as a server
• Dimensions: 4 x 1 x 2.8"
• Weight: 0.3 lb

What's In the Box

• DSan VC-2000-2 VideoClock Cat5-to-USB Adapter
• 6' USB-B to USB-A Cable
