DSC PGP-WT-SC6 Water Tile Sensing Cable and Wall Mount Kit

DSC PGP-WT-SC6 Water Tile Sensing Cable and Wall Mount Kit

The DSC PGP-WT-SC6 Water Tile Sensing Cable and Wall Mount Kit expands the detection area of compatible PGPx986 PowerG+ Water Tile sensors. It combines a wall-mount bracket with a 6-foot sensing cable that detects water along its length, allowing the detector body to remain secured above the monitored surface.

Designed for leak-prone areas around appliances, plumbing, utility rooms, mechanical equipment, and similar locations, the PGP-WT-SC6 provides broader coverage than relying solely on the Water Tile's integrated sensing points. The cable lies along the floor or another monitored surface and can be secured with the supplied self-adhesive clips. Additional compatible sensing cables can also be connected together to extend the monitored area.

The PGP-WT-SC6 is a manufacturer-documented mounting option for the PGPx986 PowerG+ Water Tile family, including the PGP9986 and PGP8986 regional models. The bracket attaches to a vertical surface with three supplied screws, while DSC recommends spacing the cable clips approximately 16 inches apart. The compatible Water Tile detector slides into the bracket and is sold separately.

Key Features

• Extended Water Detection: Sensing cable detects water along its entire length for broader coverage around leak-prone areas.
• 6-Foot Sensing Cable: Provides approximately 5.9 feet of flexible detection coverage from the wall-mounted Water Tile.

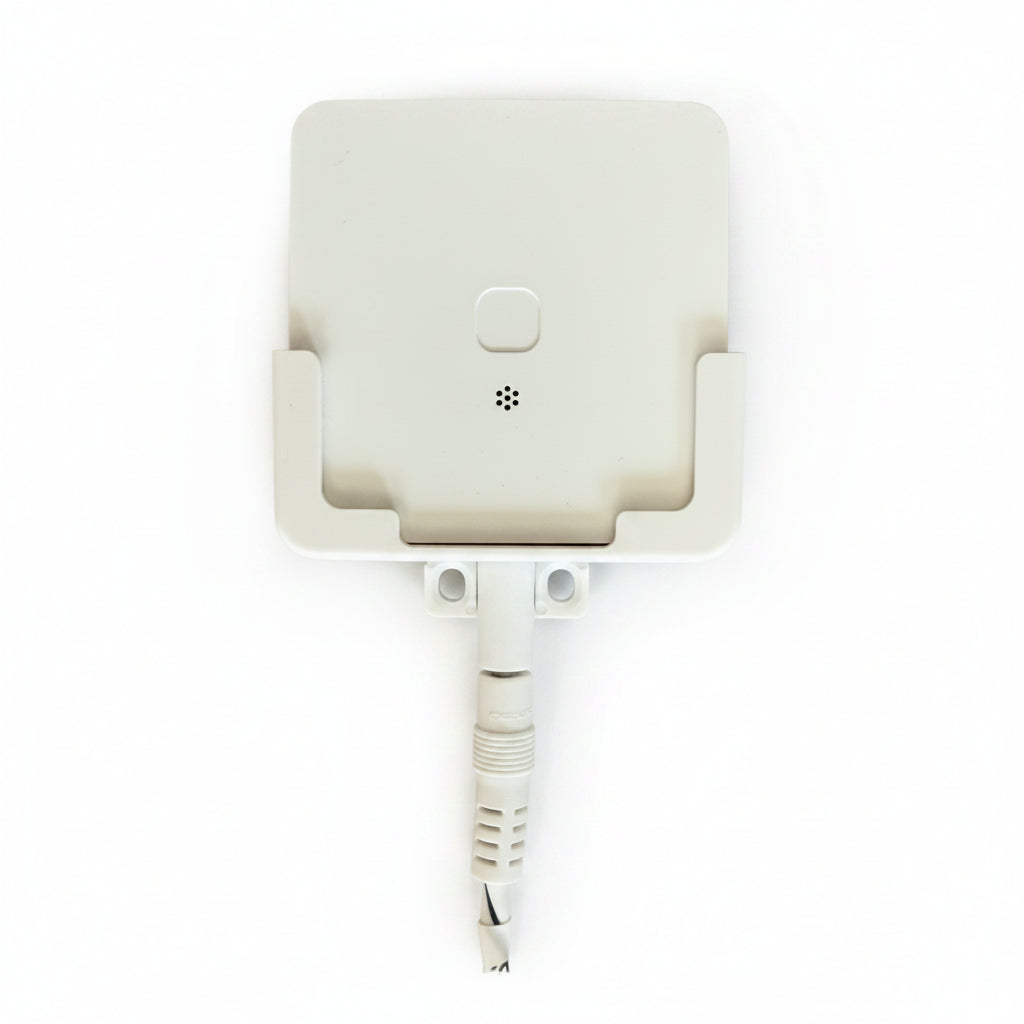

• Wall-Mount Bracket: Keeps the compatible detector secured vertically while the sensing cable monitors the floor or surface below.
• Expandable Coverage: Compatible sensing cables can connect together to increase the detection area for one Water Tile.
• PGPx986 Compatibility: Designed for DSC PowerG+ Water Tile detectors, including PGP9986 and PGP8986 models.
• Surface-Mount Clips: Four supplied self-adhesive cable holders help position and secure the sensing cable.
• Supplied Mounting Hardware: Includes three screws and wall anchors for installing the bracket on a vertical surface.

Technical Specifications

• Brand: DSC
• Model: PGP-WT-SC6
• Product Type: Water Tile sensing cable and wall-mount accessory kit
• Application: Extended water leak detection for compatible PowerG+ Water Tile sensors
• Compatible Product Family: PGPx986 PowerG+ Water Tile with Freeze Detection
• Compatible Models: PGP9986, PGP8986
• Sensing Cable Length: 5.9 feet
• Detection Area: Along the entire sensing cable
• Expandable Sensing Cable: Yes, compatible sensing cables can be interconnected
• Mounting Orientation: Wall-mounted detector with sensing cable positioned on the monitored floor or surface
• Recommended Cable Clip Spacing: Approximately 16 inches
• Recommended Mounting Screw Size: Phillips #6 x 1 inch
• Country of Origin: Singapore

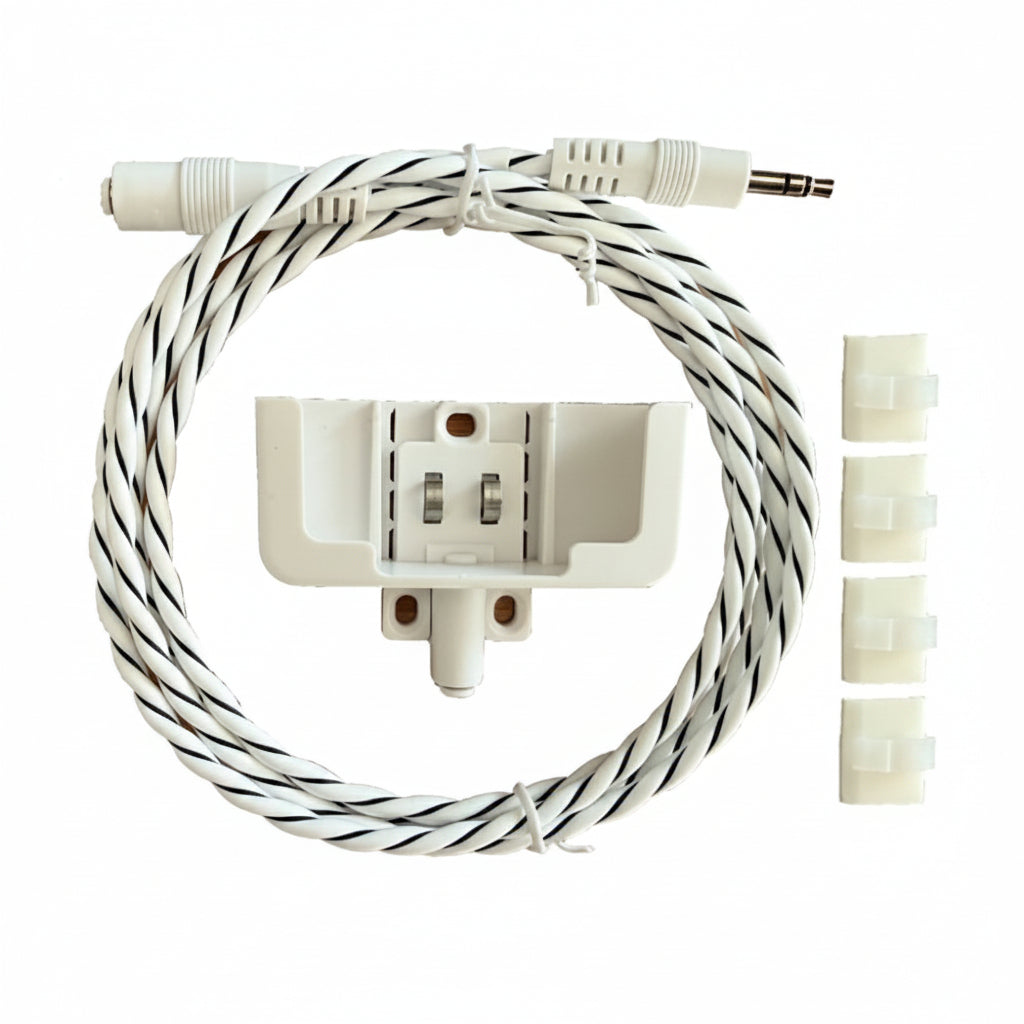

What's In the Box

• Wall-Mount Bracket
• 6-Foot Water Sensing Cable
• 4 Self-Adhesive Cable Holders
• 3 Mounting Screws
• 3 Wall Anchors
