DTEN DBDLP116EA Mate Gen Meeting Room Controller, 12 Inch

DTEN DBDLP116EA Mate Gen 2 Meeting Room Controller

The DTEN DBDLP116EA Mate Gen 2 Meeting Room Controller is an 11.6-inch touchscreen console designed to simplify video conferencing in professional meeting spaces. Featuring a Full HD display, integrated six-microphone array, and Power over Ethernet connectivity, it provides centralized meeting controls for compatible Zoom Rooms and Microsoft Teams Rooms installations.

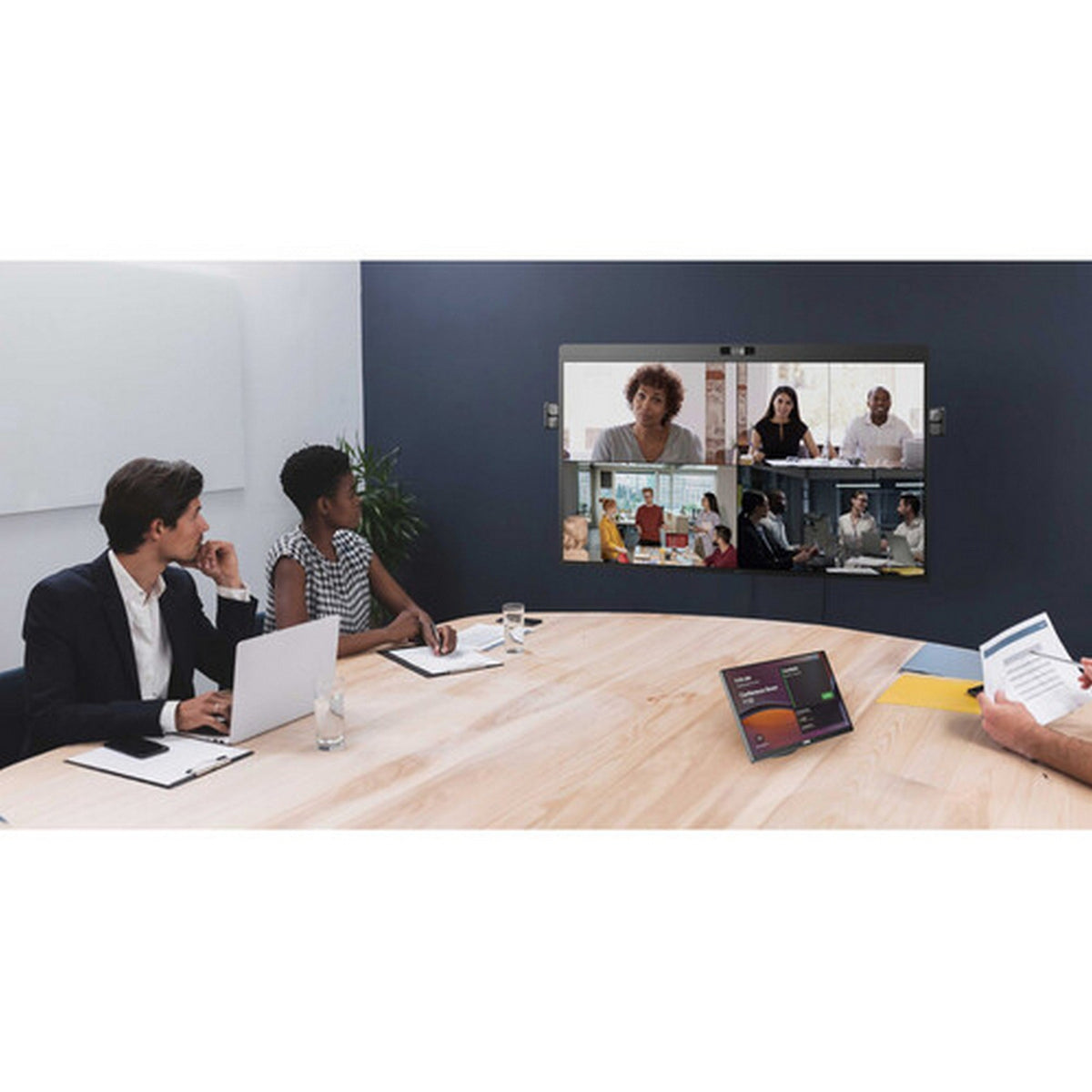

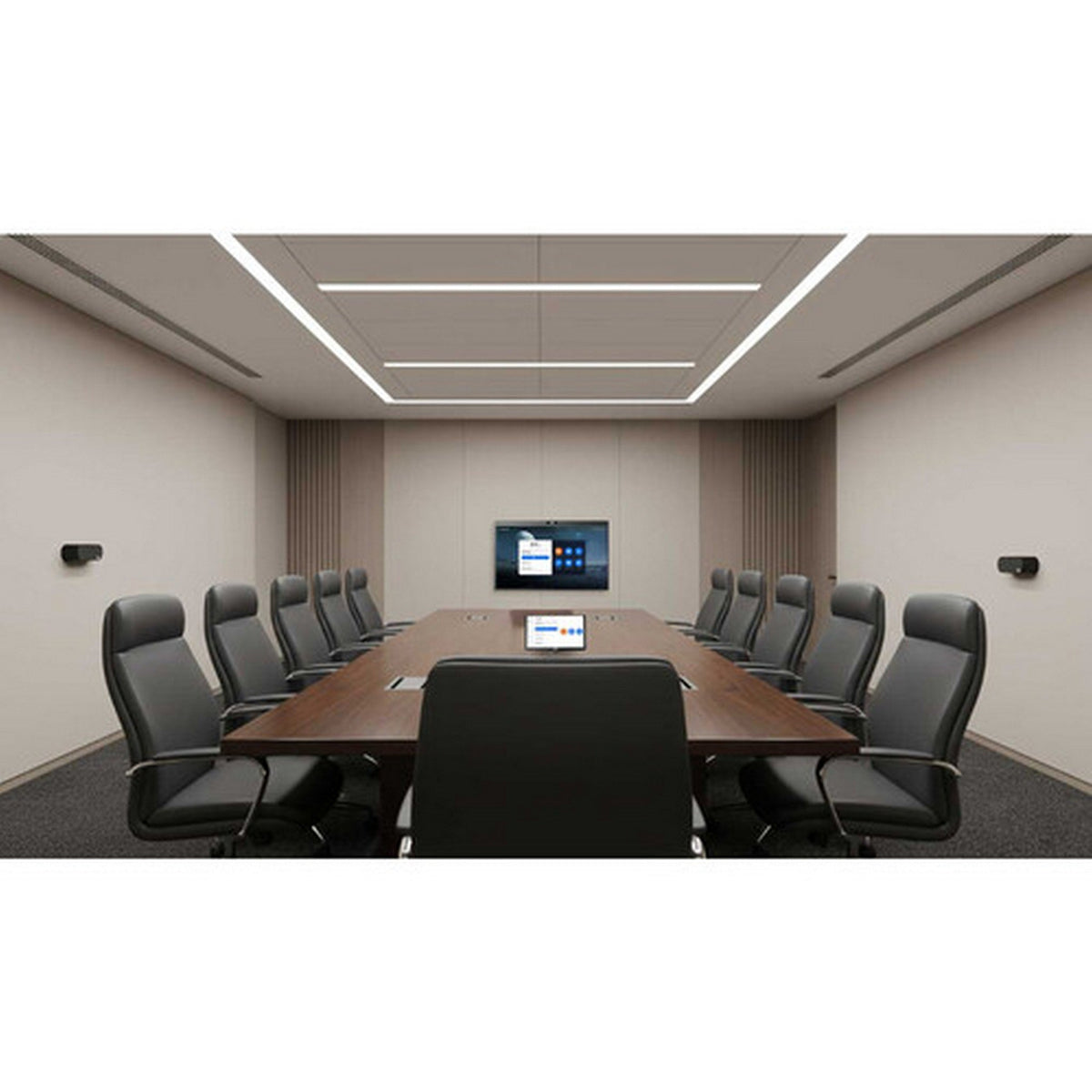

Designed for corporate conference rooms, hybrid workplaces, and collaborative environments, the DTEN Mate Gen 2 combines meeting management, audio expansion, and content sharing in one tabletop device. Users can join meetings, manage participants, adjust supported camera and audio settings, and access collaboration features through its responsive capacitive touchscreen. The integrated microphone array extends voice pickup when paired with compatible DTEN video bars or D7X displays. A customizable action button provides convenient access to frequently used controls, while USB-C connectivity supports bring-your-own-device (BYOD) workflows with compatible equipment.

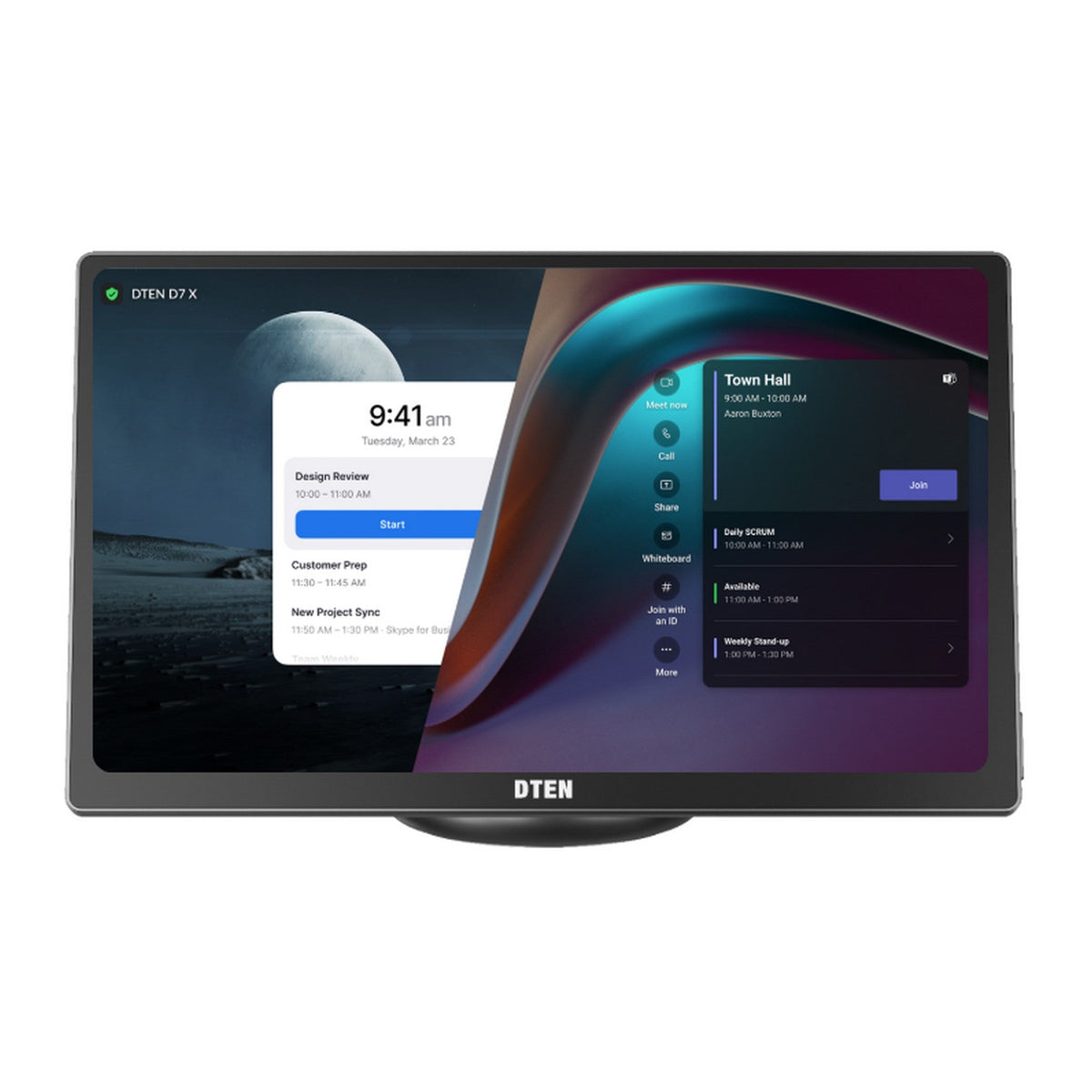

The 11.6-inch LED display offers 1920 x 1080 resolution, a 16:9 aspect ratio, and an adjustable viewing angle from 15 to 60 degrees. Power over Ethernet (PoE) simplifies installation by combining network connectivity and power delivery through a compatible Ethernet connection. Running DTEN Mate OS, the controller integrates with supported DTEN conferencing systems, including DTEN Bar and D7X devices. Its extended touchscreen functionality also supports compatible display mirroring, content navigation, and digital whiteboarding workflows.

Key Features

• 11.6-Inch Full HD Touchscreen: Capacitive multi-touch display with 1920 x 1080 resolution provides convenient access to meeting controls and collaboration tools.
• Zoom Rooms and Microsoft Teams Rooms Support: Designed to operate with compatible conferencing installations for meeting management and room control.
• Integrated Six-Microphone Array: Extends voice pickup capabilities when connected to supported DTEN video conferencing equipment.
• Adjustable Display Angle: Integrated tabletop design allows screen positioning between 15 and 60 degrees for comfortable viewing.
• Power over Ethernet Connectivity: IEEE 802.3af PoE support enables network communication and power delivery through a compatible Ethernet connection.
• USB-C BYOD Connectivity: Supports compatible laptop-based meeting and content-sharing workflows using the included USB-C cable.
• Customizable Action Button: Provides quick access to supported functions, including camera adjustments and audio controls.
• Extended Touchscreen Functionality: Supports compatible DTEN display mirroring, content interaction, and whiteboarding applications.

Technical Specifications

General Information

• Manufacturer: DTEN
• Product Name: Mate Gen 2
• Manufacturer Part Number: DBDLP116EA
• Product Type: Meeting Room Touchscreen Controller
• Generation: 2
• Operating Software: DTEN Mate OS
• Installation: Tabletop
• Supported Conferencing Platforms: Zoom Rooms and Microsoft Teams Rooms with compatible host systems

Display Specifications

• Display Size: 11.6 inches
• Display Technology: LED
• Touch Technology: Capacitive Multi-Touch
• Display Resolution: 1920 x 1080 pixels
• Resolution Classification: Full HD
• Aspect Ratio: 16:9
• Refresh Rate: 60 Hz
• Display Brightness: 300 nits
• Viewing Angle Adjustment: 15 to 60 degrees
• Display Functions: Meeting control, supported screen mirroring, content interaction, and whiteboarding

Audio Specifications

• Microphone Configuration: Integrated 6-Microphone Array
• Audio Function: Meeting room voice pickup extension with compatible DTEN systems
• Audio Controls: Supported microphone and audio level adjustments through the meeting interface

Networking and Connectivity

• Network Interface: Wired Ethernet
• Ethernet Connection: 1 x RJ45
• Power over Ethernet: IEEE 802.3af
• Power Connection: 1 x Dedicated Power Input
• BYOD Connectivity: USB-C cable connection
• Included USB-C Cable Length: 23.6 inches

Power Specifications

• AC Input Voltage: 100-240 VAC
• AC Input Frequency: 50/60 Hz
• Supported Power Methods: Compatible PoE connection or external power adapter
• Power Adapter: Included

Controls and Installation

• Control Interface: Capacitive Touchscreen
• Additional Control: Customizable Action Button
• Display Positioning: Adjustable Tabletop Stand
• Installation Orientation: Landscape
• Network Installation: Ethernet Connection

System Compatibility

• Compatible DTEN Equipment: Supported DTEN Bar and D7X Series Systems
• Conferencing Applications: Compatible Zoom Rooms and Microsoft Teams Rooms Deployments
• Content Sharing: USB-C BYOD and supported local content-sharing functions
• Display Integration: Supported DTEN screen mirroring and extended touch controls

What's in the Box

• 1 x DTEN Mate Gen 2 Meeting Room Controller
• 1 x Ethernet Cable
• 1 x Ethernet-to-USB Adapter
• 1 x Power Cable
• 1 x Power Adapter
• 1 x 23.6-Inch USB-C Cable for BYOD and Content Sharing
