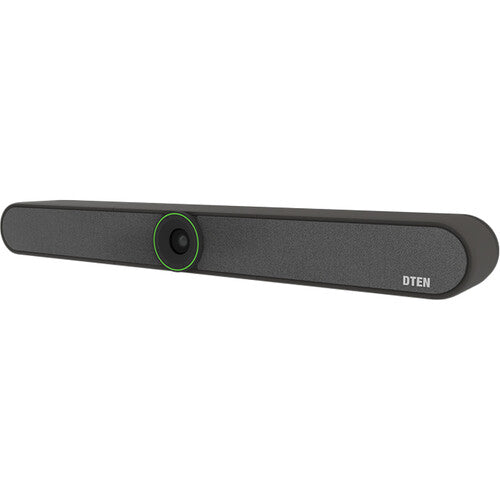

DTEN DCR200EA Bar 4K All-in-One Video Conferencing System

DTEN DCR200EA Bar 4K All-in-One Video Conferencing System

The DTEN DCR200EA Bar 4K All-in-One Video Conferencing System combines an 8MP 4K camera, 12-element microphone array, and 30W stereo speaker system in a single conferencing device. Designed for professional meeting rooms, this intelligent video bar supports clear communication, AI-assisted participant framing, and integrated video meetings without requiring separate cameras, microphones, or speakers.

Ideal for small conference rooms, huddle spaces, executive offices, and collaborative workspaces, the DTEN Bar provides a centralized audiovisual solution for hybrid meetings. Its wide-angle camera captures participants across the room, while intelligent framing helps keep attendees visible during discussions. A 12-microphone array uses beamforming technology to focus audio pickup toward speakers, and integrated noise reduction helps minimize distracting background sounds. Dual-display support enables flexible meeting room configurations, while USB-C Bring Your Own Device (BYOD) connectivity allows compatible laptops to use the bar's camera and audio hardware for conferencing applications.

Built for commercial AV integration, the DCR200EA features DTEN OS based on Android 12, integrated conferencing capabilities, and multiple connectivity options for professional installations. Its 4K camera incorporates an automatic privacy shutter, while acoustic echo cancellation and automatic gain control help maintain consistent meeting audio. The system supports horizontal installation above or below a display and vertical positioning between two screens. Ethernet, Wi-Fi 6, Bluetooth 5.0, and integrated HDMI connections provide additional flexibility for connected conferencing environments.

Key Features

• 4K Ultra HD Camera: Integrated 8MP camera captures detailed video with a 95-degree horizontal field of view for professional conferencing.
• 12-Microphone Array: AI-assisted beamforming, acoustic echo cancellation, and noise reduction support intelligible communication in meeting environments.
• 30W Stereo Audio: Two front-facing 15W speakers provide integrated sound reproduction for conference participants.
• Integrated Conferencing Platform: Android 12-based DTEN OS supports built-in professional video meeting functionality.
• Dual-Display Support: Connects to two external displays for flexible video conferencing and content presentation arrangements.
• USB-C BYOD Connectivity: Allows compatible laptops to access the integrated camera, microphone array, and speakers through a convenient connection.
• Flexible Mounting: Supports horizontal placement and vertical installation between displays for different meeting room layouts.
• Automatic Privacy Shutter: Provides a physical camera privacy feature when the imaging system is inactive.

Professional 4K Video Conferencing Camera

The integrated 4K camera features an 8MP imaging system and a wide-angle fixed lens. Its 95-degree horizontal field of view helps capture conference participants without requiring a separate external camera.

AI-assisted framing technology helps adjust the video composition to accommodate participants during meetings. The camera also incorporates an automatic privacy shutter to provide additional control over video capture when meetings are not in progress.

12-Microphone Array with Intelligent Audio Processing

The DTEN Bar uses a 12-element microphone array designed to capture speech throughout a meeting space. Beamforming technology helps emphasize participant voices, while integrated audio processing supports natural conversation between local and remote attendees.

Acoustic echo cancellation helps prevent speaker output from returning through the microphone system. Automatic gain control adjusts audio levels, and noise reduction minimizes unwanted background sounds that can interfere with remote communication.

Integrated 30W Stereo Speaker System

Two front-facing 15W speakers deliver a combined 30W of audio output. This integrated stereo system eliminates the need for separate conference speakers in many small meeting room configurations.

The speaker system works with the internal microphone processing to support two-way communication during professional video meetings.

Dual-Display Connectivity and Flexible Installation

With two HDMI outputs, the DCR200EA supports dual-display meeting room configurations. This arrangement allows conferencing installations to accommodate separate screens for meeting participants and shared presentation content, depending on the conferencing platform and software configuration.

The bar can be installed horizontally above or below a display. It also supports vertical installation between two screens, positioning the camera closer to participant eye level during video calls.

USB-C BYOD and Enterprise Network Integration

Bring Your Own Device connectivity allows users to connect compatible laptops and access the DTEN Bar's integrated conferencing hardware. The system includes USB-C connectivity alongside HDMI inputs and outputs for integration with meeting room equipment.

Gigabit Ethernet, Wi-Fi connectivity, and Bluetooth 5.0 support networked conferencing environments. The Android-based operating platform provides integrated video meeting functionality, reducing the need for an external computer in supported room configurations.

Technical Specifications

General Information

• Manufacturer: DTEN
• Model: DCR200EA
• Product Name: DTEN Bar
• Product Type: All-in-One Video Conferencing Bar
• Operating System: DTEN OS Based on Android 12
• Recommended Applications: Small Conference Rooms, Huddle Rooms, Meeting Spaces, Professional Offices
• Installation Orientation: Horizontal or Vertical
• External Display Support: Dual Display
• BYOD Connectivity: USB-C

Camera System

• Camera Resolution: 4K Ultra HD
• Camera Sensor Resolution: 8 Megapixels
• Camera Configuration: Integrated Center Camera
• Lens Type: Fixed Lens
• Horizontal Field of View: 95 Degrees
• Diagonal Field of View: 104 Degrees
• Camera Processing: AI-Assisted Participant Framing
• Privacy Protection: Automatic Camera Privacy Shutter

Microphone System

• Microphone Configuration: Integrated Microphone Array
• Number of Microphones: 12
• Microphone Processing: AI-Assisted Beamforming
• Acoustic Echo Cancellation: Supported
• Automatic Gain Control: Supported
• Automatic Noise Reduction: Supported

Speaker System

• Speaker Configuration: Integrated Stereo
• Number of Speakers: 2
• Speaker Output: 15W per Channel
• Total Speaker Output: 30W
• Speaker Orientation: Front-Facing

Video and USB Connections

• HDMI Inputs: 1
• HDMI Outputs: 2
• USB-C Ports: 1
• USB-A 2.0 Ports: 2
• USB-A 3.0 Ports: 2
• Total USB-A Ports: 4
• Ethernet Ports: 1 x RJ-45
• Security Connection: Kensington Lock Slot

Networking and Wireless Connectivity

• Ethernet Speed: 1000 Mbps
• Wireless Networking: Wi-Fi 802.11a/b/g/n/ac/ax
• Wi-Fi Standard: Wi-Fi 6 Supported
• Bluetooth: Version 5.0
• IP Configuration: IPv4 DHCP and Static Addressing
• Proxy Support: HTTP/HTTPS

Network Security

• Wired Network Authentication: IEEE 802.1X
• Wireless Network Authentication: IEEE 802.1X
• Supported Authentication Methods: EAP-MD5, EAP-TLS, EAP-TTLS, PEAP
• Physical Security: Kensington Lock Slot

Power Requirements

• Input Voltage: 100 to 240V AC
• Input Frequency: 50/60 Hz

Physical Specifications

• Dimensions (L x W x H): 26" x 3" x 4.5"
• Weight: 9.5 lb
• Mounting Options: Horizontal and Vertical Installation
• Security Slot: Kensington Lock Compatible

What's in the Box

• DTEN DCR200EA All-in-One Video Conferencing Bar
