DVDO 4K 1x2 HDMI Splitter with Category Outputs

DVDO 4K 1x2 HDMI Splitter with Category Outputs

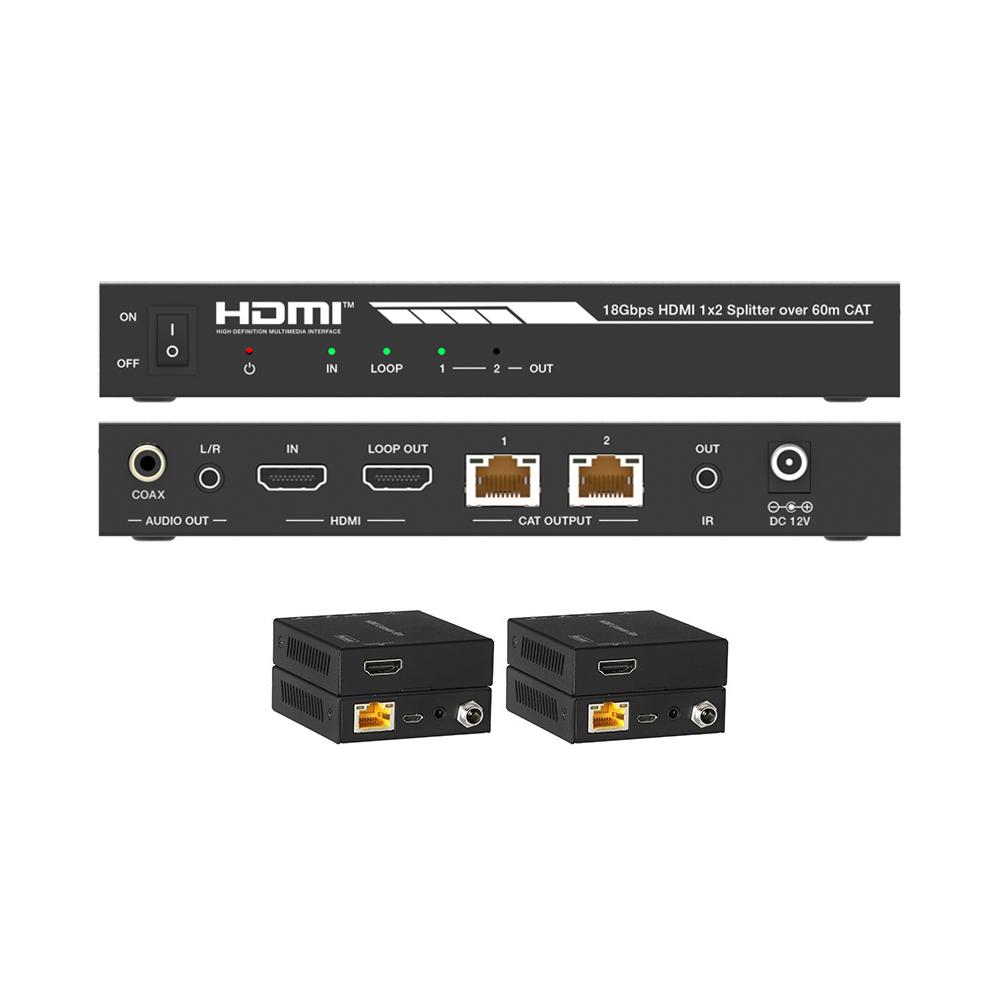

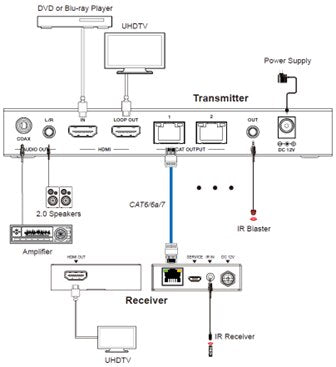

Built for two-zone HDMI distribution over long runs, the DVDO-Splitter-12-CAT sends one source to a pair of remote displays across single Cat6/6a/7 cables, with two Cat receivers included and an HDMI loop output for a local monitor. The 18Gbps platform handles video up to 4K2K@60Hz 4:4:4, fitting installations that split a source between rooms or zones.

Transmission reaches 115ft/35m at 4K2K@60Hz, 164ft/50m at 4K2K@30Hz, and 197ft/60m at 1080p60. The unit is HDMI 2.0b and HDCP 2.2/1.x compliant, passes HDR10, HDR10+, HLG, and Dolby Vision, and de-embeds audio to coaxial and analog L/R outputs. One-way PoC powers the receivers over the category cable, IR control passes back from the receiver side, and advanced EDID management is built in.

Key Features

• 1x2 HDMI splitter with two included Cat receivers plus HDMI loop output
• 18Gbps bandwidth supports video up to 4K2K@50/60Hz 4:4:4
• HDR10, HDR10+, HLG, and Dolby Vision pass-through
• Reaches 115ft/35m at 4K60, 164ft/50m at 4K30, and 197ft/60m at 1080p60
• Coaxial and 3.5mm analog de-embedded audio outputs
• One-way PoC from transmitter to receivers with IR control of source equipment from the Rx side
• Advanced EDID management in a black metal enclosure

Specifications

• Technical: HDMI Compliance ; HDMI 2.0b; HDCP Compliance ; HDCP 2.2 / 1.x; Video Bandwidth ; 594MHz / 18Gbps; Video Resolution ; Input: 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz; Loop Out: 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz; Color Depth ; 8-bit, 10-bit, 12-bit (1080p@60Hz); 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0); 8-bit (4K2K@60Hz YUV 4:4:4); Color Space ; RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0; HDR ; HDR10, HDR10+, HLG, Dolby Vision; HDMI Audio Formats ; LPCM, Dolby Digital/Plus/EX, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio; Coaxial Audio Format s; LPCM 2.0, LPCM 5.1, Dolby Digital 2/5.1CH; Analog Audio Format s; PCM 2.0CH; Extended Distance ; 115ft/35m at 4K2K@60Hz (600M Bandwidth); 164ft/50m at 4K2K@30Hz (300M Bandwidth); 197ft/60m at 1080p@60Hz (148.5M Bandwidth); ESD Protection ; Human body model—±8kV (Air-gap discharge) &; ±4kV (Contact discharge)
• Connection: Input ; 1 × HDMI IN [Type A, 19-pin female]; Output ; 1 × HDMI LOOP OUT [Type A, 19-pin female]; 2 × CAT OUTPUT [RJ45, 8-pin female]; 1 × COAX AUDIO OUT [RCA]; 1 × L/R AUDIO OUT [3.5mm Stereo Mini-jack]; Control ; 1 × SERVICE [Micro USB, Update port]; 1 × IR OUT [3.5mm Stereo Mini-jack]
• Mechanical: Housing ; Metal Enclosure; Silkscreen Color ; Black; Dimensions ; Transmitter: 175mm (W) × 100mm (D) × 25mm (H); Receiver: 88mm (W) × 61mm (D) × 18mm (H); Weight ; Transmitter: 485g / Receiver:155g; Power Supply ; Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified); Power Consumption ; 8.28W (Max.); Operation Temperature ; 0°C ~ 40°C / 32°F ~ 104°F; Storage Temperature ; -20°C ~ 60°C / -4°F ~ 140°F; Relative Humidity ; 20~90% RH (non-condensing)

What's Included

• 1× 18Gbps HDMI 1×2 Splitter over 60m CAT
• 2× CAT Receiver
• 1× IR Blaster Cable (1.5 meters)
• 2× 20K~60KHz IR Receiver Cable (1.5 meters)
• 1× 12V/1A DC Locking Power Adapter
• 1× User Manual
