DVDO 4K 4x2 HDMI Matrix Switcher with Audio Outputs, HDR & ARC (NEW)

DVDO 4K 4x2 HDMI Matrix Switcher with Audio Outputs, HDR & ARC (NEW)

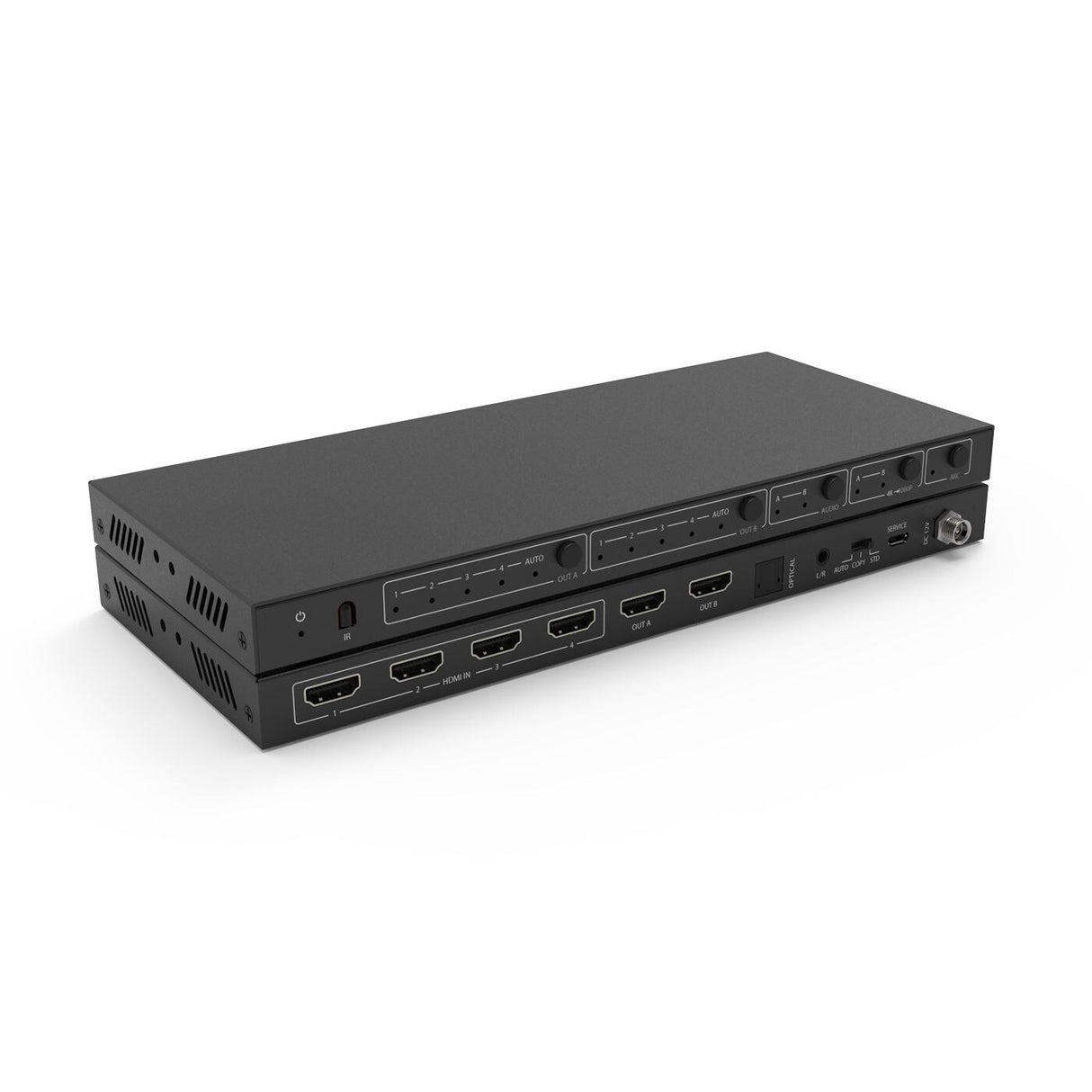

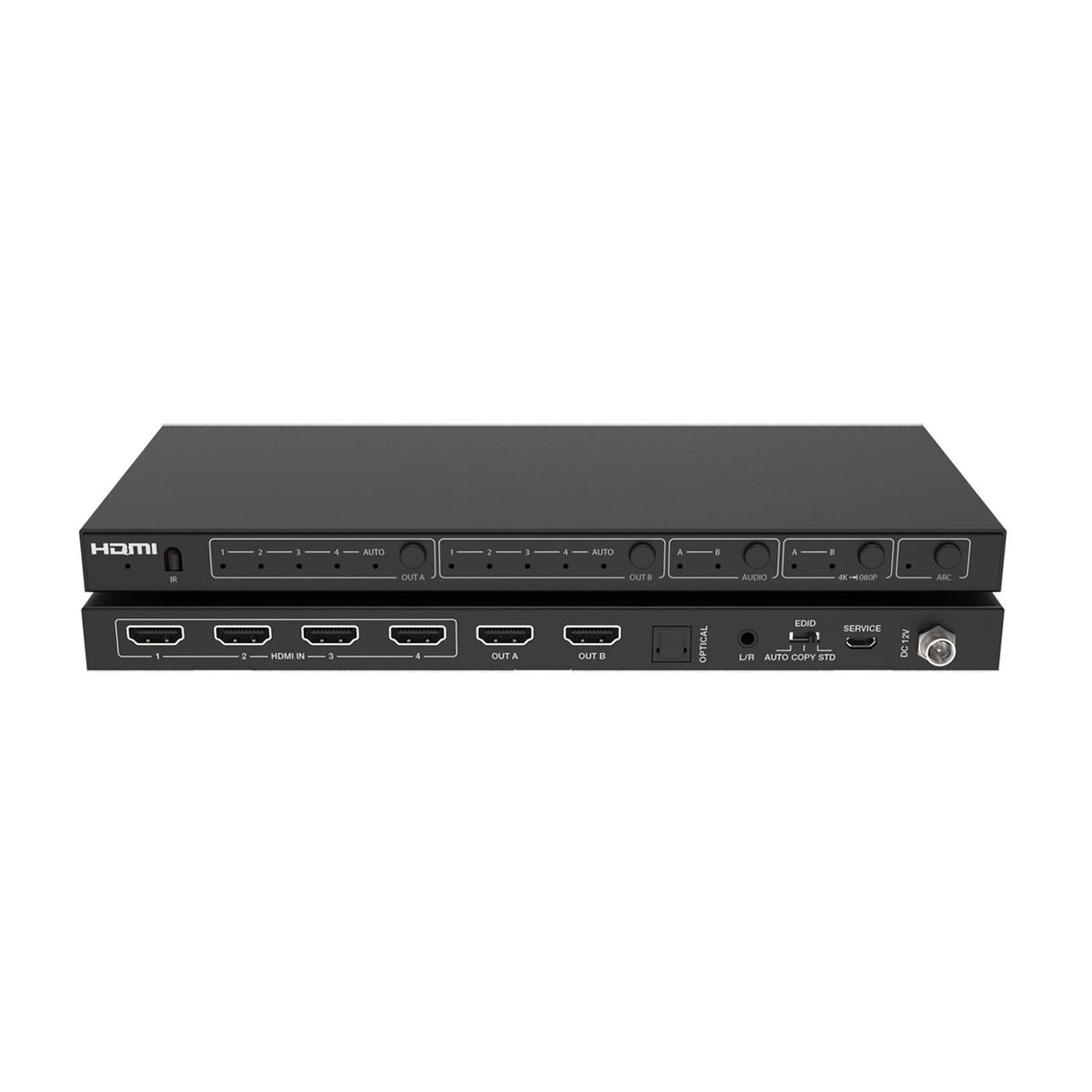

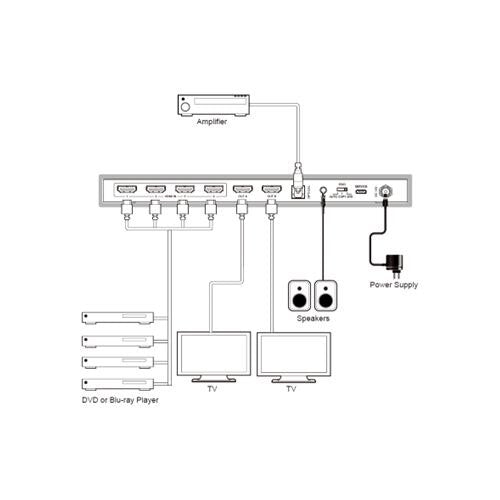

DVDO-Matrix-42b is a compact 4x2 HDMI matrix switcher that routes any of four sources independently to two displays, carrying signals up to 4K2K@60Hz 4:4:4 across its 18Gbps pipeline. A low-profile chassis just 20mm tall and dual control options, front-panel buttons or IR remote, make it straightforward to fold into media cabinets and equipment racks.

HDR support spans Dolby Vision, HDR10+, and HLG, while ARC lets a connected display return audio through the switcher. Audio from a selected HDMI input can be de-embedded to optical and analog L/R outputs, 4K sources can be downscaled to 1080p for older displays, and EDID handling offers AUTO, COPY, and STD modes. Power draw tops out at 3.8W.

Key Features

• Four HDMI inputs routed independently to two HDMI outputs
• HDMI 2.0 and HDCP 2.2/1.4 with 18Gbps bandwidth, up to 4K2K@60Hz 4:4:4
• Dolby Vision, HDR10+, and HLG support plus ARC audio return
• 4K-to-1080p downscaling for mixed-display setups
• Optical and analog L/R audio de-embedding from the same HDMI input
• Advanced EDID management with AUTO, COPY, and STD modes

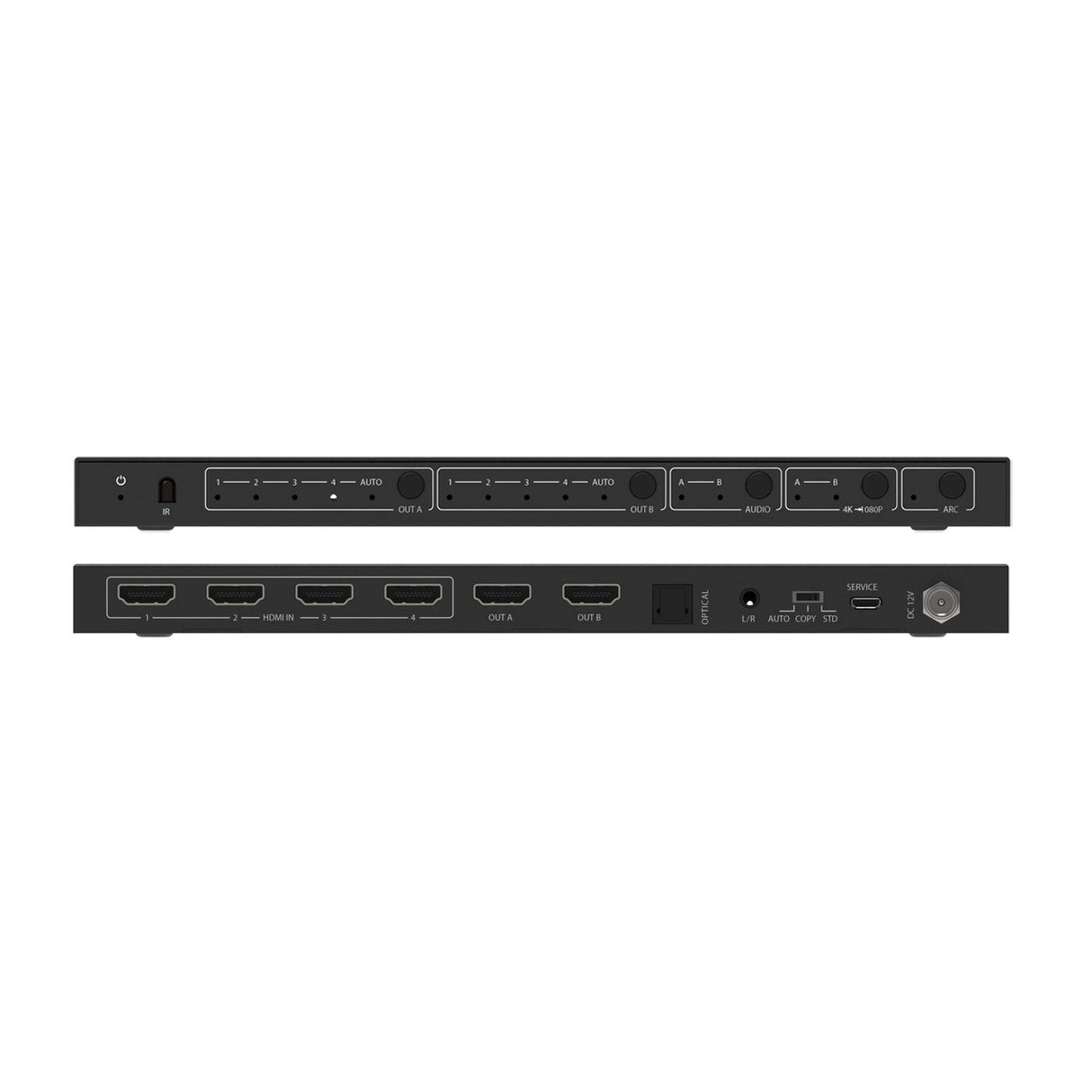

• Front-panel button and IR remote control in a slim metal chassis

Specifications

• HDMI 2.0
• HDCP 2.2/1.4
• 18Gbps
• Up to 4K2K@50/60Hz (YCbCr 4:4:4), 4K2K@30Hz, all HDMI 3D TV formats
• RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0
• 8-bit, 10-bit, 12-bit [1080p, 4K30Hz, 4K60Hz (YCbCr 4:2:0)], 8-bit [4K60Hz (YCbCr4:4:4)]
• PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High
• Res, DTS-HD Master Audio, DSD
• PCM2.0, Dolby Digital / Plus, DTS
• PCM2.0CH (Note: If the ARC function is turned on, the audio port will mute.)
• Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
• 4 x HDMI [Type A, 19-pin female]
• 2 x HDMI [Type A, 19-pin female]
• 1 x L/R audio out [3.5mm Stereo Mini-jack]
• 1 x Optical audio out [S/PDIF]
• Black Metal Enclosure
• 251mm (W) × 105mm (D) × 20mm (H)
• 620g
• Input: AC 100 - 240V 50/60Hz
• Output: DC 12V/1A
• 3.8W (Max)
• 0°C ~ 40°C / 32°F ~ 104°F
• -20°C ~ 60°C / -4°F ~ 140°F
• 20~90% RH (non-condensing)
• Technical
• HDMI Compliance
• HDCP Compliance
• Video Bandwidth
• Video Resolutions
• Color Space
• Color Depth
• HDMI Audio Formats
• Optical Audio Formats
• L/R Audio Formats
• ESD Protection
• Connections
• Inputs
• Outputs
• Mechanical
• Housing
• Dimensions
• Weight
• Power Supply
• Power Consumption
• Operating Temperature
• Storage Temperature
• Relative Humidity

What's Included

• 1 X 4K 4x2 HDMI Matrix Switcher with Audio Outputs, HDR & ARC (NEW)
