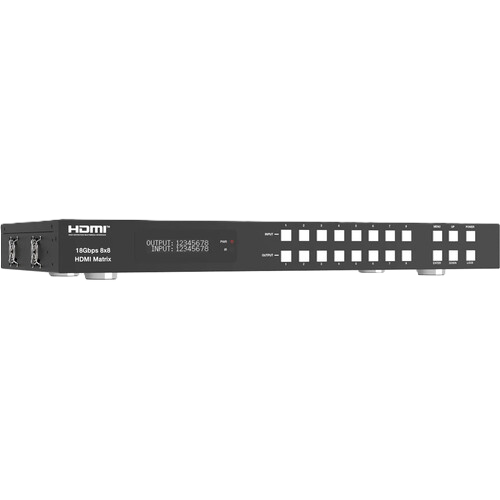

DVDO 4K 8x8 HDMI Matrix Switcher
DVDO | SKU: DVDO-DVDOMATRIX88
Authorized Dealer
Loading...
Newly Added
$1,99900
Free Shipping
Unit price
/
Unavailable
Estimated Shipping Widget will be displayed here!
Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability.
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
DVDO-Matrix-88 supports the transmission of video (up to 4K2K@60Hz YUV 4:4:4) and multi-channel high resolution digital audio from 8 HDMI sources to 8 HDMI displays. Audio de-embedded to analog and coaxial audio is supported from 8 HDMI output ports. While HDMI output ARC function is enabled, the ARC audio from HDMI display devices will be extracted to coaxial audio output. Each HDMI output of this 8x8 HDMI Matrix supports 4K2K to 1080p downscaler independently. Control is via front panel buttons, IR remote, RS-232, LAN and Web GUI.
Features:
- HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
- Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports
- Support 18Gbps video bandwidth
- Dolby Vision, HDR10+ and HLG are supported.
- Support 4K->1080P Down Scaler for each output port
- HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD
- Master Audio)
- Audio de-embedded is supported via analog and coax ports
- ARC, CEC and smart EDID management are supported
- 1U rack mounted design with front panel OLED display
- Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
Technical Specifications
Technical
- HDMI Compliance: HDMI 2.0b
- HDCP Compliance: HDCP 2.2 and HDCP 1.4
- Video Bandwidth: 18Gbps
- Video Resolution: Up to 4K2K@50/60Hz (4:4:4)
- Color Space: RGB, YCbCr 4:4:4/4:2:2/4:2:0
- Color Depth: 8-bit, 10-bit, 12-bit
- HDMI Audio Formats: LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
- Coax Audio Formats: LPCM 2.0, Dolby Digital / Plus, DTS 5.1
- L/R Audio Formats: PCM2.0
- HDR Formats: HDR10,HDR10+, Dolby Vision, HLG
- ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
Connection
- Input Ports
- 8×HDMI Type A [19-pin female]
- 1×IR EXT [3.5mm Stereo Mini-jack]
- Output Ports
- 8×HDMI Type A [19-pin female]
- 8×Coax Audio (RCA)
- 8×L/R Audio [3.5mm Stereo Mini-jack]
- Control Ports
- 1xTCP/IP [RJ45]
- 1×RS-232 [D-Sub 9]
Mechanical
- Housing: Metal Enclosure
- Color: Black
- Dimensions: 440mm (W)x200mm (D)x44.5mm (H)
- Weight: 2.8kg
- Power Supply:
- Input: AC 100 - 240V 50/60Hz
- Output: DC 12V/5A (US/EU standard, CE/FCC/UL certified)
- Power Consumption: 43W
- Operating Temperature: -10°C~45°C/14°F~ 113°F
- Storage Temperature: -20°C~60°C/-4°F~ 140°F
- Relative Humidity: 20~90% RH (non-condensing)
What's Included
- 1 x 18Gbps 8 x 8 HDMI Matrix
- 1 x 12V/5A Power Adapter
- 1 x IR Remote
- 1 x IR Receiver cable (1.5 meters)
- 1 x RS-232 serial cable (1.5 meters, male to female head)
- 2 x Mounting Ear
- 1 x User Manual
- Warranty: Limited 2-Year Manufacturer Warranty (EU & UK)
