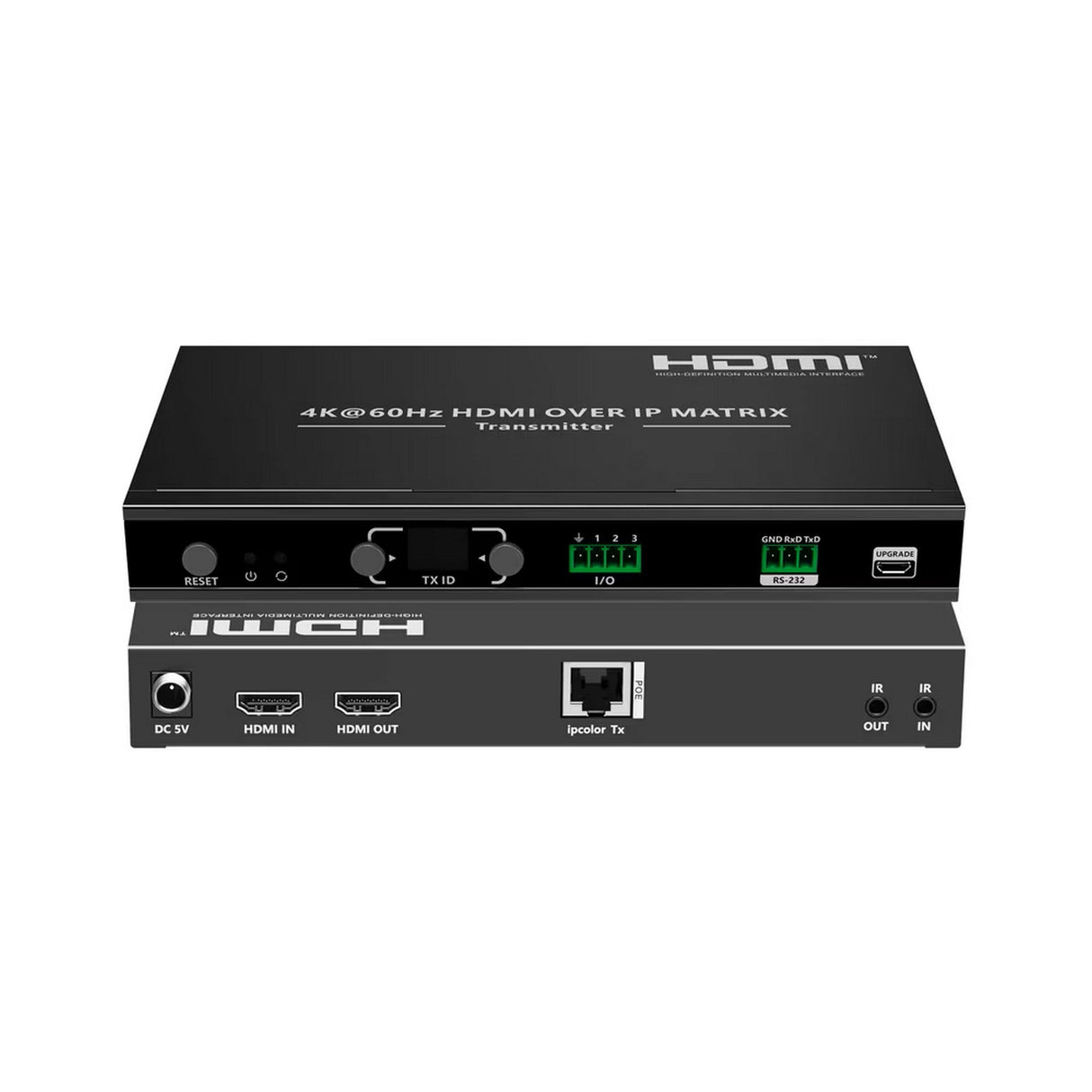

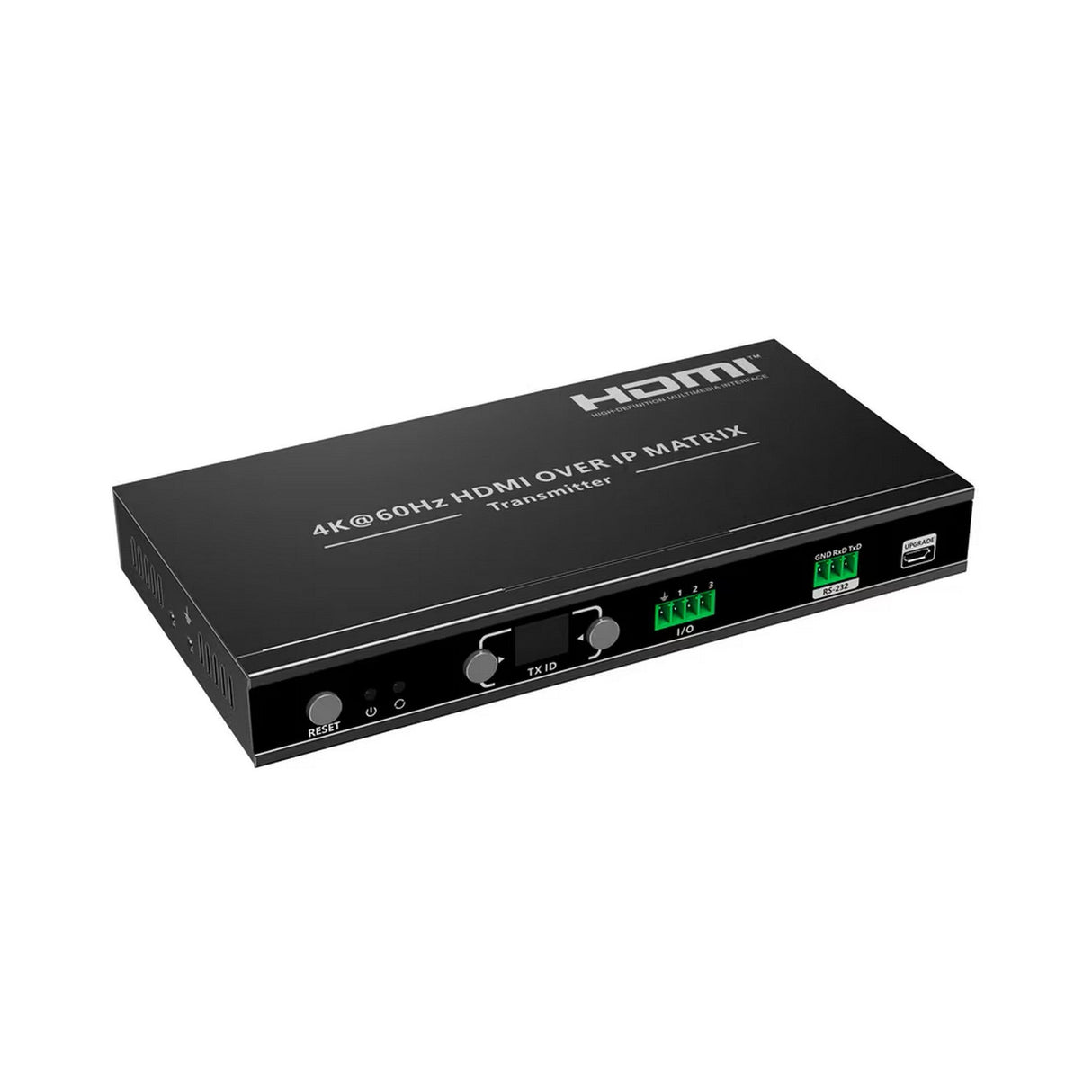

DVDO H265-4KENC-1 H.265/H.264 4K60 AV over IP Encoder

DVDO H265-4KENC-1 H.265/H.264 4K60 AV over IP Encoder

The DVDO H265-4KENC-1 H.265/H.264 4K60 AV over IP Encoder distributes HDMI video and LPCM audio across standard 1G network infrastructure. It accepts formats through UHD 3840 x 2160 at 60Hz and DCI 4096 x 2160 at 30Hz while providing a local HDMI loop output for professional AV installations.

Designed for digital signage, education, corporate AV, hospitality, command centers, entertainment, and houses of worship, the encoder works with compatible DVDO H265-4K decoders in one-to-one, one-to-many, and many-to-many systems. A deployment can scale to 256 encoders and 256 decoders, while Cat6 cabling supports runs up to 393.7 ft.

PoE simplifies installation by allowing network-delivered power, with a 5V DC input available when PoE is not used. Bidirectional IR, RS-232, and I/O pass-through support device control, while a free iOS or Android app provides system management and real-time video preview. Front-panel controls and 24/7 operating capability suit permanent professional AV deployments.

Key Features

• 4K60 AV over IP: Distributes UHD video and embedded audio through standard 1G Ethernet infrastructure.
• H.265/H.264 Technology: Provides compressed high-resolution transmission with manufacturer-rated low latency.
• HDMI Loop Output: Sends the incoming source to a local display while simultaneously encoding it for the network.
• Scalable Distribution: Supports systems with up to 256 encoders and 256 compatible decoders.
• Long Network Runs: Reaches up to 393.7 ft over Cat6 or 328.1 ft over Cat5e cabling.
• PoE Support: Allows compatible network switches to deliver power and data through the Ethernet connection.
• Integrated Control Routing: Supports bidirectional IR, RS-232, and I/O pass-through for professional AV control.
• App and Front-Panel Control: Provides system management through a free mobile app with real-time preview or onboard controls.

Technical Specifications

Video and Audio

• Model: DVDO-H265-4KENC-1
• Product Type: AV over IP Encoder
• Compression Technology: H.265/H.264
• HDMI Compliance: HDMI 2.0
• HDCP Compliance: HDCP 2.2
• Maximum UHD Resolution: 3840 x 2160 at 60Hz
• Supported DCI 4K: 4096 x 2160 at 24/30Hz
• Supported UHD: 3840 x 2160 at 24/30/50/60Hz
• Additional Supported Resolutions: 2560 x 1440 at 60Hz, 1920 x 1200 at 60Hz, 1080p at 50/60Hz, 720p at 50/60Hz
• Video Bandwidth: 18Gbps
• Network Bandwidth: 1G
• HDMI Audio: LPCM 2.0
• 4K60 Transmission Latency: 130-200 ms
• 1080p60 Transmission Latency: 70-130 ms

AV over IP Distribution

• Maximum Encoders: 256
• Maximum Decoders: 256
• Distribution Modes: One-to-one, one-to-many, many-to-many
• Compatible Decoder: DVDO-H265-4KDEC-1
• Compatible Multiview Decoder: DVDO-H265-4KDEC-MV-1
• Maximum Cat6 Transmission Distance: 393.7 ft
• Maximum Cat5e Transmission Distance: 328.1 ft
• Supported Network Cabling: Cat5e, Cat6, Cat6A, Cat7
• Recommended Network Switch: IGMP-enabled PoE Gigabit switch

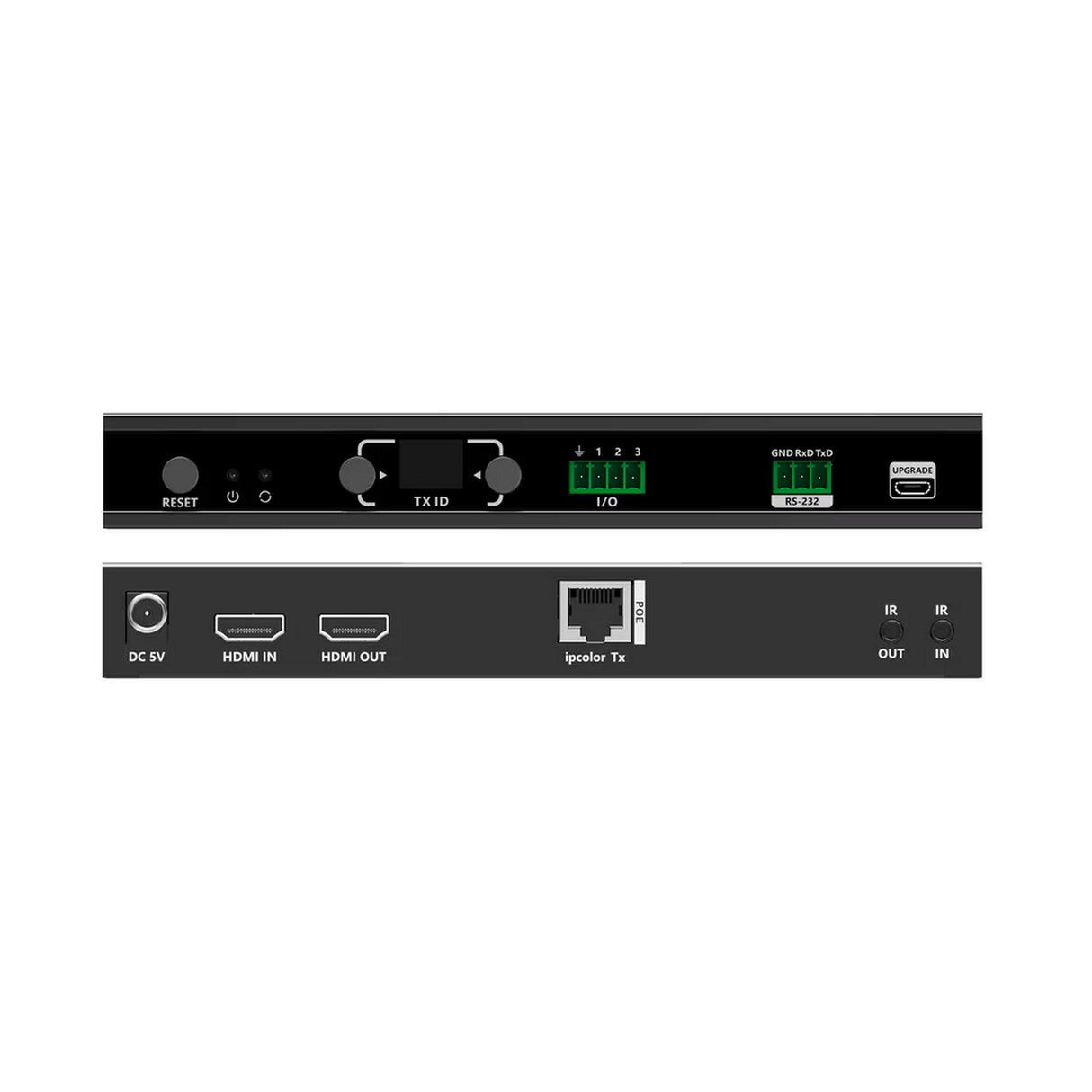

Connections

• HDMI Input: 1 x HDMI Type A, 19-pin female
• HDMI Loop Output: 1 x HDMI Type A, 19-pin female
• Network Output: 1 x RJ45 LAN
• RS-232: 1 x 3-pin 3.5 mm Phoenix connection
• IR Input: 1 x 3.5 mm stereo mini-jack
• IR Output: 1 x 3.5 mm stereo mini-jack
• I/O Interface: Control pass-through interface
• Firmware Port: Micro USB
• IR Range: Up to 16.4 ft
• IR Frequency: 20-60 kHz
• RS-232 Default Baud Rate: 115200
• Supported RS-232 Baud Rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200

Power and Protection

• PoE: Supported
• External Power: 5V DC, 2A when PoE is not used
• Maximum Power Consumption: 5.5W
• ESD Protection: IEC 61000-4-2, ±8kV air-gap discharge and ±4kV contact discharge
• Additional Protection: Lightning and surge protection
• Operation: Designed for stable 24/7 use

Physical and Environmental

• Housing: Black metal enclosure
• Dimensions: 7.5" W x 3.8" D x 1" H
• Weight: 1.2 lb
• Operating Temperature: -4°F to 140°F
• Storage Temperature: -22°F to 158°F
• Relative Humidity: 0-90%, non-condensing

What's In the Box

• DVDO-H265-4KENC-1 Encoder
• User Manual
• IR Receiver Extension Cable
• IR Blaster Extension Cable
• 2 Mounting Ears
• 5 Screws
• Grounding Screw
• 3-Pin Terminal Block
• 4-Pin Terminal Block
• 5V DC / 2A Power Adapter
