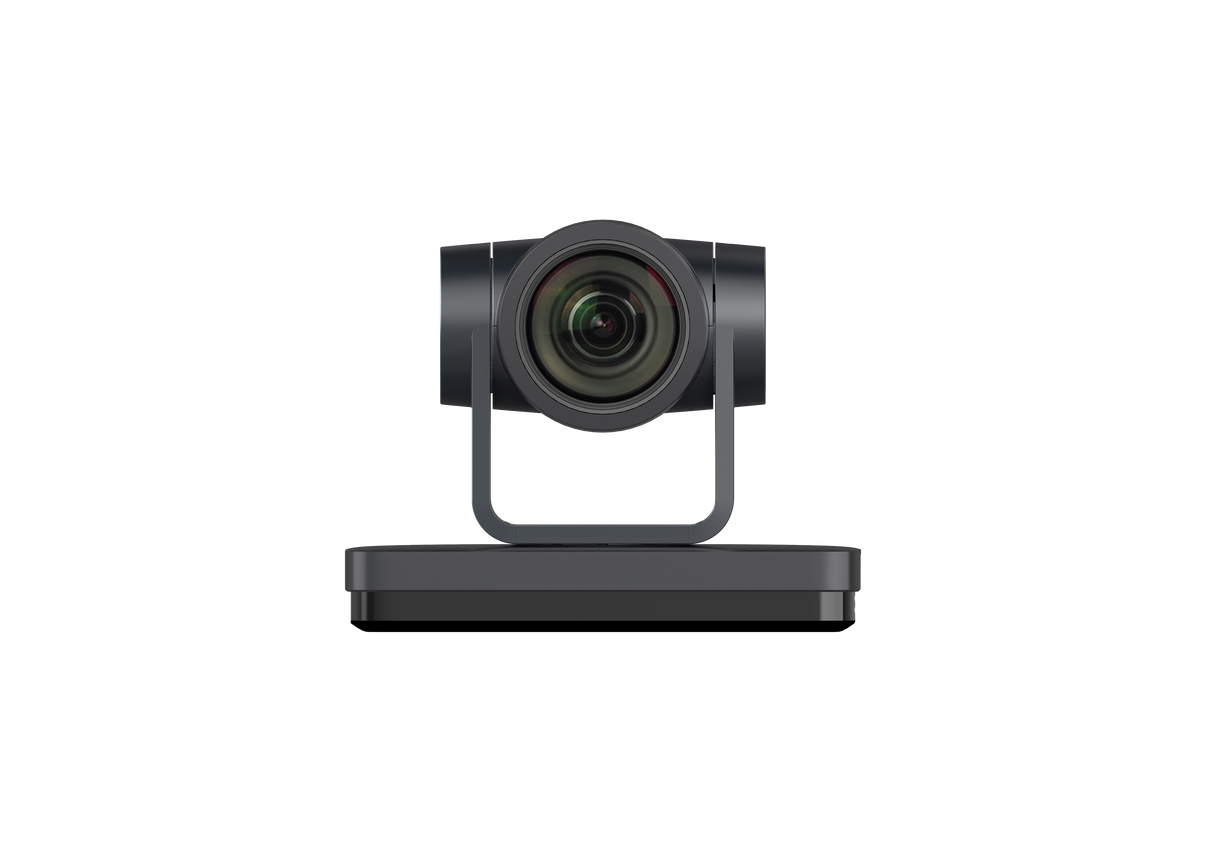

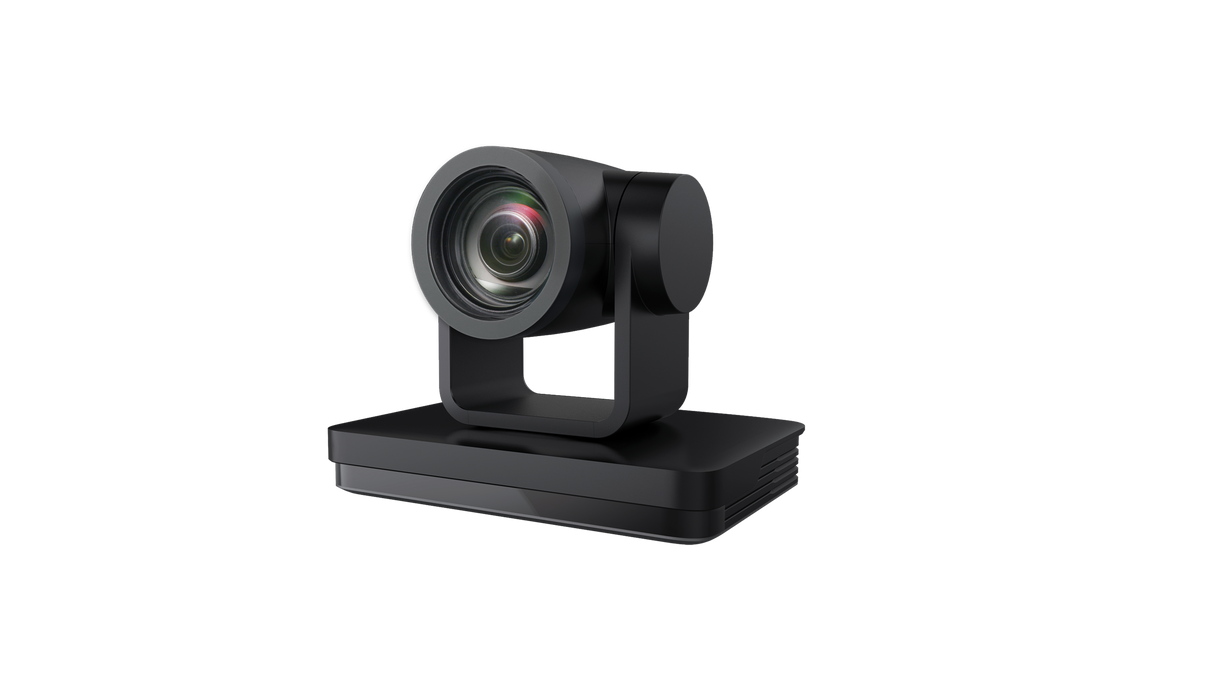

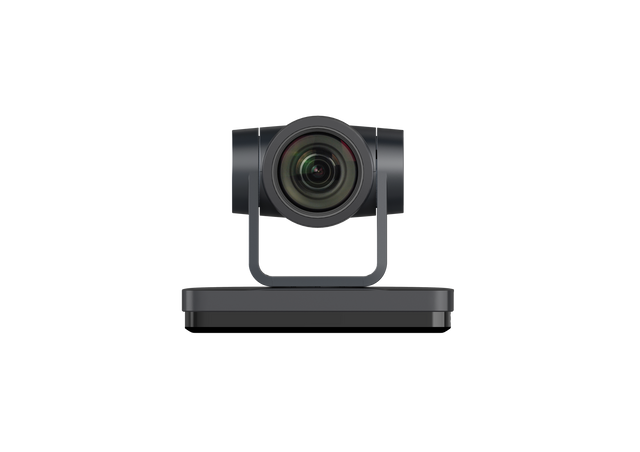

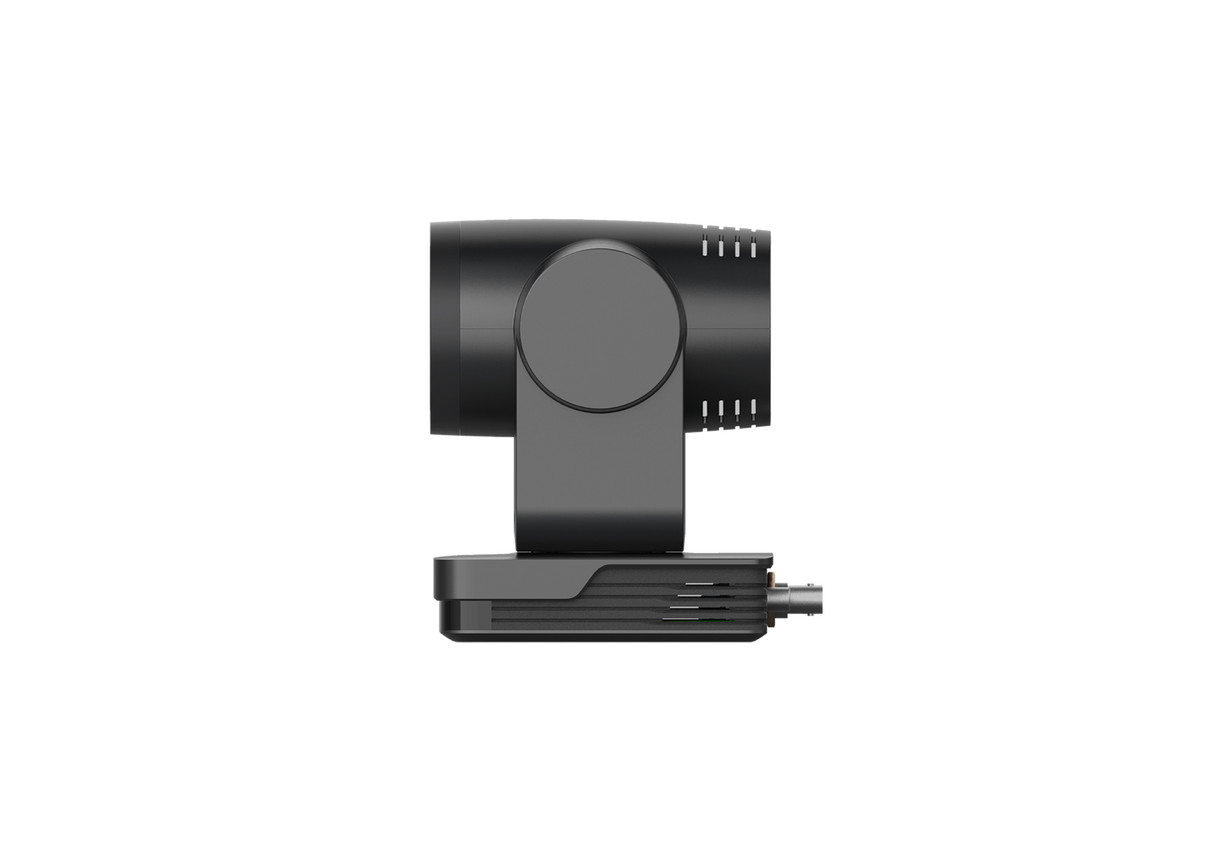

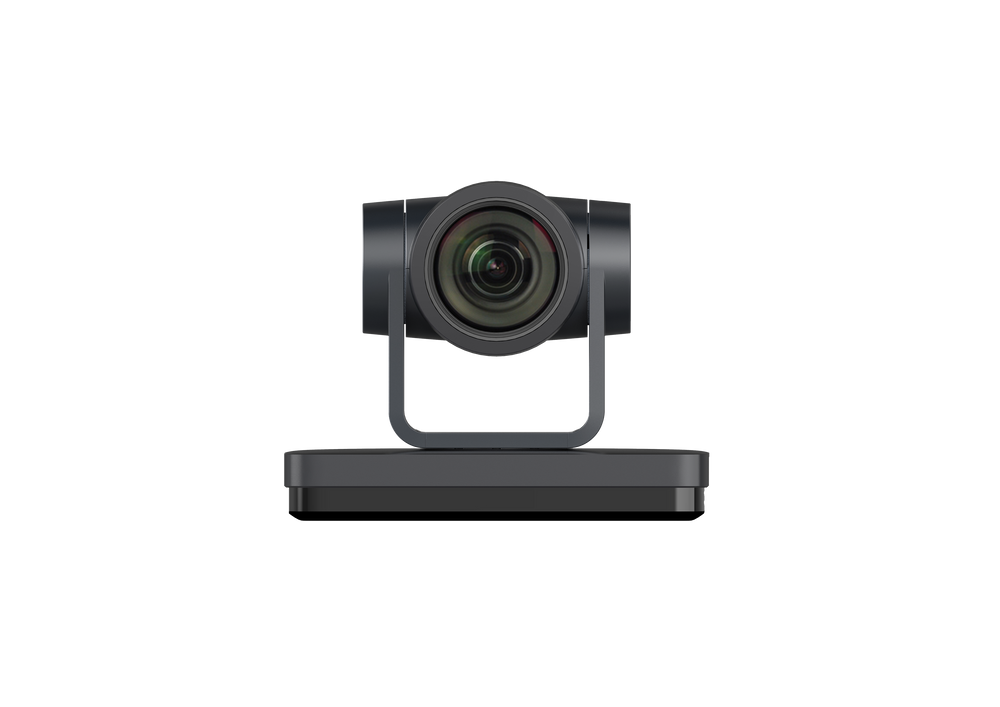

DVDO DVDO-C4-1 Full HD PTZ Camera with HDMI/IP/3G-SDI/USB3.0 & AI Auto Tracking (Black)

DVDO DVDO-C4-1 Full HD PTZ Camera with HDMI/IP/3G-SDI/USB3.0 & AI Auto Tracking (Black)

The DVDO-C4-1 is a Full HD PTZ camera with AI auto tracking and simultaneous HDMI, 3G-SDI, USB 3.0, and IP output. Built on a 1/2.8-inch CMOS sensor with a 20x optical zoom lens, it serves lecture capture, worship, and conferencing installations where a single camera must follow a presenter while feeding several systems at once.

Video reaches 1920x1080 at up to 60fps, with H.264/H.265 encoding keeping motion fluent under low bandwidth, while the LAN port supports PoE and SDI carries 1080p60 up to 100m. Real-time AI tracking follows presenters at distances of 6-7 meters, regional tracking supports up to four zones, and advanced 2D/3D noise reduction holds an SNR of 50dB or better. ONVIF, RTSP, RTMP/RTMPS, VISCA over IP, and Pelco protocols cover integration, and a built-in gravity sensor enables auto-flip mounting.

Key Features

• 1/2.8-inch CMOS sensor with 1080p60 output and 20x optical zoom
• AI real-time tracking to 6-7 meters plus four-region tracking
• Simultaneous HDMI, 3G-SDI, USB 3.0, and LAN output with PoE support
• H.264/H.265 encoding and dual code streams over USB 3.0
• ONVIF, GB/T28181, RTSP, RTMP/RTMPS, and VISCA over IP protocols
• 2D/3D noise reduction achieving SNR of 50dB or higher
• Built-in gravity sensor for PTZ auto-flip installation

Specifications

• Camera Parameters: Optical Zoom ; 20x; Focus ; 5.2 -- 98mm; FOV ; 3.2° (N) / 56° (W); Aperture Value ; F1.5 -- F3.0; Digital Zoom ; 15x; Effective Pixels ; 2.07, 1/2.8-inch high-quality CMOS sensor; Video Format ; HDMI/SDI: 1080p60, 1080p50, 1080p30, 1080p25, 720p60, 720p50, 1080p59.94, 1080p29.97, 720p59.94; USB3.0 (Main stream): - YUY2/NV12: 1920x1080 / 1280x720 / 1024x576 / 800x600 / 800x448 / 640x360 / 640x480 / 480x270 / 320x180 @30/25/20/15/10/5fps; MJPG/H264: 1920x1080 / 600x896 / 1280x720 / 1024x576 / 960x540 / 800x600 / 800x448 / 720x576 / 720x480 / 640x360 / 640x480 / 480x270 / 352x288 / 320x240 @30/25/20/15/10/5fps0; USB3.0 (Sub stream): - YUY2/NV12: 1920x1080 / 1280x720 / 1024x576 / 800x600 / 800x448 / 640x360/ 640x480 / 480x270 / 320x180 @30/25/20/15/10/5fps; MJPG/H264: 1920x1080 / 1600x896 / 1280x720 / 1024x576 / 960x540 / 800x600 / 800x448 / 720x576 / 720x480 / 640x360 / 640x480 / 480x270 / 352x288 / 320x240 @30/25/20/15/10/5fps; Minimum Illumination ; 0.5Lux (F1.8, AGC ON); DNR ; 2D & 3D; AWB ; Automatic, manual, one-key white balance, specified color temperature Focus Mode Automatic, manual, one-key focus Exposure Mode Auto, manual, shutter priority, aperture priority, brightness priority; Iris Value ; F1.8 -- F11, CLOSE; Shutter Speed ; 1/25 -- 1/10000; BLC ; On/Off; Dynamic Range ; Off, 1 -- 8; Image Adjustments ; Brightness, chroma, saturation, contrast, sharpness, black and white mode, gamma curve; SNR ; ≥50dB
• AI Function: Real-Time Tracking ; Maximum Tracking Range: 6-7 meters. Support speakers to walk at a speed of 3-4 meters; Regional Tracking ; Maximum Tracking Region: 4. Can set region within horizontal -170° ~ +170° and vertical -30° ~ +90°

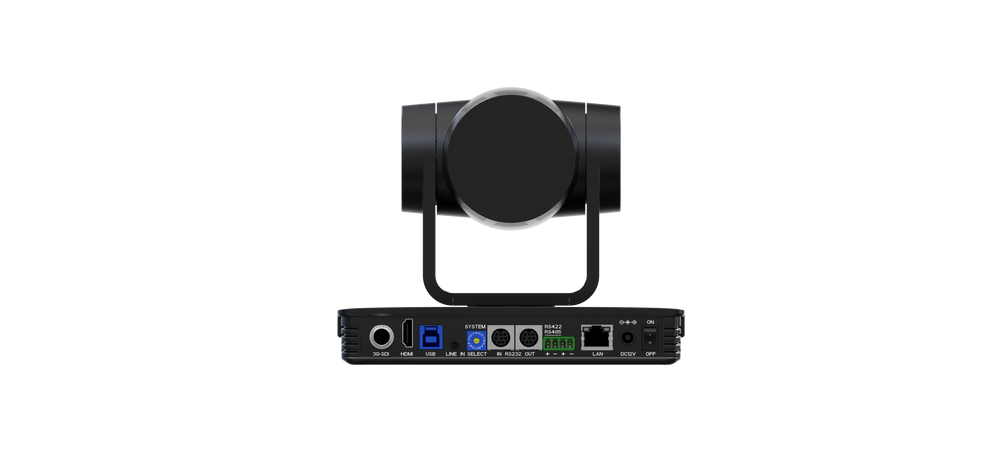

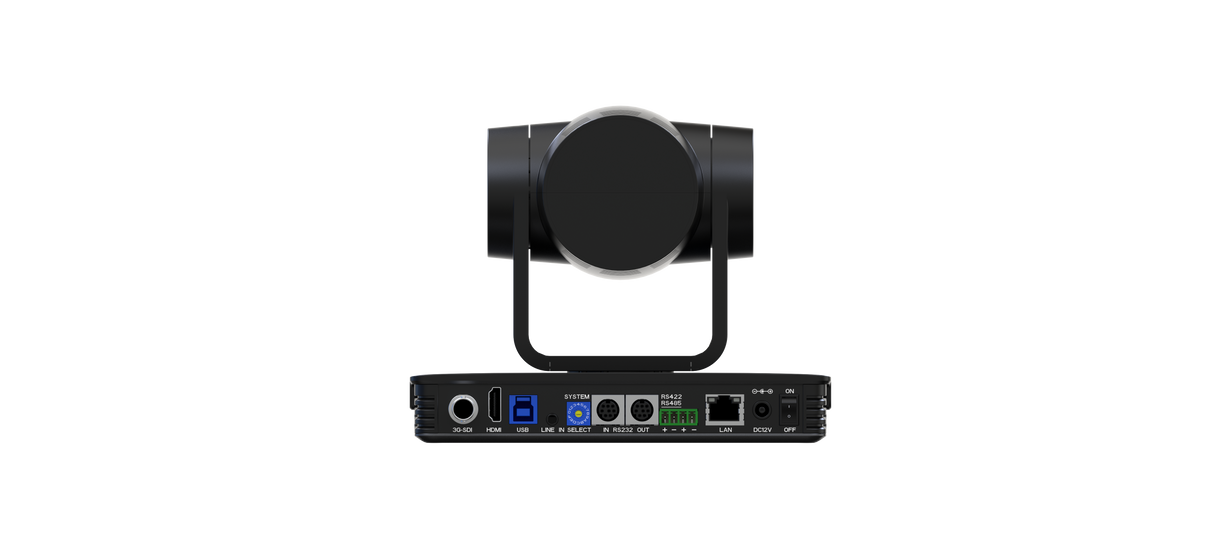

• Interface: Product Interface ; HDMI, LAN (POE), USB3.0 (B-Type, compatible with USB2.0), SDI, AIN, RS232-IN, RS232-OUT, RS422 (compatible with RS485), Rotary Switch, DC12V Power; Video Encoding Format ; LAN Interface: support main stream and sub-stream H.265, H.264. USB3.0 Interface: main stream support YUY2, MJPG, H264, NV12; Audio input interface ; Dual channel 3.5mm linear input; Audio output interface ; HDMI, SDI, LAN, USB3.0; Audio compression ; AAC, MP3, G.711A; LAN interface ; 10M/100M/1000M adaptive Ethernet port, support POE power supply, support audio and video output; Network protocol ; RTSP, RTMP, ONVIF, GB/T28181, VISCA over IP, IP VISCA, RTMPS, SRT. Support remote upgrade, remote restart, remote reset; Control Interface ; RS232-IN,RS232-OUT,RS422, compatible with RS485 Serial communication protocol VISCA/Pelco-D/Pelco-P; support baud rate 115200/38400/9600/4800/2400; USB communication protocol; UVC (video communication protocol); UAC (audio communication protocol); Power interface ; HEC3800 Power socket (DC12V); Power adapter ; Input AC110V - AC220V; Output DC12V / 2.5A; Input voltage ; DC 12V ±10%; Input currency ; <1A; Consumption ; <12W
• PTZ: Pan rotation ; -170° -- +170°; Tilt rotation ; -30° -- +90°; Pan speed ; 0.1°/s -- 100°/s; Tilt speed ; 0.1°/s -- 45°/s; Preset speed ; Pan: 100°/s, Tilt: 45°/s; Preset quantity ; Maximum 255 preset positions can be set (10 via remote controls)
• Other Parameters: Storage temperature ; -10℃ -- +70℃; Storage humidity ; 20% -- 95%; Working temperature ; -10℃ -- +50℃; Working humidity ; 20% -- 80%; Dimension ; 181mm x 115mm x 149mm; Weight ; 1.15kg; Environment ; Indoor

What's Included

• DVDO-C4-1 Camera
• Power adapter
• RS232 Cable
• User Manual
• USB3.0 Cable
• Warranty Card
