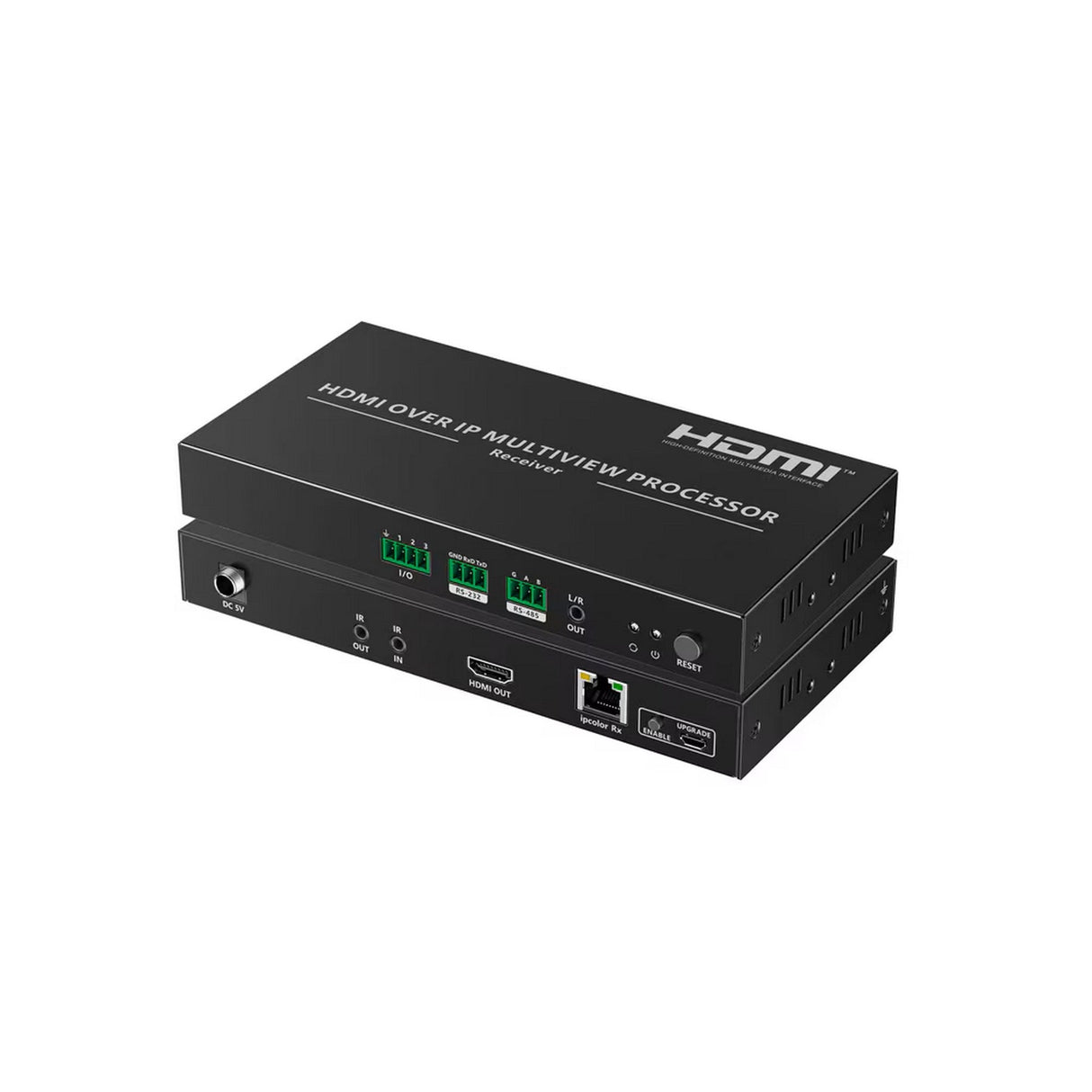

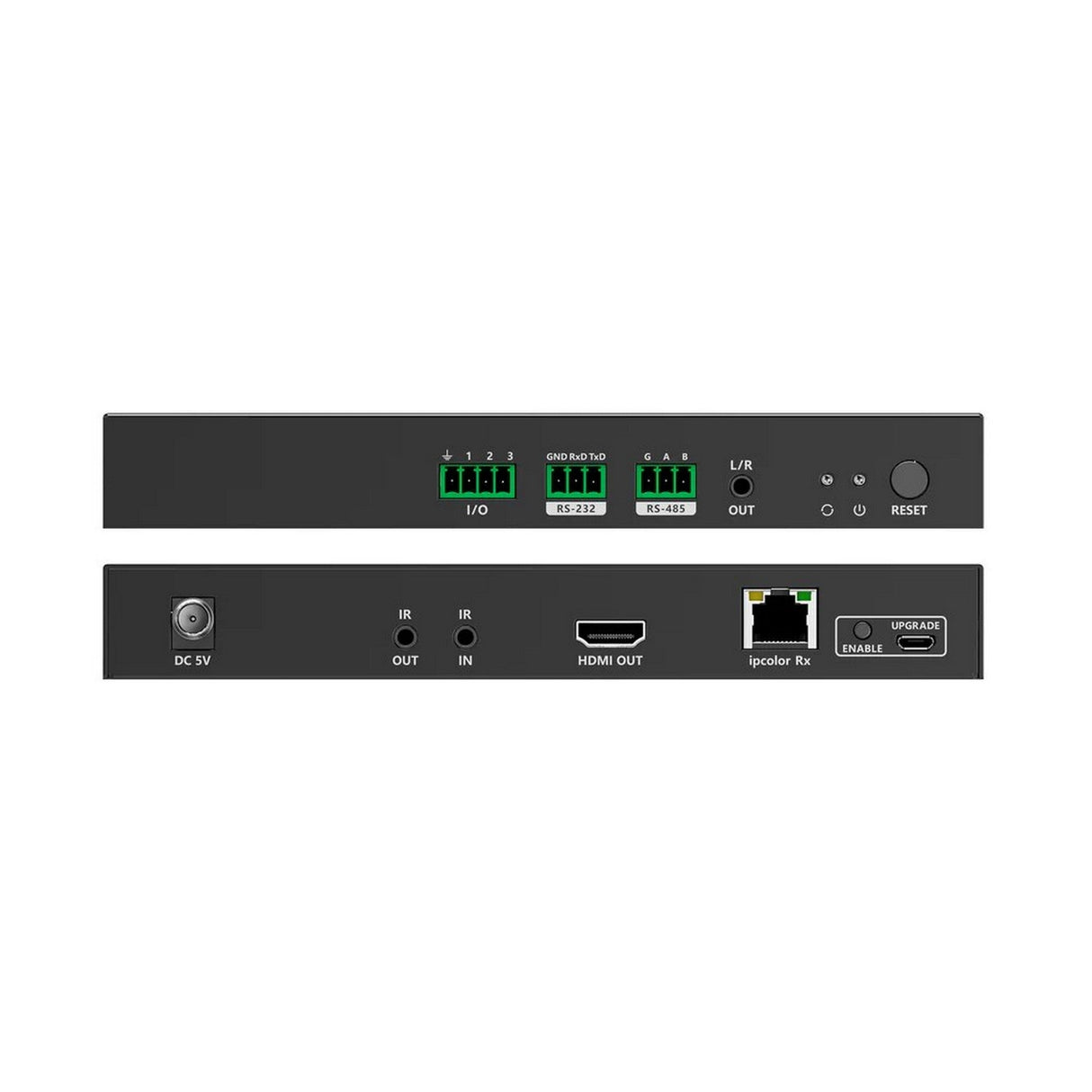

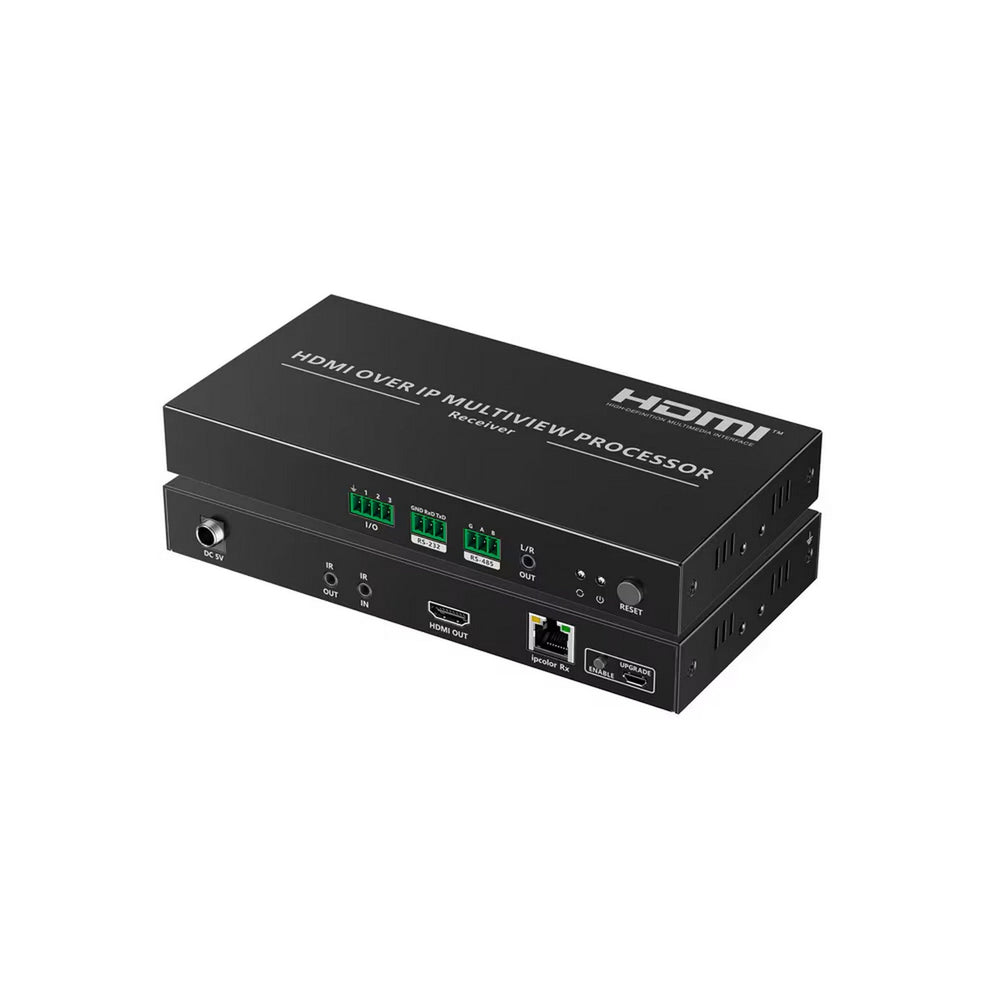

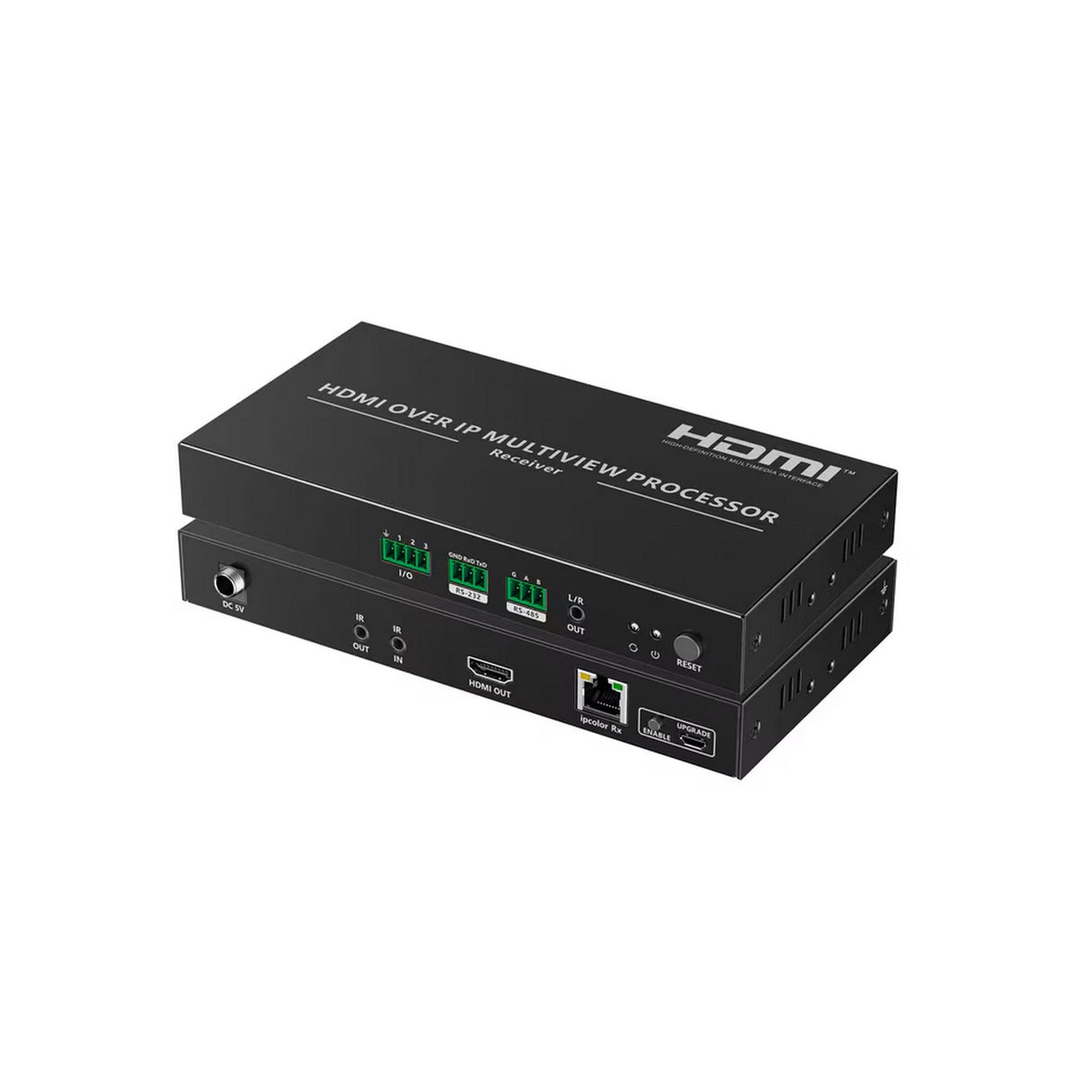

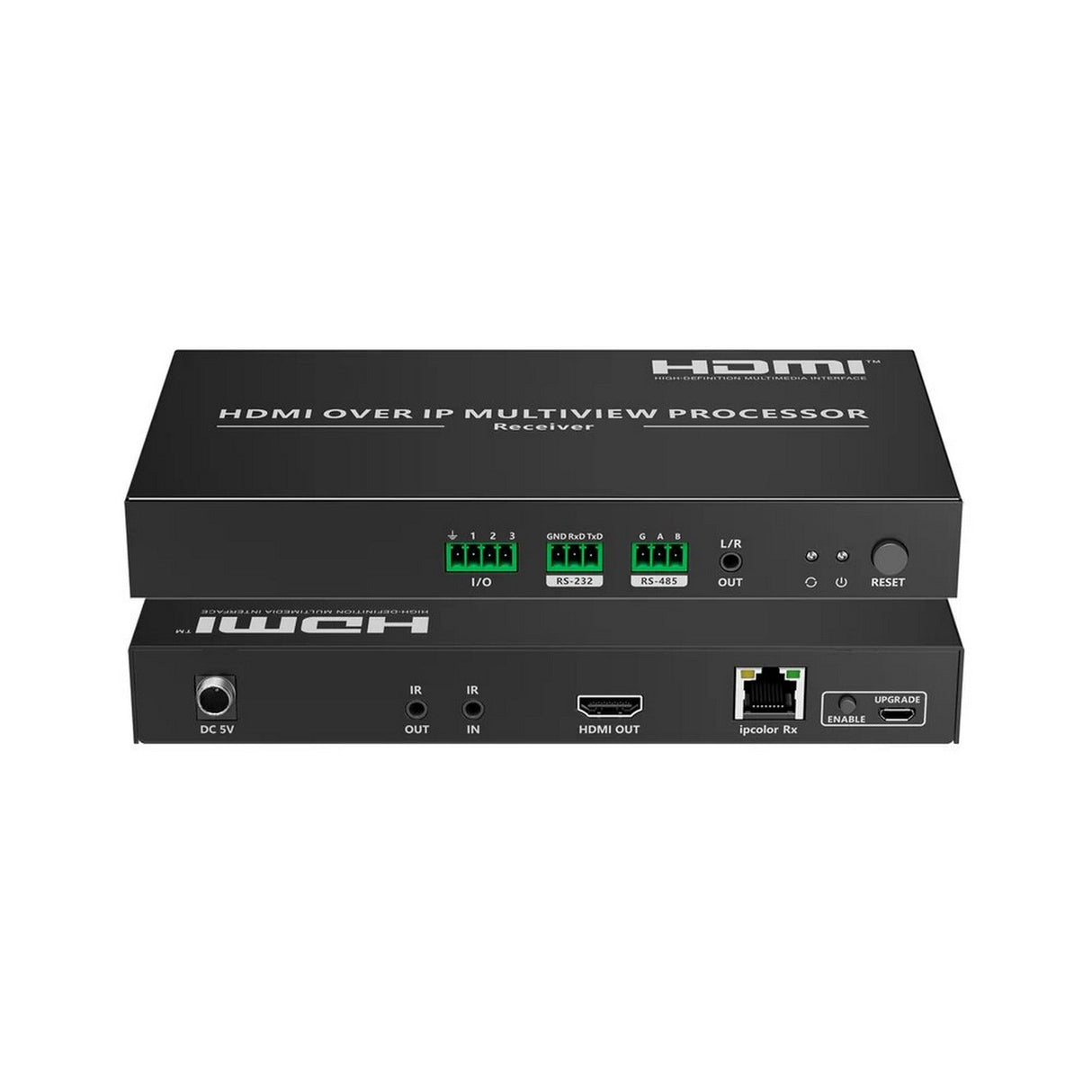

DVDO DVDO-H265-4KDEC-MV-1 4K60 AV over IP Multiview Decoder

DVDO DVDO-H265-4KDEC-MV-1 4K60 AV over IP Multiview Decoder

The DVDO DVDO-H265-4KDEC-MV-1 4K60 AV over IP multiview decoder receives H.265/H.264 video and audio across standard Gigabit Ethernet infrastructure for professional AV distribution. It supports video up to 4096 x 2160 at 60 Hz and combines multiple network sources into PiP, PbP, 2x2, 3x3, or customized multiview layouts.

Designed for command centers, digital signage, corporate facilities, education, hospitality, retail, entertainment, and houses of worship, the decoder supports one-to-one, one-to-many, and many-to-many routing. Adjustable four-window and nine-window modes make it useful for multi-source monitoring, 4K AV over IP installations, and flexible presentation systems that need several feeds visible on one display.

The decoder works with DVDO-H265-4KENC-1 encoders and DVDO-H265-4KDEC-1 decoders in systems supporting up to 256 encoders and 256 decoders. PoE reduces local power requirements, while HDMI output, 3.5mm audio de-embedding, bidirectional IR, RS-232, RS-485, I/O control, switch cascading, and app-based management provide integration options for permanently installed AV systems.

Key Features

• 4K60 Multiview Output: Supports resolutions through 4096 x 2160 at 60 Hz for detailed professional display applications.
• Flexible Multiview Layouts: Provides PiP, PbP, 2x2, 3x3, custom, four-window, and nine-window display configurations with adjustable positioning.
• Scalable AV over IP Distribution: Supports network systems with up to 256 encoders and 256 decoders.
• Multiple Routing Modes: Handles one-to-one, one-to-many, and many-to-many signal distribution through Gigabit Ethernet infrastructure.
• Audio De-Embedding: Outputs LPCM 2.0 audio through HDMI or a dedicated 3.5mm stereo L/R connection.
• Integrated System Control: Supports bidirectional IR, RS-232, RS-485, I/O control, and the iMMS for ipcolor mobile control app.
• PoE Support: Receives power through compatible PoE network equipment or a 5V DC power supply.
• Installation Protection: Includes lightning, surge, and IEC 61000-4-2 ESD protection for professional deployment.

Technical Specifications

• Model: DVDO-H265-4KDEC-MV-1
• Product Type: H.265/H.264 AV over IP decoder with multiview
• HDMI Compatibility: HDMI 2.0
• HDCP Compatibility: HDCP 1.4 and HDCP 2.2
• Maximum Transfer Rate: 18 Gbps
• Video Network Bandwidth: 1 Gigabit
• Supported Resolutions: 4096 x 2160 at 24/30/50/60 Hz; 3840 x 2160 at 24/30/50/60 Hz; 2560 x 1440 at 60 Hz; 1920 x 1200 at 60 Hz; 1080p at 50/60 Hz; 720p at 50/60 Hz
• Multiview Modes: PiP, PbP, 2x2, 3x3, and custom
• Multiview Window Modes: 4-window and 9-window with adjustable window size and position
• Maximum System Capacity: Up to 256 encoders and 256 decoders
• Distribution Configurations: One-to-one, one-to-many, and many-to-many
• Network Configuration: Regular switch connection or cascaded switches
• Network Input: 1 x RJ45
• Video Output: 1 x HDMI
• Maximum HDMI Cable Length: 16.4 ft
• Cat6/Cat6A/Cat7 Transmission Distance: Up to 393.7 ft
• Cat5e Transmission Distance: Up to 328.1 ft
• Transmission Latency: 180 to 250 ms
• Recommended Network Switch: IGMP PoE Gigabit switch
• Recommended Network Bandwidth: Gigabit or higher
• HDMI Audio: LPCM 2.0
• Analog Audio Output: 1 x 3.5mm stereo L/R
• Analog Audio Format: LPCM 2.0
• IR Input: 1 x 3.5mm
• IR Output: 1 x 3.5mm
• IR Frequency: 20 kHz to 60 kHz
• IR Range: Up to 16.4 ft
• Serial Control: RS-232 and RS-485
• Default Serial Baud Rate: 115200
• Supported Serial Baud Rates: 2400, 4800, 9600, 19200, 38400, 57600, and 115200
• I/O Interface: Output control
• Firmware Upgrade: Micro USB
• Control App: iMMS for ipcolor for iOS and Android
• Recommended Control Tablet: Snapdragon 865 or higher, 8GB RAM or more, and Gigabit networking
• Power Supply: DC 5V/2A or PoE
• Maximum Power Consumption: 8W
• Operating Temperature: -4 to 140°F
• Storage Temperature: -22 to 158°F
• Relative Humidity: 0 to 90%, non-condensing
• Housing: Metal
• Color: Black
• Dimensions: 7.5 x 3.8 x 1 in
• Weight: 1.1 lb
• ESD Protection: IEC 61000-4-2, ±4 kV contact discharge and ±8 kV air discharge
• Additional Protection: Lightning and surge protection
• Operating Design: Stable 24/7 operation

What's In the Box

• DVDO-H265-4KDEC-MV-1 multiview decoder
• User manual
• IR receiver extension cable
• IR blaster extension cable
• 2 mounting ears
• 5 screws
• 1 grounding screw
• 2 3-pin terminal blocks
• 1 4-pin terminal block
• DC 5V/2A power adapter
