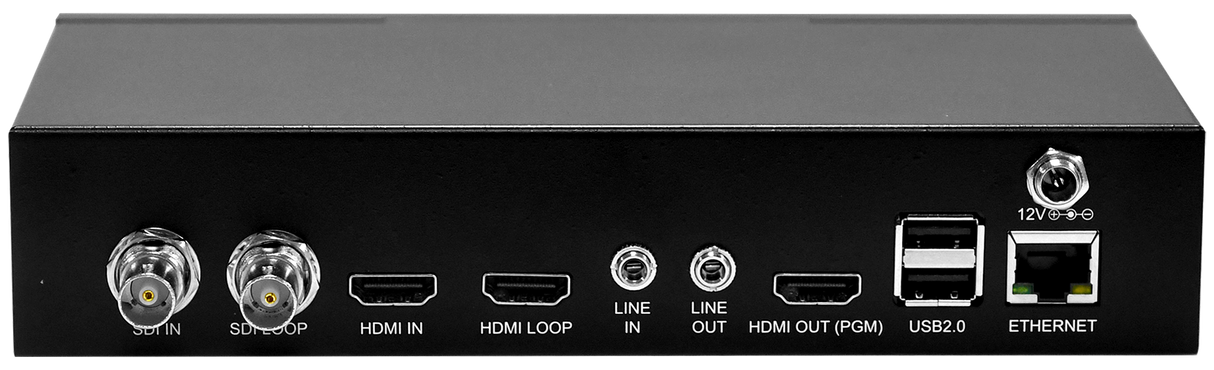

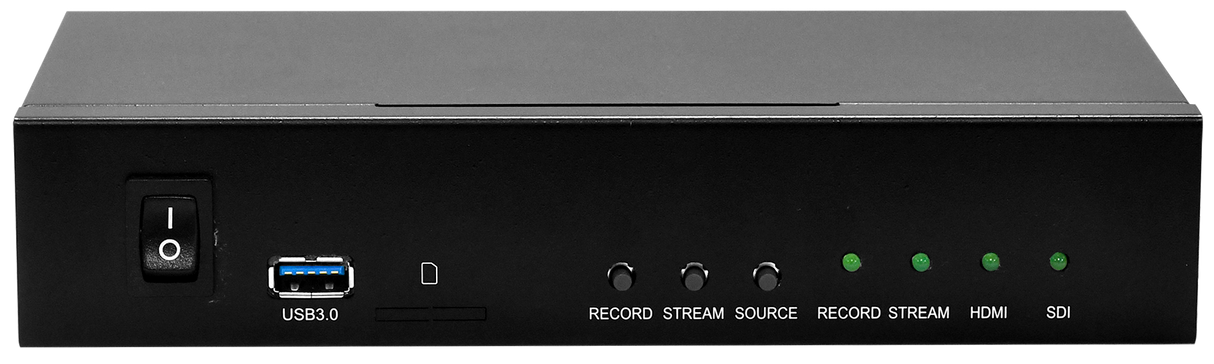

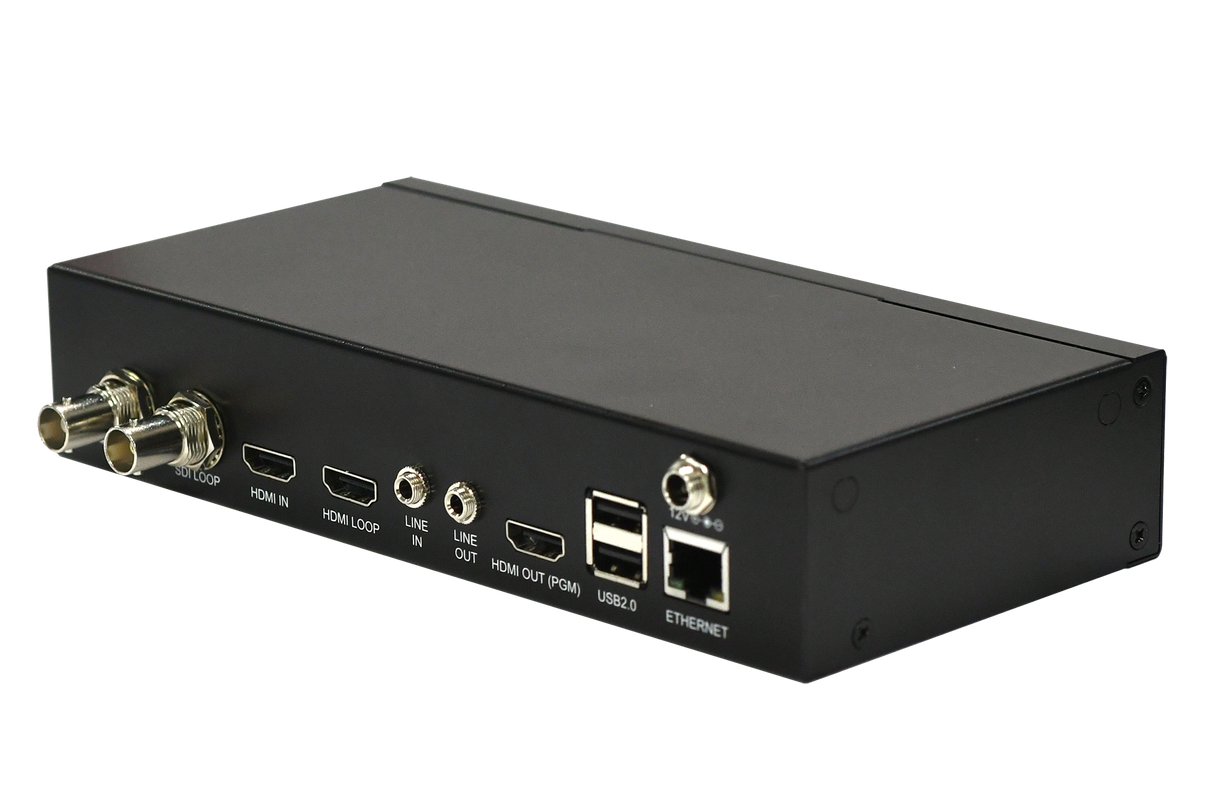

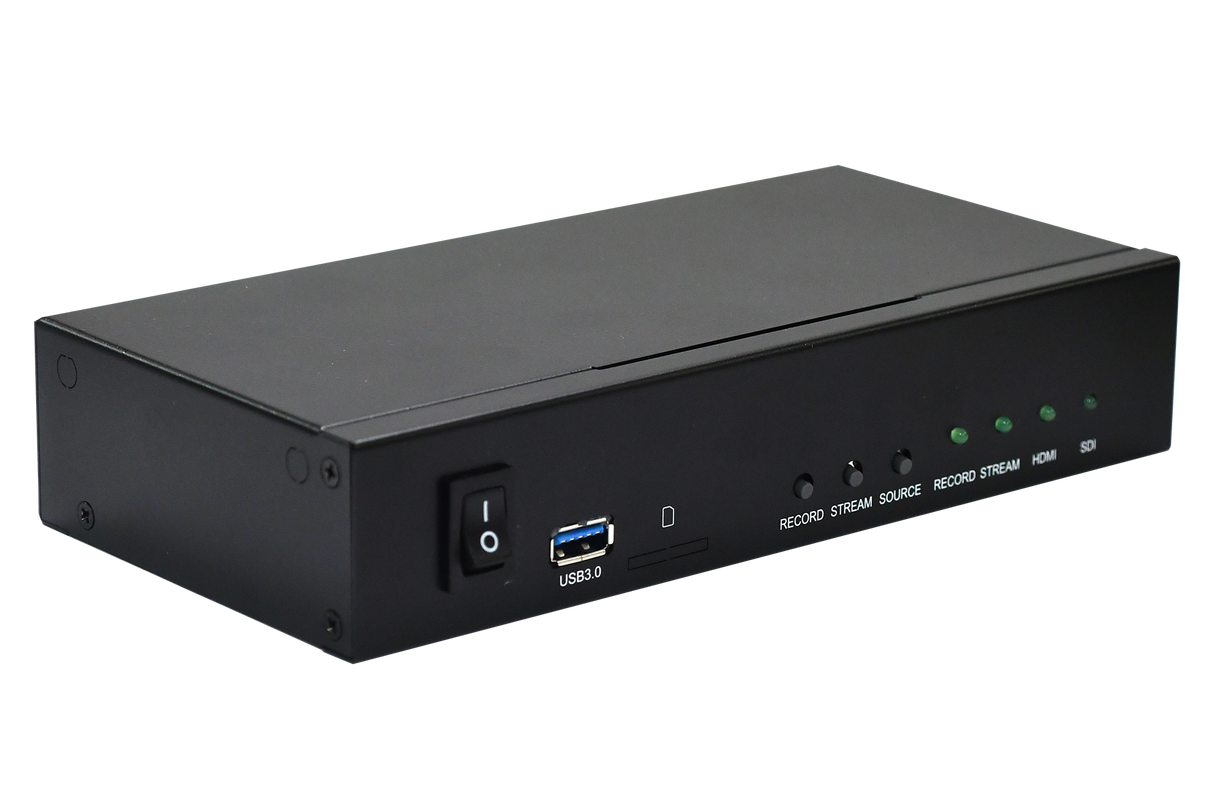

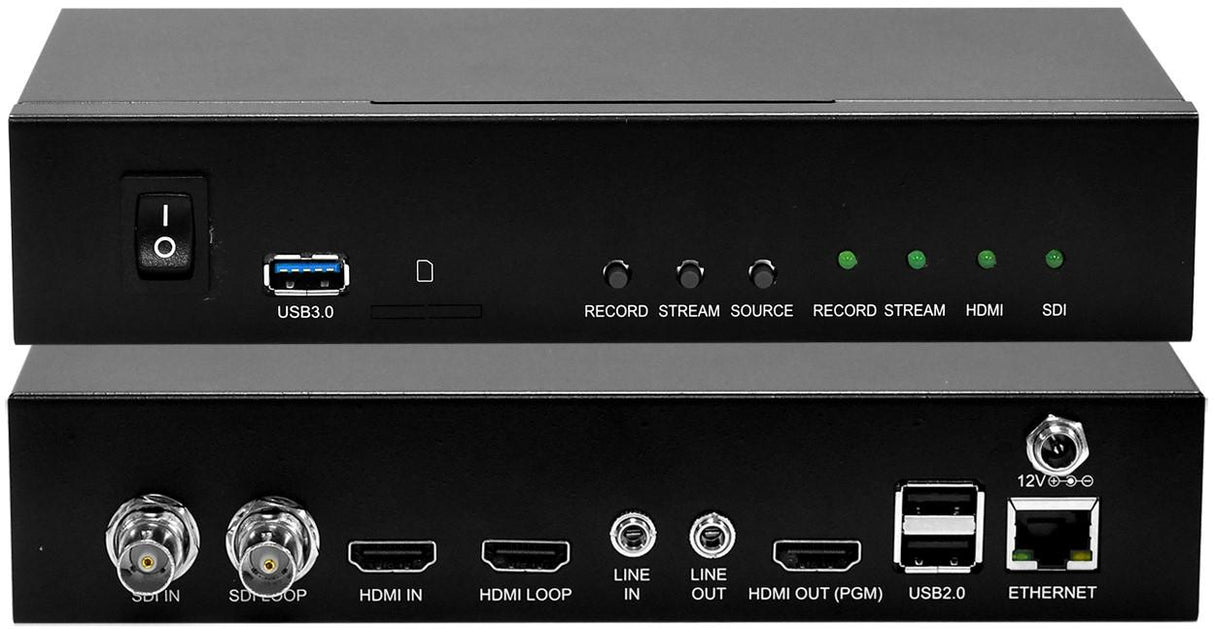

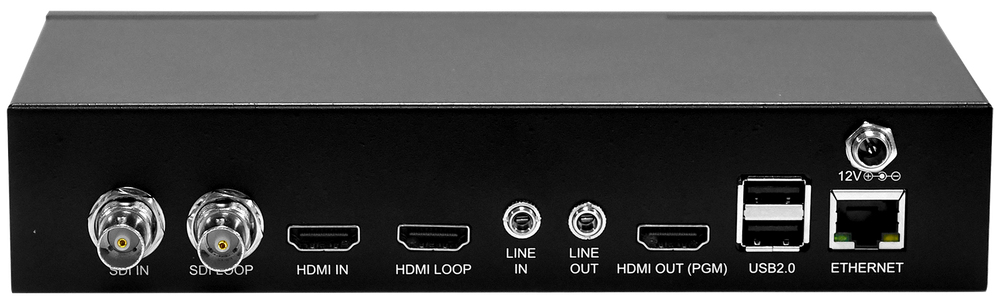

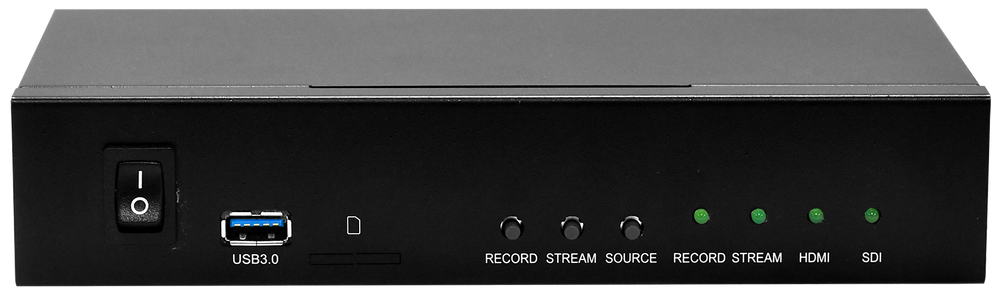

DVDO Full HD Single Channel HDMI/SDI Streamer Recorder

DVDO Full HD Single Channel HDMI/SDI Streamer Recorder

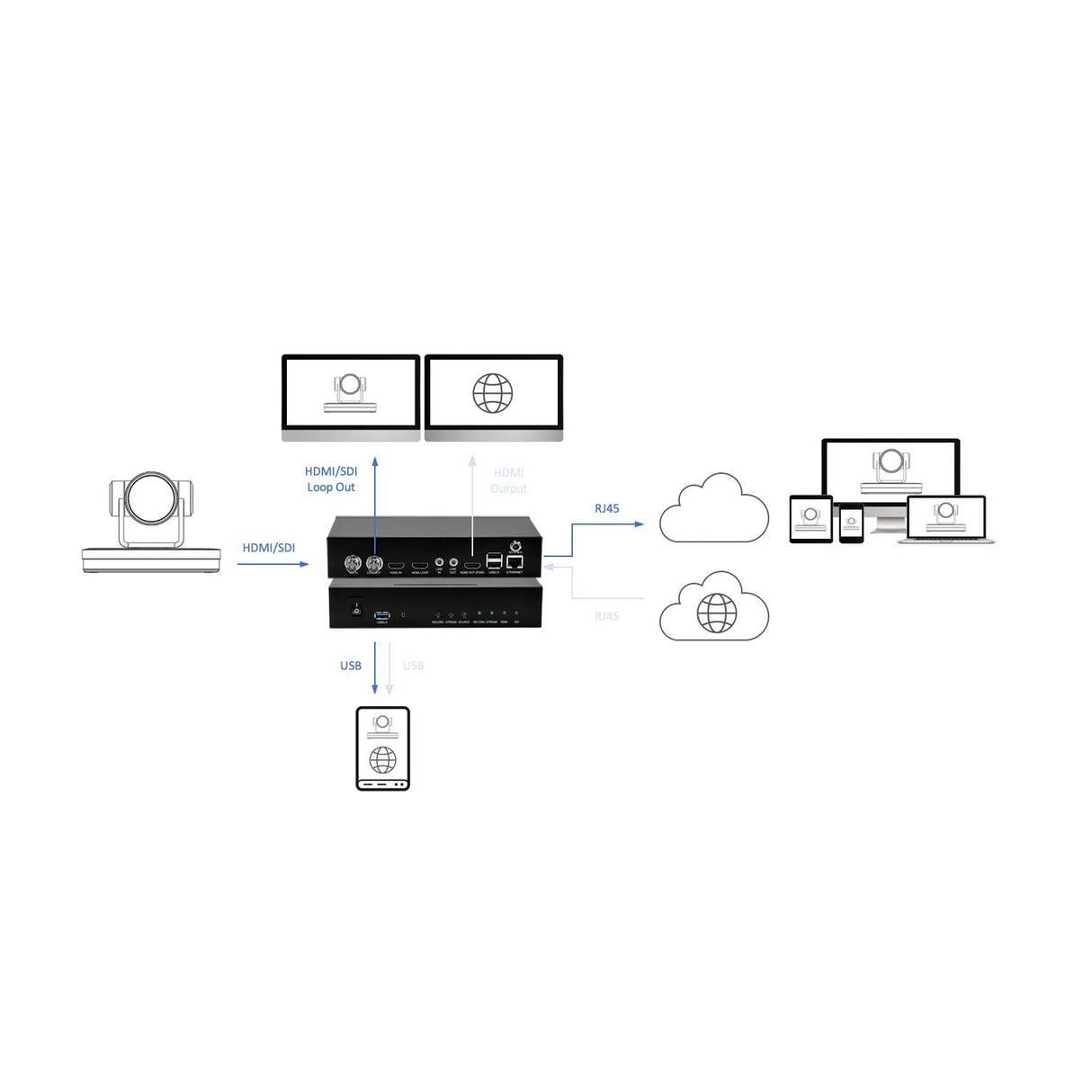

The DVDO StreamRec-1 is a single-channel live streaming and recording system that takes an incoming HDMI or SDI signal up to Full HD and delivers it to platforms such as Facebook Live and YouTube. Built for operators who want broadcast and capture in one compact box, it pairs a browser-based web GUI with physical front-panel buttons for streaming, recording, and source selection.

Switchable HDMI 2.0 and 3G-SDI inputs accept signals up to 1080p60, each with a loop-out, while H.264, H.265, and AVC hardware encoding feeds RTMP, RTSP, UDP, and HLS streams; NDI-HX is available with an optional license. Recordings land on USB 3.0 external storage as MP4, TS, or MOV files, and a dedicated HDMI PGM output displays decoded IP streams from the gigabit network.

Key Features

• Switchable HDMI 2.0 and 3G-SDI inputs up to 1080p60 with HDMI and SDI loop-outs
• H.264/H.265/AVC hardware encoding and decoding
• Streams over RTMP, RTSP, UDP, and HLS; NDI-HX supported with optional license
• Real-time recording to MP4, TS, or MOV files on USB 3.0 external storage
• Dedicated HDMI PGM output displays decoded IP streams from the network
• Web GUI control over gigabit Ethernet plus front-panel streaming, recording, and source buttons
• Separate 3.5mm audio input and output for embedding and de-embedding

Specifications

• Input Interfaces: Video: 1 x HDMI 2.0 + 1 x 3G-SDI; Audio: 1 x 3.5mm Phone Jack; Output Interfaces ; Video: 1 x HDMI 2.0 (Loop-out) + 1 x 3G-SDI (Loop-out) + 1 x HDMI 2.0 (PGM:; ProGraMmed output for decoded video); Audio: 1 x 3.5mm Phone Jack; Other Interfaces ; 1 x USB 3.0 for External Storage Device or UVC Camera; 2 x USB 2.0 for Keyboard and Mouse; Input/Output Resolutions ; 3840x2160p@60/50/30/25/24fps (Output only); 1920x1080p@60/50/30/25/24fps; 1920x1080i@60/50fps; 1280x720p@60/50fps;; 1280x1024p@60fps; 1280x960p@60fps; 1024x768p@60fps; 800x600p@60fps;; 640x480p@60fps; 720x480i/p@60fps; 720x576i/p@50fps; Video Bitrate ; 44kbps to 100Mbps; Audio Features ; Input Audio Stream: AAC; Network Features ; 1 x RJ45 for 10/100/1000 Mbps Ethernet / DHCP Client; Video Encoding ; H.265/H.264/AVC, Profile: Baseline/Main/High; Streaming Protocols ; NDI Support (Separate License with NDI Required); TS Over UDP (Unicast & Multicast); RTSP Over HTTP/TCP/UDP (RTSP Elementary Stream); RTMP (Publish); HLS; Recording Mode ; Hardware Compression, Real-Time Mode; Recording Formats ; *.MP4 / *.TS / *.MOV; Unit Dimensions ; 203x100x41 mm / 8x3.9x1.6 in; Unit Weight ; 0.6 kg / 1.3 lbs; Locking Power Supply ; Input: AC 100-240V 50/60Hz; Output: DC 12V/2A (US/EU standards, CE/FCC/UL certified); Power Consumption ; 19.2W (max); Operating Temperature ; 0°C ~ 70°C / 32°F ~ 158°F
