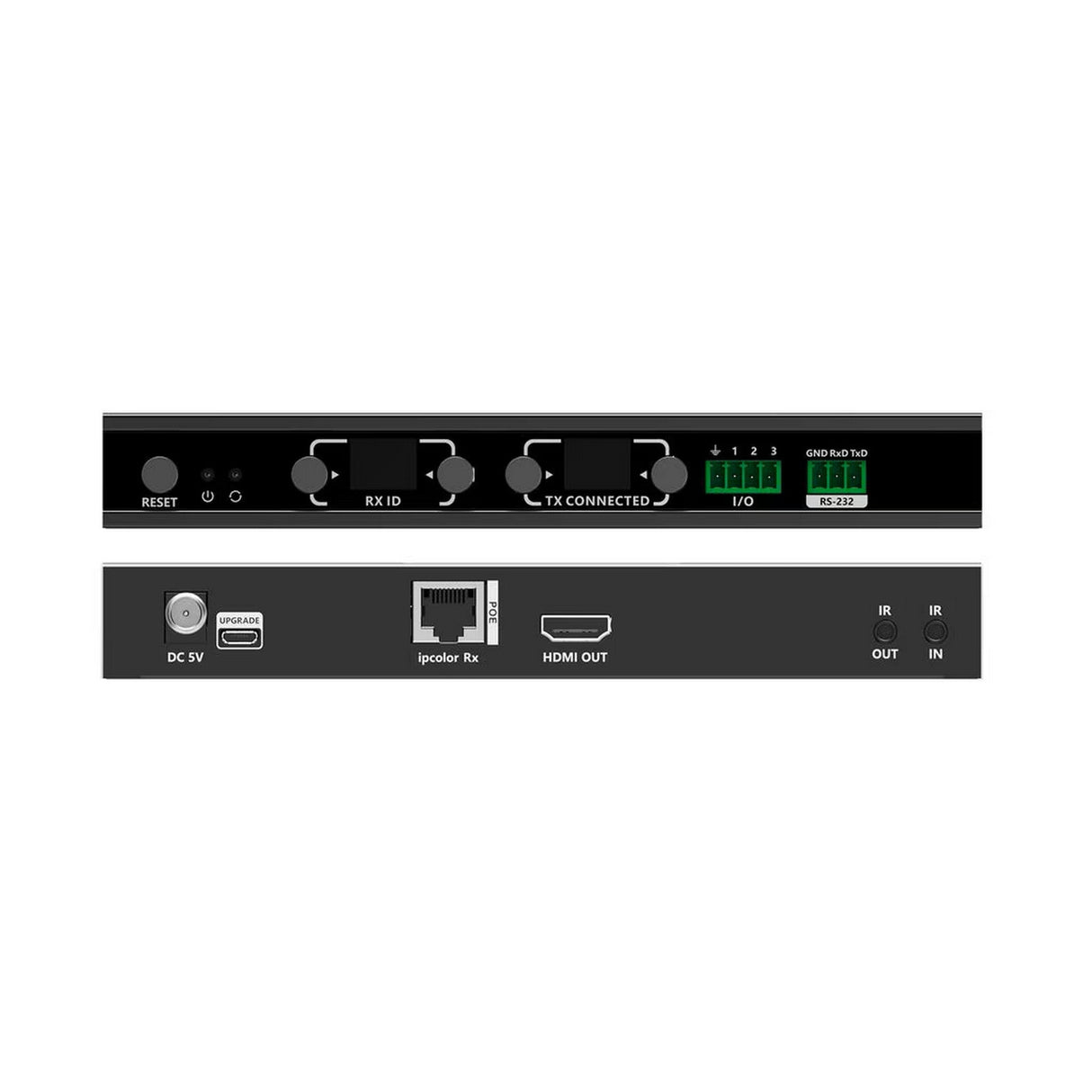

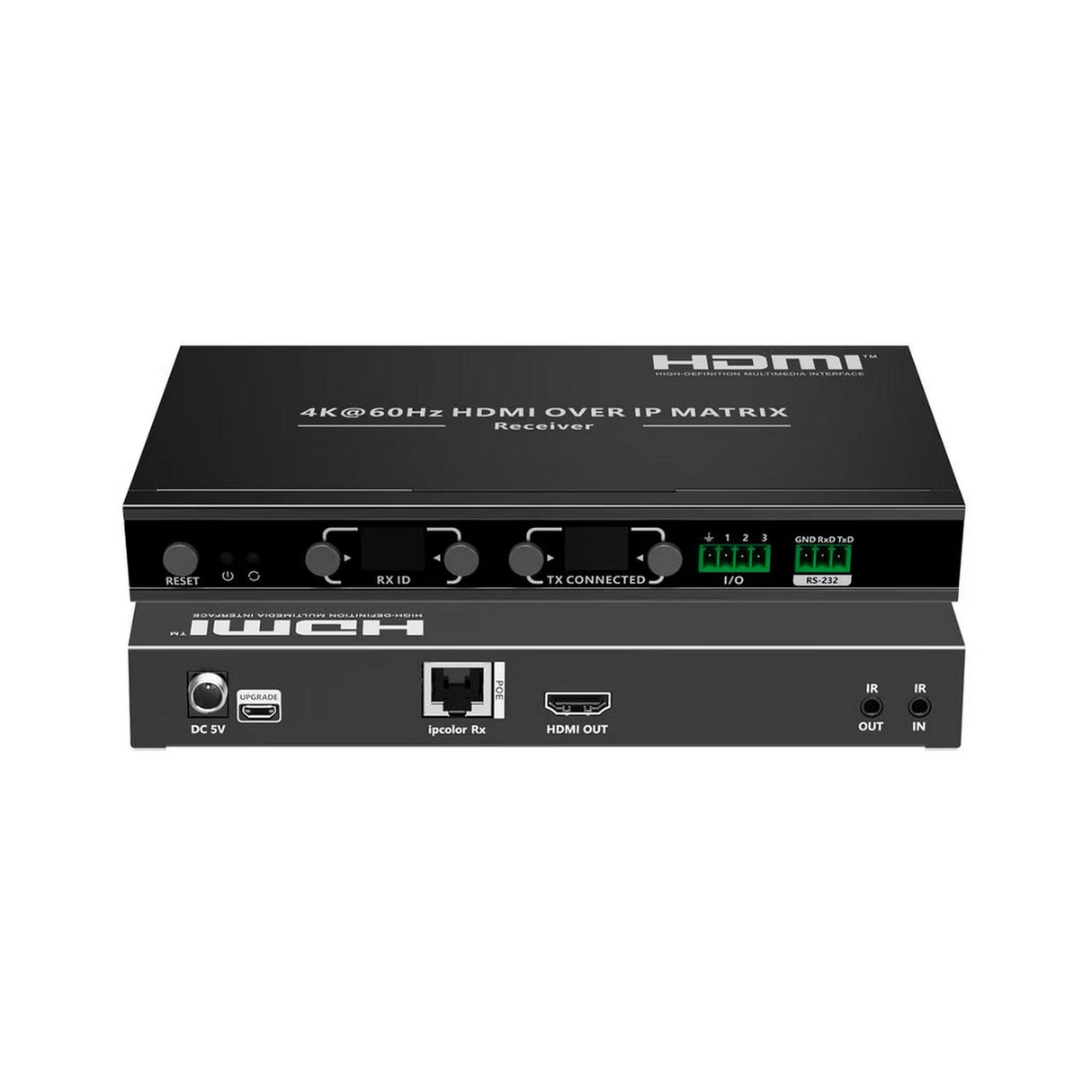

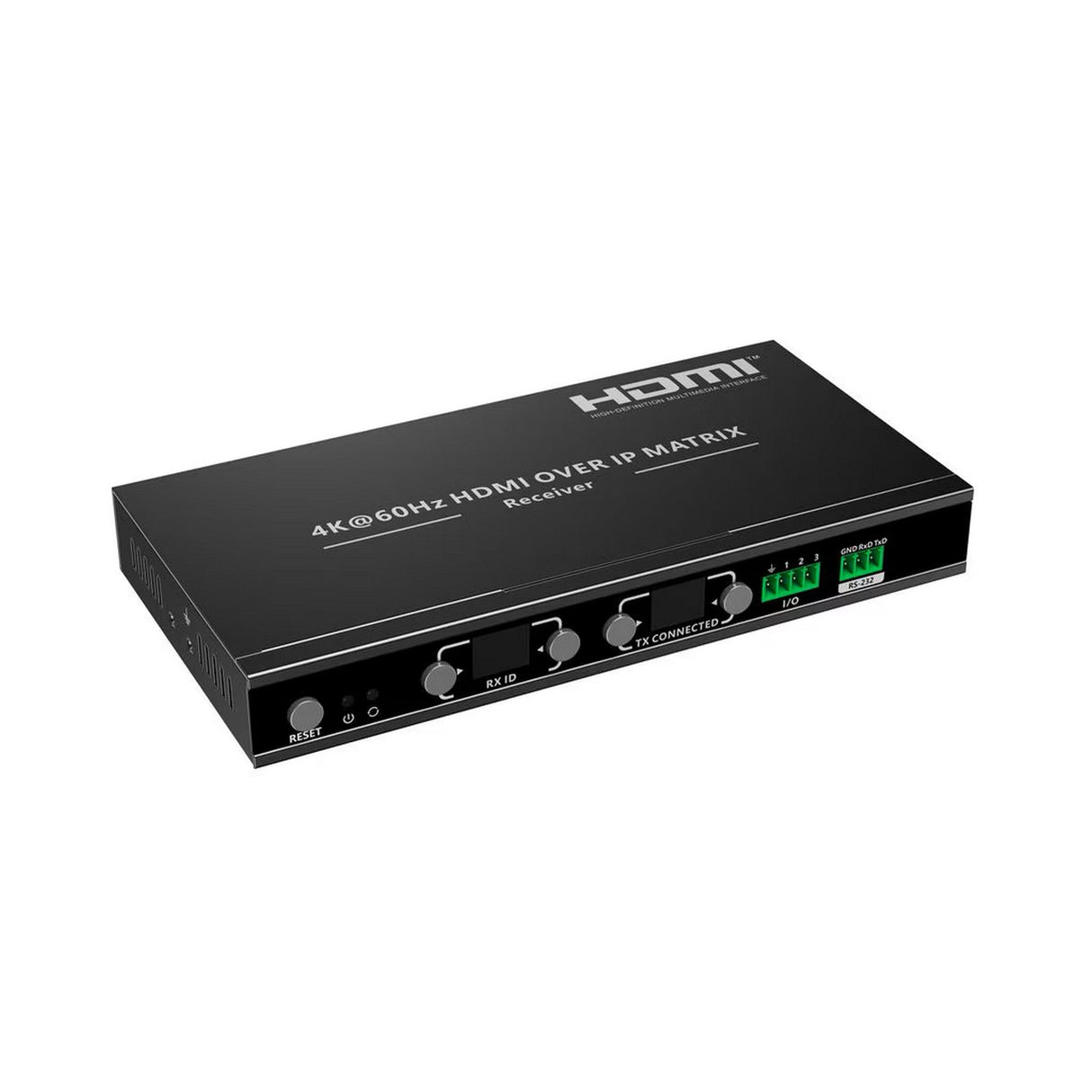

DVDO H265-4KDEC-1 4K60 AV over IP Decoder with Video Wall

DVDO H265-4KDEC-1 4K60 AV over IP Decoder with Video Wall

The DVDO H265-4KDEC-1 4K60 AV over IP Decoder receives HDMI video and LPCM audio over standard 1G network infrastructure for scalable professional distribution. It supports UHD 3840 x 2160 at 60Hz, DCI 4096 x 2160 at 30Hz, H.265/H.264 technology, and video-wall configurations up to 5x5.

Designed for digital signage, command centers, education, corporate AV, hospitality, entertainment, and houses of worship, the decoder works with compatible DVDO H265-4KENC-1 encoders. Installations can support one-to-one, one-to-many, or many-to-many distribution with as many as 256 encoders and 256 decoders through suitable Gigabit network infrastructure.

PoE simplifies installation by carrying network data and power over one connection, while a 5V DC input provides an alternative power method. Bidirectional IR, RS-232, and I/O pass-through extend control capabilities. A free iOS and Android control app provides real-time preview and system management, while front-panel controls support direct endpoint configuration.

Key Features

• 4K60 AV over IP: Receives UHD video and embedded LPCM audio across standard 1G Ethernet infrastructure.
• H.265/H.264 Technology: Provides compressed high-resolution AV transmission for professional networked distribution systems.
• 5x5 Video Wall: Supports multi-screen splicing configurations ranging from individual displays through 25-screen video walls.
• Scalable Distribution: Supports systems containing up to 256 compatible encoders and 256 decoders.
• Long-Distance Networking: Supports transmission up to 393.7 ft over Cat6 and 328.1 ft over Cat5e.
• PoE Support: Accepts power through compatible Ethernet infrastructure to reduce local power-cabling requirements.
• Integrated Control Routing: Provides bidirectional IR, RS-232, and I/O control pass-through for AV integration.
• App and Front-Panel Control: Enables system management through a mobile control app or onboard endpoint controls.

Technical Specifications

Video and Audio

• Model: DVDO-H265-4KDEC-1
• Product Type: AV over IP Decoder with Video Wall
• Compression Technology: H.265/H.264
• HDMI Compliance: HDMI 2.0
• HDCP Compatibility: HDCP 1.4 and HDCP 2.2
• Maximum UHD Resolution: 3840 x 2160 at 60Hz
• Supported DCI 4K: 4096 x 2160 at 24/30Hz
• Supported UHD: 3840 x 2160 at 24/30/50/60Hz
• Additional Supported Resolutions: 2560 x 1440 at 60Hz, 1920 x 1200 at 60Hz, 1080p at 50/60Hz, 720p at 50/60Hz
• Maximum Transfer Rate: 18Gbps
• Video Network Bandwidth: 1G
• HDMI Audio: LPCM 2.0
• 4K60 Transmission Latency: 130-200 ms
• 1080p60 Transmission Latency: 70-130 ms

Video Wall and Distribution

• Video Wall: Up to 5x5 multi-screen splicing
• Distribution Modes: One-to-one, one-to-many, many-to-many
• Maximum Encoders: 256
• Maximum Decoders: 256
• Compatible Encoder: DVDO-H265-4KENC-1
• Maximum Cat5e Distance: 328.1 ft
• Maximum Cat6 Distance: 393.7 ft
• Supported Network Cabling: Cat5e, Cat6, Cat6A, Cat7
• Recommended Network Infrastructure: IGMP-enabled PoE Gigabit switch

Connections and Control

• Network Input: 1 x RJ45 LAN
• HDMI Output: 1 x HDMI Type A, 19-pin female
• RS-232: 1 x 3-pin 3.5 mm Phoenix connection
• IR Input: 1 x 3.5 mm stereo mini-jack
• IR Output: 1 x 3.5 mm stereo mini-jack
• I/O Interface: Control pass-through interface
• Firmware Port: Micro USB
• IR Receiving Range: Up to 16.4 ft
• IR Frequency: 20-60 kHz
• RS-232 Default Baud Rate: 115200
• Supported RS-232 Baud Rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
• Control App: iOS and Android

Power and Protection

• PoE: Supported
• External Power: 5V DC, 2A when PoE is not used
• Maximum Power Consumption: 3.5W
• ESD Protection: IEC 61000-4-2, ±8kV air-gap discharge and ±4kV contact discharge
• Additional Protection: Lightning and surge protection
• Continuous Operation: Designed for 24/7 use

Physical and Environmental

• Housing: Black metal enclosure
• Dimensions: 7.5" x 3.8" x 1"
• Weight: 1.1 lb
• Operating Temperature: -4°F to 140°F
• Storage Temperature: -22°F to 158°F
• Relative Humidity: 0-90%, non-condensing

What's In the Box

• DVDO-H265-4KDEC-1 Decoder
• User Manual
• IR Receiver Extension Cable
• IR Blaster Extension Cable
• 2 Mounting Ears
• 5 Screws
• Grounding Screw
• 3-Pin Terminal Block
• 4-Pin Terminal Block
• 5V DC / 2A Power Adapter
