DVDO HDMI Audio 150m Extender Over Ethernet with ARC

The DVDO HDMI Audio 150m Extender is a state-of-the-art solution for extending high-quality audio signals over long distances. With the ability to transmit both HDMI ARC (audio-only) and S/PDIF signals up to 490 feet (150 meters) via a single CAT5e/CAT6 cable, this device ensures seamless and lossless audio transmission for your home theater or professional AV setup. Designed for versatility, it supports both PCM, DTS, and Dolby Digital audio formats, making it an excellent choice for a variety of audio sources.

Equipped with dual digital audio inputs (1 x HDMI ARC and 1 x S/PDIF) and dual digital audio outputs (1 x HDMI ARC and 1 x S/PDIF), this extender allows flexibility in how audio signals are routed. The device can handle separate output of each signal type, while a toggle switch on both the transmitter and receiver allows you to select between ARC and S/PDIF modes, ensuring compatibility with a wide range of devices.

For added convenience, the DVDO HDMI Audio Extender features CEC pass-through between the HDMI ARC input and output ports, enabling you to control both devices using a single remote. Whether you're working with a TV that supports HDMI ARC or one that relies on S/PDIF output, this extender is designed to deliver high-performance results with zero signal loss, making it an essential component for enhancing your AV experience.

Key Features

• Extends digital S/PDIF or HDMI ARC audio signals up to 150m/490ft via a single Cat5e or Cat6 cable
• Supports PCM, DTS, and Dolby Digital audio formats
• High performance with zero signal loss
• Supports CEC pass-through for HDMI ARC Input and Output
• Dual digital audio inputs: 1 x S/PDIF, 1 x HDMI ARC
• Dual digital audio outputs: 1 x S/PDIF, 1 x HDMI ARC

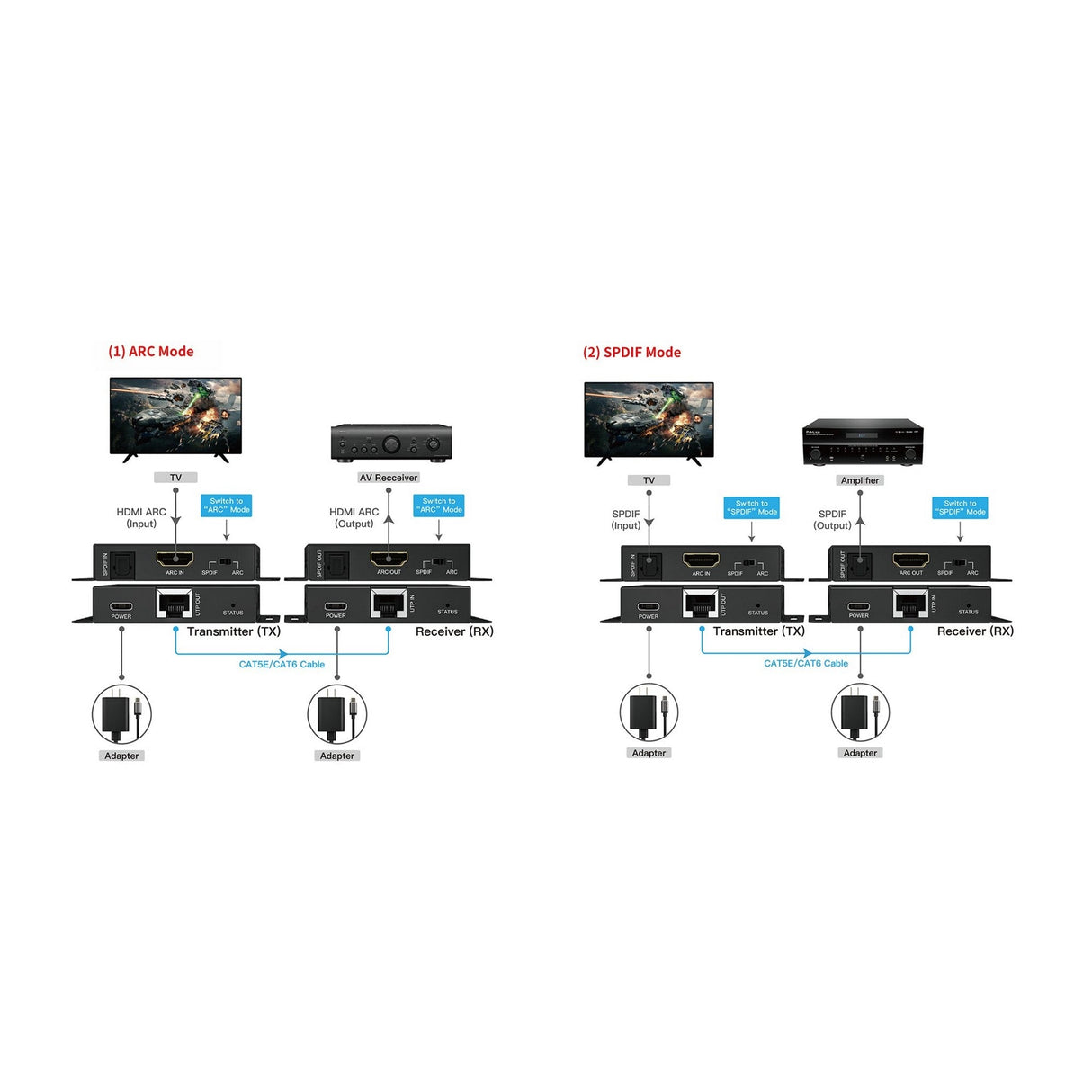

• Selectable ARC and S/PDIF modes via toggle switches on both Transmitter and Receiver

Technical Specifications

Input Ports: 1 x HDMI ARC, 1 x SPDIF, 1 x UTP
Output Ports: 1 x HDMI ARC, 1 x SPDIF, 1 x UTP

Transmission Distance: 490 feet (150 meters) via CAT5e/CAT6 Cable
Data Transmission Rate: 12.8Mb/s
Audio Sampling Rate: 96KHz
Limited Warranty: 1 Year Parts and Labor
Operating Temperature: 32°F to 122°F (0°C to 50°C)
Storage Humidity: 5% to 90% RH non-condensation
Power Supply: DC 5V 1A
Power Consumption (Max): TX/RX: 0.4W
Extender Unit Certifications: FCC, CE, RoHS
Dimensions (LxWxH): 3.3" x 2.6" x 0.6" (83.5 x 65.5 x 15.8mm)
Net Weight: 0.24 lbs (110g) Sender/Receiver
Enclosure: Black Metal

What's Included

• 1 x Main Unit
• 2 x USB Power Chargers
• 2 x USB-A to USB-C Power Cables
