DVDO IP PTZ Camera Controller with Touch Screen & Joystick

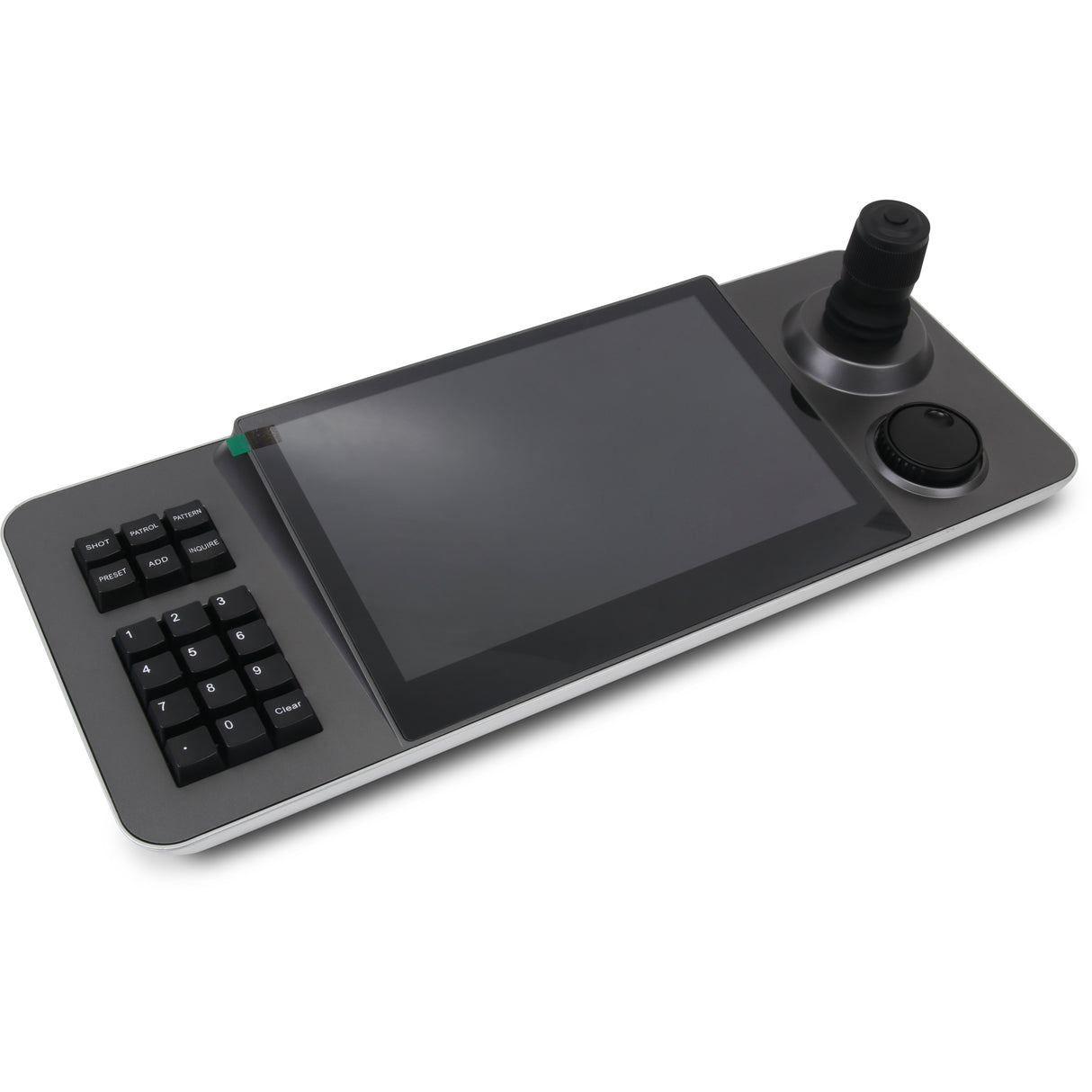

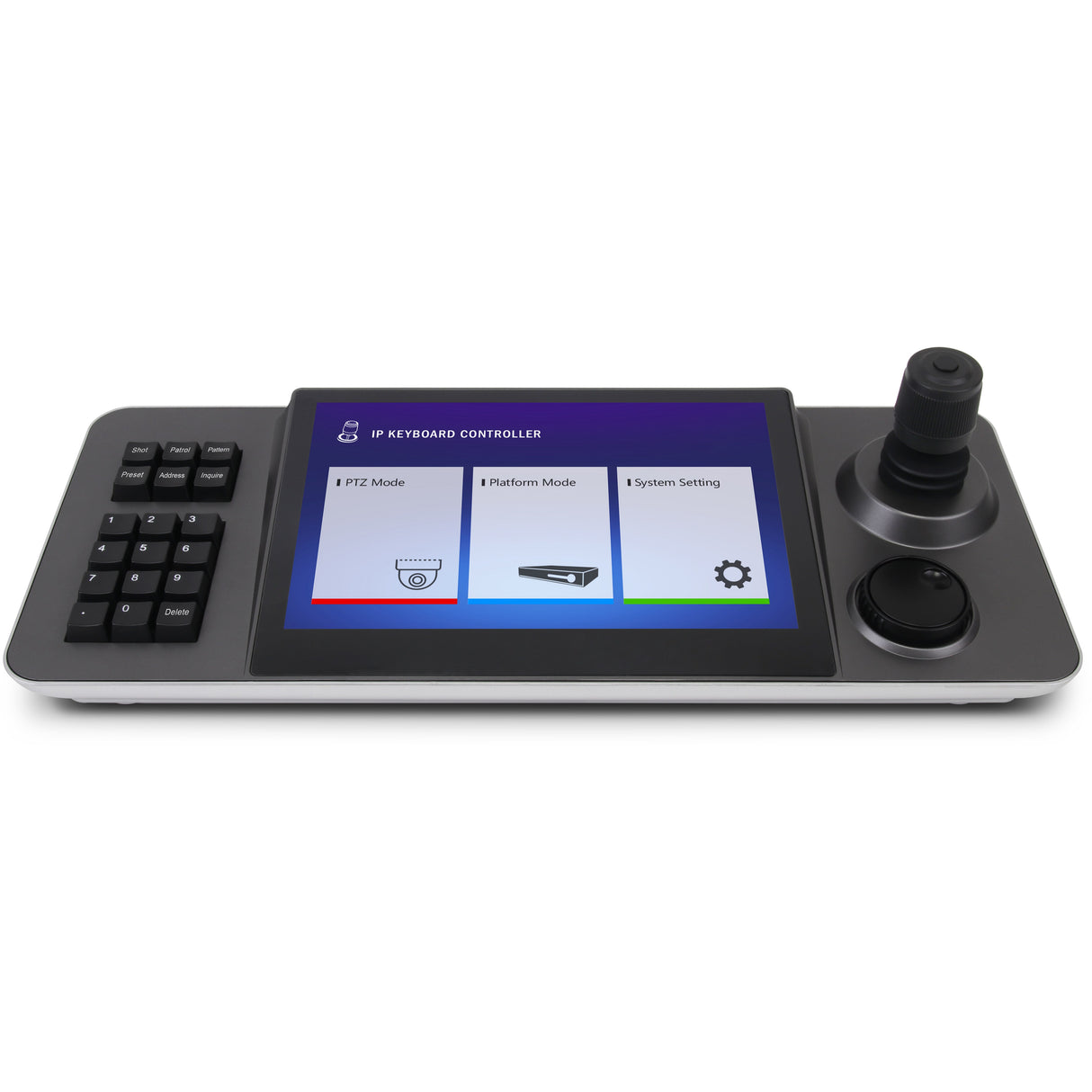

The DVDO-Camera-Ctl-1 is an IP-based PTZ camera controller that combines a 10.1-inch capacitive touch screen with a joystick for hands-on camera operation. Designed for facilities running many network cameras, such as schools, hospitals, hotels, and corporate sites, it provides unified control of up to 1,024 cameras from a single operator console.
Live camera previews appear directly on the 1280x800 touch screen or on an external display through the HDMI output at up to 4K30. Decoding handles H.265 4K30 or H.264 1080p60 in single view, with four-channel 720p30 screen partitions for multi-camera monitoring. Protocol support covers ONVIF 2.4, VISCA, and Pelco-D/P, alongside up to 255 presets, cruising, and pattern scanning, with RJ45, RS-485, RS-232, and USB 2.0 connections on an Android 6.0 platform.
Key Features
- 10.1-inch 1280x800 capacitive touch screen with four-dimensional joystick
- Network control of up to 1,024 PTZ cameras
- H.265/H.264 decoding: single-view 4K30 or 1080p60, plus 4x720p30 partitions
- HDMI output for monitoring on an external display at 4K30
- ONVIF 2.4, VISCA, Pelco-D, and Pelco-P protocol support
- Up to 255 presets with cruise and pattern scanning

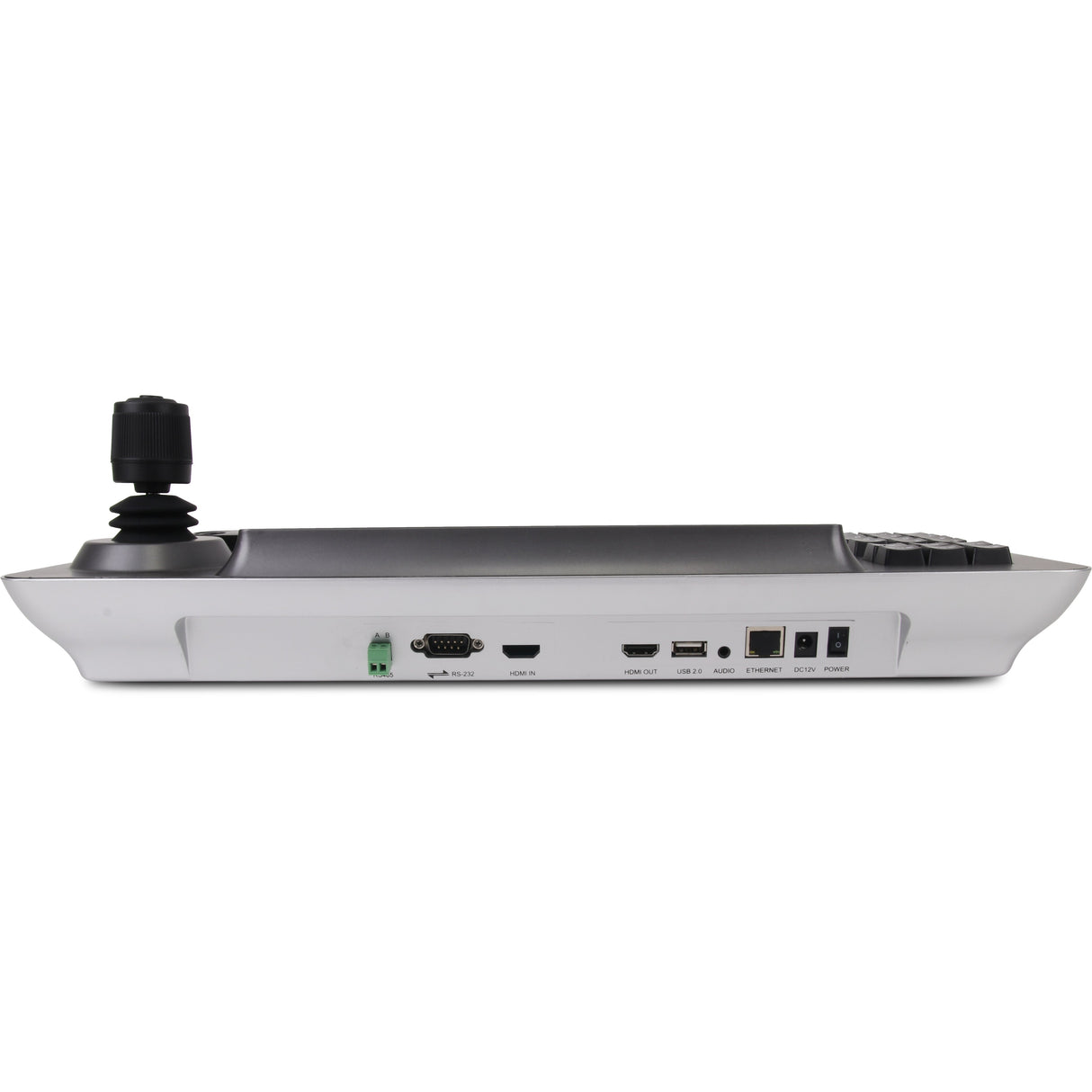

- RJ45, RS-485, RS-232, USB 2.0, and headphone connections; supports an external mouse
Specifications
- Parameter/model: DVDO-Camera-Ctl-1; Operating system ; Android 6.0; Screen size ; IPS 10.1 inch screen, resolution 1280*800 capacitive touch screen; HDMI out ; HDMI 4K@30fps; Decoding capability ; H264/H265; Maximum support h264 1x1080p@60fps; Maximum support h264 4x720p@30fps; Control protocols ; Onvif 2.4, Visca, Pelco D/P and other protocols; Special features ; Controls up to 1,024 cameras; Pan-tilt control; Up to 255 presets; Cruising; Pattern scanning; System Settings ; Language Settings; U disk upgrade; Power Supply ; Standard 5.5/2.1 power interface, DC 12V2A±10%; Interface ; An RJ45 (network); One RS485; One RS232; One HDMI output, version 1.4 one USB2.0; A standard 3.5mm headphone jack; Interface of operation ; 4 dimensional joystick; assisted touch control; button shortcut call; Power consumption ; < 15W; Standby current ; < 100mA; Humidity at work ; 10%-90% RH (no frost); Operating temperature ; -10°C~40°C; Temperature of storage ; -40°C~60°C; Inner package size ; 517*221*151mm (inner size); Net weight ; 1400g
