DVDO USB3.2-Capture-Pro 8K HDMI to USB 3.2 Capture Dongle

DVDO USB3.2-Capture-Pro 8K HDMI to USB 3.2 Capture Dongle

The DVDO DVDO-USB3.2-Capture-Pro 8K HDMI to USB 3.2 Capture Dongle captures HDMI video and audio to a USB-C computer connection while providing HDMI loop-out and separate analog audio I/O. It supports 8K60 and 4K144 HDMI input/output, plus 4K60 capture for production, streaming, and conferencing.

Use this compact capture dongle for professional production, gaming, AV installs, video conferencing, broadcasting, live events, education, healthcare, courtrooms, hospitality, and houses of worship. It fits buyers looking to buy an 8K HDMI capture dongle, deploy a USB 3.2 capture card for streaming, or add an HDMI loop out capture device to a workstation.

Built for broad interoperability, the device conforms to UVC, or USB Video Class, and UAC, or USB Audio Class, standards. It works with Windows 7/10/11, Mac OS, and Linux OS, and supports OBS, Streamlabs, Vmix, Zoom, Microsoft Teams, and more with plug-and-play setup.

8K HDMI Capture Dongle Features

• HDMI to USB 3.2 Capture: Streams HDMI video and audio over USB 3.2 Gen 1 for computer-based recording, streaming, and conferencing.
• 8K HDMI Input and Loop-Out: Supports HDMI input and loop-out up to 8K60 and 4K144 with HDR.
• 4K60 Capture: Captures up to 4K60fps and 2560x1440 at 144fps for high-resolution production workflows.
• Separate Audio I/O: Mixes HDMI audio, microphone input, and line input to the 3.5mm analog output and USB capture port.
• USB 3.2 Gen 1 Performance: Provides up to 5Gbps USB bandwidth for stable capture to connected computers.
• Plug-and-Play Operation: Requires no driver download or installation setting for fast setup.
• Multi-Platform Compatibility: Works across Windows 7/10/11, Mac OS, and Linux OS environments.
• Capture Format Support: Supports YUY2, NV12, I420, and MJPEG video capture formats.

Technical Specifications

• Product Type: 8K HDMI to USB 3.2 Gen 1 capture dongle with HDMI loop-out and separate audio input/output
• SKU: DVDO-USB3.2-Capture-Pro
• HDMI Compliance: HDMI 2.1
• HDCP Compliance: HDCP 2.3
• Video Bandwidth: 48Gbps
• USB Bandwidth: 5Gbps
• Video Resolution: Up to 8K60 and 4K144 input/output
• Capture Resolution: Up to 4K60fps and 2560x1440 at 144fps
• Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
• Color Depth: 8/10/12-bit
• HDR Support: HDR, HDR10, HDR10+, Dolby Vision, HLG
• HDMI Audio Formats: Up to 8 channels; 32, 44.1, 48, 88.2, 96, 176.4, and 192 kHz sampling rates; standard and high-definition bitstream
• USB Audio Formats: Up to 2 channels; 44.1 and 48 kHz sampling rates; no bitstream

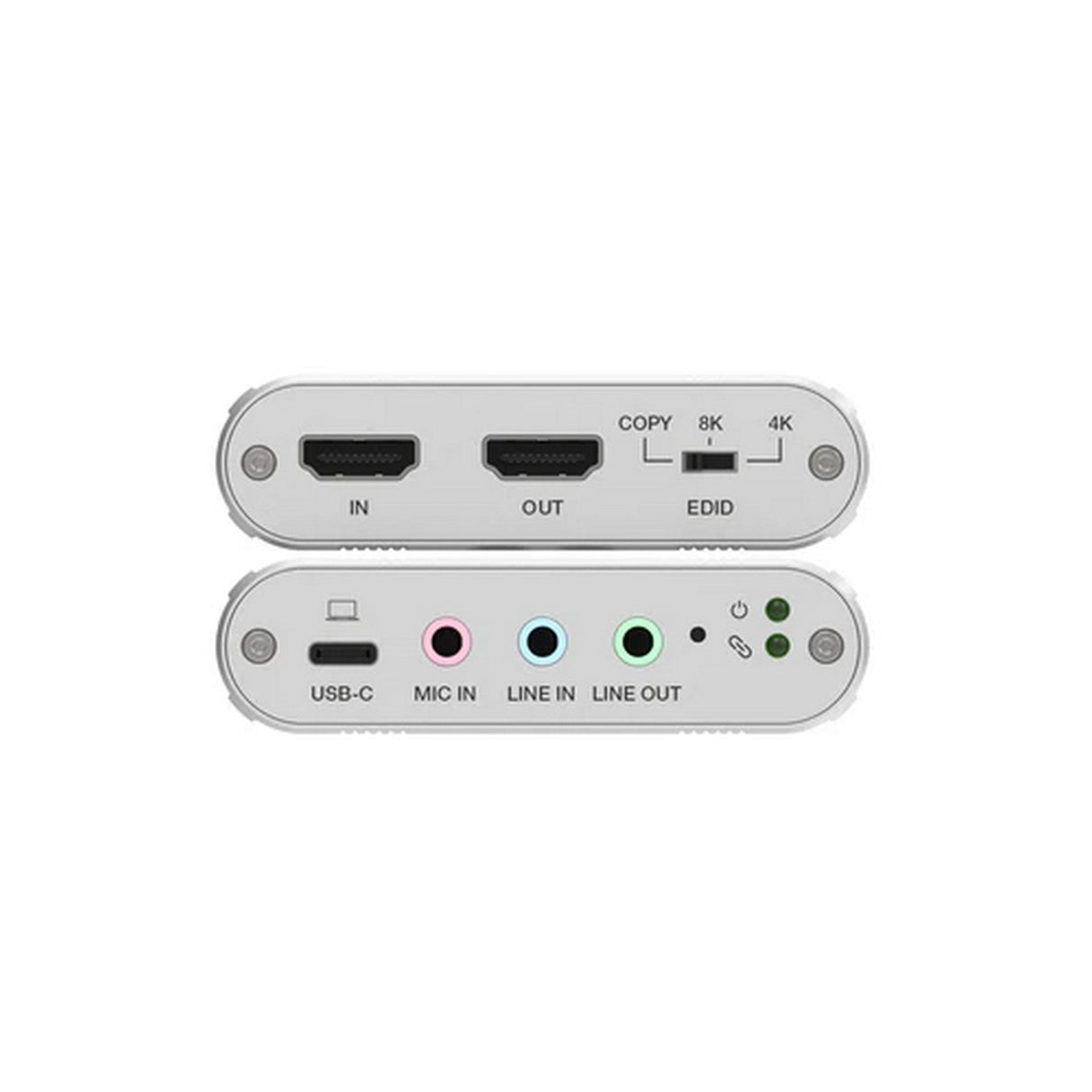

• Inputs: 1 x HDMI Type A 19-pin female; 1 x MIC IN 3.5mm audio jack; 1 x LINE IN 3.5mm audio jack
• Outputs: 1 x HDMI Type A 19-pin female; 1 x LINE OUT 3.5mm audio jack; 1 x USB-C 12-pin female port
• EDID Settings: COPY, 8K, and 4K via dial switch
• USB Standards: UVC and UAC compliant
• Video Capture Formats: YUY2, NV12, I420, MJPEG
• Compatible Software: OBS, Streamlabs, Vmix, Zoom, Microsoft Teams, and more
• Compatible Operating Systems: Windows 7/10/11, Mac OS, Linux OS
• MacOS Requirement: System Software 10.12 or above
• MJPEG 4K60 Desktop Requirement: Intel Core i7-10xxx or above, NVIDIA GeForce GTX 1650 or above, 8GB two-channel RAM
• MJPEG 4K60 Laptop Requirement: Intel Core i9-9xxx or above, NVIDIA GeForce GTX 1650 or above, 8GB two-channel RAM
• NV12/I420 4K30 Desktop Requirement: Intel Core i5-6xxx or above, NVIDIA GeForce GTX 1060 or above, 8GB two-channel RAM
• NV12/I420 4K30 Laptop Requirement: Intel Core i7-7700HQ or above, NVIDIA GeForce GTX 1050Ti or above, 8GB two-channel RAM
• NV12/I420 UVC Resolutions: 3840x2160 at 30fps and lower; 2560x1440 at 60fps and lower; 1920x1080 at 120fps and lower; 1280x720 at 120fps and lower; 720x576 at 50fps and lower; 720x480 at 60fps and lower; 640x480 at 60fps and lower
• YUY2 UVC Resolutions: 2560x1440 at 60fps and lower; 1920x1080 at 60fps and lower; 1280x720 at 120fps and lower; 720x576 at 50fps and lower; 720x480 at 60fps and lower; 640x480 at 60fps and lower
• MJPEG UVC Resolutions: 3840x2160 at 60fps and lower; 2560x1440 at 120fps and lower; 1920x1080 at 120fps and lower; 1280x720 at 120fps and lower; 720x576 at 50fps and lower; 720x480 at 60fps and lower; 640x480 at 60fps and lower
• HDMI Resolutions: 640x480p60, 800x600p60, 1024x768p60, 1280x1024p60, 1360x768p60, 1440x900p60, 1440x1050p60, 1600x1200p60, 720x480i59.94, 720x480p59.94, 720x576i50, 720x576p50, 1280x720p50, 1280x720p59.94, 1280x720p60, 1920x1080i50, 1920x1080i59.94, 1920x1080i60, 1920x1080p23.98, 1920x1080p24, 1920x1080p25, 1920x1080p29.97, 1920x1080p30, 1920x1080p50, 1920x1080p59.94, 1920x1080p60, 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 3840x2160p50, 3840x2160p59.94, 3840x2160p60, 3840x2160p100, 3840x2160p120, 4096x2160p23.98, 4096x2160p24, 4096x2160p25, 4096x2160p29.97, 4096x2160p30, 4096x2160p50, 4096x2160p59.94, 4096x2160p60, 4096x2160p100, 4096x2160p120, 5120x2160p50, 5120x2160p60, 7680x4320p23.98, 7680x4320p24, 7680x4320p25, 7680x4320p29.97, 7680x4320p30, 7680x4320p50, 7680x4320p60
• ESD Protection: IEC 61000-4-2, ±8kV air-gap discharge and ±4kV contact discharge
• Housing: Aluminum enclosure
• Color: Silver
• Power Supply: USB power supply
• Power Consumption: 5.8W max
• Operating Temperature: 32°F to 104°F
• Storage Temperature: -4°F to 140°F
• Operating Humidity: 20% to 80% relative humidity, non-condensing
• Storage Humidity: 10% to 90% relative humidity, non-condensing
• Dimensions: 4.49" W x 3.23" D x 0.87" H
• Weight: 0.40 lbs

What's In the Box

• 1 x 8K HDMI to USB 3.2 Gen 1 Video Capture Card
• 1 x USB-C Male-to-Male Cable, 39.37"
• 1 x User Manual
