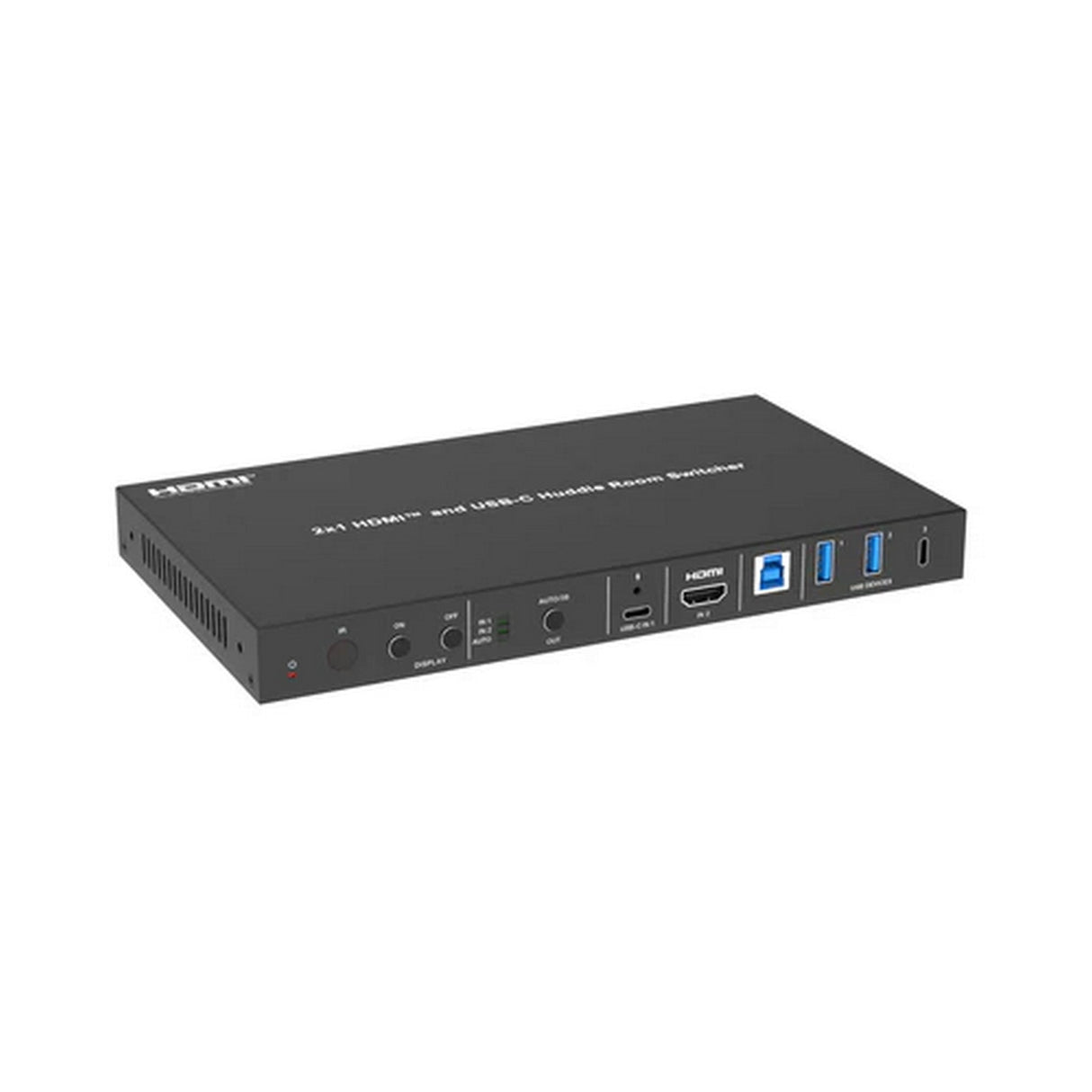

DVDO USBC-HDMI-PS-21-XL 4K USB-C/HDMI Presentation Switcher

DVDO USBC-HDMI-PS-21-XL 4K USB-C/HDMI Presentation Switcher

The DVDO DVDO-USBC-HDMI-PS-21-XL 4K USB-C/HDMI Presentation Switcher connects one USB-C source and one HDMI source to a single HDMI display. It supports 4K60 video, USB peripheral routing, dual Ethernet, analog audio embedding and de-embedding, and flexible control for professional presentation spaces.

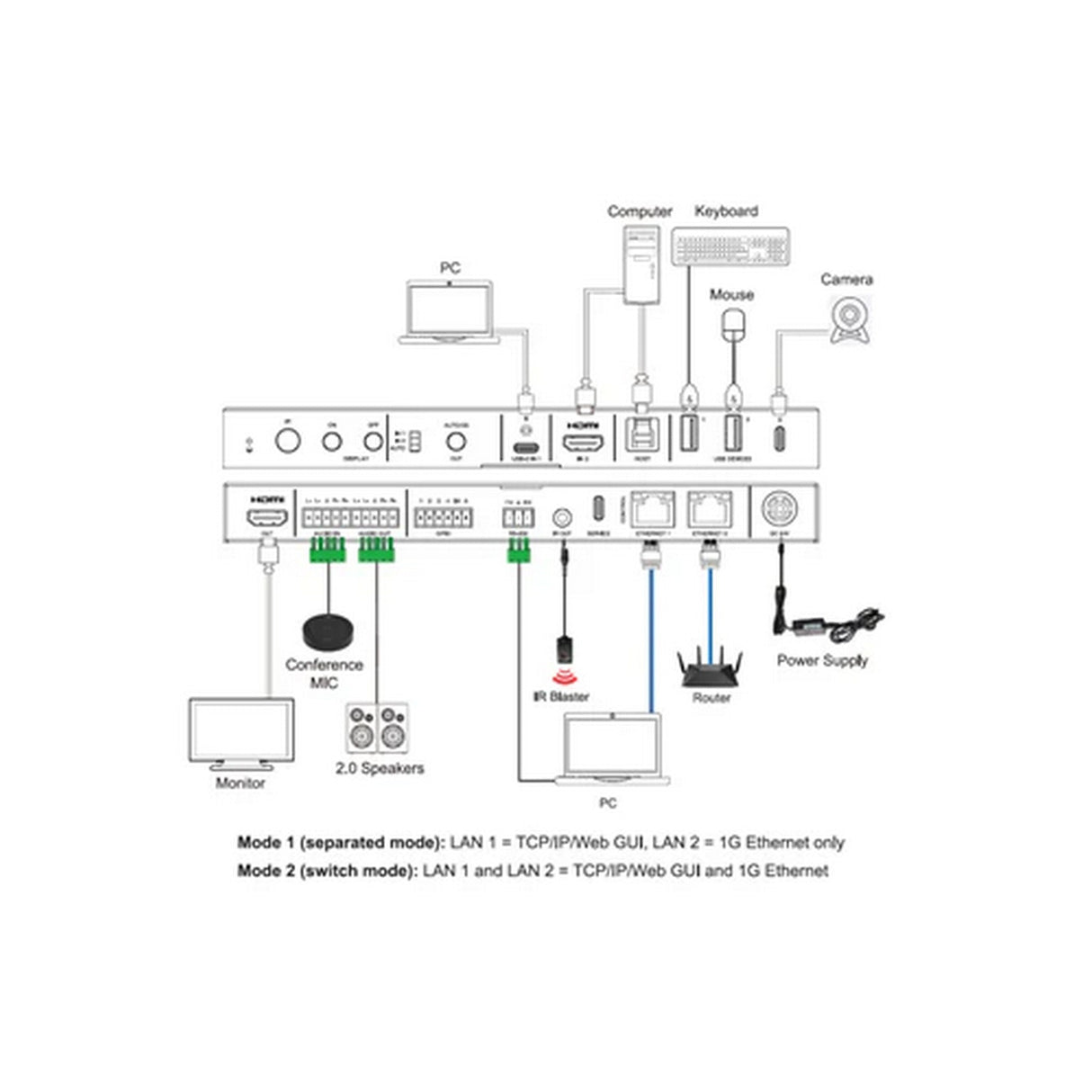

Use this 2x1 presentation switcher in conference rooms, boardrooms, classrooms, lecture halls, and training rooms where users need fast BYOD source sharing. It is built for buyers looking to purchase a USB-C HDMI switcher, install a 4K presentation switcher, or simplify room connectivity with one compact AV hub.

The USB-C input supports DisplayPort Alt Mode, USB 3.2 Gen 1 data, 1G Ethernet, and up to 100W charging. HDMI 2.0b, HDCP 2.3, DP 1.4a, HDR support, advanced EDID management, and 802.1x/VLAN networking make it practical for integrated commercial AV systems.

4K USB-C and HDMI Presentation Switching

• 2x1 Source Switching: Switches between one USB-C input and one HDMI input for a single HDMI display output.
• 4K60 Video Support: Handles video resolutions up to 4096 x 2160p at 60Hz with 18Gbps bandwidth.
• USB-C Room Connectivity: Supports DP Alt Mode, USB 3.2 Gen 1, 1G Ethernet, and up to 100W charging on the USB-C input.
• USB Peripheral Sharing: Includes one USB host port and three USB device ports for room peripherals such as cameras, keyboards, mice, and storage devices.
• Balanced Audio Routing: Embeds balanced or unbalanced analog audio to USB or HDMI audio and de-embeds from USB or HDMI audio.
• Fast Auto Switching: Supports auto and manual switching with signal detection and 5V detection for efficient source changes.
• Network-Ready Design: Provides dual 1G Ethernet ports with 802.1x and VLAN support for managed AV environments.
• Flexible Control: Offers front panel, RS232, TCP/IP, Web GUI, IR, CEC, LAN, and GPIO control options.

Technical Specifications

• Product Type: 4K 2x1 presentation switcher

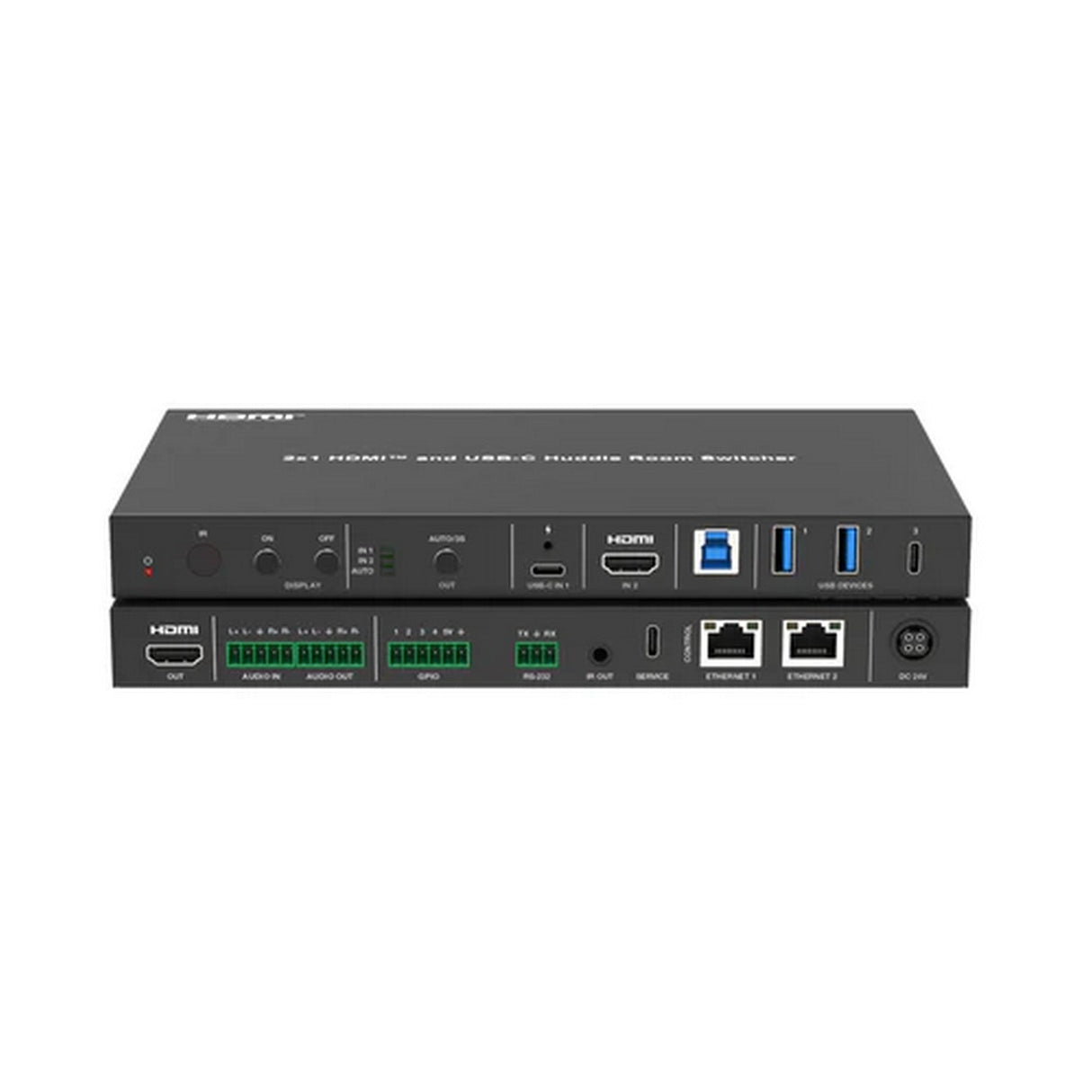

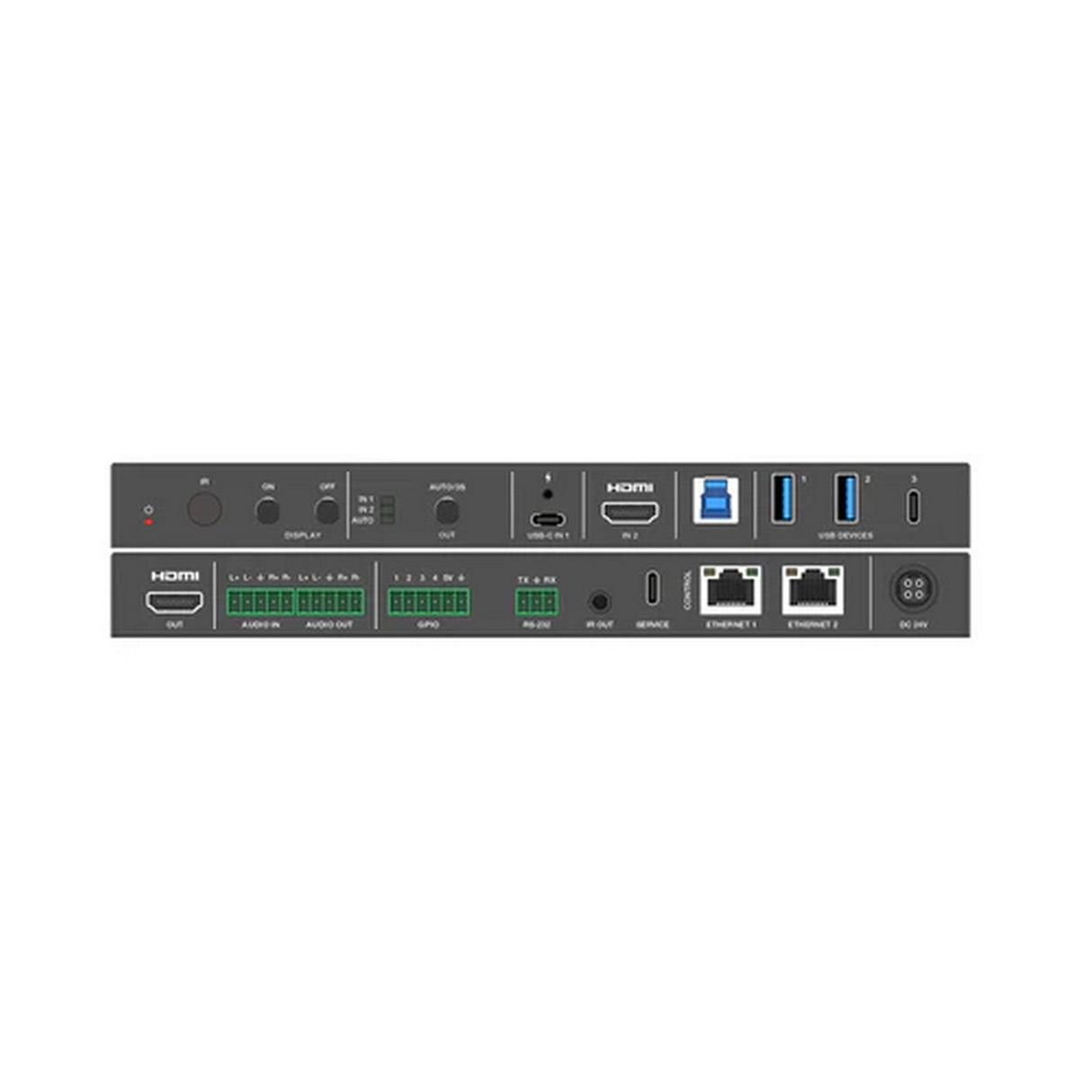

• Input Ports: 1 x HDMI Type A input; 1 x USB-C input; 1 x USB Type B host port; 1 x L/R audio input via 5-pin 3.5mm phoenix connector

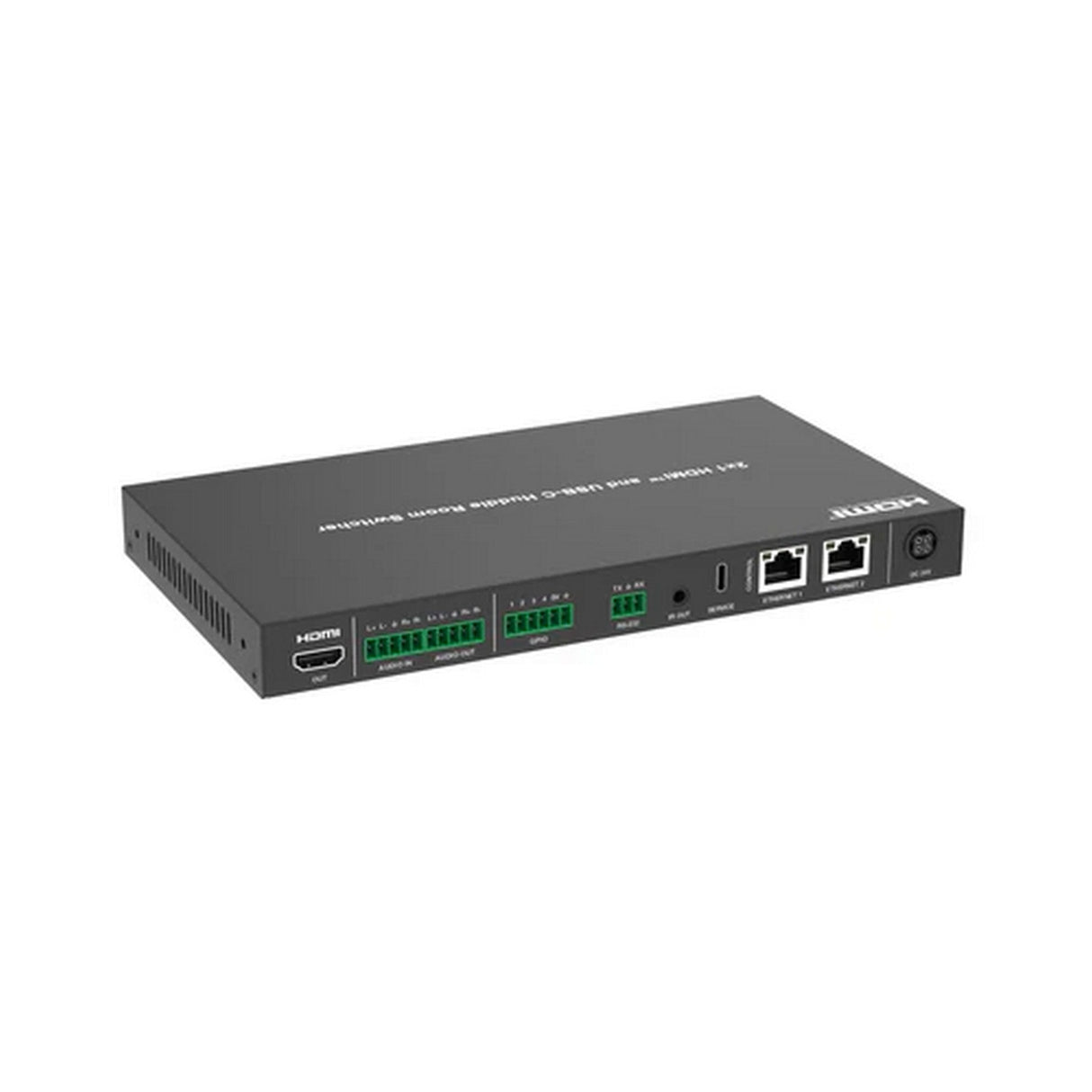

• Output Ports: 1 x HDMI Type A output; 1 x USB-C device port; 2 x USB-A device ports; 1 x L/R audio output via 5-pin 3.5mm phoenix connector
• Control Ports: 1 x RS232; 1 x IR out; 2 x LAN; 1 x GPIO; 1 x USB-C service port
• HDMI Compliance: HDMI 2.0b
• HDCP Compliance: HDCP 2.3
• DisplayPort Compliance: DP 1.4a via USB-C input
• USB Compliance: USB 3.2 Gen 1, 5Gbps
• Video Bandwidth: 18Gbps
• Video Network Bandwidth: 1G
• Video Resolution: Up to 4096 x 2160p at 60Hz
• Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
• Color Depth: 8/10/12-bit; 8-bit at 4K60 4:4:4
• HDR Support: HDR, HDR10, HDR10+, Dolby Vision, HLG
• HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
• Analog Audio Format: LPCM 2CH, 32kHz to 192kHz sample rate
• Audio Input Impedance: 20K ohm balanced; 10K ohm unbalanced
• Audio Input Level: Maximum 8.2dBu, 2Vrms balanced audio
• Audio Input Frequency Response: 20Hz to 20kHz, ±0.5dB
• Audio Input Dynamic Range: Greater than 90dB at 0dBu, 1kHz A-weighted
• Audio Input S/N Ratio: Greater than 90dB at 0dBu, 1kHz A-weighted
• Audio Input THD+N: Less than 0.01% at +4dBu, 1kHz
• Audio Output Impedance: 600 ohm balanced; 300 ohm unbalanced
• Audio Output Level: Maximum 8.2dBu, 2Vrms balanced audio; maximum 2.2dBu, 1Vrms unbalanced audio
• Audio Output Frequency Response: 20Hz to 20kHz, ±1dB
• Audio Output Dynamic Range: Greater than 90dB at 0dBu, 1kHz A-weighted
• Audio Output S/N Ratio: Greater than 90dB at 0dBu, 1kHz A-weighted
• Audio Output THD+N: Less than 0.067% at +4dBu, 1kHz
• Audio Output Delay: Less than 1ms
• IR Level: 5Vp-p
• IR Frequency: 20kHz to 60kHz
• Transmission Distance: USB 3.2 passive cable up to 59.06"; HDMI passive cable up to 118.11"
• ESD Protection: IEC 61000-4-2, ±8kV air-gap discharge and ±4kV contact discharge
• Housing: Metal enclosure
• Color: Black
• Dimensions: 9.06" W x 5.12" D x 0.91" H
• Weight: 1.75 lbs
• Power Supply: AC 100-240V, 50/60Hz input; DC 24V/7.5A output; CE/FCC/UL certified
• Power Consumption: 37W without USB-C charging; 145W with 100W USB-C charging
• Operating Temperature: 32°F to 104°F
• Storage Temperature: -4°F to 140°F
• Operating Humidity: 20% to 80% relative humidity, non-condensing
• Storage Humidity: 10% to 90% relative humidity, non-condensing

What's In the Box

• 1 x DVDO-USBC-HDMI-PS-21-XL Huddle Room Switcher
• 1 x 24V/7.5A Power Supply
• 1 x IR Blaster Cable, 59.06"
• 1 x 3-pin 3.5mm Phoenix Connector, male
• 2 x 5-pin 3.5mm Phoenix Connectors, male
• 1 x 6-pin 3.5mm Phoenix Connector, male
• 4 x Rubber Feet
• 2 x Mounting Ears
• 4 x M3 x 5 Machine Screws for Rubber Feet
• 4 x KM3 x 6 Machine Screws for Mounting Ears
• 1 x User Manual
