DVDO USBC-HDMI-PS-42-XL 4K USB-C/HDMI Presentation Switcher

DVDO USBC-HDMI-PS-42-XL 4K USB-C/HDMI Presentation Switcher

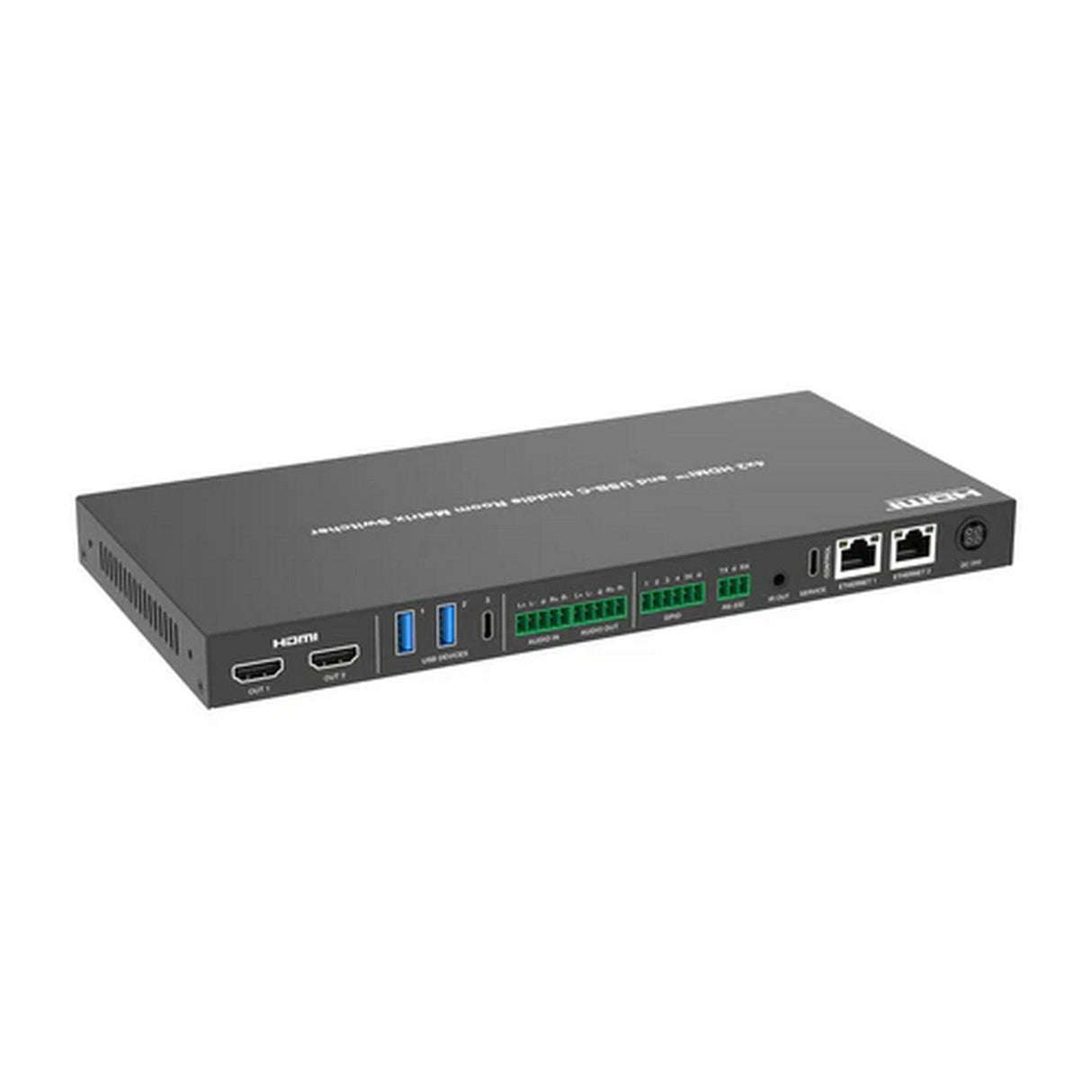

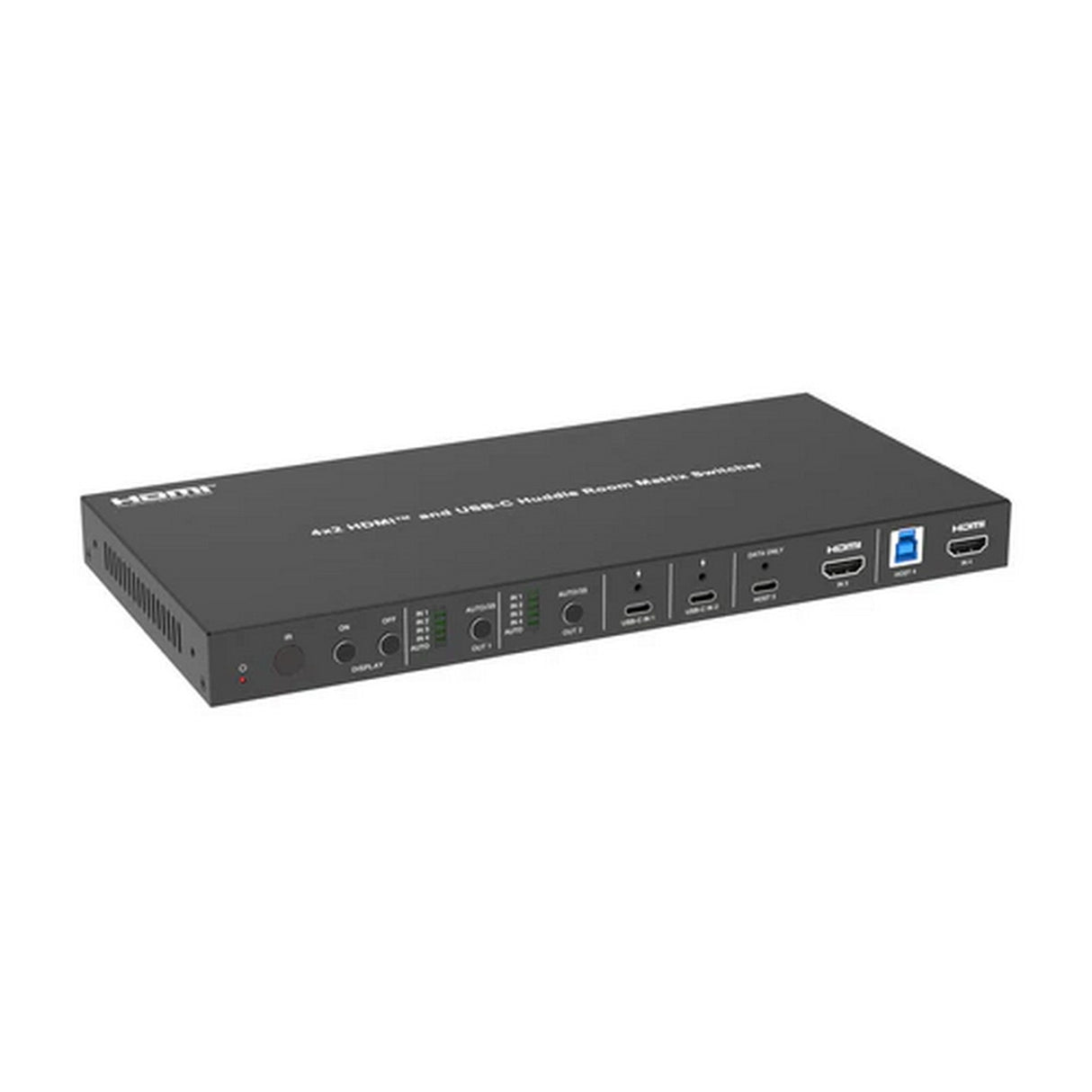

The DVDO DVDO-USBC-HDMI-PS-42-XL 4K USB-C/HDMI Presentation Switcher is a 4x2 huddle room switcher with two HDMI inputs, two USB-C inputs, and two HDMI outputs. It routes 4K60 video, USB peripherals, dual Ethernet, and balanced or unbalanced analog audio for professional presentation environments.

Use this 4x2 presentation switcher in conference rooms, boardrooms, classrooms, lecture halls, and training spaces where users need quick source sharing. It is ideal when you need to buy a USB-C HDMI presentation switcher, install a 4K huddle room switcher, or simplify BYOD connectivity with one compact AV hub.

Built for integrated AV systems, the USB-C inputs support DisplayPort 1.4 Alt Mode, USB 3.2 Gen 1 data, 1G Ethernet, and up to 100W charging. HDMI 2.0b, HDCP 2.3, advanced EDID management, 802.1x/VLAN networking, and multi-format control support reliable room integration.

4K USB-C and HDMI Huddle Room Switching

• 4x2 Switching: Routes two HDMI and two USB-C inputs to two HDMI outputs for flexible presentation setups.
• 4K60 Video: Supports video resolutions up to 4096 x 2160p at 60Hz with 18Gbps bandwidth.
• USB-C Connectivity: Supports DP Alt Mode, USB 3.2 Gen 1, 1G Ethernet, and up to 100W charging through USB-C.
• Shared USB Devices: Includes three USB 3.2 Gen 1 device ports for peripherals such as cameras, keyboards, mice, and storage devices.
• Analog Audio Routing: Embeds balanced or unbalanced analog audio to USB or HDMI audio and de-embeds from USB or HDMI sources.
• Fast Auto Switching: Supports auto and manual switching with signal detection and 5V detection.
• Network Integration: Provides dual 1G Ethernet ports with 802.1x and VLAN support.
• Room Control: Supports front panel, RS232, TCP/IP, Web GUI, IR, CEC, LAN, and GPIO control.

Technical Specifications

• Product Type: 4K 4x2 presentation switcher / huddle room switcher

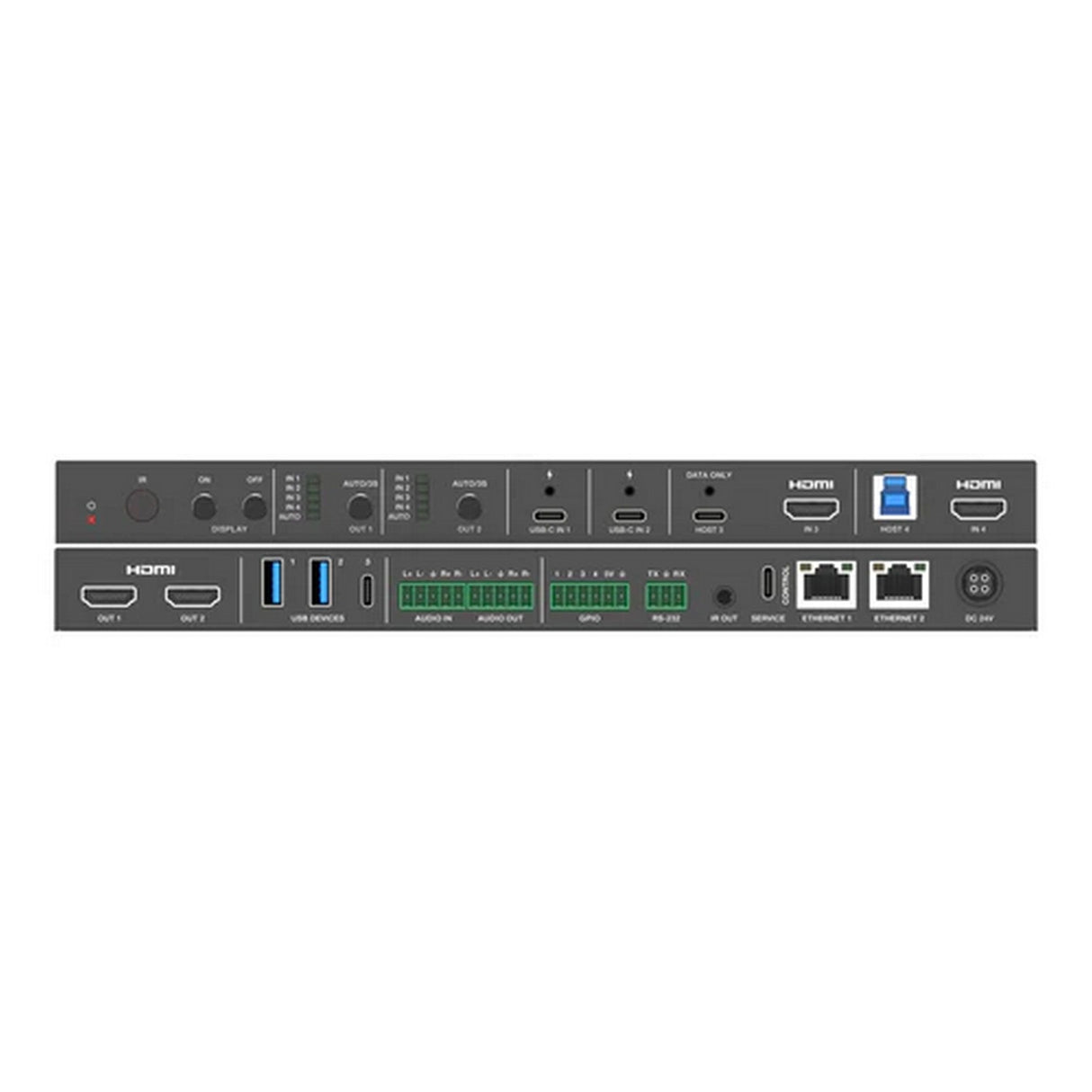

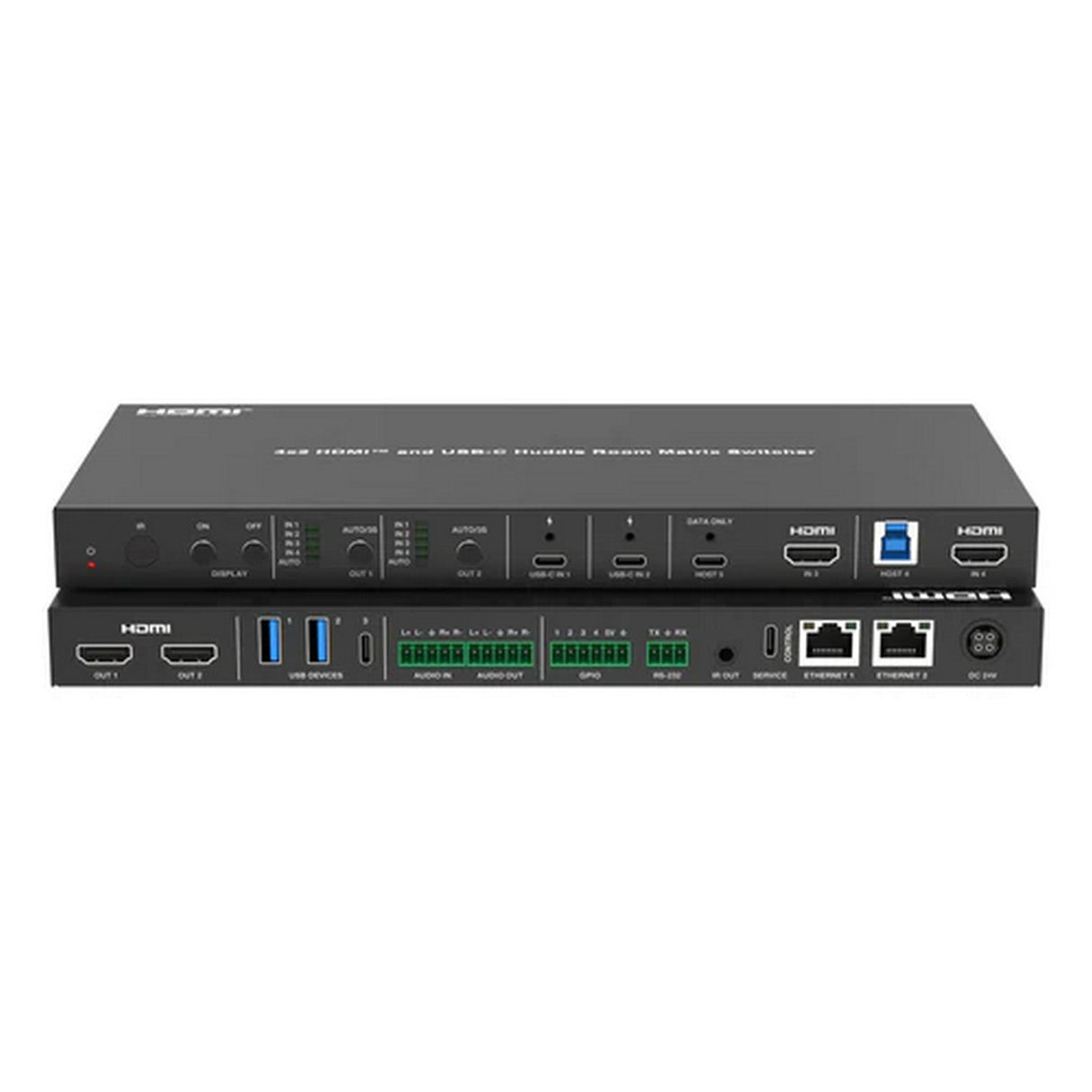

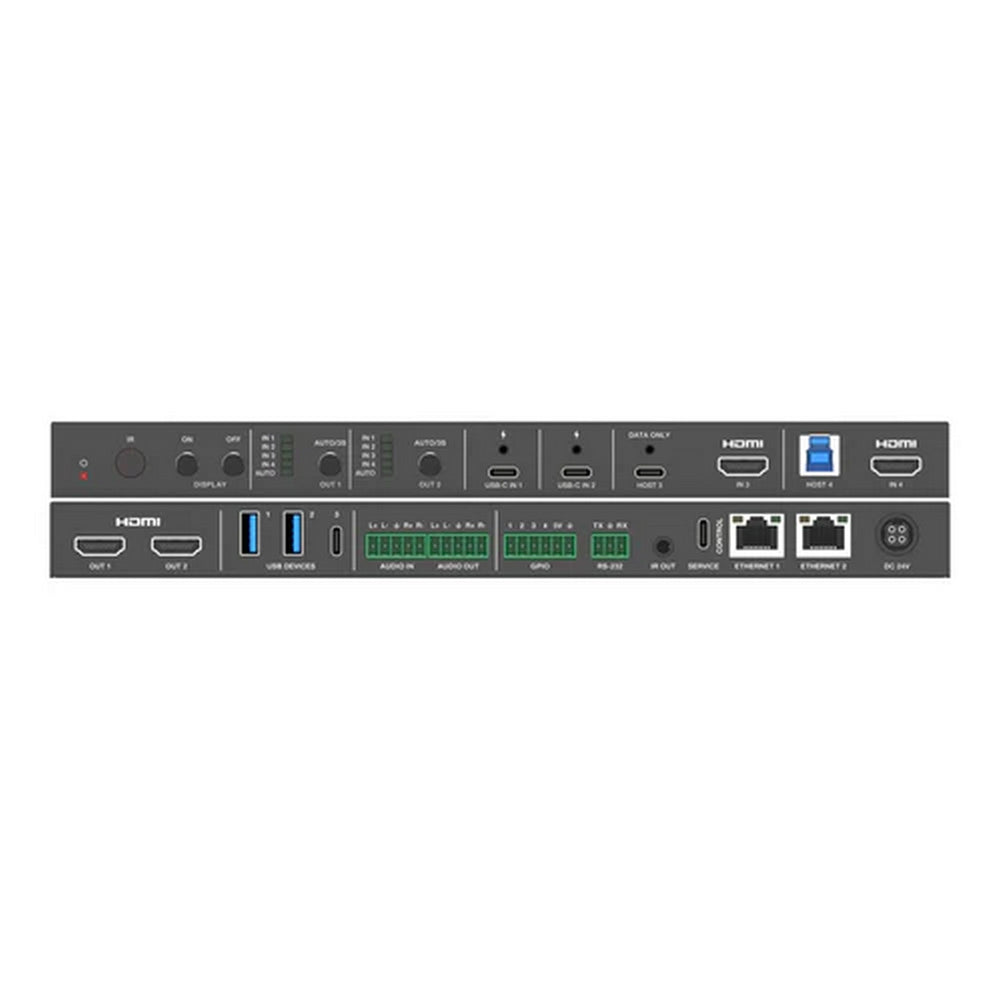

• Input Ports: 2 x HDMI Type A inputs; 2 x USB-C inputs; 1 x USB-C host; 1 x USB-B host; 1 x L/R audio input via 5-pin 3.5mm phoenix connector
• Output Ports: 2 x HDMI Type A outputs; 1 x USB-C device port; 2 x USB-A device ports; 1 x L/R audio output via 5-pin 3.5mm phoenix connector
• Control Ports: 1 x RS232; 1 x IR out; 2 x LAN; 1 x GPIO; 1 x USB-C service port for firmware updates
• HDMI Compliance: HDMI 2.0b
• HDCP Compliance: HDCP 2.3
• DisplayPort Compliance: DP 1.4a via USB-C input
• USB Compliance: USB 3.2 Gen 1, 5Gbps
• Video Bandwidth: 18Gbps
• Video Network Bandwidth: 1G
• Video Resolution: Up to 4096 x 2160p at 60Hz
• Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
• Color Depth: 8/10/12-bit; 8-bit at 4K60 4:4:4
• HDR Support: HDR, HDR10, HDR10+, Dolby Vision, HLG
• HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
• Analog Audio Format: LPCM 2CH, 32kHz to 192kHz sample rate
• Audio Input Impedance: 20K ohm balanced; 10K ohm unbalanced
• Audio Input Level: Maximum 8.2dBu, 2Vrms balanced audio
• Audio Input Frequency Response: 20Hz to 20kHz, ±0.5dB
• Audio Input Dynamic Range: Greater than 90dB at 0dBu, 1kHz A-weighted
• Audio Input S/N Ratio: Greater than 90dB at 0dBu, 1kHz A-weighted
• Audio Input THD+N: Less than 0.01% at +4dBu, 1kHz
• Audio Output Impedance: 600 ohm balanced; 300 ohm unbalanced
• Audio Output Level: Maximum 8.2dBu, 2Vrms balanced audio; maximum 2.2dBu, 1Vrms unbalanced audio
• Audio Output Frequency Response: 20Hz to 20kHz, ±1dB
• Audio Output Dynamic Range: Greater than 90dB at 0dBu, 1kHz A-weighted
• Audio Output S/N Ratio: Greater than 90dB at 0dBu, 1kHz A-weighted
• Audio Output THD+N: Less than 0.067% at +4dBu, 1kHz
• Audio Output Delay: Less than 1ms
• IR Level: 5Vp-p
• IR Frequency: 20kHz to 60kHz
• Transmission Distance: USB 3.2 passive cable up to 59.06"; HDMI passive cable up to 118.11"
• ESD Protection: IEC 61000-4-2, ±8kV air-gap discharge and ±4kV contact discharge
• Housing: Metal enclosure
• Color: Black
• Dimensions: 10.63" W x 5.12" D x 0.91" H
• Weight: 1.96 lbs
• Power Supply: AC 100-240V, 50/60Hz input; DC 24V/7.5A output; CE/FCC/UL certified
• Power Consumption: 41W without USB-C charging; 149W with 100W USB-C charging
• Operating Temperature: 32°F to 104°F
• Storage Temperature: -4°F to 140°F
• Operating Humidity: 20% to 80% relative humidity, non-condensing
• Storage Humidity: 10% to 90% relative humidity, non-condensing

What's In the Box

• 1 x DVDO-USBC-HDMI-PS-42-XL Huddle Room Switcher
• 1 x 24V/7.5A Power Supply
• 1 x IR Blaster Cable, 59.06"
• 1 x 3-pin 3.5mm Phoenix Connector, male
• 2 x 5-pin 3.5mm Phoenix Connectors, male
• 1 x 6-pin 3.5mm Phoenix Connector, male
• 4 x Rubber Feet
• 2 x Mounting Ears
• 4 x M3 x 5 Machine Screws for Rubber Feet
• 4 x KM3 x 6 Machine Screws for Mounting Ears
• 1 x User Manual
