Description
DVDO USBC-PS-21-XL 4K USB-C Presentation Switcher

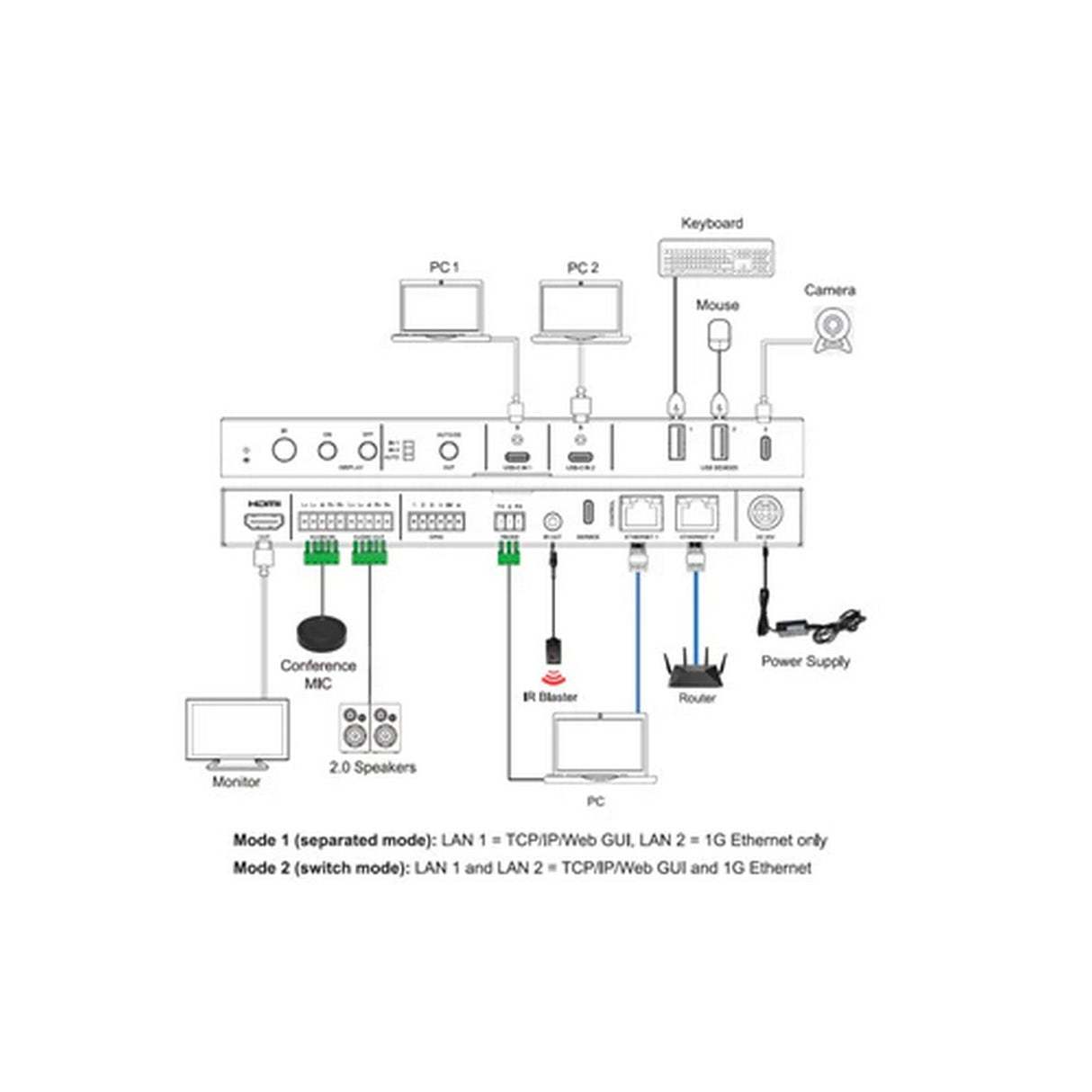

The DVDO-USBC-PS-21-XL is a 4K 2x1 USB-C presentation switcher for meeting rooms, classrooms, and boardrooms. It connects two full-featured USB-C sources to one HDMI display while routing USB peripherals, dual Ethernet, and balanced or unbalanced analog audio through a compact switching hub.
Use this 4K presentation switcher for conference rooms, training rooms, lecture halls, education spaces, and BYOD presentation setups. It supports fast auto or manual switching, making it a smart choice when you need a USB-C switcher for conference rooms or a professional HDMI output presentation switcher with integrated device control.
Designed for modern AV installations, the unit supports HDMI 2.0b, HDCP 2.3, DP 1.4a, USB 3.2 Gen 1, advanced EDID management, and 802.1x/VLAN networking. Control options include front panel buttons, RS232, TCP/IP, Web GUI, IR, CEC, LAN, and GPIO for flexible room integration.
4K USB-C Presentation Switching
- 2x1 Switching: Connects two USB-C input sources to one HDMI output for streamlined room sharing.
- 4K60 Video: Supports DP Alt Mode up to 4K60 4:4:4 for sharp presentation visuals.
- USB 3.2 Hub: Provides USB 3.2 Gen 1 host and local hub support with 5Gbps data transfer.
- USB-C Charging: Delivers up to 100W charging, or 50W per port when both USB-C inputs are connected.
- Analog Audio Routing: Embeds balanced or unbalanced analog audio to USB audio and de-embeds from USB or HDMI audio.
- Network Integration: Includes dual 1G Ethernet ports with 802.1x and VLAN support.
- Smart Switching: Supports fast auto and manual switching with signal detection and 5V detection.
- Room Control: Controls external devices through CEC, IR, RS232, LAN, and GPIO.
Technical Specifications
- Product Type: 4K 2x1 presentation switcher

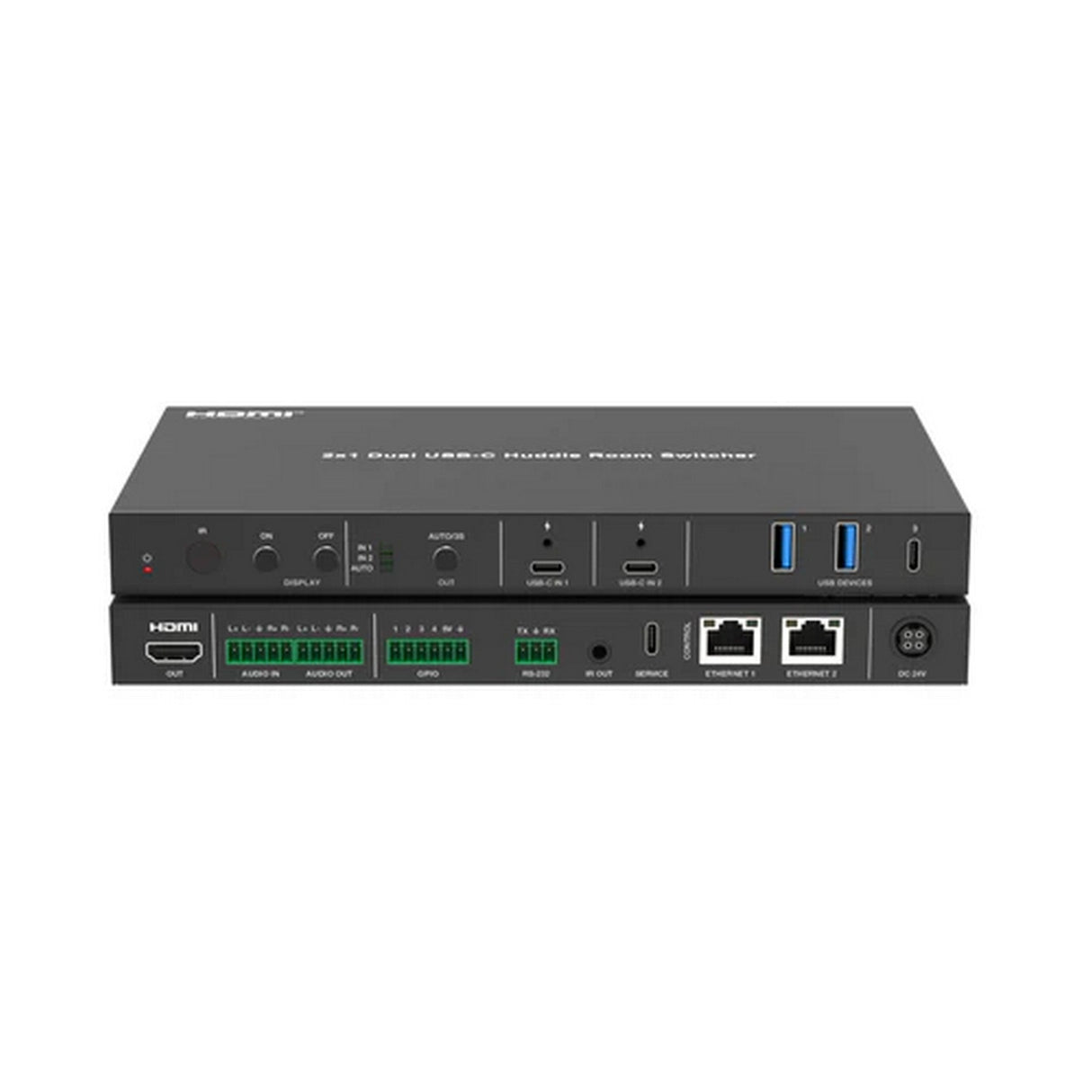

- Inputs: 2 x USB-C; 1 x L/R audio input via 5-pin 3.5mm phoenix connector
- Outputs: 1 x HDMI Type A; 1 x USB-C device; 2 x USB-A device; 1 x L/R audio output via 5-pin 3.5mm phoenix connector
- Control Ports: 1 x RS232, 1 x IR out, 2 x Ethernet, 1 x GPIO, 1 x USB-C service port
- HDMI Compliance: HDMI 2.0b
- HDCP Compliance: HDCP 2.3
- DisplayPort Compliance: DP 1.4a via USB-C input
- USB Compliance: USB 3.2 Gen 1, 5Gbps
- Video Bandwidth: 18Gbps
- Network Bandwidth: 1G
- Video Resolution: Up to 4096 x 2160p at 60Hz
- Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
- Color Depth: 8/10/12-bit; 8-bit at 4K60 4:4:4
- HDR Support: HDR, HDR10, HDR10+, Dolby Vision, HLG
- HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- Analog Audio Format: LPCM 2CH, 32kHz to 192kHz sample rate
- Audio Input Impedance: 20K ohm balanced; 10K ohm unbalanced
- Audio Input Level: Maximum 8.2dBu, 2Vrms balanced audio
- Audio Input Frequency Response: 20Hz to 20kHz, ±0.5dB
- Audio Input Dynamic Range: Greater than 90dB at 0dBu, 1kHz A-weighted
- Audio Input S/N Ratio: Greater than 90dB at 0dBu, 1kHz A-weighted
- Audio Input THD+N: Less than 0.01% at +4dBu, 1kHz
- Audio Output Impedance: 600 ohm balanced; 300 ohm unbalanced
- Audio Output Level: Maximum 8.2dBu, 2Vrms balanced audio; maximum 2.2dBu, 1Vrms unbalanced audio
- Audio Output Frequency Response: 20Hz to 20kHz, ±1dB
- Audio Output Dynamic Range: Greater than 90dB at 0dBu, 1kHz A-weighted
- Audio Output S/N Ratio: Greater than 90dB at 0dBu, 1kHz A-weighted
- Audio Output THD+N: Less than 0.067% at +4dBu, 1kHz
- Audio Output Delay: Less than 1ms
- IR Level: 5Vp-p
- IR Frequency: 20kHz to 60kHz
- Transmission Distance: USB 3.2 passive cable up to 59.06"; HDMI passive cable up to 118.11"
- ESD Protection: IEC 61000-4-2, ±8kV air-gap discharge and ±4kV contact discharge
- Housing: Black metal enclosure
- Dimensions: 9.06" W x 5.12" D x 0.91" H
- Weight: 1.75 lbs
- Power Supply: AC 100-240V, 50/60Hz input; DC 24V/7.5A output; CE/FCC/UL certified
- Power Consumption: 37W without USB-C charging; 145W with 100W USB-C charging
- Operating Temperature: 32°F to 104°F
- Storage Temperature: -4°F to 140°F
- Operating Humidity: 20% to 80% relative humidity, non-condensing
- Storage Humidity: 10% to 90% relative humidity, non-condensing
What's In the Box
- 1 x DVDO-USBC-PS-21-XL Huddle Room Switcher
- 1 x 24V/7.5A Power Supply
- 1 x IR Blaster Cable, 59.06"
- 1 x 3-pin 3.5mm Phoenix Connector, male
- 2 x 5-pin 3.5mm Phoenix Connectors, male
- 1 x 6-pin 3.5mm Phoenix Connector, male
- 4 x Rubber Feet
- 2 x Mounting Ears
- 4 x M3 x 5 Machine Screws for Rubber Feet
- 4 x KM3 x 6 Machine Screws for Mounting Ears
- 1 x User Manual
