DVDO Xtend Pair40 4K60 HDMI 40m Extender Over HDBaseT (Tx/Rx)

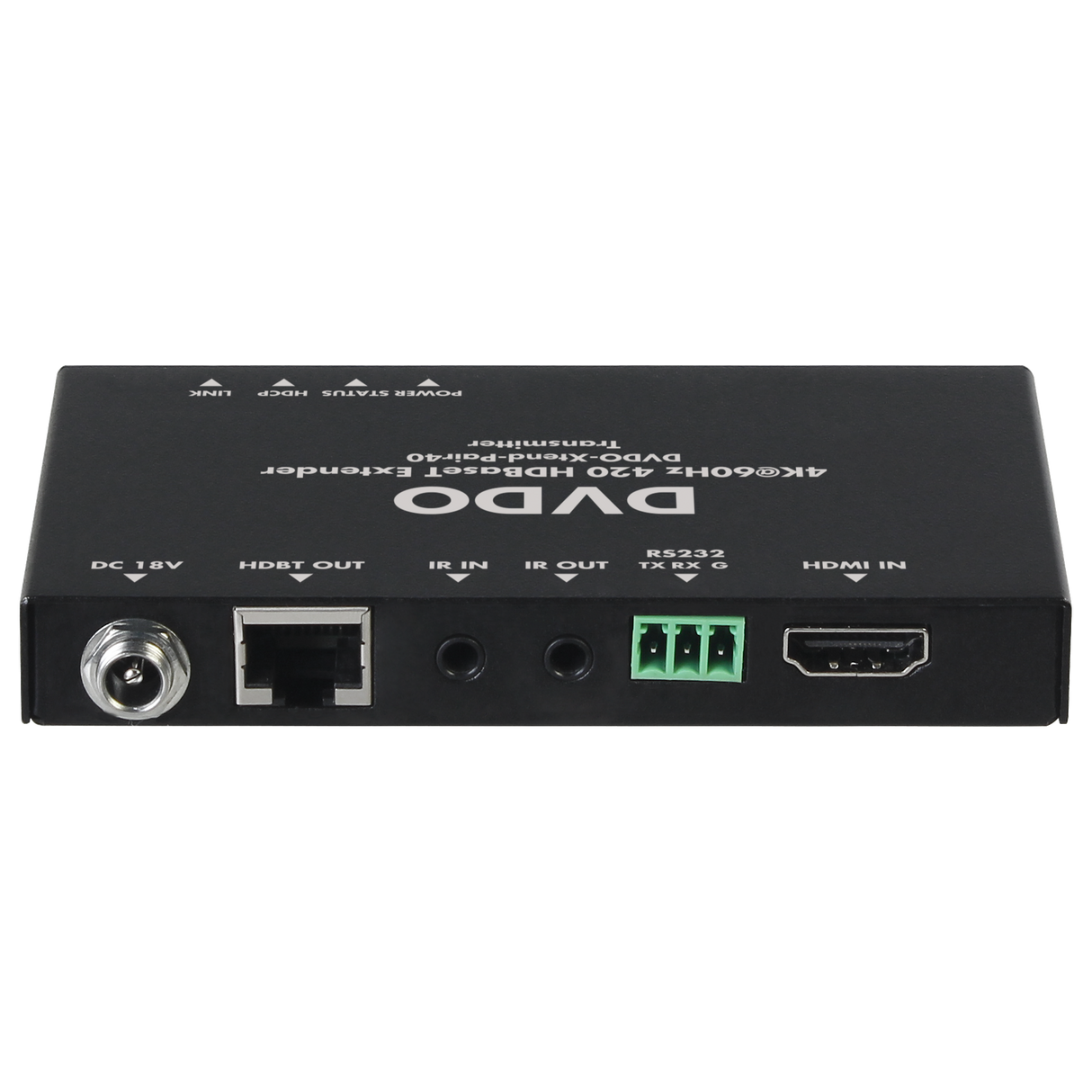

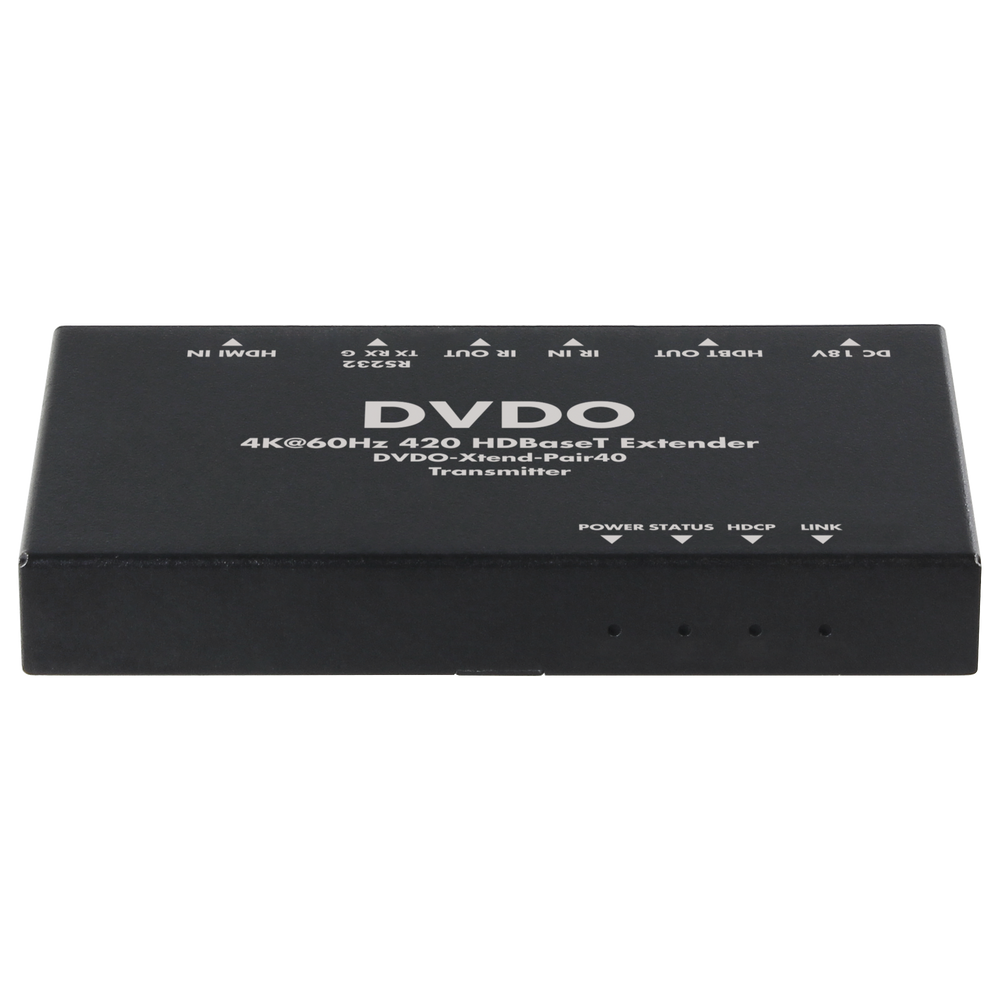

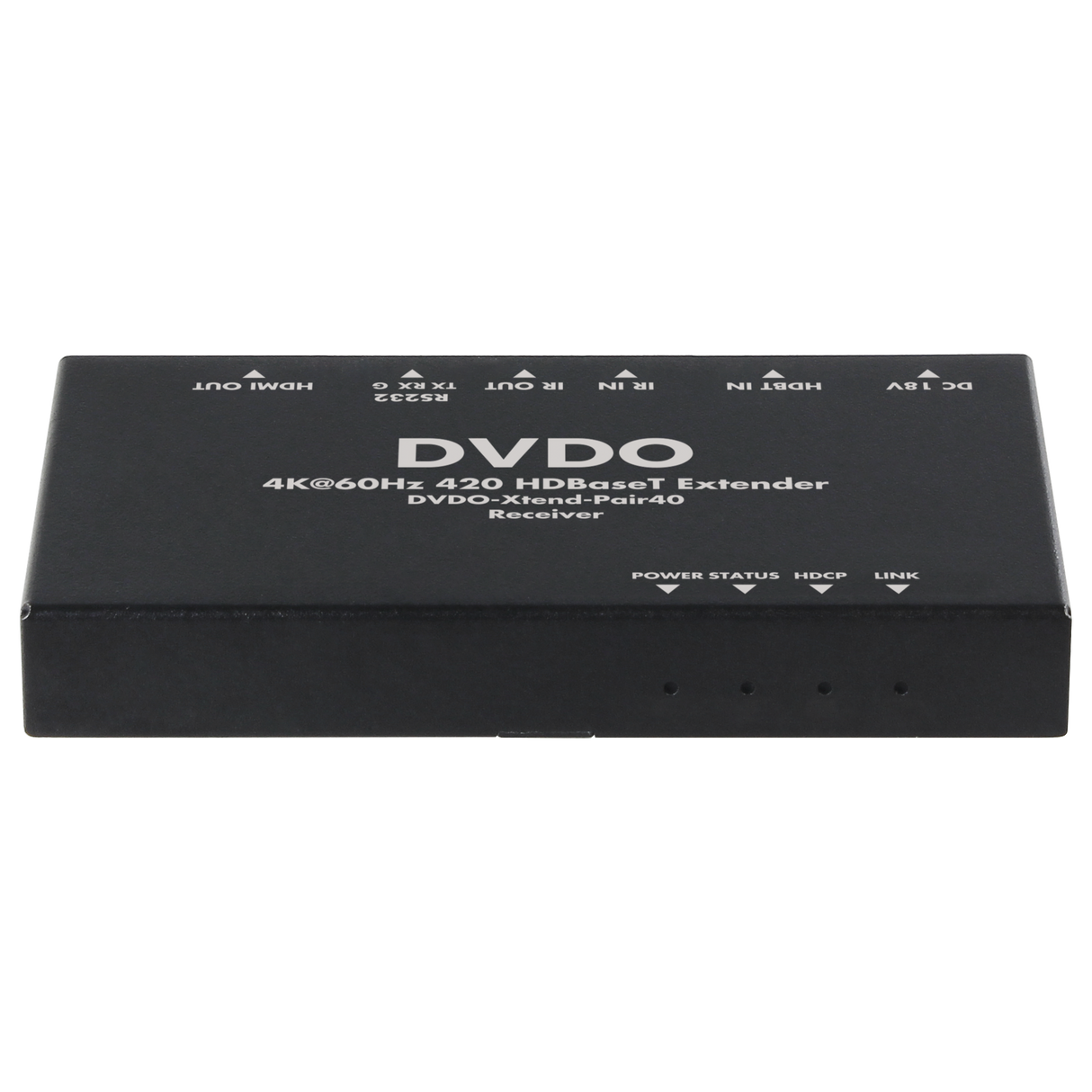

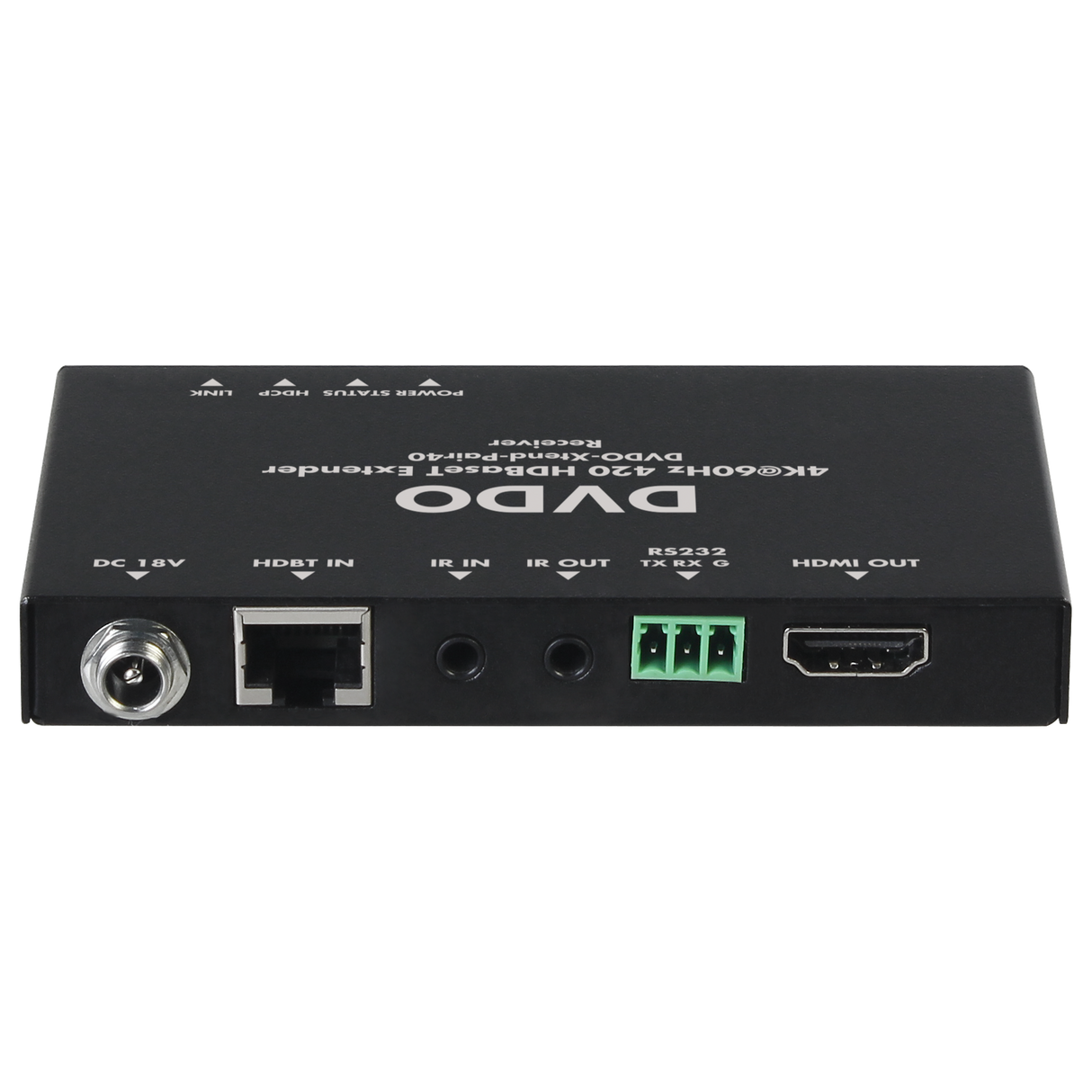

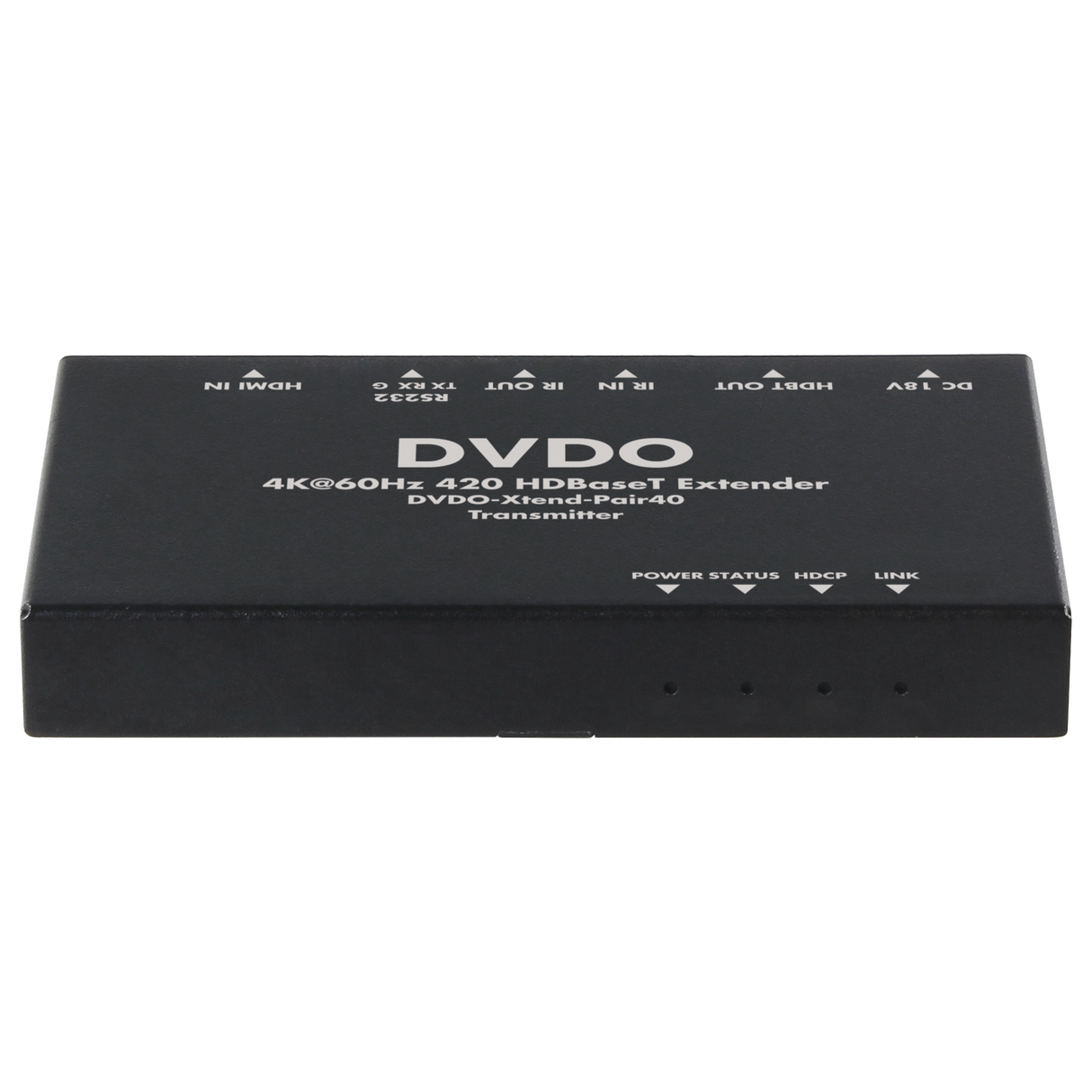

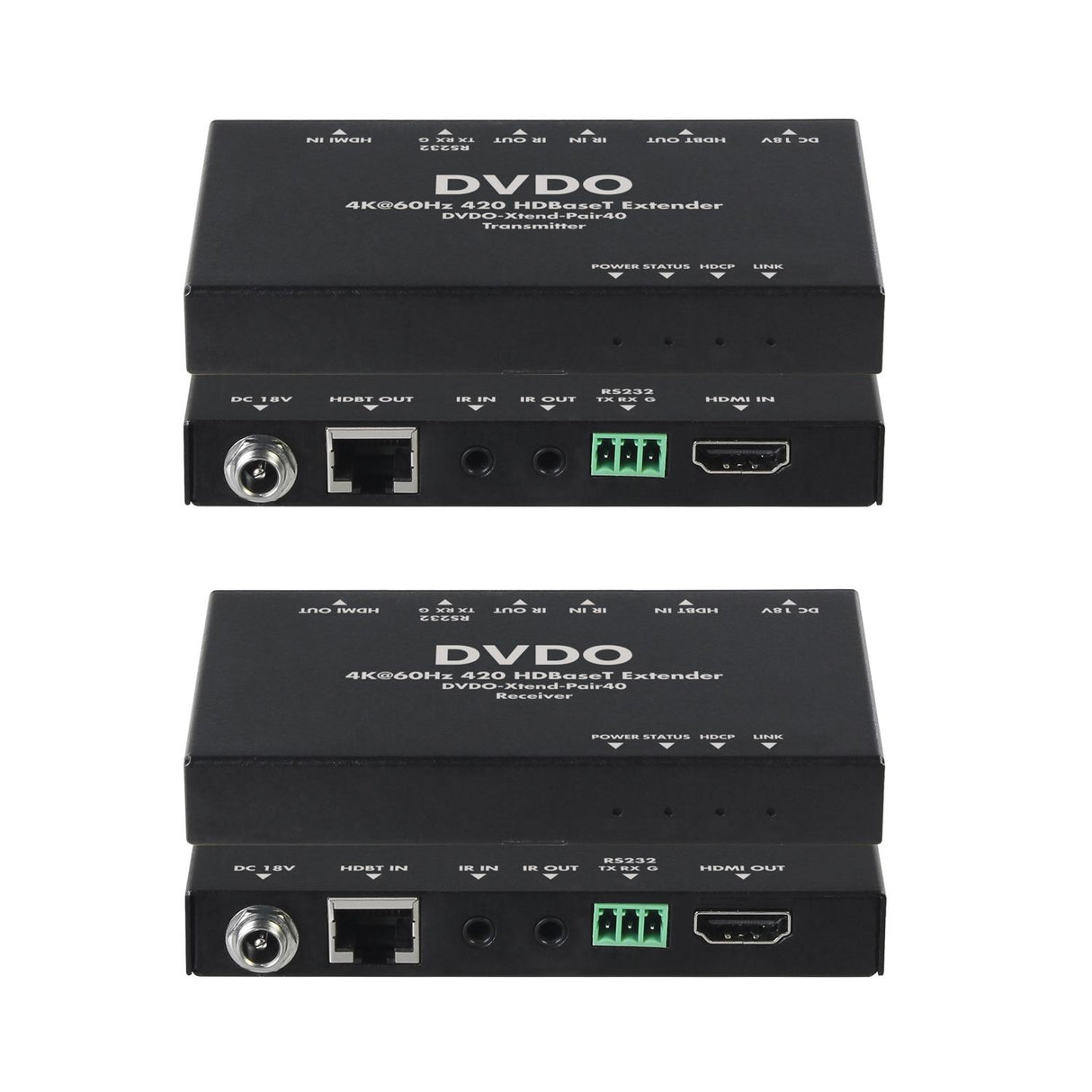

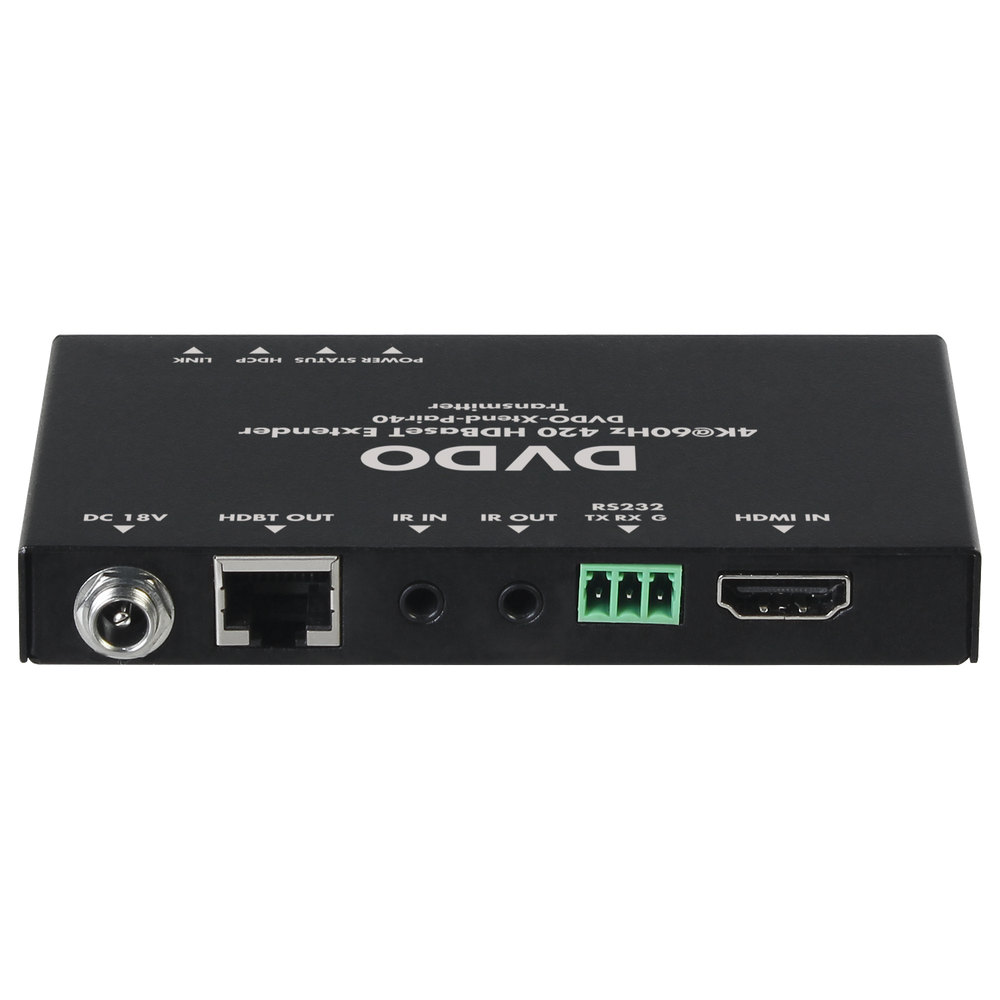

The DVDO Xtend Pair40 is an ultra-slim HDMI over HDBaseT extender set that carries 4K60 (4:2:0 8-bit) video up to 40m/130ft and 1080p up to 70m/230ft on a single Cat6a/7 cable. With all connectors on one side and a 15mm-tall housing, the transmitter and receiver tuck cleanly behind displays at the viewing end of an installation.

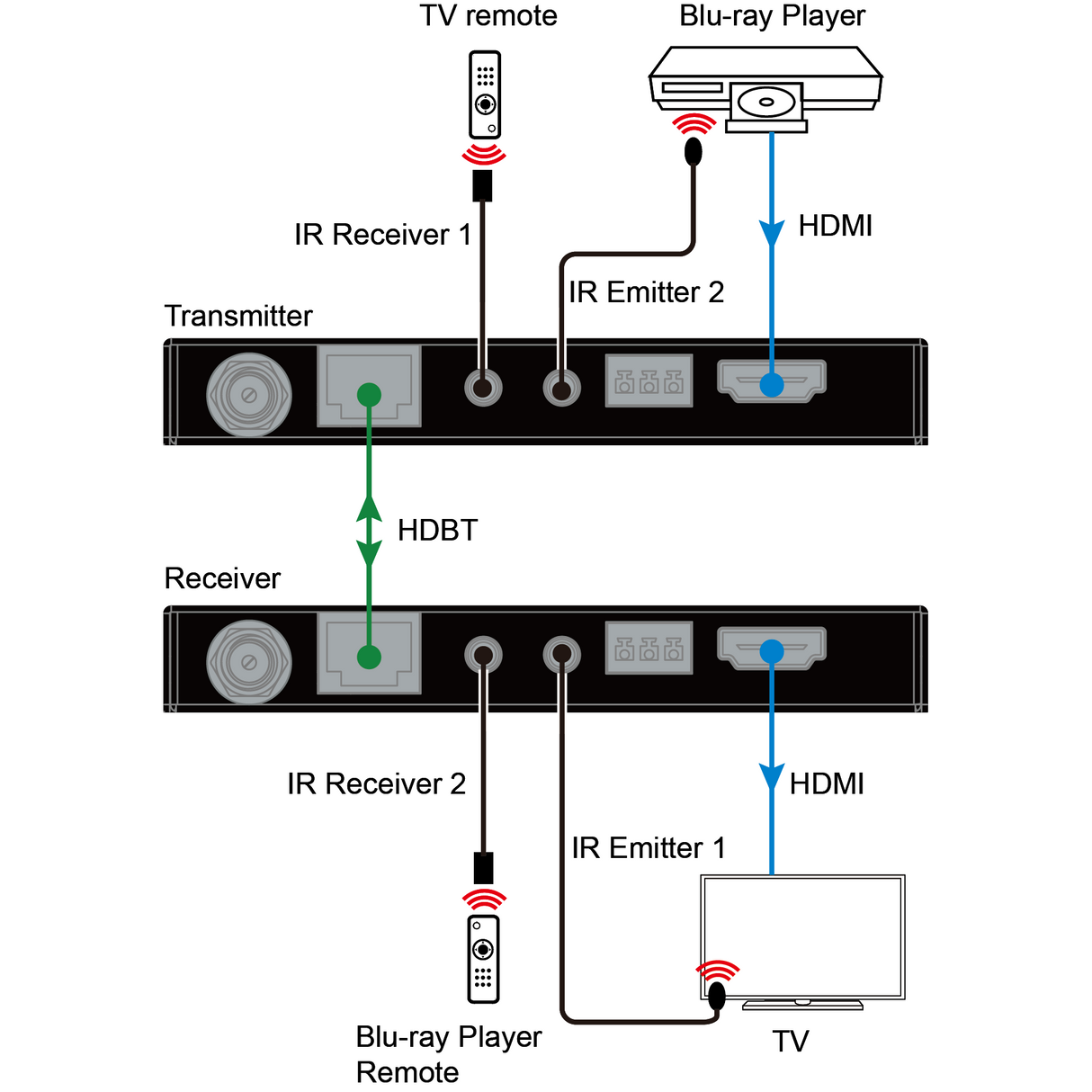

HDCP 2.2 compatibility rides on a 10.2Gbps HDMI 1.4 link, with multichannel audio support that includes PCM 7.1, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, and DTS:X. Bi-directional IR and RS232 pass-through handle control traffic, automatic EDID management simplifies setup, and proprietary bi-directional PoC means a single power adapter at either end powers both units, with LED indication confirming power and signal status.
Key Features
- Extends 4K60 (4:2:0 8-bit) HDMI up to 40m/130ft and 1080p up to 70m/230ft over a single Cat6a/7 cable
- HDMI 1.4 with HDCP 2.2 compatibility and 10.2Gbps maximum data rate
- Multichannel audio up to PCM 7.1, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, and DTS:X
- Bi-directional IR and RS232 pass-through for control signals
- Bi-directional PoC: one adapter at either the Tx or Rx side powers both units
- Ultra-slim 15mm housings with single-sided connectors; mounting brackets included
- Automatic EDID management with LED power and signal indicators
Specifications
- Technical: Input/Output Signal Type ; HDMI with 4K@60Hz 4:2:0, HDCP 2.2; Input/Output Resolution Supported ; Up to 4096x2160@60Hz, including 4K@60Hz/; 4K@30Hz/1080P/1080i/720P; Note:4096x2160/3840x2160@50/60Hz is based on chroma sub-sampling 4:2:0 8-bit only.; Deep color ; 4K: 8/10/12 bit; 1080P: up to 16 bit; Maximum Data Rate ; 10.2 Gbps; Maximum Pixel Clock ; 340MHz; Audio Format Supported ; Supports multichannel audio up to PCM 7.1,; Dolby True HD, DTS HD Master Audio, Dolby; Atmos and DTS:X
- General: Operating Temperature ; 0°C to 45°C (32°F to 113°F); Storage Temperature ; -20°C to 70°C (-4°F to 158°F); Humidity ; 10% to 90%, non-condensing; ESD Protection ; ±8kV (Air-gap discharge)/; ±4kV (Contact discharge); Power Supply ; DC 18V 1A; Power Consumption (Max) ; 8.88W (Pair, PoC); Device Dimensions (W x H x D) ; 108.8mm x 15mm x 64.2mm/ 4.3" x 0.6’’ x 2.5’’ each for TX/RX; Product Weight ; 0.18kg/0.4lb each for TX/RX
- Transmission Distance: Note: The use of T568B straight-through Category cables is recommended.; Cable Type Range Supported Video; HDMI ; Input/Output:15m/50ft 1080P@60Hz; Input: 10m/33ft; Output: 15m/50ft 4K@60Hz; Cat 5e/6 ; 60m/200ft 1080P@60Hz; 35m/115ft 4K@60Hz; Cat 6a/7 ; 70m/230ft 1080P@60Hz; 40m/130ft 4K@60Hz

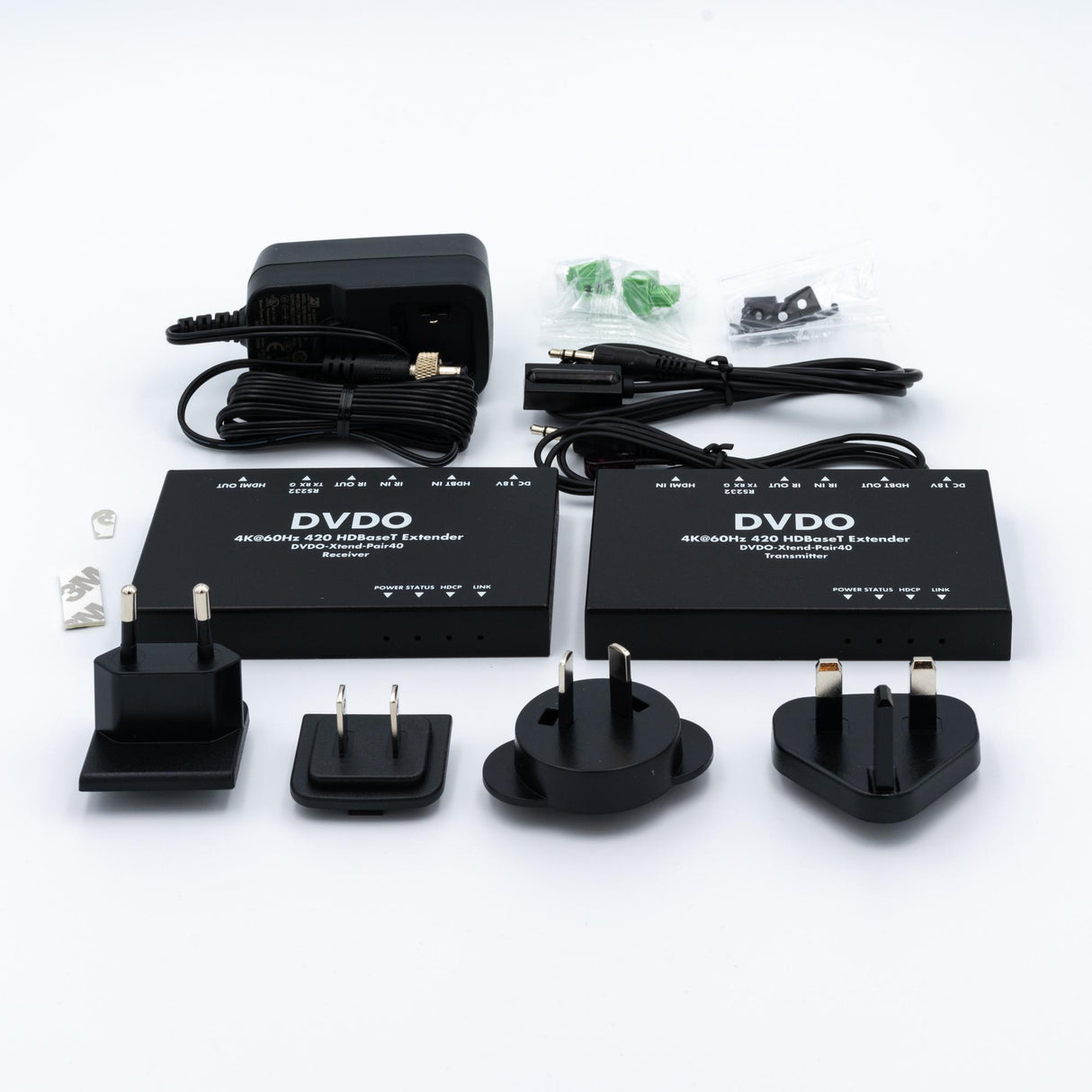

What's Included
- DVDO-Xtend-Pair40 (Transmitter Receiver Set) x 1
- DC 18V 1A Power Adapter (with US, UK, EU, AU Pins) x 1
- IR Emitter x 1
- Broadband IR Receiver (30-50 KHz) x 1
- Phoenix Male Connectors (3.5mm, 3 Pins) x 2
- Mounting Brackets (with Screws) x 4
- User Manual x 1
