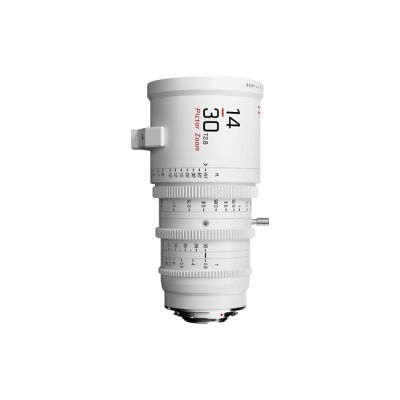

DZOFILM Pictor 14–30 mm T2.8 Super35 Parfocal Zoom Lens (White, PL & Canon EF Mount)
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
DZOFilm Pictor 14–30 mm T2.8 Super35 Parfocal Zoom Lens (White)
The DZOFilm Pictor 14–30 mm T2.8 is a professional wide-angle cine zoom for Super35/APS‑C cameras, offering a constant T2.8 aperture and parfocal design that maintains focus throughout the zoom range. Finished in white, this lens provides consistent gear placement, minimal breathing, and robust build quality for demanding productions.
With a 16-blade iris for smooth bokeh, matched 95 mm front diameter, and both PL (installed) and Canon EF (included, for mirrorless only) mounts, the lens integrates seamlessly into cine workflows. The internal floating focus system ensures reliable sharpness from 2 ft (0.6 m) close focus to infinity. An all-metal housing and included support foot enable secure mounting on a range of rigging setups.
Key Features
- Focal Range: 14–30 mm
- Maximum Aperture: T2.8 (down to T22)
- Parfocal Design: Maintains focus while zooming
- Minimal Breathing: Internal floating optical groups
- Iris: 16-blade rounded diaphragm
- Front Diameter / Filter: 95 mm / 86 mm thread
- Gear Standard: 0.8 MOD pitch (focus/iris/zoom)
- Image Coverage: 31.1 mm (Super35/APS‑C)
- Mounts: PL (installed) and EF (included, for mirrorless only)
- Lens Support Foot: Built-in for rod-based rigs
- Material: Aluminum alloy
Technical Specifications
- Weight: 4.1 lb (1.88 kg)
- Length: 6.8″ (17.3 cm) PL / 7.13″ (18.1 cm) EF
- Optical Construction: 21 elements in 17 groups
- Zoom Ratio: 2.14×
- Minimum Focus Distance: 2 ft (0.6 m)
- Iris Blades: 16
- Gear Pitch: 0.8 MOD
- Rotations: Focus 270°, Iris ~61°, Zoom ~100°
- Image Circle: 31.1 mm
- Filter Thread: 86 mm
- Package Weight: 6.56 lb (2.98 kg)
- Box Dimensions: 13.8″ × 7″ × 7″ (35.1 × 17.8 × 17.8 cm)
What's Included
- DZOFilm Pictor 14–30 mm T2.8 Super35 Zoom Lens (White, PL mount installed)
- Canon EF mount adapter and rear cap
- Front lens cap and PL rear cap
- Shim set and mounting screws
- Lens support foot / rod support base
- Limited 1‑Year Manufacturer Warranty
