E-Image EK50AAM Compact Fluid Drag Video Head and Tripod

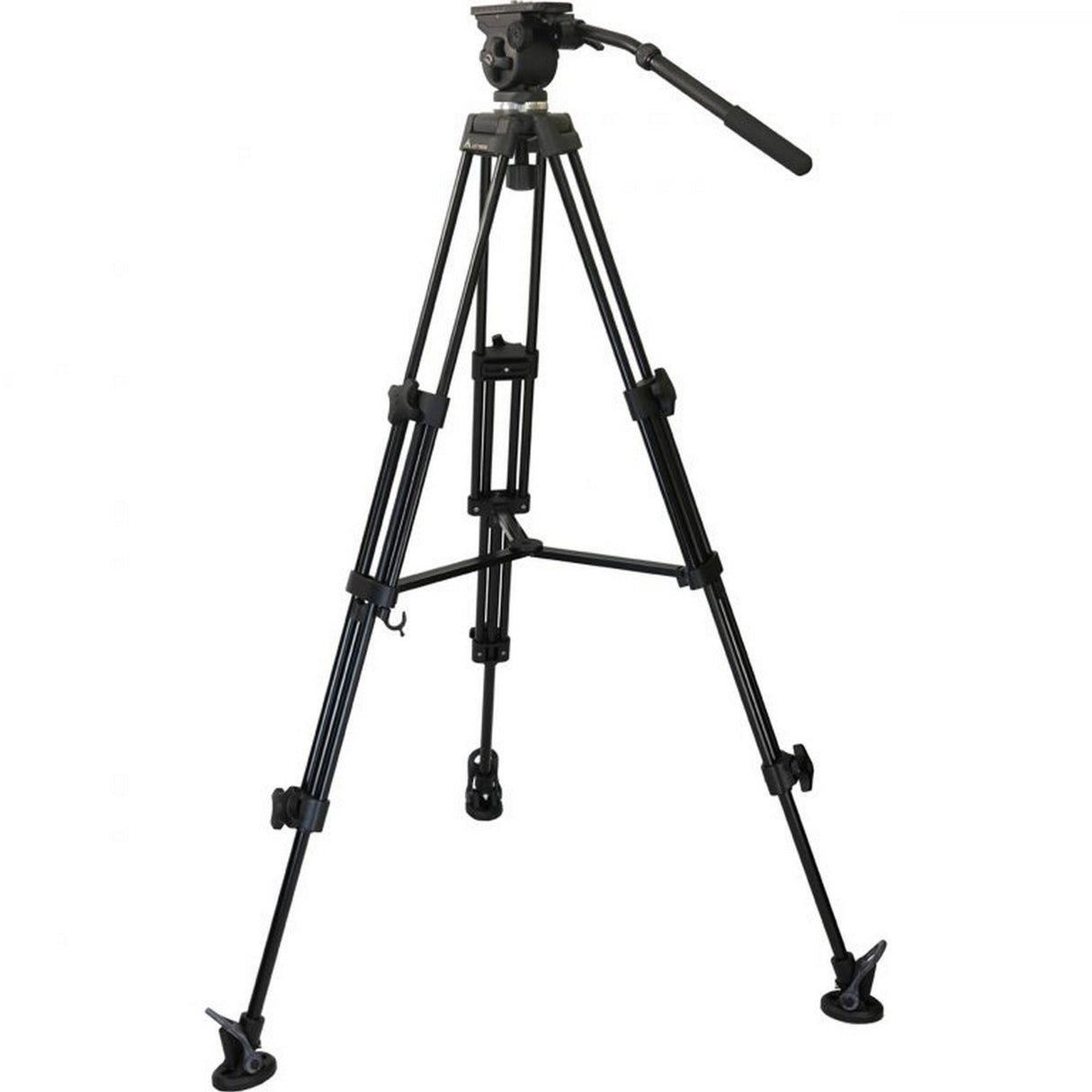

The E-Image EK50AAM Fluid Drag Video Head and Tripod is a video head and dual-stage tripod leg system designed for video cameras weighing up to 13.2 pounds. The head has fixed pan and adjustable tilt fluid drag for smooth camera movements. The included quick-release (QR) plate attaches to your camera with either of the included 1/4ā-20 or 3/8ā-16 camera tie-down screws. With the camera attached, the QR plate snaps into the cradle, which quickly and securely attaches your camera to the tripod head. The QR plate release system features a safety mechanism to help prevent accidentally releasing the plate. The head also features an integrated forward/backward sliding plate which allows you to balance the camera on the head for optimal operation on a shot-by-shot need.
The tripod legs are made of an anodized aluminum alloy, with a fixed mid-level spreader and rotary clamping leg locks. The foot spikes are covered by removable anti-slip pads, and an integrated elastic leg wrap helps keep the legs closed for transport.
Fluid Head
Load Capacity
13.2 lb
Fluid Drag
Tilt
Adjustable
Pan
Fixed
65mm Half ball for fast leveling
Bubble level
90 Tilt down-the camera can point straight down
75 Tilt up
360 Panning
Mounting rosettes on the left and right sides
Legs
Load Capacity
13.2 lb
Built-in fixed spreader
Working Height Range
31 to 64ā
Rotary clamp leg locks
Foot spikes
Removable anti-slip pads/foot spike protectors
Integrated leg wrap bungee and clip
Folded Size
32ā
Key Features
- 13.2 lb Capacity Fluid Drag Tripod Head
- Quick Release Plate and Balance System
- Spring-Loaded Counterbalance System
- Adjustable Tilt Drag
Technical Specifications
What's Included
1x E-Image EK50AAM Fluid Drag Video Head and Tripod
1x Quick Release Plate
1x 1/4"-20 Camera Screw
1x 3/8"-16 Camera Screw
1x Pan Handle (14.5", Non-Extendable)
1x Soft Travel Case
Bowl Size
65 mm Half ball
Bubble Level
Yes, non-illuminated
Build Material
Anodized aluminum alloy
Collapsed Length
32" (83 cm)
Counterbalance System
Spring-loaded
Fixture Weight
9.5 lb (4.3 kg)
Head Payload Capacity
13.2 lb (6 kg)
Height Range
Maximum 64" (160 cm) Minimum 31" (79 cm)
Leg Lock Type
Rotary clamp
Leg Stages Sections
Two-stage
Max Range
Pan 360
Mounting Plate
Camera Mounting Screws 1/4"-20 3/8"-16
Pan Drag Settings
Fixed fluid
Quick Releasewedge Plate
Non-sliding type 2.7 x 1.7 x 0.3" (69 x 42 x 7 mm)
Rosette
Pan Handle 2 x Rosettes (one each L/R)
Spikedretractable Feet
Non-retractable spikes with removable spike protectors
Spreader Type
Mid-level (non-removable / non-adjustable)
Tilt Drag
Adjustable fluid
Tilt Lock
Yes
Tilt Range
+90 to -75
