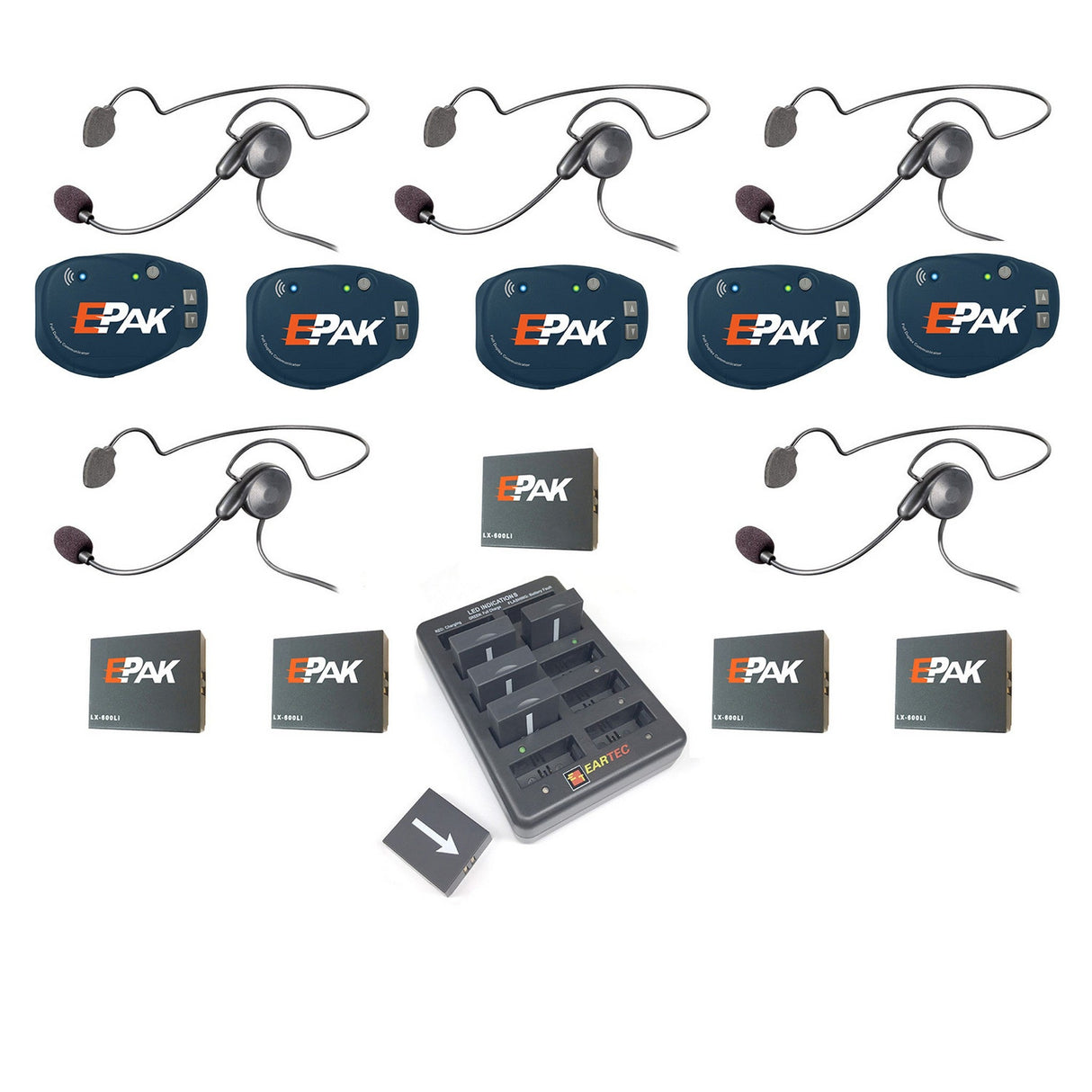

Eartec EP5CYB E-PAK 5-Person Cyber Headset System

The E-Pak compact full duplex transceiver provides hands free, simultaneous talk communication and also includes a second RF module that allows use of lightweight wireless headsets.

These lightweight, digital transceivers weigh only 2.5 oz. and can be worn tucked inside a pocket or clipped to clothing. To operate simply snap in a charged Li-poly battery (included), turn the units “ON” and pair with headset. All radios in a system automatically connect providing an open line talking pattern for up to nine users within a 300-yard range.

Frequency Hopping is the name of the specialty wireless protocol utilized by all E-Pak systems to dodge or circumvent interference. Since they only transmit on frequencies that are clear multiple E-Pak systems can easily work in harmony in the same venue and will not interfere with other wireless equipment.

E-Pak feature field programmable circuity so smaller systems are easily expandable.

Key Features

• 5-Person Headset System
• Connects wirelessly to E-Pak
• Discreet & bone conduction
• Leaves ears free
• IP 65 Rated - Water Resistant
• Volume adjustment located on mic capsule
• A Mute switch conveniently silences the microphone signal whenever necessary.
• Two pin wired headset jack built into radio chassis.
• Wired style headsets optional.
• 1- E-PAK MAIN Transmitter 1- E-PAK REMOTE Transmitter 2- Cyber wired plug-in headsets 1- 2-Port Charger w/ Adpater 2X Lithium-Polymer Batteries 1- Small Soft Padded Case

Technical Specifications

Frequency Range
2407MHz-2475MHz
Data Rate
1MBPS
Bandwidth
150KHz
Channel Spacing
1MHz
Modulation Type
GFSK
Gain of Antenna
0db
Duplexing
Time Division Duplex (TDD)
Speech Encoding
ADPCM/16kbIt's
RF Accessing
Time Division Multiple Access (TDMA)
Power Supply
Rechargeable Li-polymer Battery @ 3.7v/800mAH
RF Output Power
80mw
Operating Temperature
0 - +50 Degrees C
Operating Relative Humidity Range
30% - 90%
Operation Current
110mA
Operation Time
6h
Range
300 yards in open space
