Earthworks DK3 Drumeo Edition 3-Piece Drum Microphone Kit

Earthworks DK3 Drumeo Edition 3-Piece Drum Microphone Kit

The Earthworks DK3 Drumeo Edition Drum Microphone Kit combines two SR20 G2 cardioid overhead condenser microphones with a DM6 supercardioid kick drum microphone. This three-microphone configuration captures an acoustic drum kit through a stereo overhead pair and dedicated bass drum channel. All three microphones feature XLR outputs and require 48V phantom power.

Developed in partnership with Drumeo, the DK3 provides a practical solution for drummers building a home recording studio, engineers upgrading their drum microphone setup, and musicians recording live performances. The SR20 G2 overhead microphones capture cymbal articulation, snare attack, tom resonance, and the overall balance of the drum kit. Meanwhile, the DM6 bass drum microphone delivers focused low-frequency reproduction with a contoured frequency response designed for kick drum applications. This three-piece drum recording microphone package supports stereo recording techniques without requiring individual microphones on every drum.

Each microphone uses a pre-polarized condenser capsule designed to reproduce fast transients and accommodate high sound pressure levels. The stainless steel construction supports regular use in recording studios and live sound environments. The microphones connect to compatible audio interfaces, mixing consoles, and microphone preamplifiers supplying 48V phantom power. A protective carrying case, microphone mounting accessories, and exclusive Drumeo educational content complete this professional drum recording package.

Key Features

• Three-Microphone Drum Recording System: Includes two SR20 G2 overhead microphones and one DM6 kick drum microphone for capturing an entire acoustic drum kit.
• SR20 G2 Cardioid Overheads: Capture cymbals, drums, and room detail while providing directional control over unwanted sound.
• DM6 Supercardioid Kick Microphone: Features a frequency response tailored for bass drum recording, emphasizing low-frequency impact and beater definition.
• High SPL Handling: Supports demanding percussion applications, with maximum acoustic input ratings reaching 155 dB SPL for the SR20 G2 and greater than 160 dB SPL for the DM6 at 10% THD.
• Small-Diaphragm Condenser Design: Uses 0.4-inch diaphragms to capture percussion transients and dynamic performance details.
• Professional XLR Connectivity: Integrates with compatible recording interfaces, preamplifiers, and mixers providing 48V phantom power.
• Protective Travel Case: Includes a dedicated case for storing and transporting the microphones and accessories.
• Drumeo Educational Bundle: Includes redemption access for 30 days of Drumeo content, a dedicated microphone recording tutorial series, and the Universal Audio Helios Type 69 Preamp and EQ Collection software plugin.

Three-Microphone Drum Recording Configuration

The DK3 uses two overhead microphones to capture a stereo representation of the drum kit while the DM6 provides an independent bass drum signal. This arrangement helps maintain a cohesive drum sound while reducing the microphone count required for recording.

SR20 G2 Overhead Microphones

The included SR20 G2 microphones feature cardioid polar patterns and a frequency response extending from 20 Hz to 20 kHz. Their directional pickup makes them suitable for capturing overhead drum signals while controlling sound arriving from behind the microphones. Recording engineers can configure the pair using spaced or coincident stereo microphone techniques.

DM6 Kick Drum Microphone

The DM6 uses a supercardioid pickup pattern to concentrate on the bass drum while reducing sound entering from the sides and rear. Its frequency response is shaped to control excessive low-midrange buildup inside the drum and capture low-frequency energy alongside the attack of the beater. The included Triad-Orbit M2-R ball mount allows flexible microphone positioning.

Technical Specifications

DK3 Microphone Kit

• Brand: Earthworks Audio
• Model: DK3 Drumeo Edition
• Product Type: Three-Piece Drum Microphone Kit
• Microphone Quantity: 3
• Overhead Microphones: 2 x SR20 G2
• Bass Drum Microphone: 1 x DM6
• Microphone Technology: Pre-Polarized Condenser
• Audio Connectivity: XLR
• Power Requirements: 48V Phantom Power
• Microphone Construction: Stainless Steel
• Microphone Finish: Silver and Black
• Kit Dimensions (L x W x H): 11.6" x 7.4" x 3.6"
• Kit Weight: 3.7 lb

SR20 G2 Overhead Microphone Specifications

• Microphone Model: SR20 G2
• Quantity: 2
• Microphone Type: Pre-Polarized Condenser
• Diaphragm Diameter: 0.4"
• Polar Pattern: Cardioid
• Frequency Response: 20 Hz to 20 kHz
• Sensitivity at 1 kHz: -50 dBV/Pa (3.2 mV/Pa)
• Maximum SPL at 3% THD: 148 dB SPL
• Maximum Acoustic Input at 10% THD: 155 dB SPL
• Self-Noise: 25 dBA (A-Weighted)
• Power Requirements: 48V Phantom Power (P48)
• Phantom Power Current Consumption: 6 mA
• Minimum Load Impedance: 1 kOhm
• Construction: Machined Stainless Steel
• Finish: Silver and Black
• Dimensions (Length x Diameter): 4.1" x 0.9"
• Weight: 0.3 lb per microphone

DM6 Bass Drum Microphone Specifications

• Microphone Model: DM6
• Quantity: 1
• Microphone Type: Pre-Polarized Condenser
• Diaphragm Diameter: 0.4"
• Polar Pattern: Supercardioid
• Frequency Response: 20 Hz to 20 kHz
• Sensitivity at 1 kHz: -60 dBV/Pa (1 mV/Pa)
• Maximum SPL at 3% THD: 150 dB SPL
• Maximum Acoustic Input at 10% THD: Greater Than 160 dB SPL
• Power Requirements: 48V Phantom Power (P48)
• Phantom Power Current Consumption: 6 mA
• Minimum Load Impedance: 1 kOhm
• Construction: Machined Stainless Steel Body and Tip with Painted Steel Windscreen
• Finish: Silver and Black
• Dimensions (Length x Diameter): 5" x 1.9"
• Weight Without M2-R Mount: 0.9 lb
• Weight With M2-R Mount: 1.3 lb
• Included Mount: Triad-Orbit M2-R Ball Mount

What's In the Box

• 2 x Earthworks SR20 G2 Overhead Condenser Microphones
• 1 x Earthworks DM6 Bass Drum Condenser Microphone
• 2 x MC1 Microphone Clips
• 1 x Triad-Orbit M2-R Ball Mount
• 2 x SRW3 Foam Windscreens
• 3 x Microphone Stand Thread Adapters
• 1 x Printed Quick Start Guide

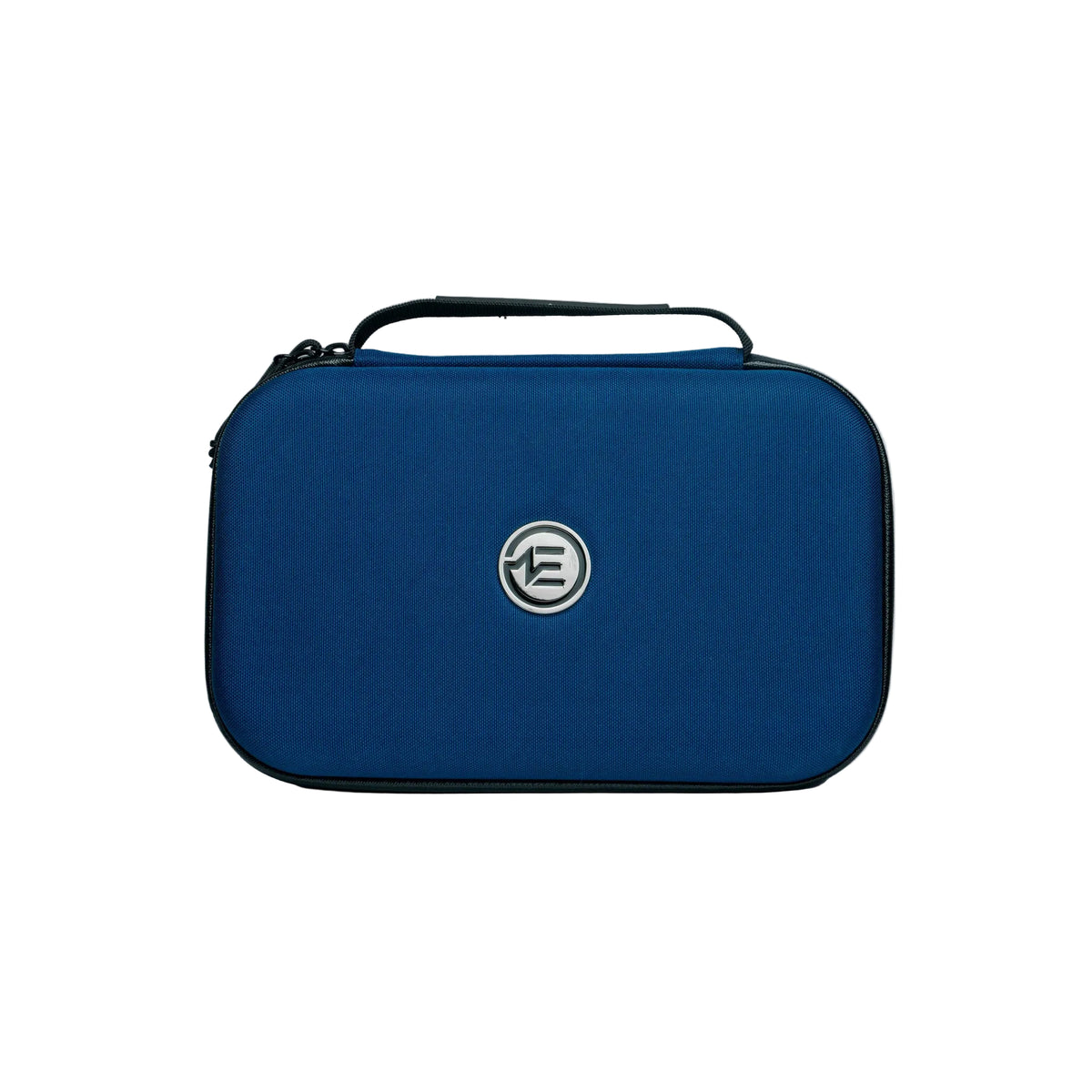

• 1 x Protective Travel and Storage Case
• 30-Day Drumeo/Musora Membership Redemption Access
• Access to a Dedicated Drumeo Microphone Recording Tutorial Series
• Universal Audio Helios Type 69 Preamp and EQ Collection Software Redemption
