Description

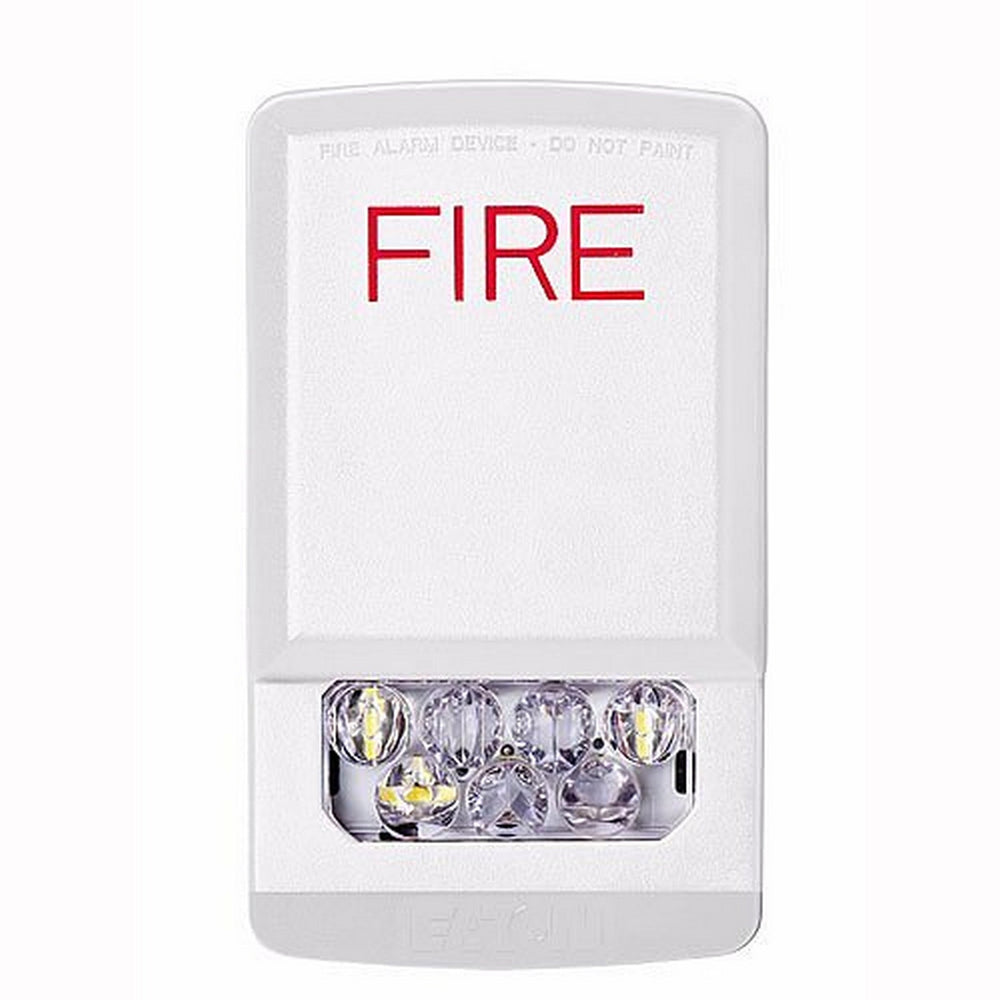

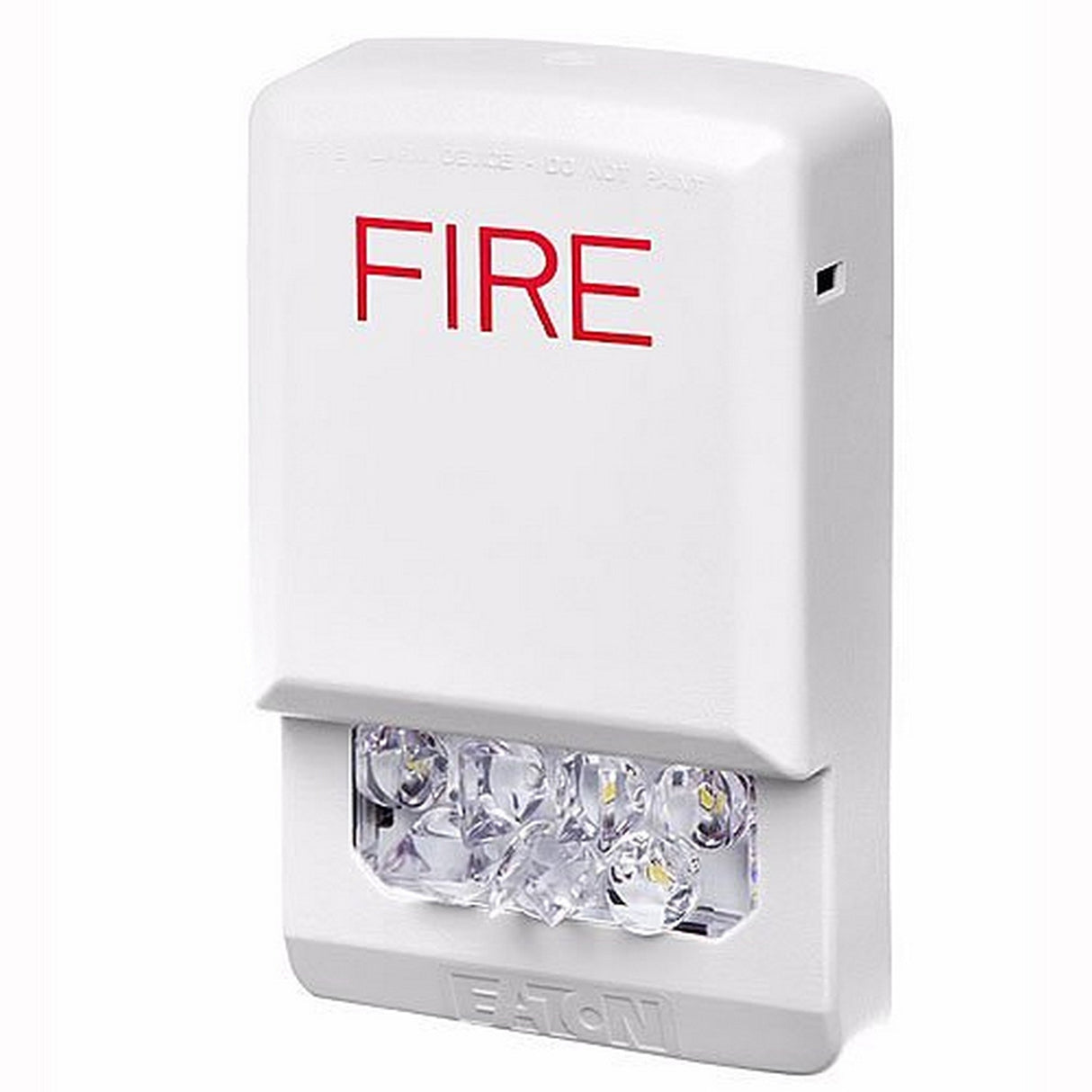

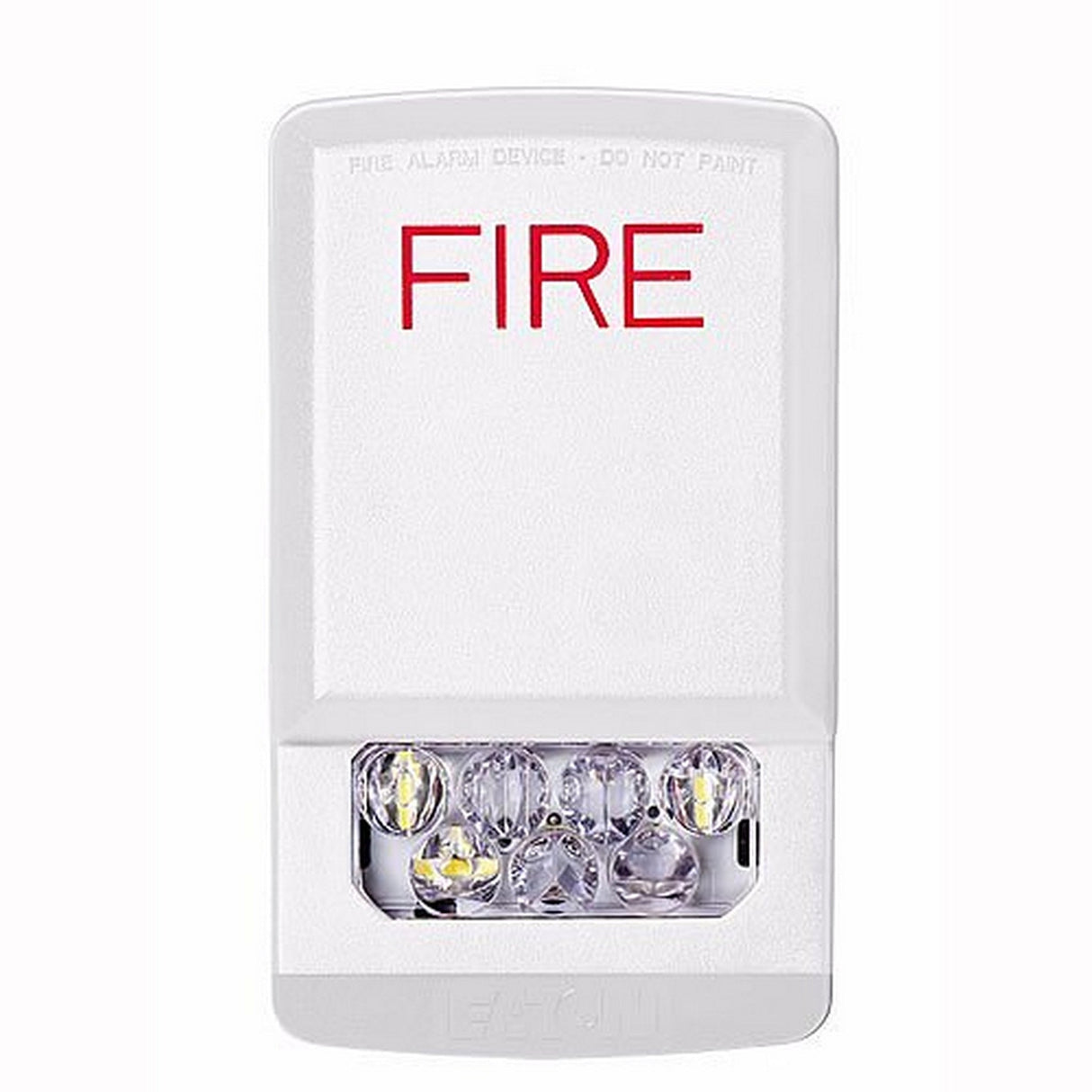

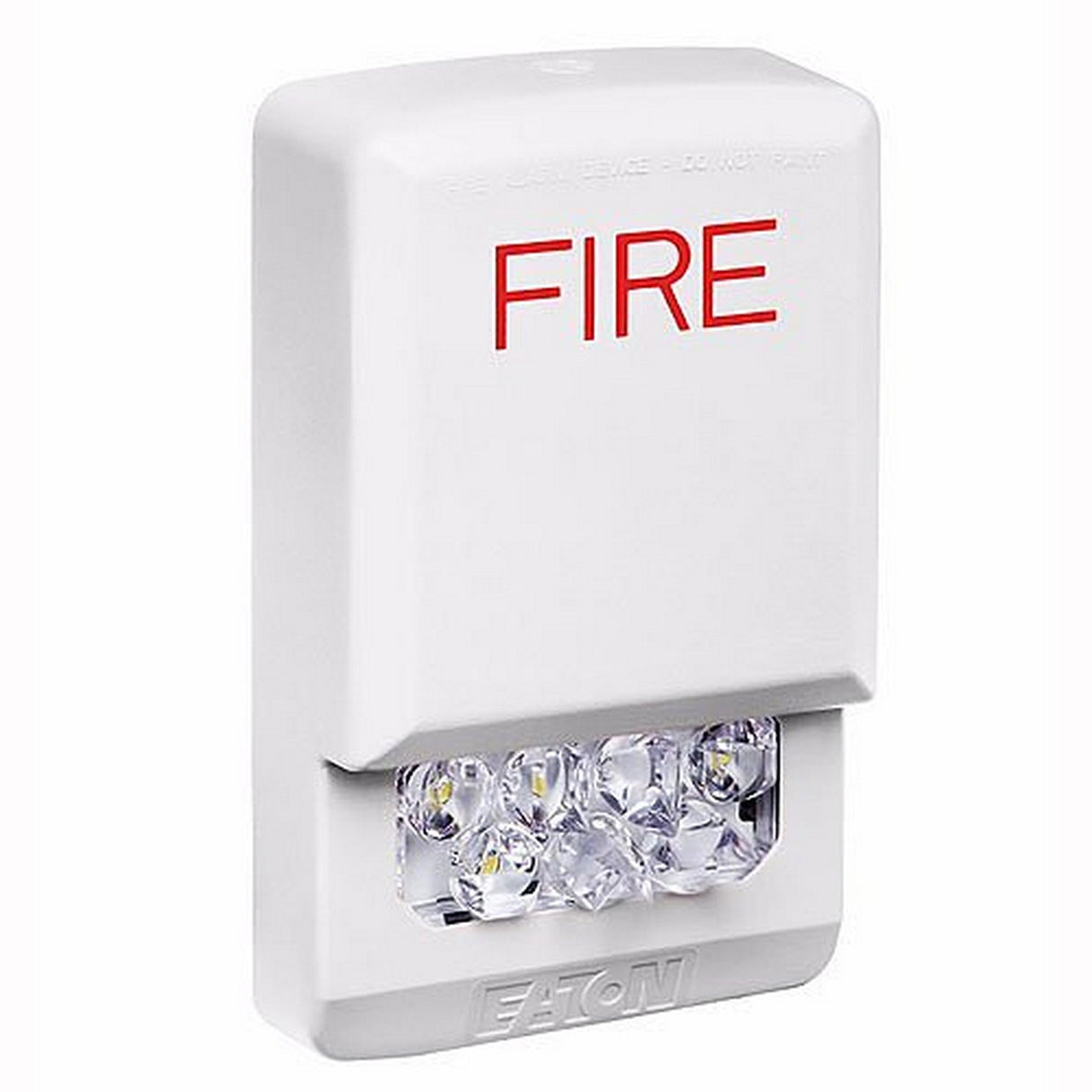

Eaton ELSTW Wheelock Eluxa Fire Wall LED Strobe Light, White
The Eaton ELSTW Wheelock Eluxa LED Wall Fire Strobe is a white, wall-mount visual notification appliance with FIRE lettering, a clear Lexan lens, and selectable 15/30/75/110/135/185 candela output for indoor fire alarm signaling systems.
Designed for commercial life-safety installations, this Eluxa LED strobe supports new construction, system upgrades, and replacement projects where a compact white fire alarm strobe is required. Its low-profile housing helps installers deliver code-focused visual notification while maintaining a clean appearance in offices, schools, healthcare facilities, and public buildings.
LED technology helps reduce current draw compared with older visual notification designs, supporting efficient fire alarm system planning. The ELSTW is UL and ULC listed, operates on 24V service, and mounts to wall applications with the included mounting plate for professional installation.
Key Features
- Wall-Mount LED Strobe: Provides visual fire alarm notification for indoor wall applications.
- Selectable Candela Output: Offers 15, 30, 75, 110, 135, and 185 cd settings in one device.
- White Low-Profile Housing: Blends into modern interiors while maintaining visible FIRE lettering.
- Clear Lexan Lens: Uses a durable clear lens material for reliable visual signaling.
- 24V Operation: Designed for compatible 24V fire alarm notification circuits.
- Indoor Installation: Rated for indoor environments from 32°F to 122°F.
- UL and ULC Listed: Supports professional fire alarm and life-safety system requirements.
Technical Specifications
- Product Name: Eaton Eluxa Strobe
- Catalog Number: ELSTW
- Product Type: Strobe
- Mounting Method: Wall
- Housing Color: White
- Lettering: FIRE
- Lens Color: Clear
- Lens Material: Lexan
- Lamp Type: LED
- Voltage: 24V
- Current Draw (DC): 0.185
- Candela Settings: 15 cd, 30 cd, 75 cd, 110 cd, 135 cd, 185 cd
- Indoor/Outdoor: Indoor
- Operating Temperature: 32°F to 122°F
- Compliance and Standards: UL, ULC
- Dimensions: 1.57" L x 2.76" W x 4.79" H
- Weight: 0.328 lbs
What's Included
- Eaton ELSTW Wheelock Eluxa LED Wall Fire Strobe: White housing with FIRE lettering and clear lens
- Mounting Plate: Included for installation
