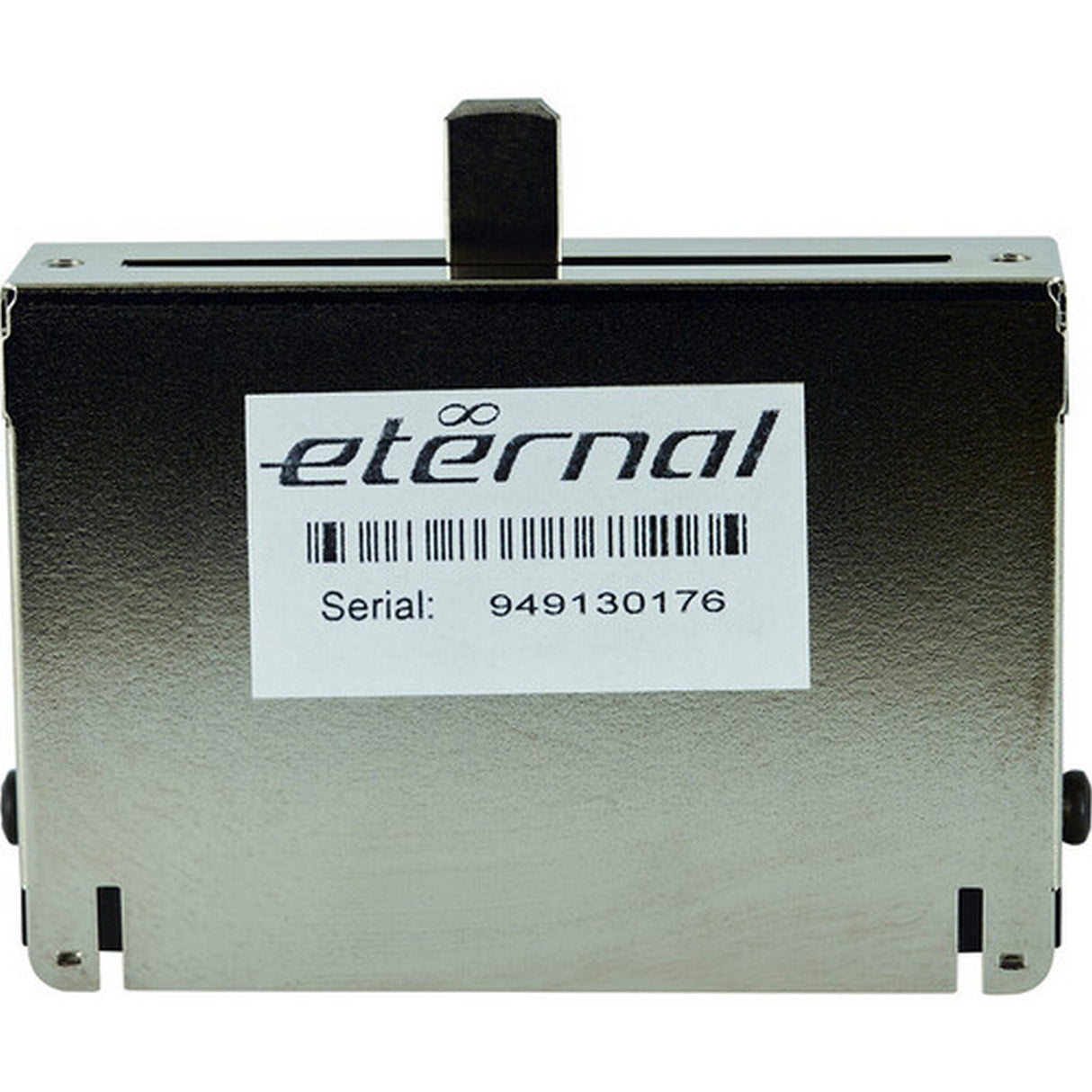

Ecler ETER-FADER ETERNAL Inductive DJ Crossfader

Ecler ETER-FADER ETERNAL Inductive DJ Crossfader

The Ecler ETER-FADER ETERNAL Inductive DJ Crossfader is a contactless replacement fader for compatible Ecler NUO and HAK mixers. Its patented magnetic sensing system controls the audio without a conventional resistive track, supporting smooth movement, precise cuts, and long-term performance for scratching, beat juggling, and conventional channel blending.

An ultralight aluminum screen moves through a magnetic field generated between two coil sets. This movement controls a voltage-controlled amplifier, or VCA, which adjusts the signal level electronically. The design avoids optical sensors and sliding electrical contacts, helping the fader withstand smoke, moisture, temperature changes, aging, and intensive use in clubs or mobile DJ systems.

Ecler combines the inductive system with a custom mechanical glide assembly for fast, controlled movement during demanding turntablist routines. The technology has undergone testing exceeding 20 million operations. Confirmed mixer compatibility includes the NUO2.0, NUO3.0, NUO4.0, NUO4.0F, HAK 360, and HAK 380. Installation uses the mixer's multipin connection and should be completed by a qualified technician.

Key Features

• Contactless Inductive Operation: Controls mixer levels magnetically without a conventional resistive fader track.
• Patented Magnetic Control: Converts fader movement into precise VCA gain and attenuation changes.
• Turntablist Response: Supports rapid cuts, scratching, beat juggling, and other movement-intensive techniques.
• Custom Glide Mechanism: Provides smooth mechanical travel for accurate fades and repeated performance use.
• Environmental Resistance: The inductive design resists smoke, moisture, temperature changes, and age-related optical degradation.
• Extended Operating Life: Field-tested technology withstands more than 20 million operations.
• Original Ecler Upgrade: Replaces the standard crossfader in specified NUO and HAK mixer models.

Technical Specifications

• Brand: Ecler
• Model: ETER-FADER
• Product Line: ETERNAL
• Product Type: Replacement DJ mixer crossfader
• Fade Technology: Contactless inductive sensing
• Control Method: Patented magnetic control system
• Signal Control: Voltage-controlled amplifier gain and attenuation

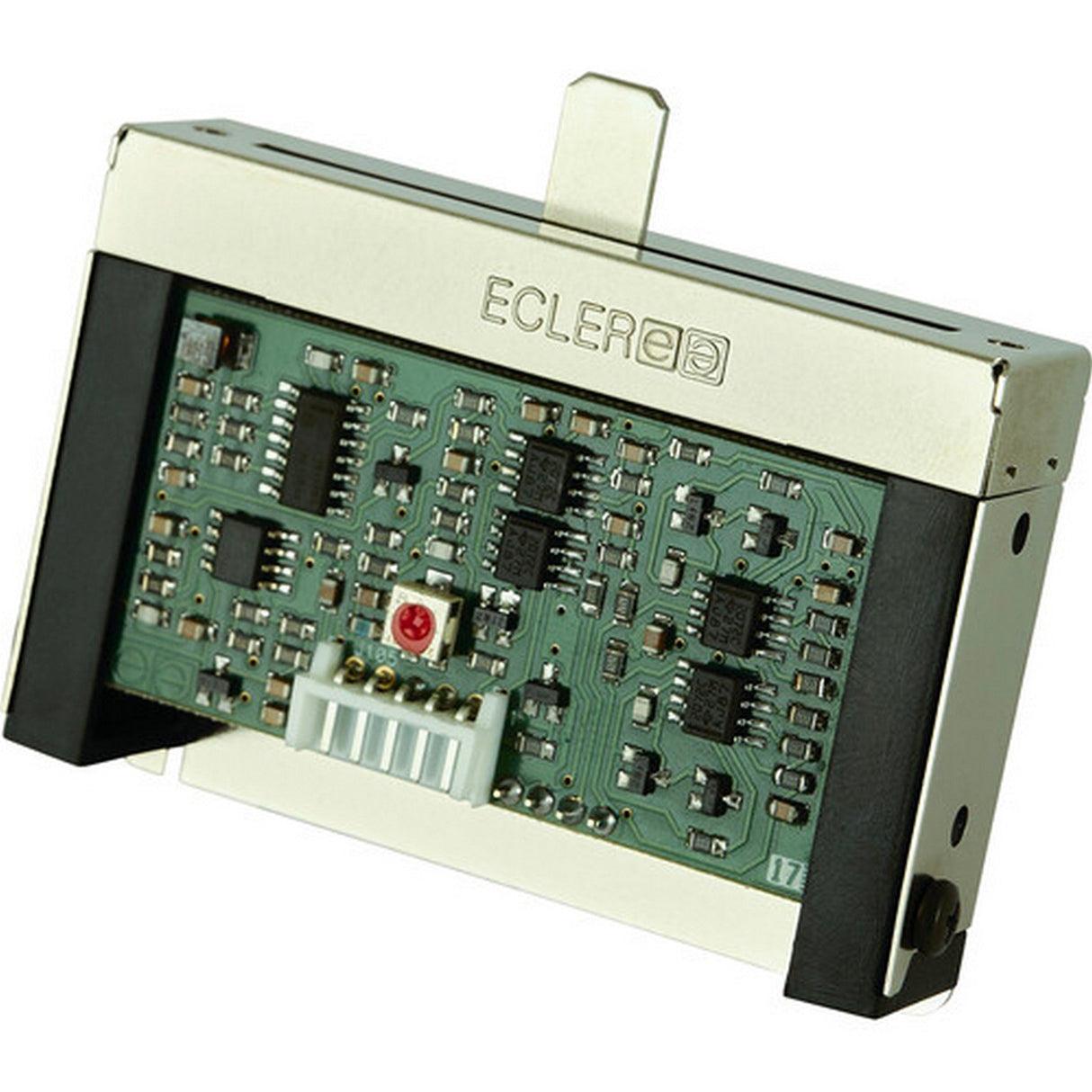

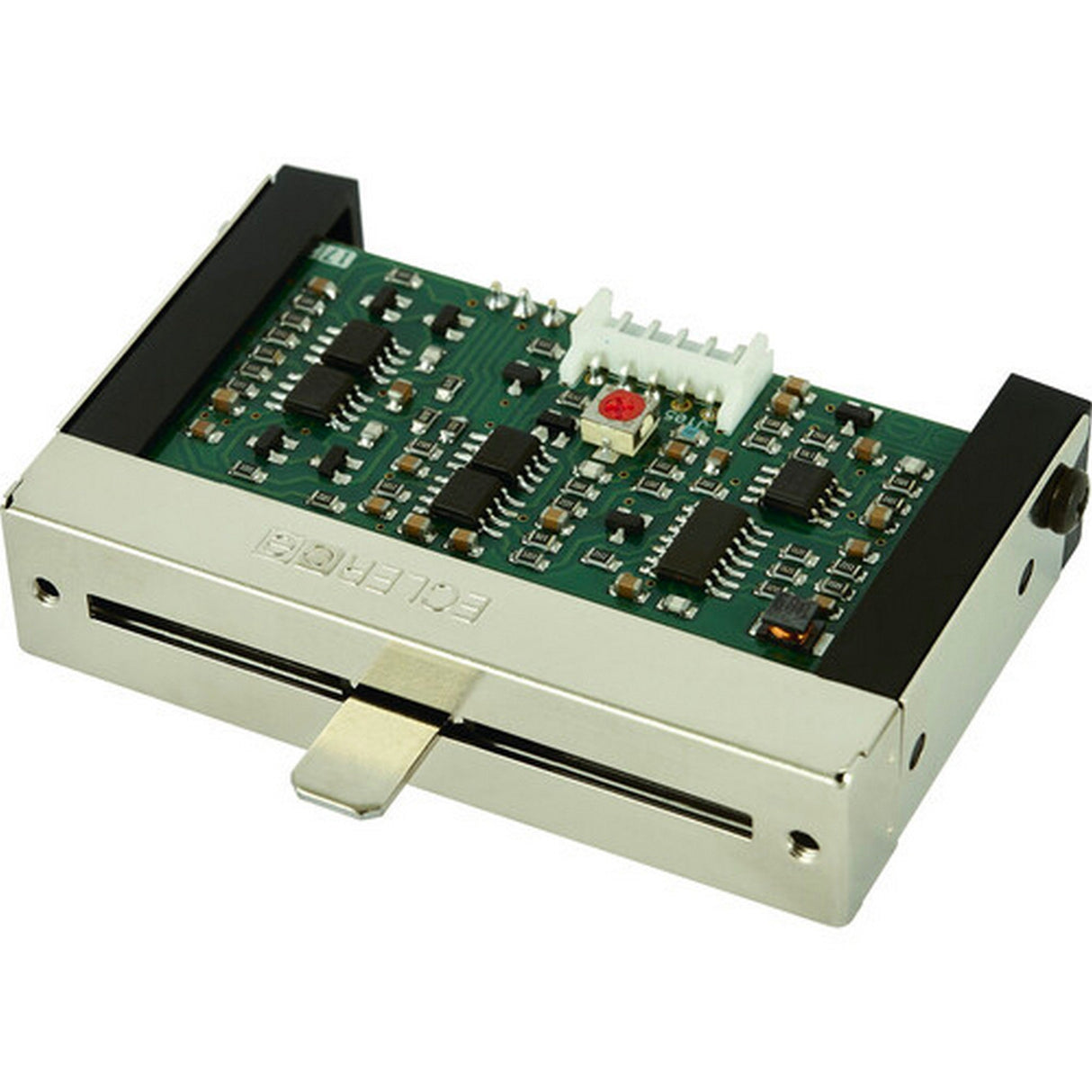

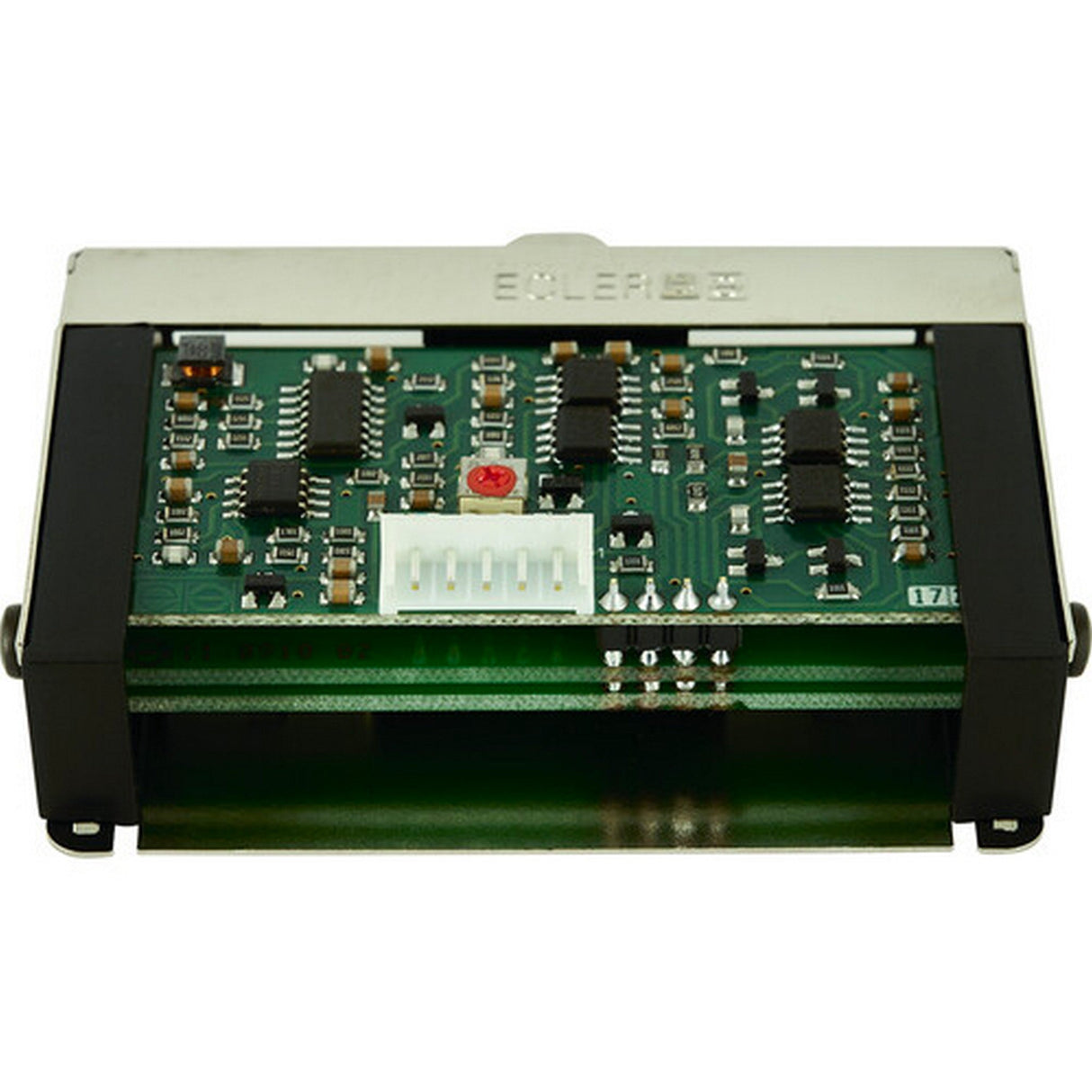

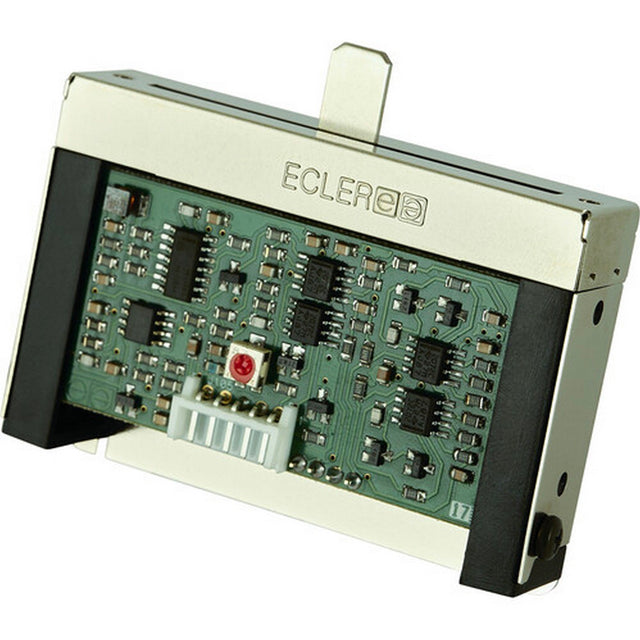

• Sensing Component: Ultralight aluminum screen operating between two coil sets
• Mechanical System: Custom glide mechanism
• Tested Operating Life: More than 20,000,000 operations
• Environmental Resistance: Smoke, moisture, temperature changes, and aging
• Connection: Multipin mixer connector
• Mounting: Integrated mounting assembly secured with two screws
• Finish: Silver
• Construction: Metal housing with integrated electronic assembly
• Compatible Current Mixer: Ecler NUO4.0F
• Compatible Legacy Mixers: Ecler NUO2.0, NUO3.0, NUO4.0, HAK 360, and HAK 380
• Installation Requirement: Installation by a qualified technician using original Ecler replacement parts

What's In the Box

• Ecler ETER-FADER ETERNAL inductive crossfader
