Ecler NUO 2.0 2-Channel Analog DJ Mixer

Ecler NUO 2.0 Professional 2-Channel Analog DJ Mixer

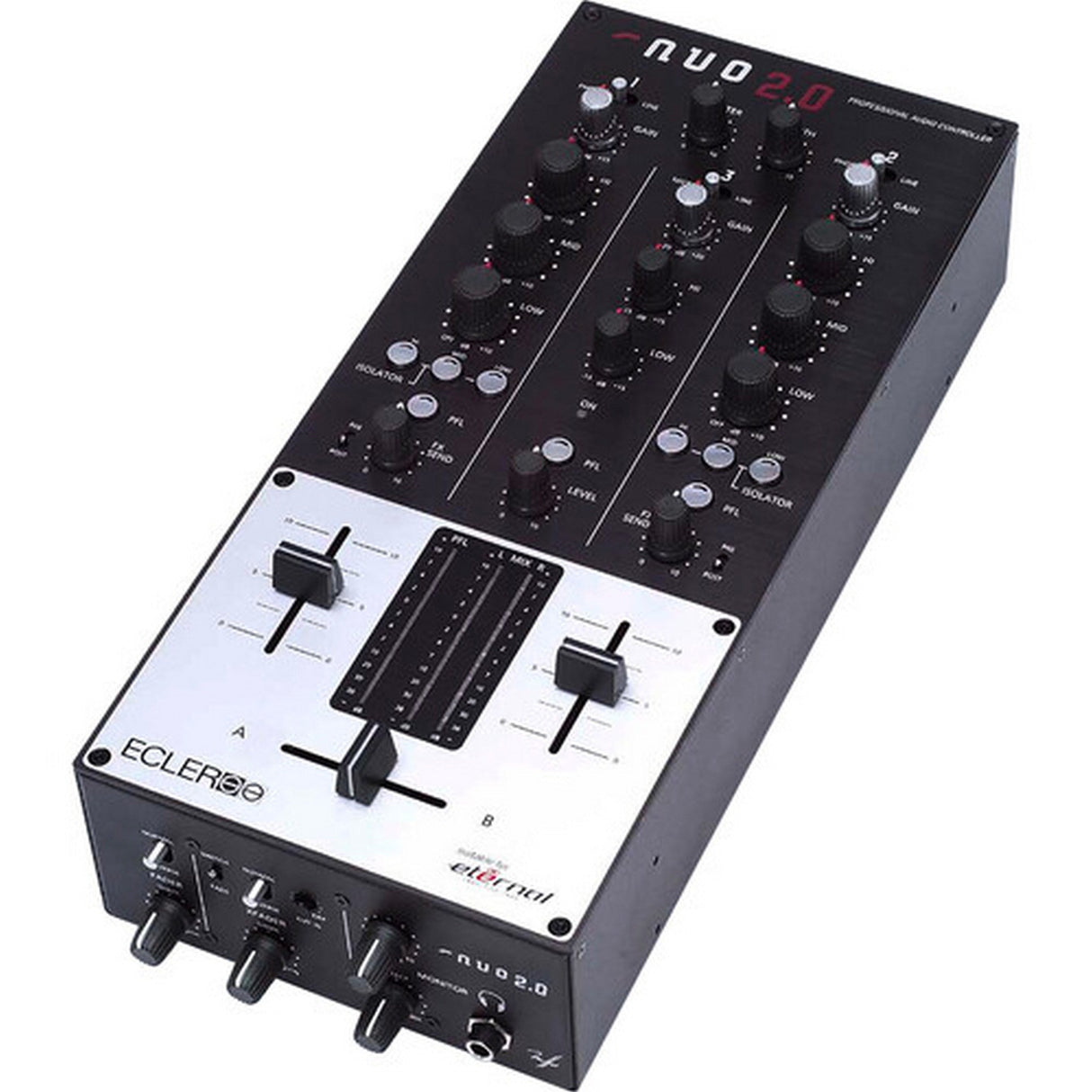

The Ecler NUO 2.0 Professional 2-Channel Analog DJ Mixer combines two stereo mixing channels with a dedicated microphone/line channel, full-cut three-band EQ, adjustable 45 mm VCA faders, and external effects routing. It supports turntables, line-level players, microphones, booth monitoring, recording, and balanced master connections in a compact desktop format.

Channels 1 and 2 each accept phono or line-level sources, making the mixer suitable for vinyl turntables, media players, and digital DJ decks. Independent gain, three-band equalization, frequency kill switches, pre-fader listening, and effects-send controls support smooth blends, rapid cuts, and creative processing. Adjustable fader and crossfader curves also accommodate mixing and scratching techniques.

Ecler designs and manufactures the NUO 2.0 in Barcelona for nightclub booths, mobile DJ systems, fitness facilities, and other professional installations. Voltage-controlled amplifier (VCA) channel faders provide precise level control without carrying the audio signal directly through the fader track. The replaceable crossfader also accepts the optional Ecler ETERNAL magnetic crossfader.

Key Features

• Two-Channel Mixing Layout: Controls two stereo program channels alongside a separate microphone or line-level channel.
• Flexible Source Connections: Accepts two phono sources, three line-level sources, and a balanced microphone input.
• Full-Cut Three-Band EQ: Provides wide bass, midrange, and treble adjustment for detailed tonal shaping.
• Frequency Kill Switches: Instantly isolates the low, mid, or high band on either primary mixing channel.
• External Effects Loop: Sends each program channel to an external processor before or after its channel fader.
• Adjustable VCA Faders: Includes 45 mm channel faders with selectable response curves and reverse operation.

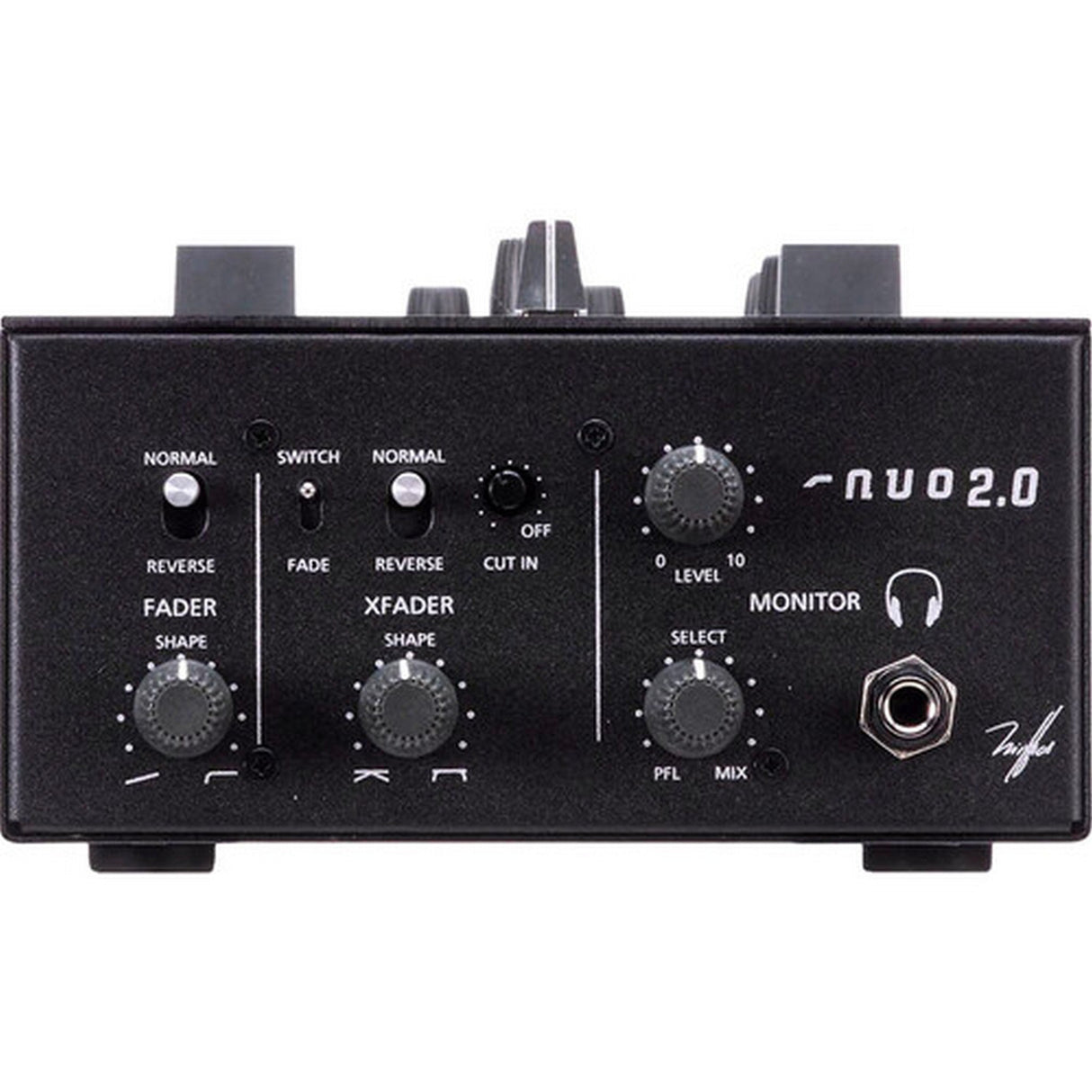

• Configurable Crossfader: Offers curve, reverse, and cut-in controls with support for the optional ETERNAL crossfader.
• Professional Output Routing: Supplies balanced and unbalanced master, booth, record, effects-send, and headphone outputs.

Technical Specifications

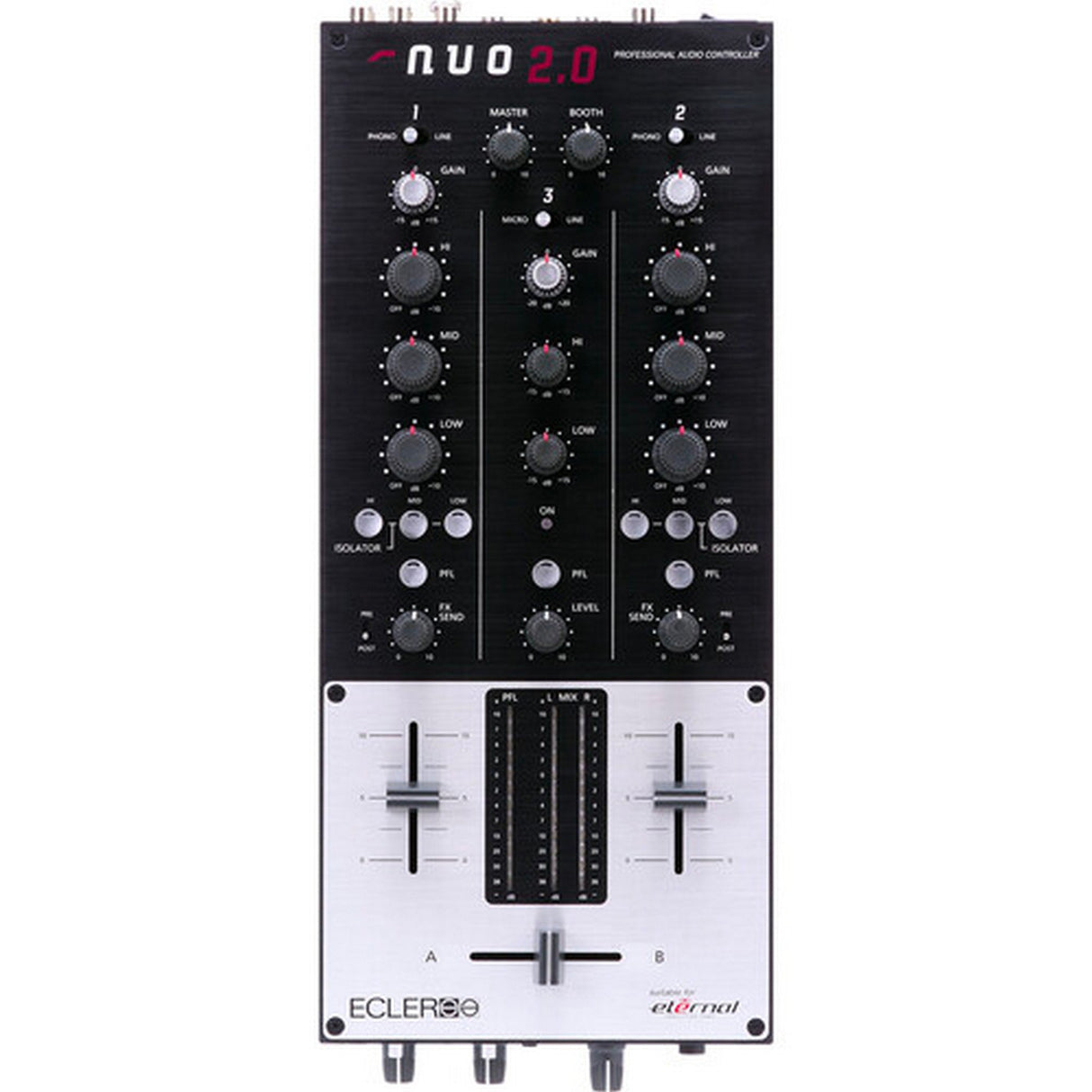

Mixer and Performance Controls

• Product Type: Professional analog DJ mixer
• Mixing Configuration: Two stereo mixing channels plus one microphone/line channel
• Channel Faders: Two 1.8-inch voltage-controlled amplifier faders
• Crossfader: One 1.8-inch voltage-controlled amplifier crossfader
• Channel Fader Controls: Adjustable curve and reverse function
• Crossfader Controls: Adjustable curve, reverse function, and cut-in adjustment
• Crossfader Compatibility: Optional Ecler ETERNAL magnetic crossfader
• Built-In Effects: No
• Effects Routing: Independent FX send level for channels 1 and 2 with pre-fader or post-fader selection
• Monitoring: Pre-fader listening with adjustable PFL and master-mix headphone blend
• Main Metering: Two 12-segment LED meters
• PFL Metering: One 12-segment LED meter
• Meter Range: -38 to +10 dB before clipping

Audio Inputs

• Line Inputs: Three stereo unbalanced RCA inputs
• Phono Inputs: Two stereo unbalanced RCA inputs
• Microphone Input: One balanced 1/4-inch TRS input
• Effects Return: One stereo unbalanced RCA input
• Ground Connection: One phono ground terminal
• Line Input Sensitivity and Impedance: 0 dBV at 50 kilohms
• Phono Input Sensitivity and Impedance: -40 dBV at 50 kilohms
• Microphone Input Sensitivity and Impedance: -50 dBV at greater than 1 kilohm
• Effects Return Sensitivity and Impedance: 0 dBV at greater than 6 kilohms
• Recommended Microphone Impedance: 200 to 600 ohms

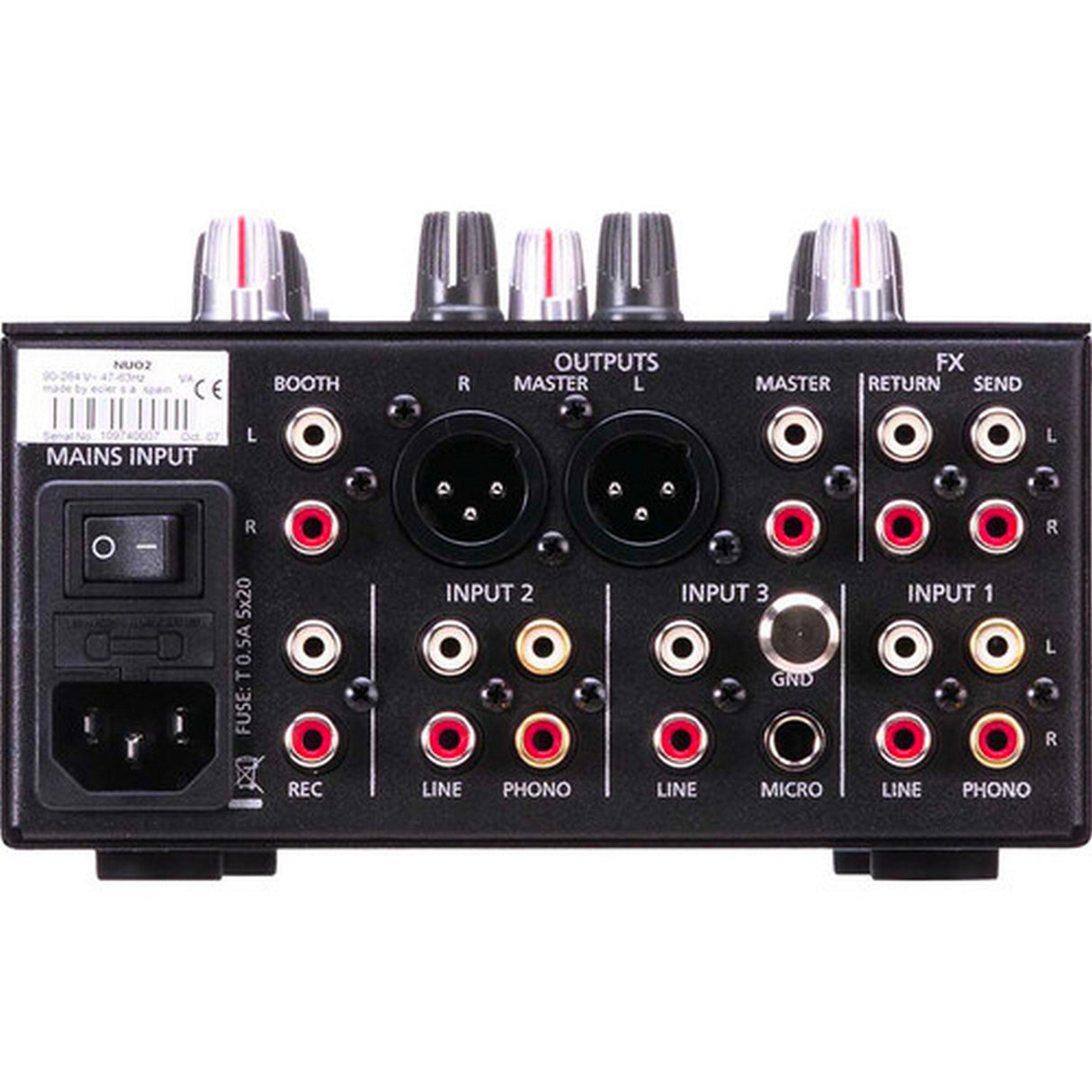

Audio Outputs

• Balanced Master Output: Two 3-pin XLR connectors
• Unbalanced Master Output: One stereo RCA pair
• Booth Output: One stereo unbalanced RCA pair
• Record Output: One stereo unbalanced RCA pair
• Effects Send: One stereo unbalanced RCA pair
• Headphone Output: One 1/4-inch stereo jack
• Balanced Master Level: 0 dBV into 600 ohms, internally selectable to +6 dBV
• Unbalanced Master Level: 0 dBV into 2.2 kilohms, internally selectable to +6 dBV
• Booth Output Level: 0 dBV into 2.2 kilohms, internally selectable to +6 dBV
• Record Output Level: 0 dBV into 10 kilohms
• Effects Send Level: 0 dBV into 2.2 kilohms
• Headphone Output Power: 200 mW into 200 ohms at 1% THD
• Recommended Headphone Impedance: 200 to 600 ohms

Frequency Response and Audio Performance

• Line Frequency Response: 10 Hz to 30 kHz, -1 dB
• Microphone Frequency Response: 10 Hz to 25 kHz, -1 dB
• Phono Frequency Response: RIAA within +/-0.5 dB
• Effects Return Frequency Response: 10 Hz to 50 kHz, -1 dB
• Line THD+N: Less than 0.07%
• Microphone THD+N: Less than 0.1%
• Phono THD+N: Less than 0.15%
• Effects Return THD+N: Less than 0.05%
• Microphone CMRR: Greater than 70 dB at 1 kHz
• Line Signal-to-Noise Ratio: Greater than 95 dB
• Microphone Signal-to-Noise Ratio: Greater than 85 dB
• Phono Signal-to-Noise Ratio: Greater than 90 dB
• Effects Return Signal-to-Noise Ratio: Greater than 100 dB

Gain, Equalization, and Filtering

• Channel 1 and 2 Gain Range: +/-15 dB
• Microphone/Line Channel Gain Range: +/-20 dB
• Channel 1 and 2 Low EQ: +10/-30 dB
• Channel 1 and 2 Mid EQ: +10/-25 dB
• Channel 1 and 2 High EQ: +10/-30 dB
• Microphone/Line Channel Low EQ: +/-15 dB
• Microphone/Line Channel High EQ: +/-15 dB
• Low Kill Filter: 200 Hz cutoff at -6 dB
• Mid Kill Filter: 200 Hz to 6.8 kHz at -6 dB
• High Kill Filter: 6.8 kHz cutoff at -6 dB
• Kill Filter Slope: 12 dB per octave

Power and Physical Specifications

• Microphone Phantom Power: +18 VDC, 5 mA maximum; factory-enabled and internally switchable
• AC Input: 90 to 264 VAC, 47 to 63 Hz
• Power Connection: IEC input
• Power Consumption: 30 VA
• USB Connectivity: No
• Wireless Connectivity: No
• Media Card Slots: No
• Dimensions (W x D x H): 6.5 x 14.6 x 3.1 inches
• Weight: 6.6 pounds
• Package Dimensions (L x W x H): 18.8 x 10.8 x 6.5 inches
• Package Weight: 9 pounds
• Manufacturing Location: Barcelona, Spain
• Certifications: EN60065:2014, EN55103-1:2009, EN55103-2:2009, 2006/95/EC, and 2004/108/CE

What's In the Box

• Ecler NUO 2.0 Professional 2-Channel DJ Mixer
• IEC power cord
