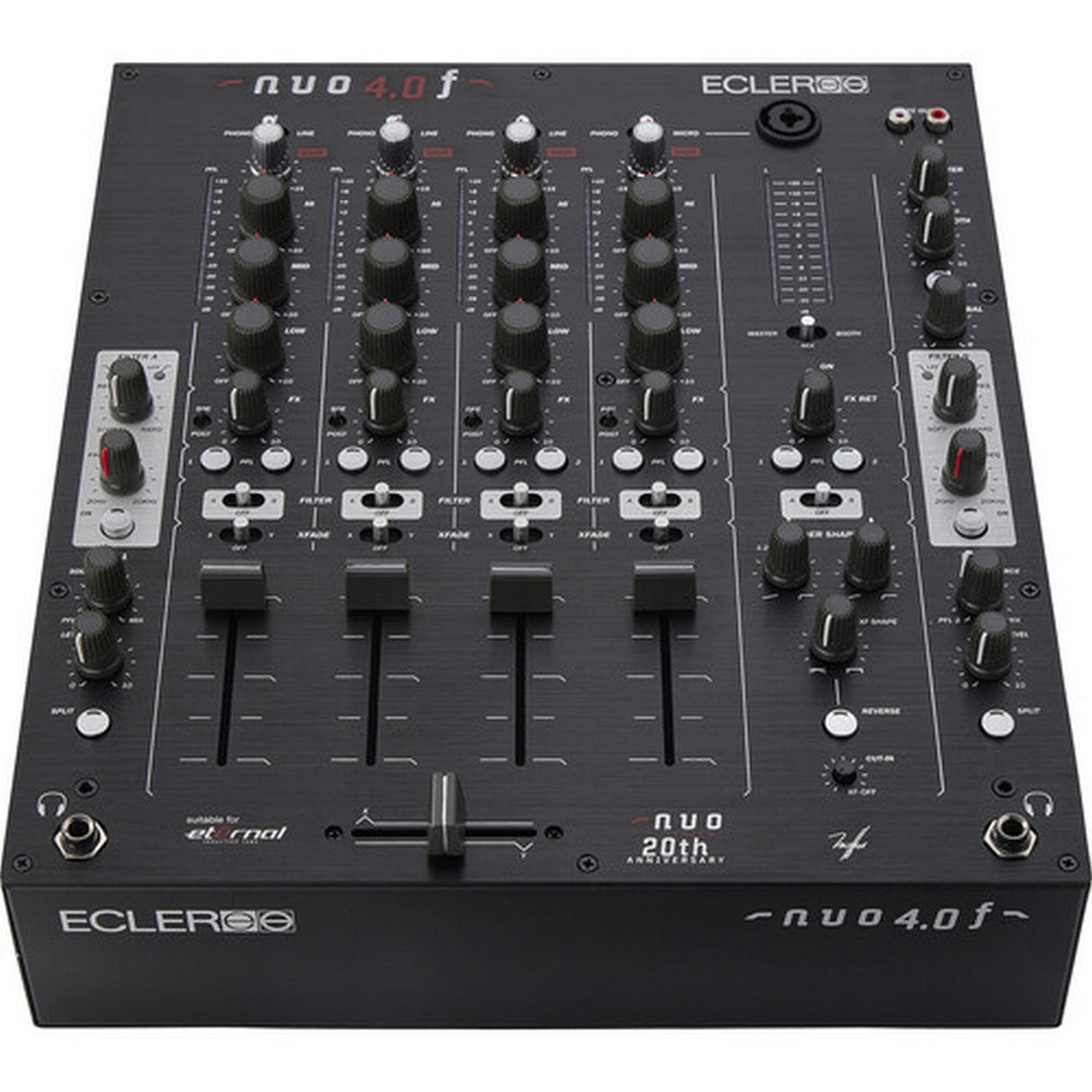

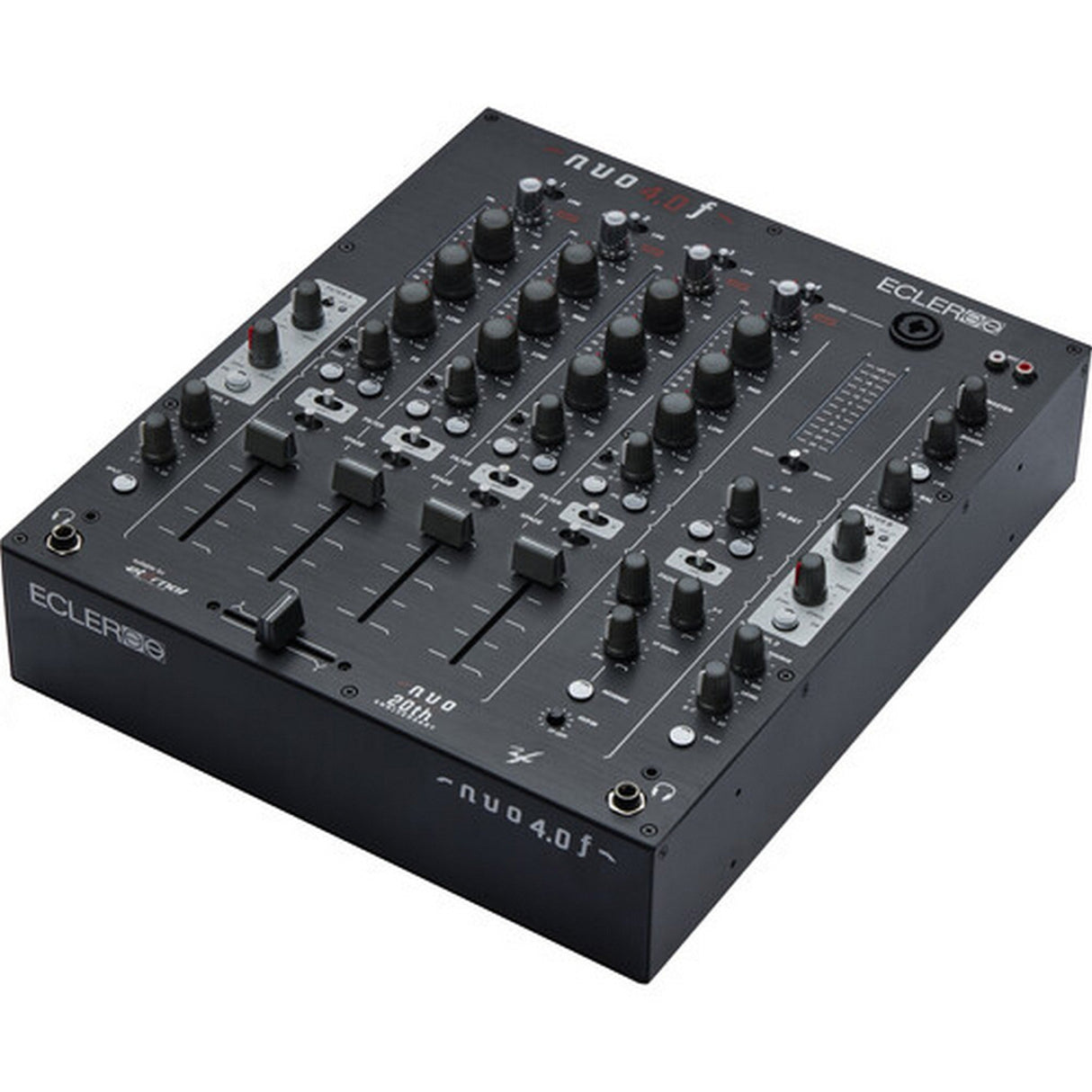

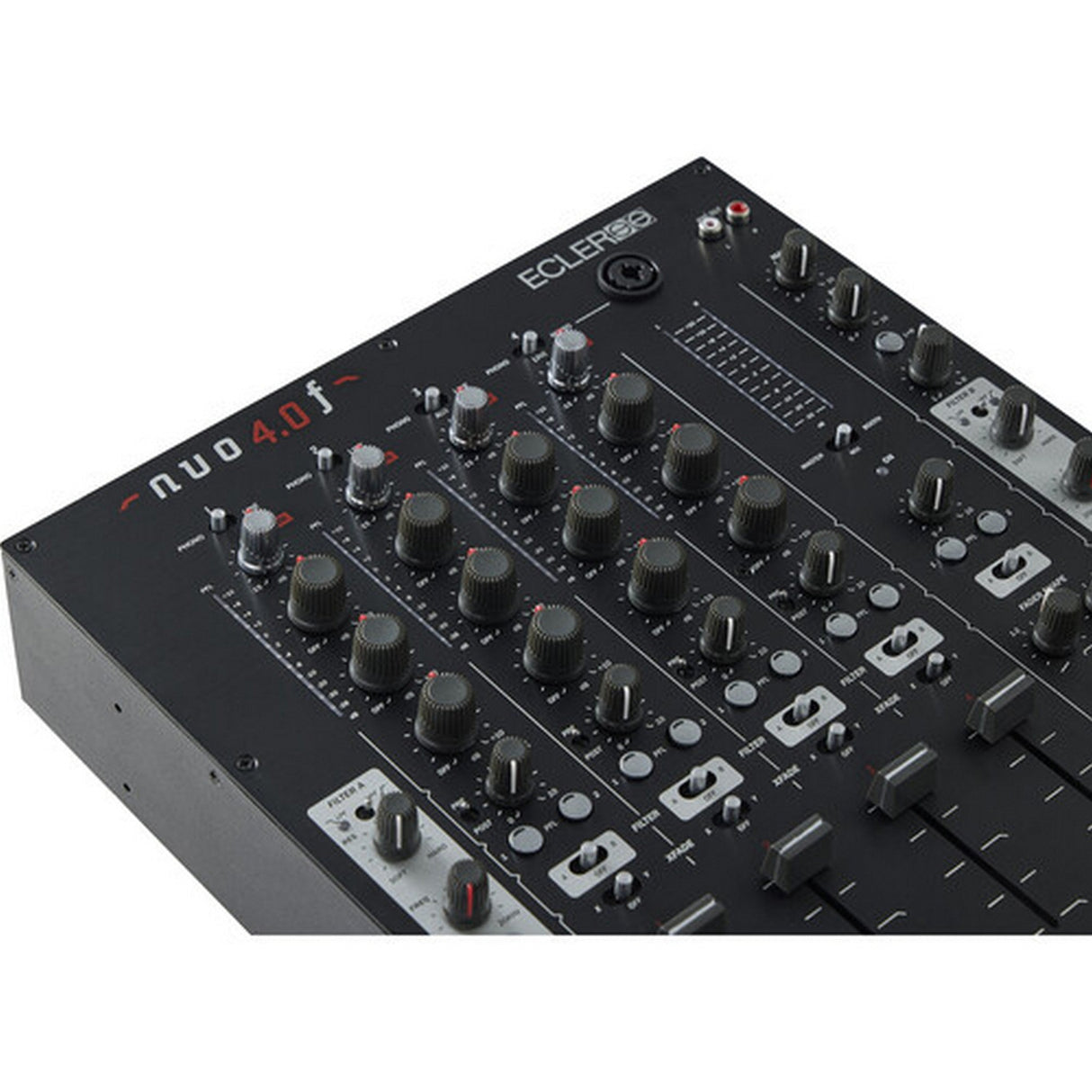

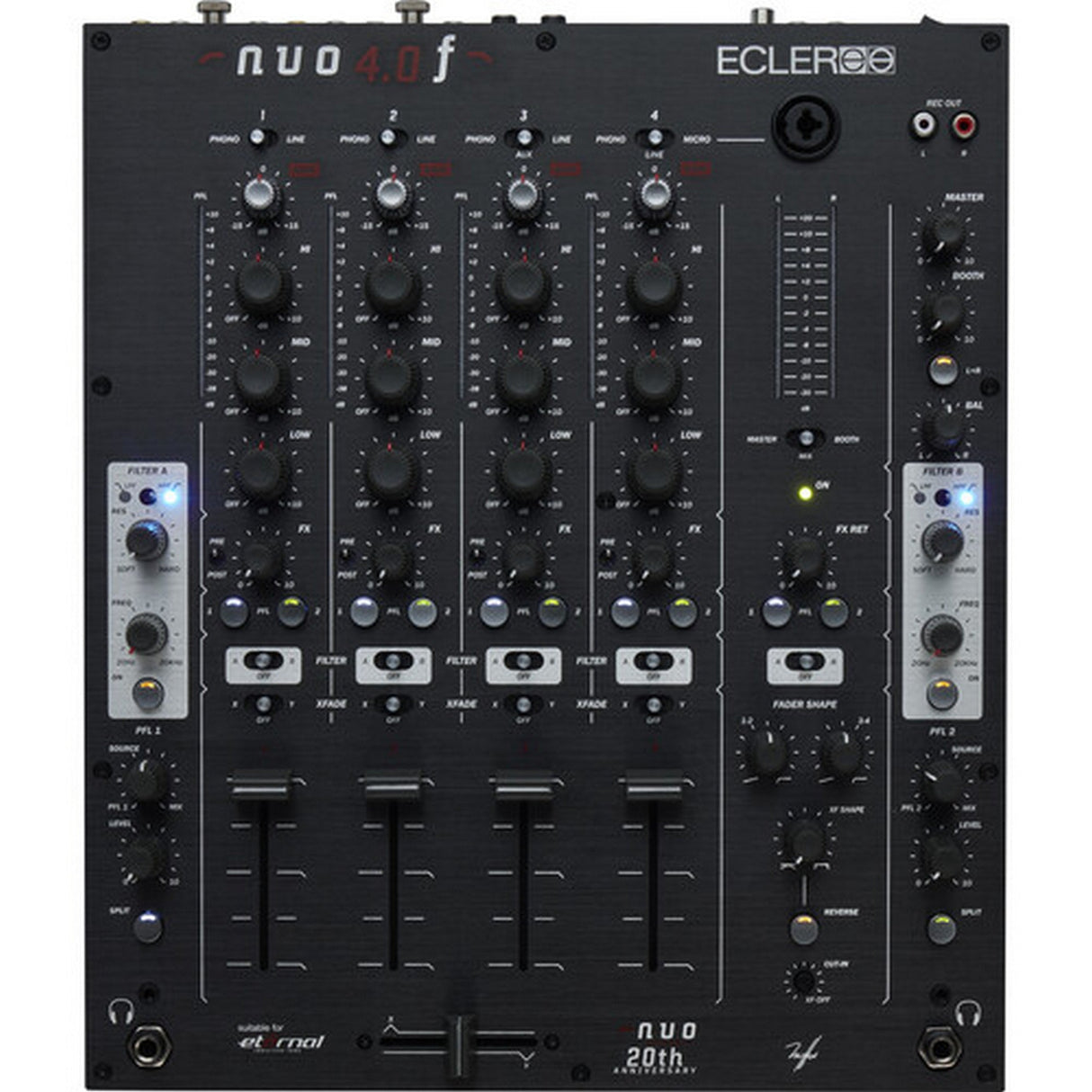

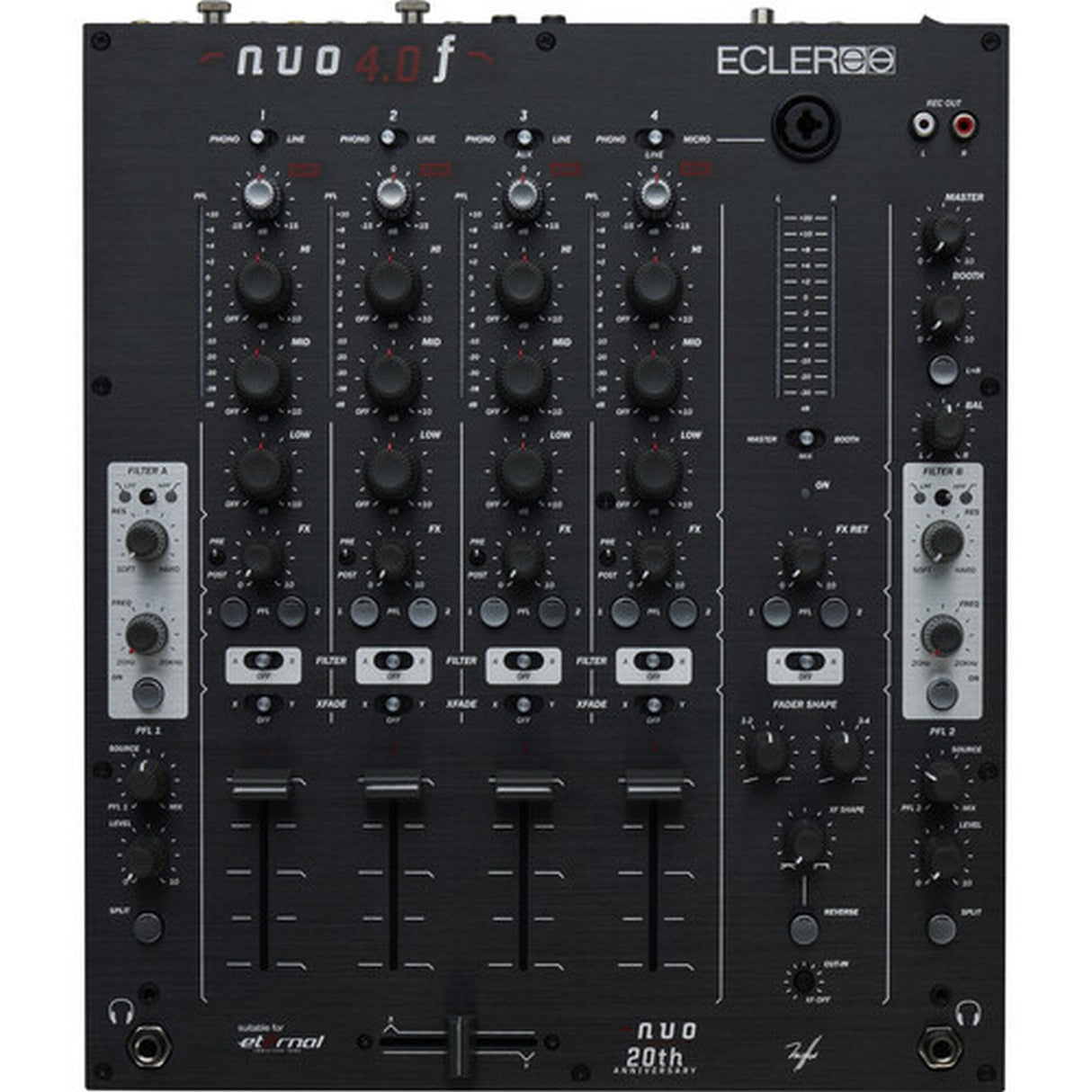

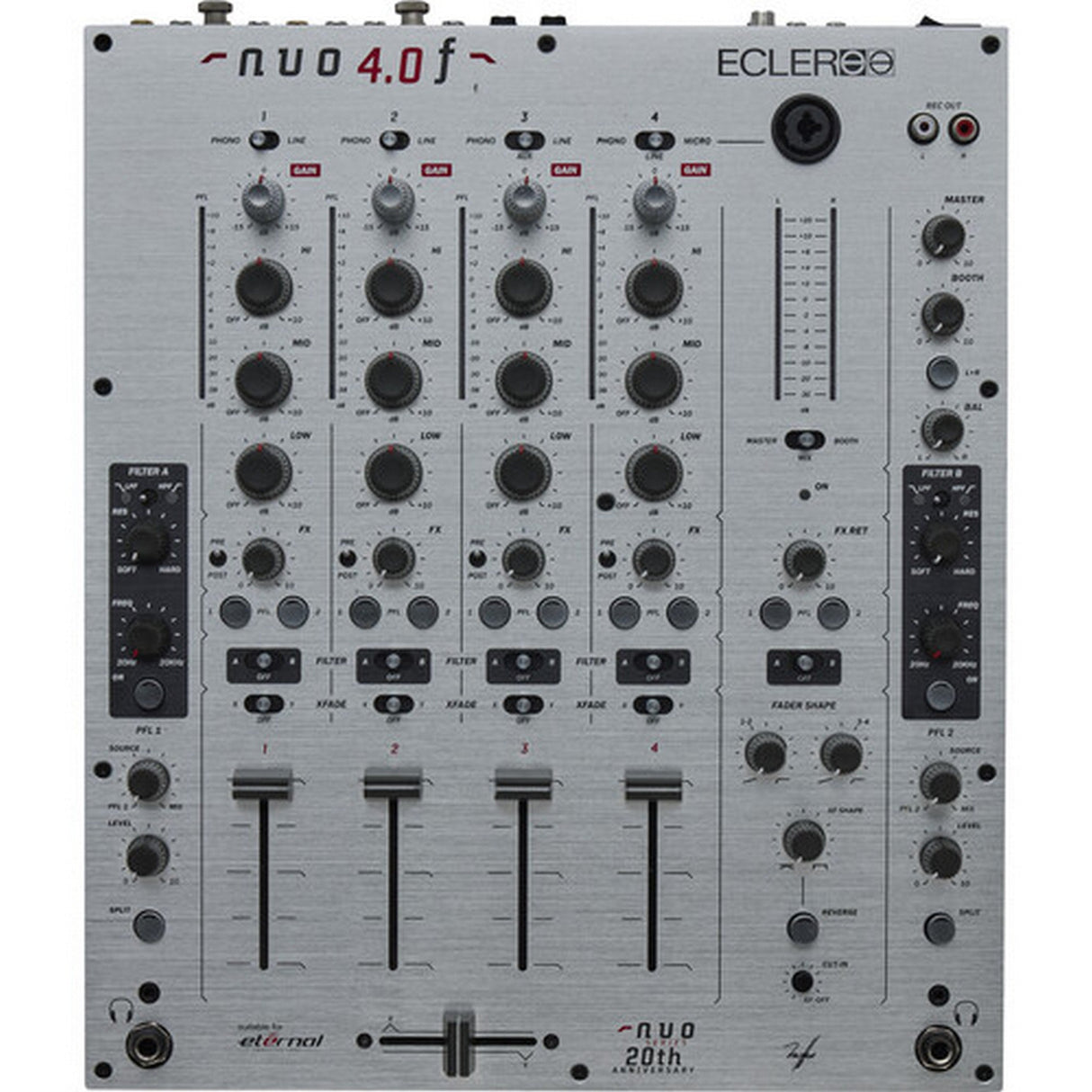

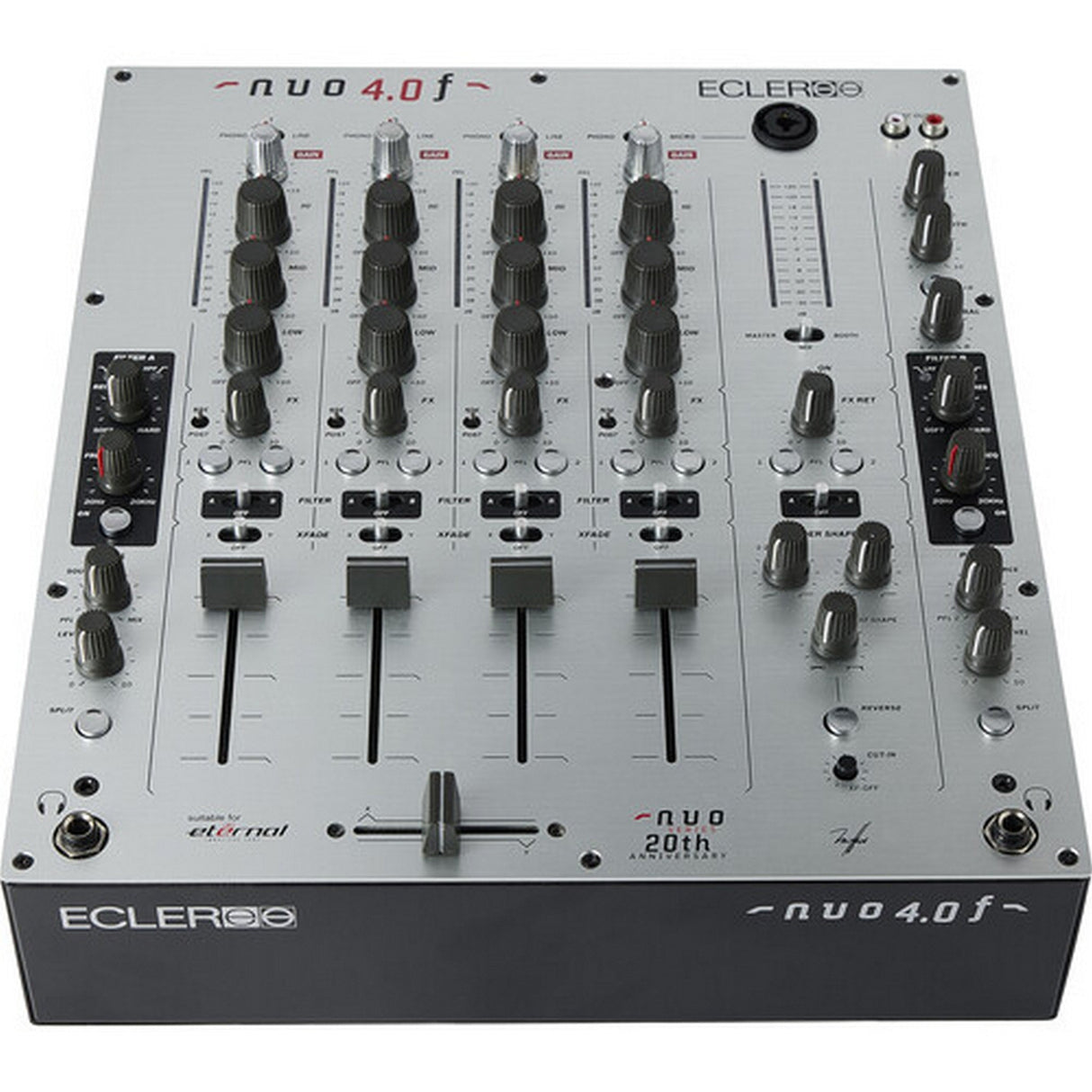

Ecler NUO4.0F 4-Channel Analog DJ Mixer - Black

Ecler NUO4.0F 4-Channel Analog DJ Mixer

The Ecler NUO4.0F 4-Channel Analog DJ Mixer combines four phono/line channels, dual assignable VCF filters, independent cue systems, and adjustable fader controls for professional club mixing. Available in black or silver, it supports turntables, digital players, microphones, external effects, back-to-back sets, and advanced scratch techniques.

Each channel provides gain control, three-band full-cut equalization, effects-send adjustment, pre/post-fader routing, and flexible crossfader assignment. Two voltage-controlled filters offer selectable high-pass or low-pass operation, variable frequency, and adjustable resonance. DJs can route either filter to any input channel or the effects return for transitions, frequency sweeps, and tonal shaping.

Two independent PFL systems let separate performers cue channels through dedicated headphone connections, making the mixer especially useful for back-to-back DJ performances. Balanced XLR and unbalanced RCA master and booth outputs support club systems, mobile rigs, and studios. The NUO4.0F is manufactured in Barcelona and accepts the optional Ecler ETERNAL magnetic crossfader.

Key Features

• Black and Silver Variants: Choose between two finishes with the same professional mixing features and connection layout.
• Four-Channel Analog Mixing: Connect four phono sources, four primary line sources, an auxiliary source, and a microphone.
• Dual VCF Filters: Assign two high-pass or low-pass filters to any channel or the effects return.
• Independent DJ Monitoring: Two separate PFL systems allow two performers to cue sources simultaneously during back-to-back sets.
• Flexible Effects Routing: Send each channel to external processing before or after its channel fader.
• Adjustable Fader Response: Shape the response of the 2.4-inch channel faders for gradual blends or faster cuts.
• Scratch-Oriented Crossfader Controls: Adjust the curve, reverse the assignments, and configure the cut-in point for performance techniques.
• Professional Output Section: Balanced and unbalanced master and booth outputs integrate with club, studio, and mobile sound systems.

Technical Specifications

Models and Configuration

• Product Type: Professional analog DJ mixer
• Mixing Channels: 4 stereo channels

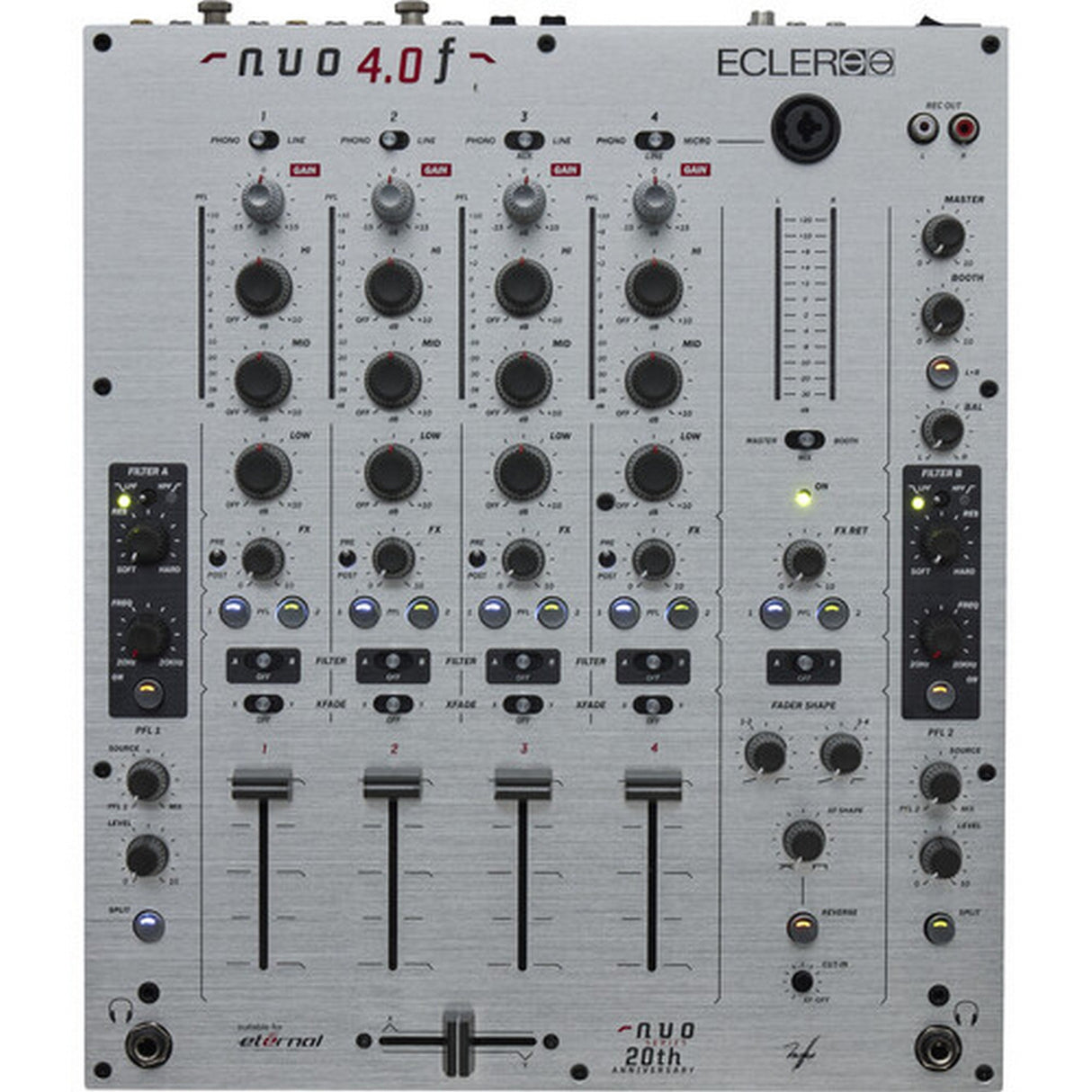

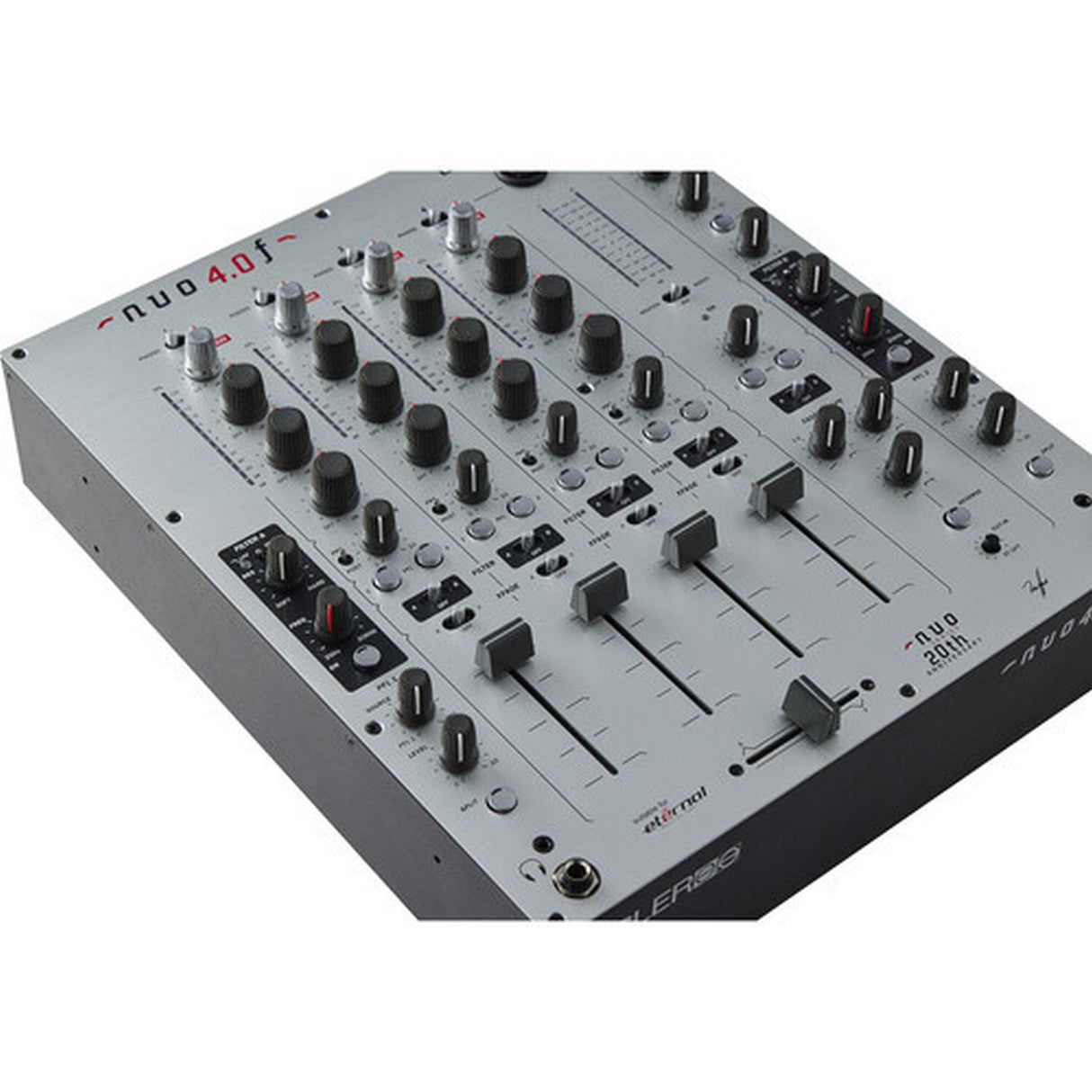

• Available Finishes: Black and silver
• Black Model Number: NUO-4.0F
• Silver Model Number: NUO-4.0F-SL
• Built-In Effects: No
• Optional Crossfader: Ecler ETERNAL magnetic crossfader
• Certification: FCC

Input Connections

• Line Inputs: Five stereo unbalanced inputs
• Primary Line Connectors: Four stereo RCA pairs
• Auxiliary Input: One stereo RCA pair
• Phono Inputs: Four stereo unbalanced RCA pairs
• Microphone Input: One balanced XLR and 1/4-inch TRS combo input
• Effects Return: One stereo unbalanced RCA pair
• Phono Ground Connections: Two grounding terminals
• Line Input Sensitivity and Impedance: 0 dBV at 50 kilohms
• Phono Input Sensitivity and Impedance: -40 dBV at 50 kilohms
• Microphone Input Sensitivity and Impedance: -50 dBV at greater than 1 kilohm
• Effects Return Sensitivity and Impedance: 0 dBV at greater than 6 kilohms

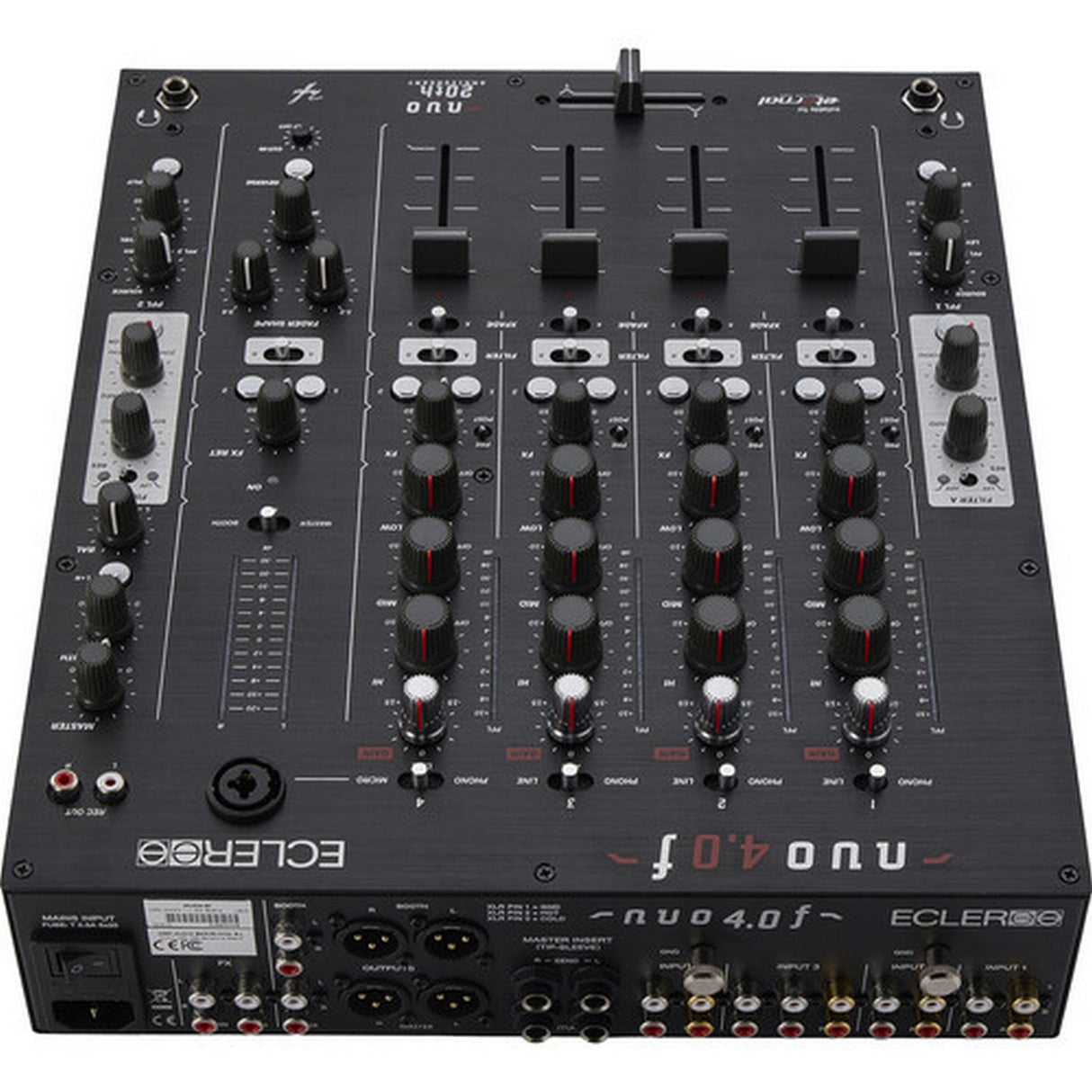

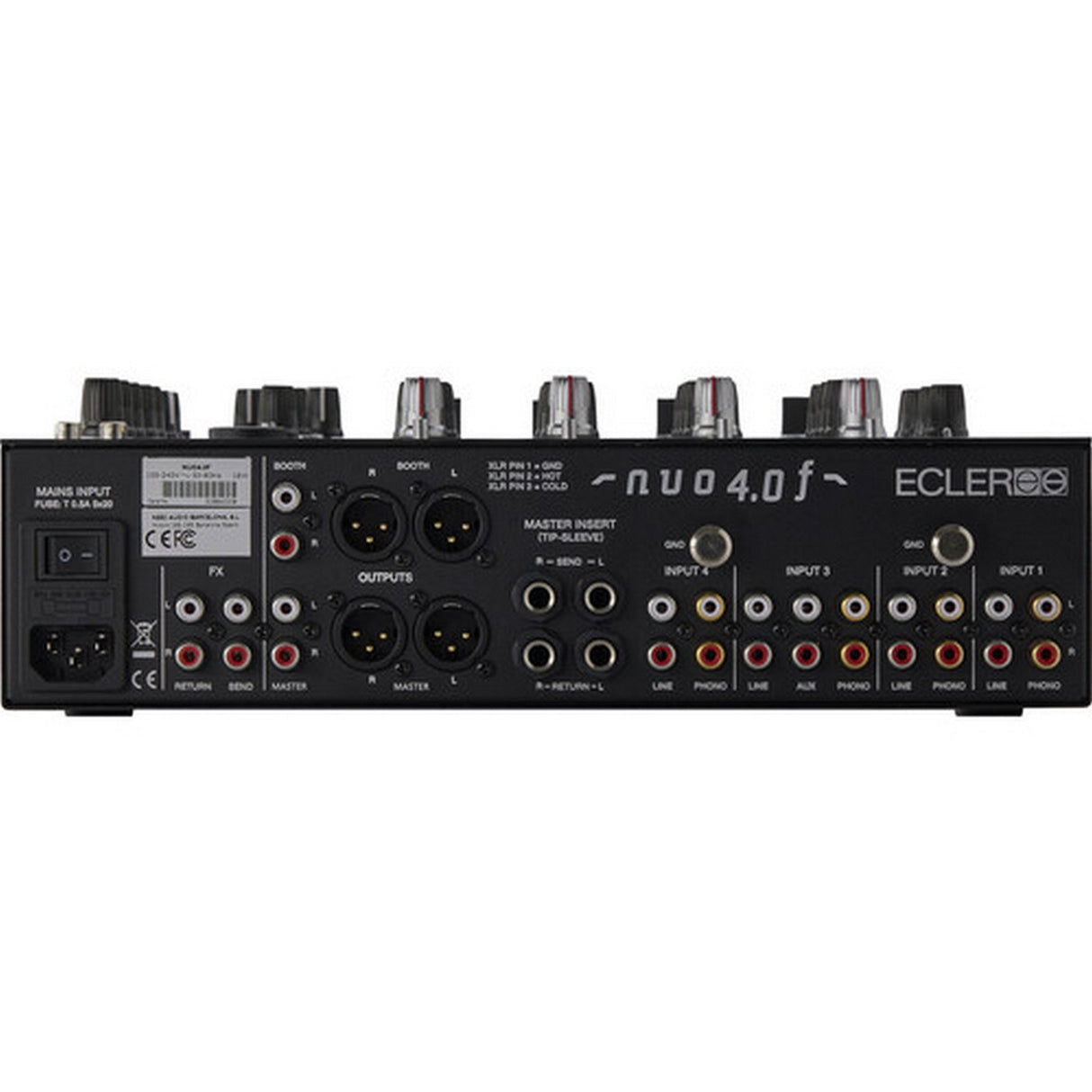

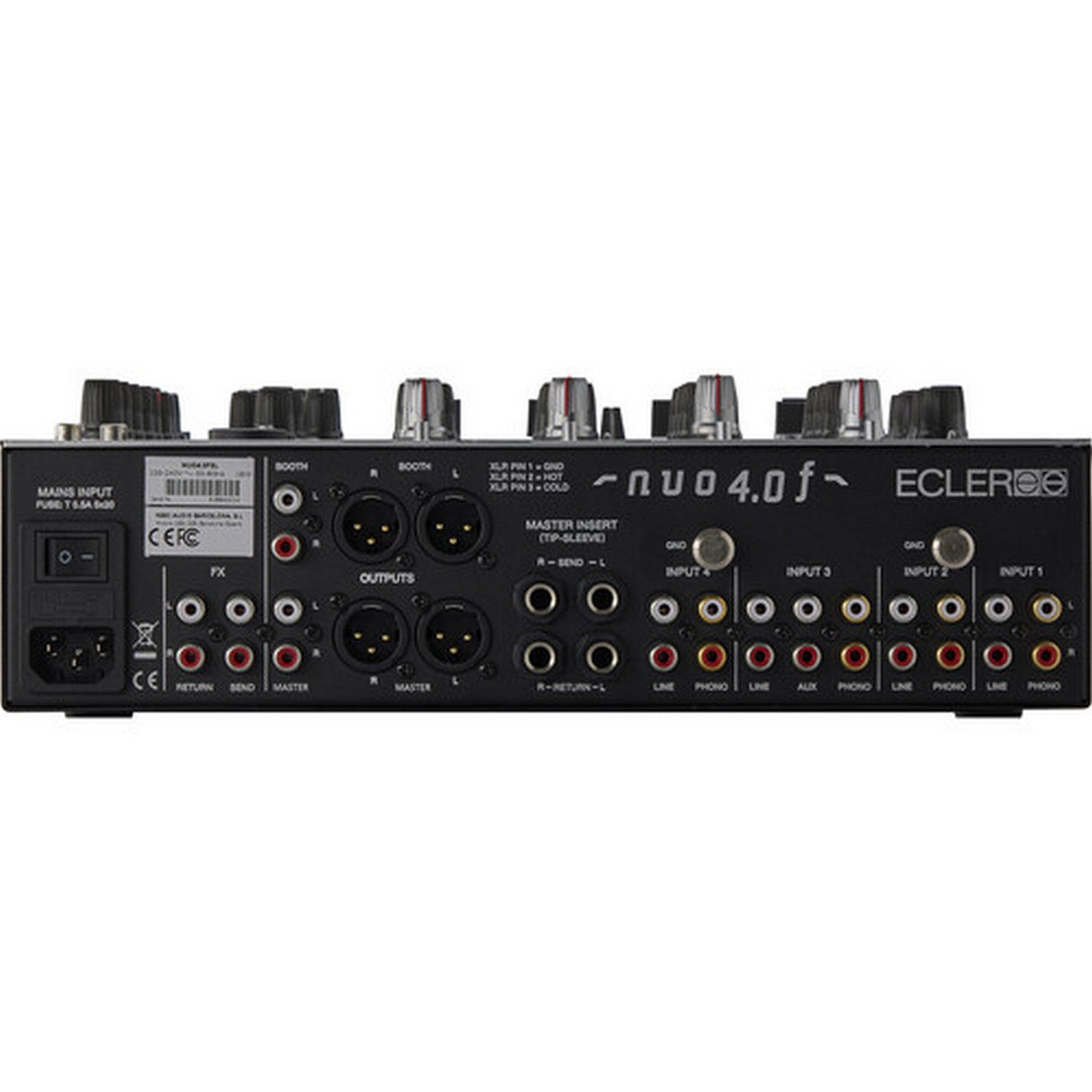

Output Connections

• Balanced Master Output: Stereo 3-pin XLR
• Unbalanced Master Output: Stereo RCA
• Balanced Booth Output: Stereo 3-pin XLR
• Unbalanced Booth Output: Stereo RCA
• Record Output: Stereo RCA
• Effects Send: Stereo RCA
• Master Insert Send: Two unbalanced 1/4-inch TS connectors
• Master Insert Return: Two unbalanced 1/4-inch TS connectors
• Headphone Outputs: Two 1/4-inch stereo jacks and two 3.5 mm stereo jacks
• Independent PFL Systems: 2
• Balanced Master Output Level: 0 dBV into 600 ohms at 1 V, internally selectable to +12 dBV at 4 V
• Unbalanced Master Output Level: 0 dBV into 2.2 kilohms at 1 V, internally selectable to +12 dBV at 4 V
• Balanced Booth Output Level: 0 dBV into 2.2 kilohms at 1 V, internally selectable to +12 dBV at 4 V
• Unbalanced Booth Output Level: 0 dBV into 2.2 kilohms at 1 V, internally selectable to +12 dBV at 4 V
• Record Output Level: 0 dBV into 10 kilohms
• Effects Send Level: 0 dBV into 2.2 kilohms
• Headphone Output: 200 mW into 200 ohms at 1% THD
• Maximum Undistorted Output: 21 dBV / 23 dBu

Equalization and Filters

• Channel Gain Range: +/-15 dB
• Bass EQ: +10/-30 dB
• Midrange EQ: +10/-25 dB
• Treble EQ: +10/-30 dB
• Bass Cut Frequency: 200 Hz at -6 dB
• Midrange Cut Frequency: 200 Hz to 6.8 kHz at -6 dB
• Treble Cut Frequency: 6.8 kHz at -6 dB
• EQ Filter Slope: 12 dB per octave
• VCF Filters: Two assignable high-pass or low-pass voltage-controlled filters
• VCF Frequency Range: 20 Hz to 20 kHz
• Maximum Filter Resonance: +12 dB
• Filter Routing: Assignable to any input channel or the effects return

Faders, Crossfader, and Monitoring

• Channel Faders: Four 2.4-inch Ecler VCA faders
• Channel Fader Durability: More than 4,000,000 operations
• Channel Fader Curve: Adjustable independently for channels 1-2 and channels 3-4
• Crossfader Length: 1.8 inches
• Crossfader Assignment: X, off, or Y selection for each channel
• Crossfader Controls: Adjustable curve, reverse function, and cut-in adjustment
• Potentiometers: ALPS RK09L metal-shaft potentiometers
• Effects Routing: Per-channel send level with pre-fader or post-fader selection
• Effects Return Monitoring: Adjustable return level with PFL
• Headphone Monitoring: Independent PFL-to-mix blend, level, and split-cue controls for each monitoring section
• Channel Metering: Four 12-segment LED meters from -38 to +10 dBV
• Master, Mix, and Booth Metering: One 12-segment LED meter from -30 to +20 dBV

Audio Performance

• Line Frequency Response: 10 Hz to 30 kHz, -1 dB
• Microphone Frequency Response: 10 Hz to 25 kHz, -1 dB
• Phono Frequency Response: RIAA within +/-0.5 dB
• Effects Return Frequency Response: 10 Hz to 50 kHz, -1 dB
• Line THD+N: Less than 0.03%
• Microphone THD+N: Less than 0.08%
• Phono THD+N: Less than 0.08%
• Effects Return THD+N: Less than 0.003%
• Microphone CMRR: Greater than 75 dB at 1 kHz
• Line Signal-to-Noise Ratio: Greater than 103 dB
• Microphone Signal-to-Noise Ratio: Greater than 85 dB
• Phono Signal-to-Noise Ratio: Greater than 90 dB
• Effects Return Signal-to-Noise Ratio: Greater than 110 dB

Power and Physical Specifications

• Power Supply: Internal
• AC Input: 90 to 264 VAC, 47 to 63 Hz
• Power Connector: 15 A IEC inlet
• Rated Power Consumption: 37 VA
• Microphone Phantom Power: 18 VDC, 5 mA maximum, enabled by default
• USB Connectivity: No
• Wireless Connectivity: No
• Media Card Slot: No
• Installation: Desktop or rack mounting with optional accessories
• Operating Temperature: 23 to 113 degrees Fahrenheit
• Operating Humidity: 20% to 90% RH, noncondensing
• Storage Temperature: 14 to 122 degrees Fahrenheit
• Storage Humidity: Less than 90% RH, noncondensing
• Dimensions (W x H x D): 12.6 x 3.1 x 14.7 inches
• Weight: 10.4 pounds
• Shipping Dimensions (W x H x D): 19.5 x 6.9 x 17.1 inches
• Shipping Weight: 13.5 pounds
• Manufacturing Location: Barcelona, Spain

What's In the Box

• Ecler NUO4.0F analog DJ mixer in the selected finish
• IEC power cable
• Eight RCA protection caps for unused phono inputs
• First Steps Guide
